Machine components details

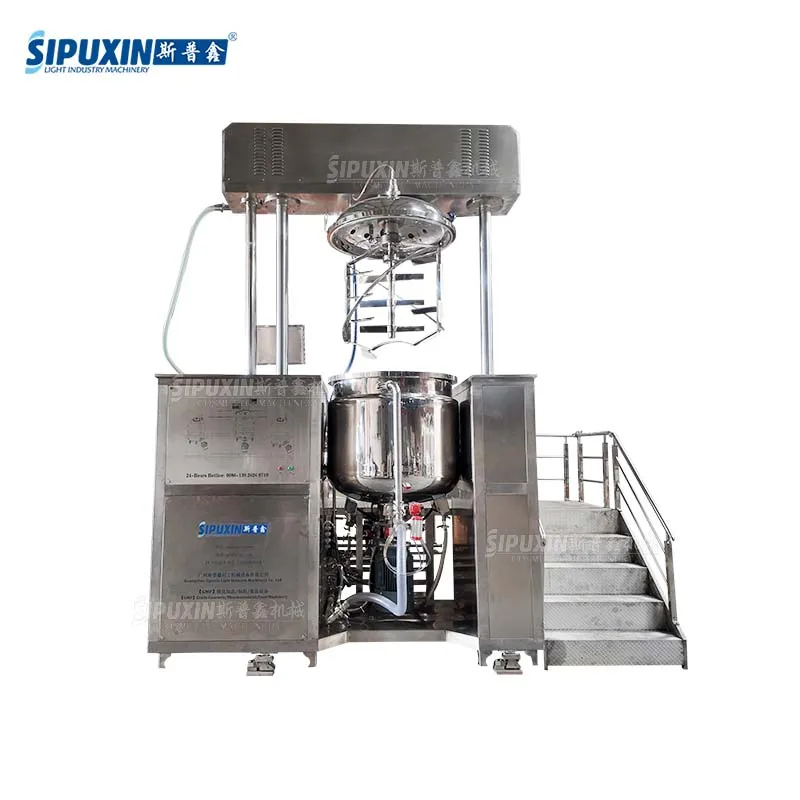

500 L electric heating emulsifying vacuum homogenizing emulsifier tank
Machine composition:

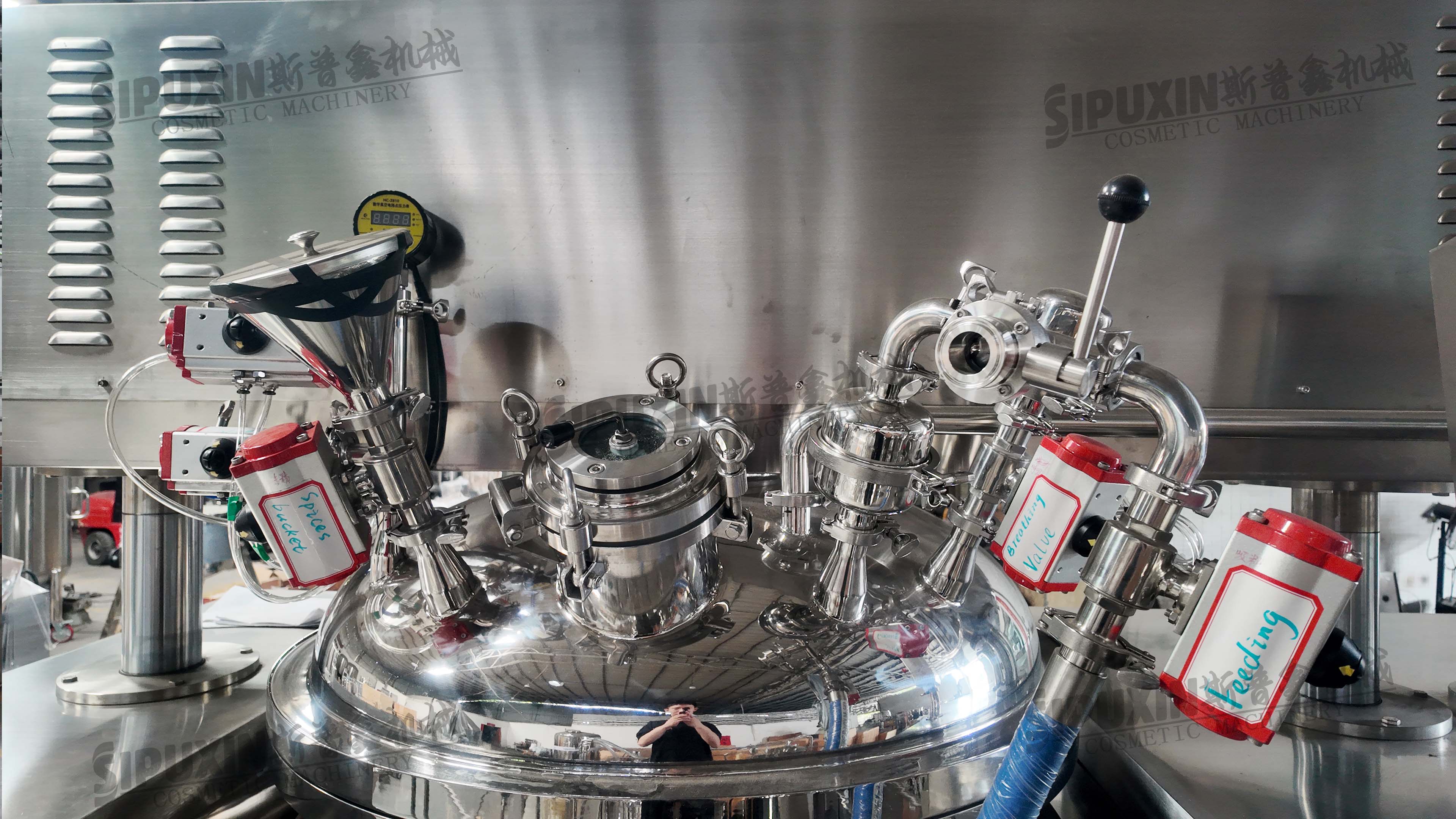

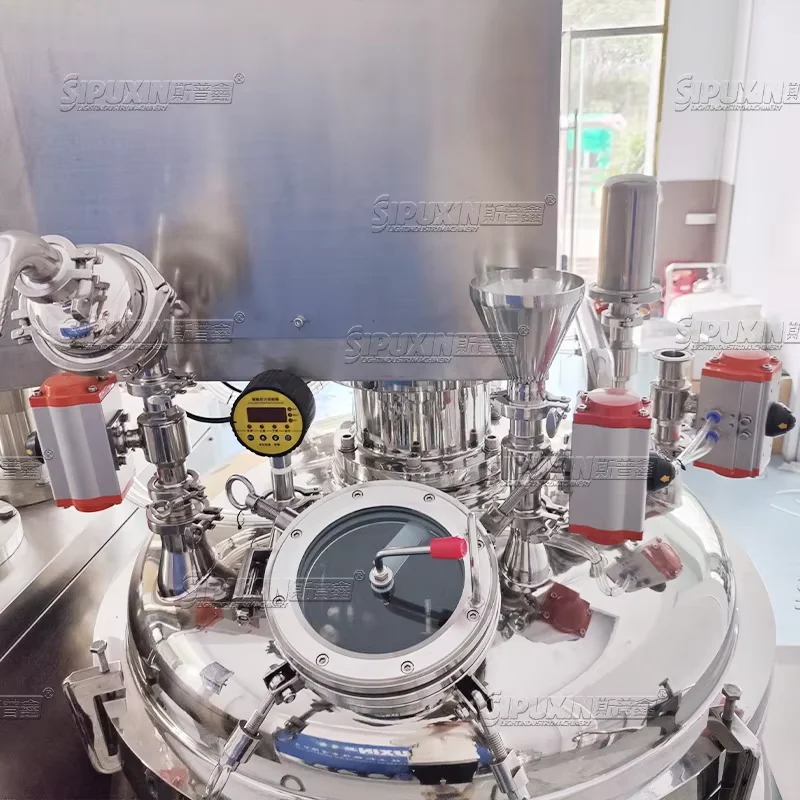

The vacuum homogenizer is mainly composed of main tank ,cover, tank body, mixing system,homogenizing system, vacuum system ,operation platform etc.
Usage and Application:
Our machine is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials,petrochemical industry, printing and rubber, electrics and electronics and fine chemical industry etc., the emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Capacity | 500L |
Material | Stainless steel sus304/sus316L |
Heating way | Power:18KW Electric heating water in jacket with tap-water cooling system |
Mixing way | Power: 7.5KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade |
Homogenizer way | Power: 11KW; Speed: 0-3600RPM,speed adjustable |

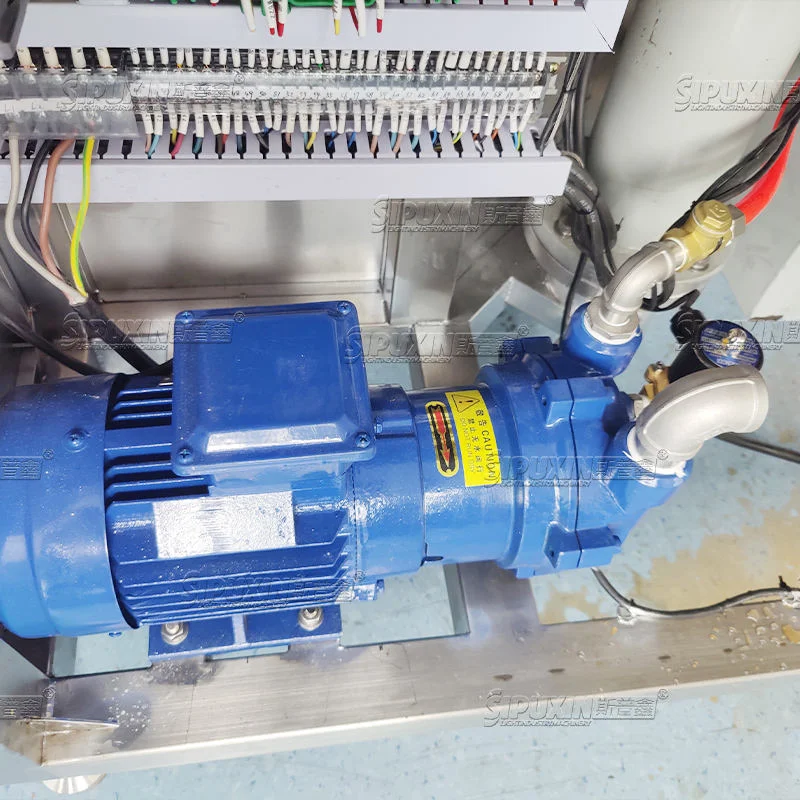

Vacuum system | power: 3KW |

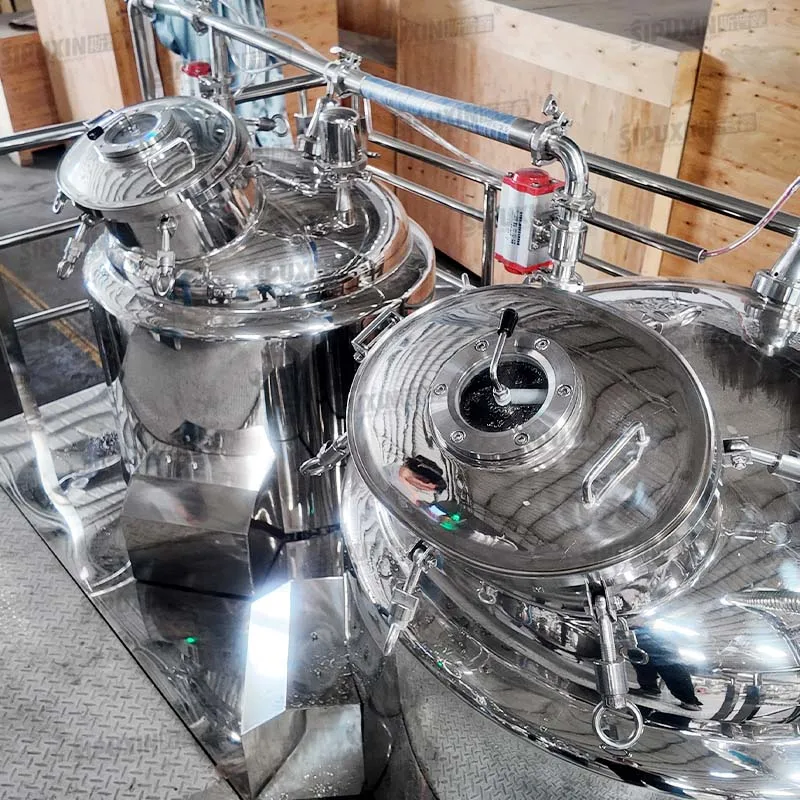

The oil-water tank
The water tank has a capacity of 460L and the
oil tank 200L. Both tanks are equipped with electric heating and mixing functions for material pre-treatment.This oil-water tank
features a precision load cell that halts material feeding automatically upon reaching the preset weight. Furthermore, dedicated
cleaning balls are installed in both the water and oil tanks to facilitate convenient cleaning.

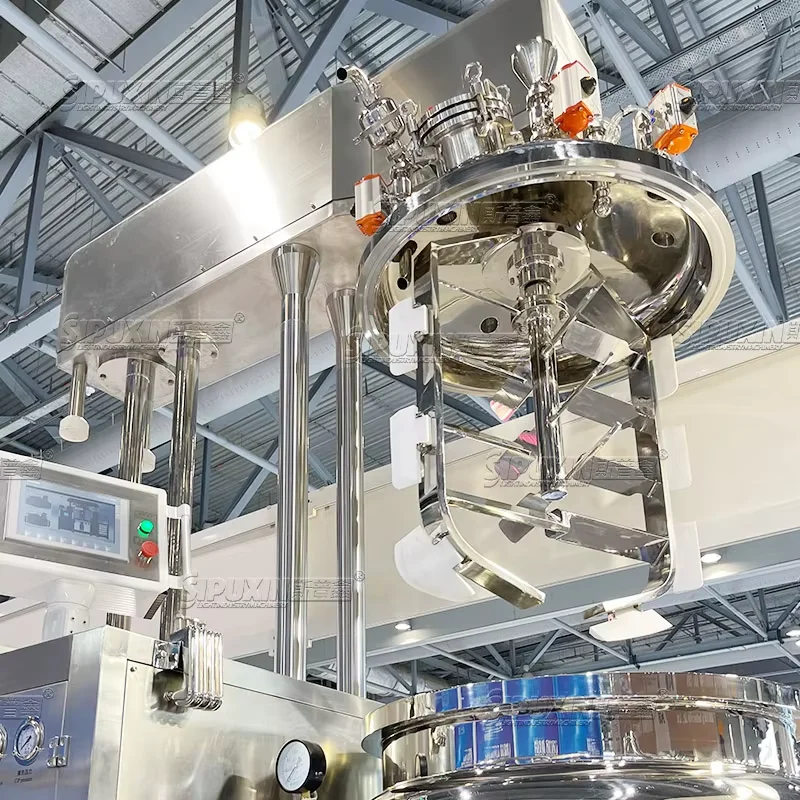

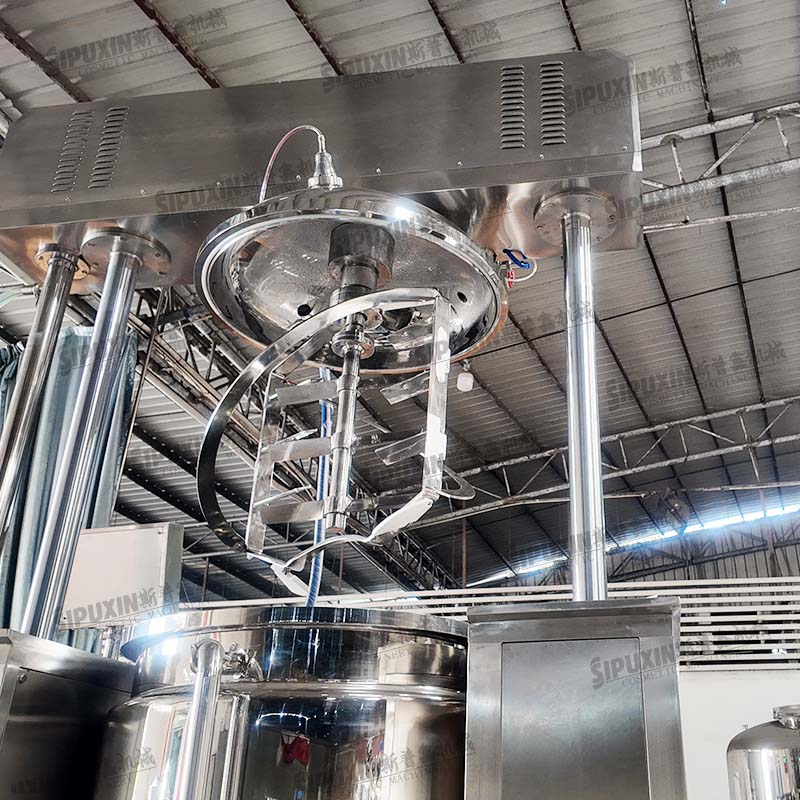

Helical ribbon mixer
The mixer of this machine is 2 way mixing,center mixer with side helical ribbon mixer.The materials stirred by the center mixer will be dispersed on the surrounding pot walls, and then the helical ribbon mixer will mix and scrape the surrounding materials to the bottom and middle, so that all materials can be fully mixed and emulsified.

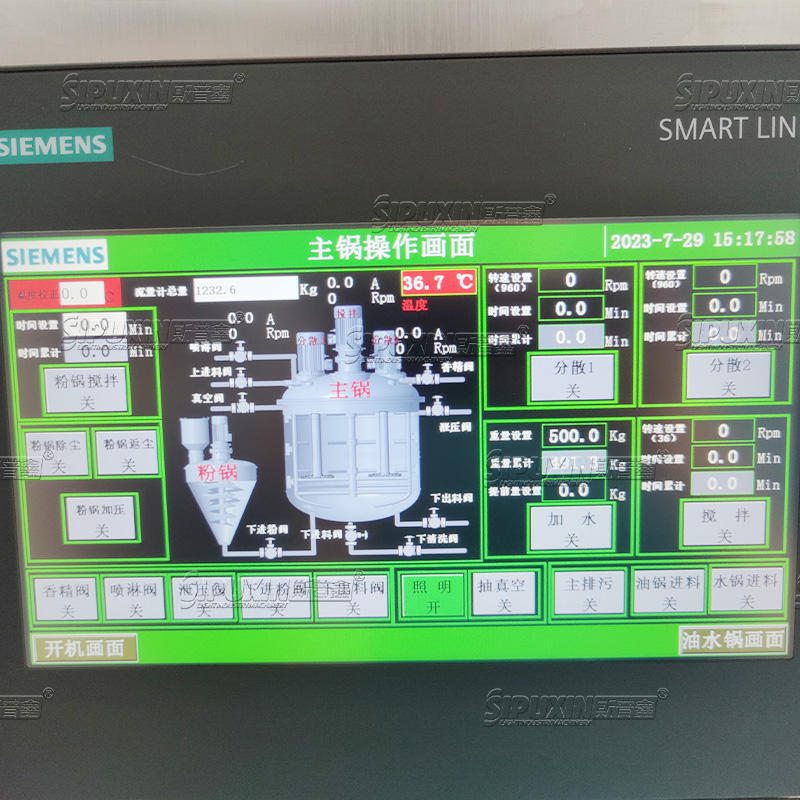

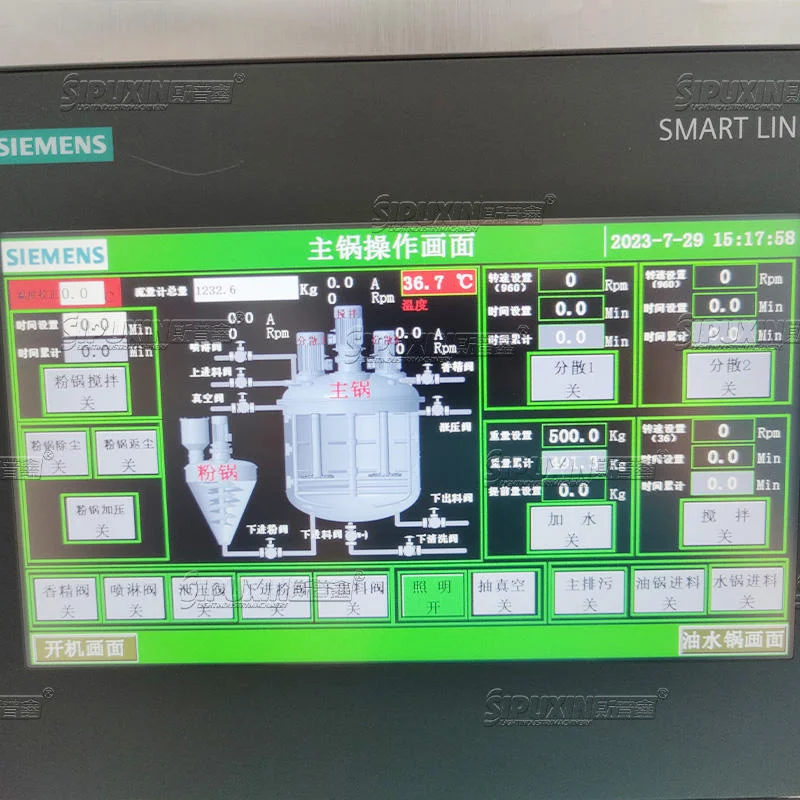

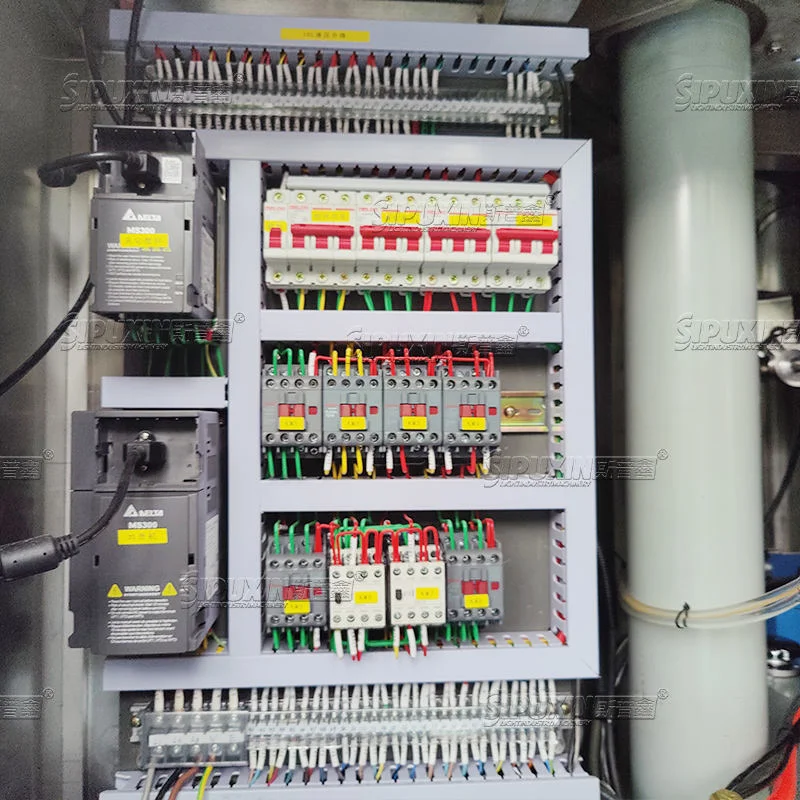

Siemens PLC control
This system uses a Siemens PLC controller with a touchscreen HMI. It features recipe storage and can record complete production data for each batch. In case of product quality
issues, it allows quick tracing of the production date, batch number, and raw material ratios for the corresponding batch.

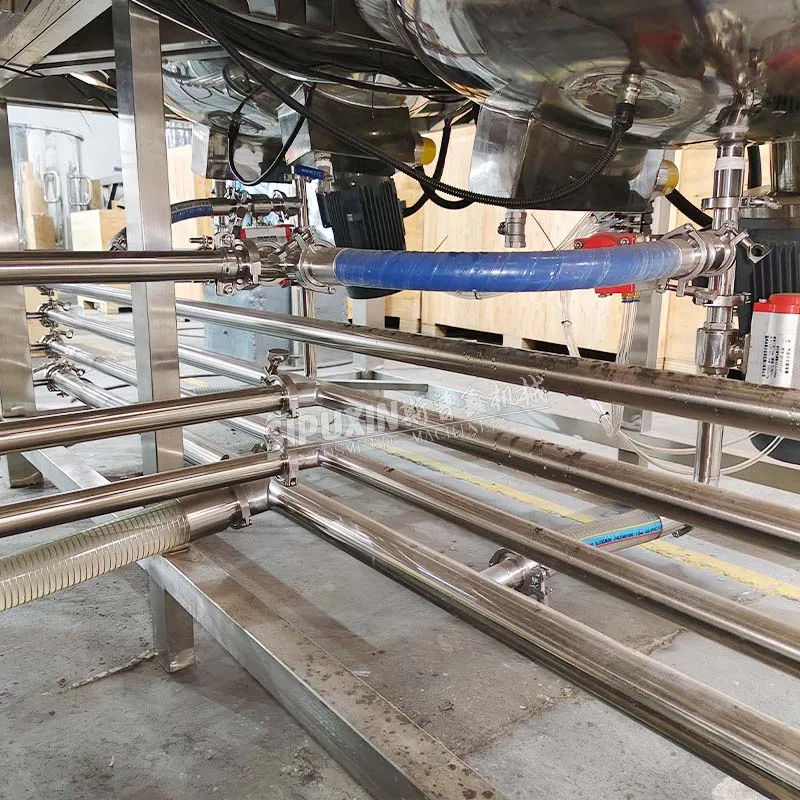

Heating pipelines
Heating oil circulation pipelines are installed at the bottom of the oil-water tank to prevent material blockage inside the pipelines.
After pretreatment in the oil-water tank, the materials are transported through the bottom pipeline to the main tank for production.This design effectively avoids material contamination by external dust and ensures the whole production process is carried out under aseptic conditions.
Pictures for reference
Company Profile
00:29
03:00
Guangzhou Sipuixin Light Industry Machinery
We,Guangzhou Sipuxin Light Industry Machine Co.Ltd.,locates in No.380 Guangcong 9th Road,Zhongluotan Town ,Baiyun District,Guangzhou,China--the core technology area for machinery design and manufacture.
Based on Jiangsu light industry Research Institute and Germany top homogenizing technology, with solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory, Sipuxin is professional manufacturer for Vacuum homogenizing emulsifier, Mixing tank, RO water treatment, Storage tank, CIP cleaning system,Filling/Capping/Labeling
machine, Ink-jet/laser printing machine and other packing machine.
We have passed CE, BV,TUV, SGS quality certificate, and coincident with GMP standard.
Factory setting
Our showroom
production configuration
Recommended by seller
Engineering Case
Package
FAQ
1.Are you a factory? Yes, we are a factory with more than 20 years experiences. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
4.Can your product be customized? Yes, we can customize products according to your needs.
5.What is the warranty period for your product? One year.
