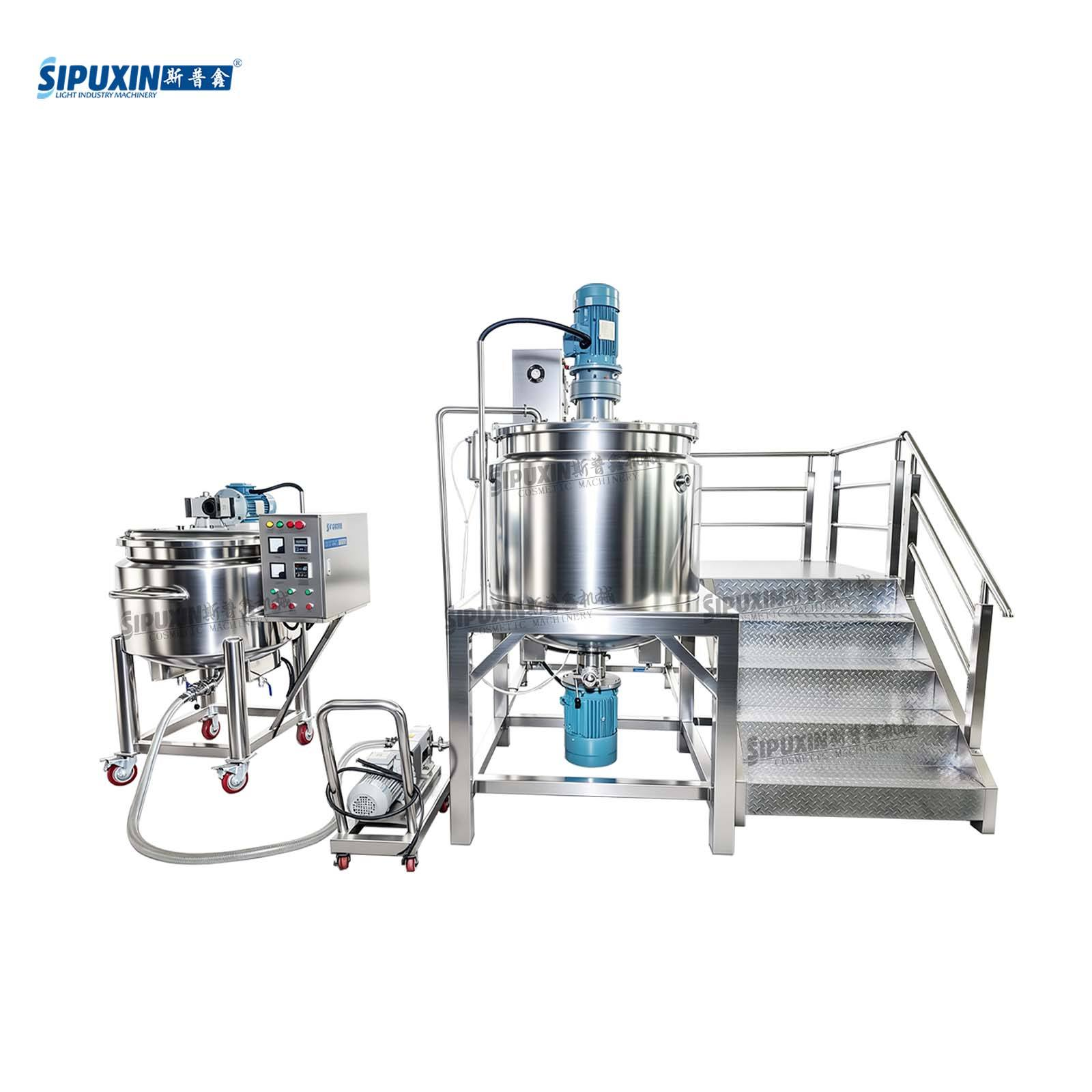

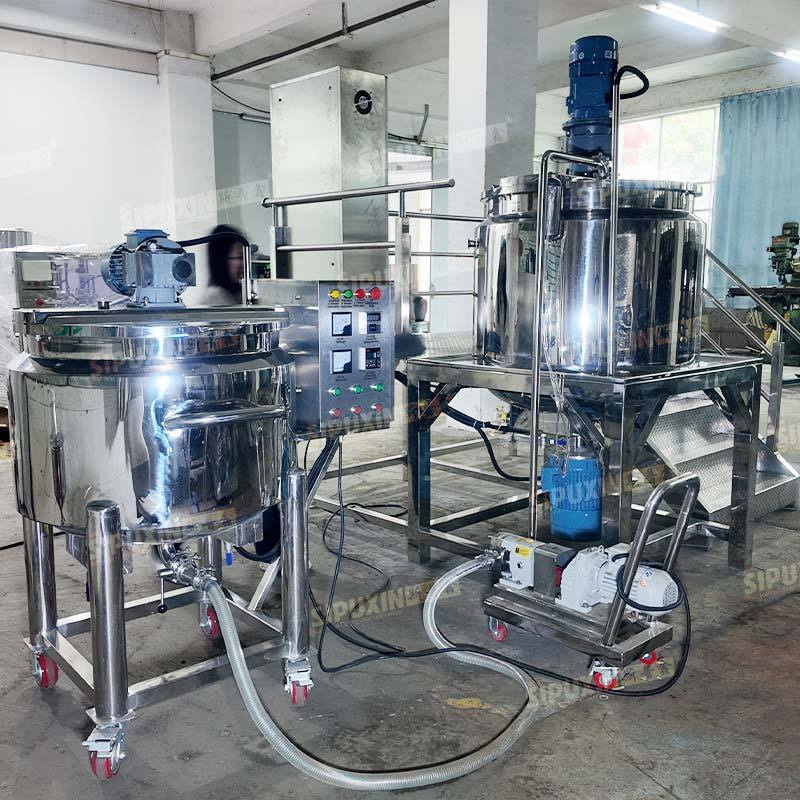

500L Homogenizer Mixing Tank + 200L Agitator Mixing Pot Stainless Steel Vacuum Emulsifier for Cosmetic Food Chemical Production

Machine components details

Pictures for reference

Lid accessories

Flip open cover for easy material feeding

With a motor of ABB brand from Switzerland.

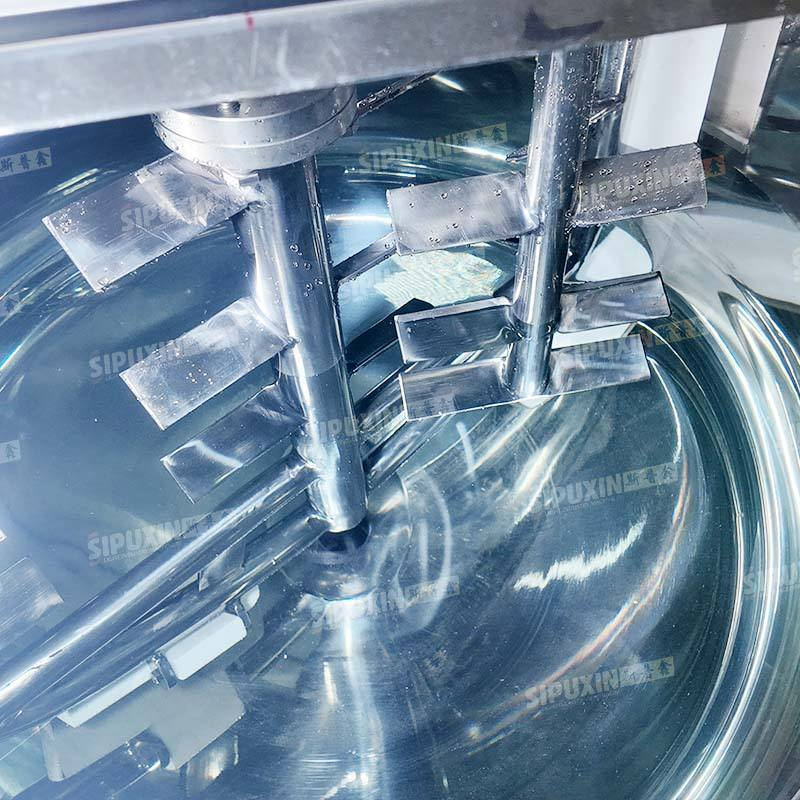

Mixing system

Frame-wall fixed mxier with side Teflon scraper

Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

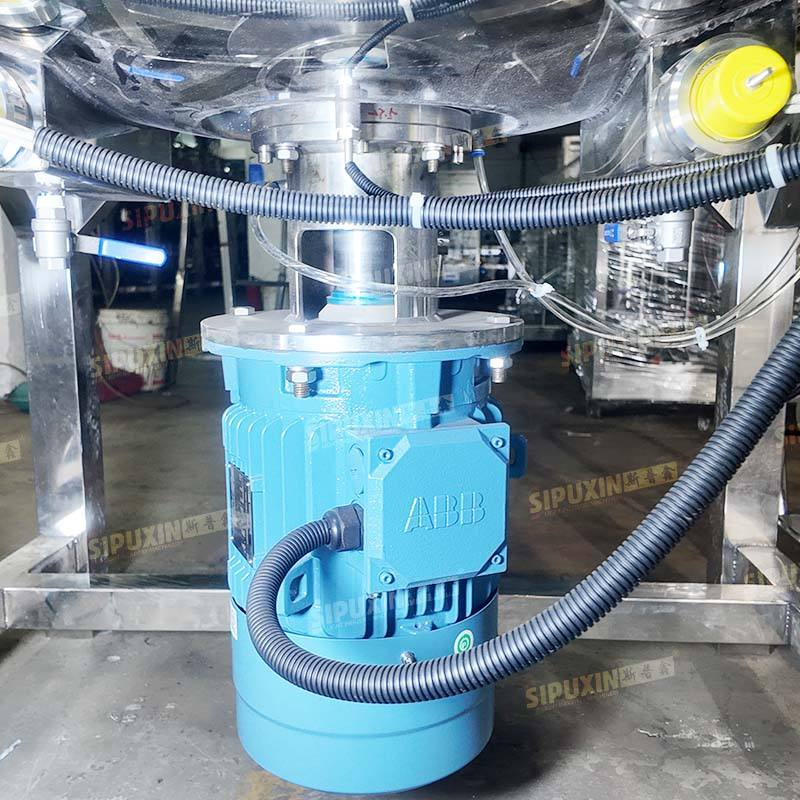

Homogenizing system

High shear homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

Rotor pump

Speed: 200-500 RPM
Material: SUS.316/304

Function:

Transports, transfers and pumps liquid, paste and viscous materials to the mixing machine.

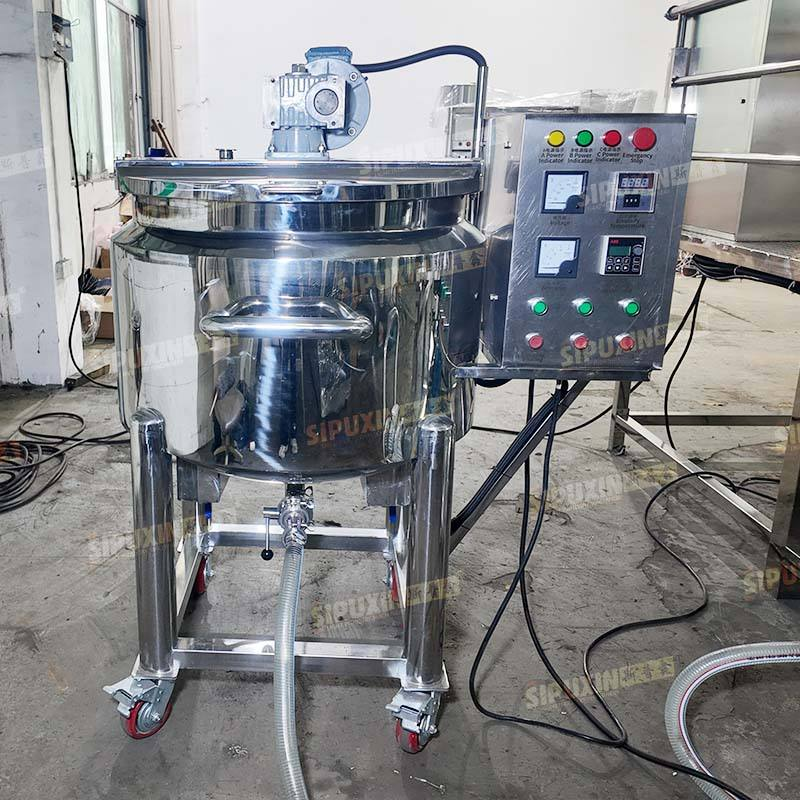

200L mixing tank

Heating way:Electric heating

Working capacity : 200L

Control way:Button control

Mixing speed:0-63 RPM

Function:

Pre-mixing and pre-heating the raw material

Bottom discharge

The bottom discharge hole with manual valve control.

4 ways of discharging:

1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity

2.Pressure discharge:Add air,give it pressure to discharge the product.

3.Pump discharge:Use pump(like lobe pump) to discharge the product.

4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

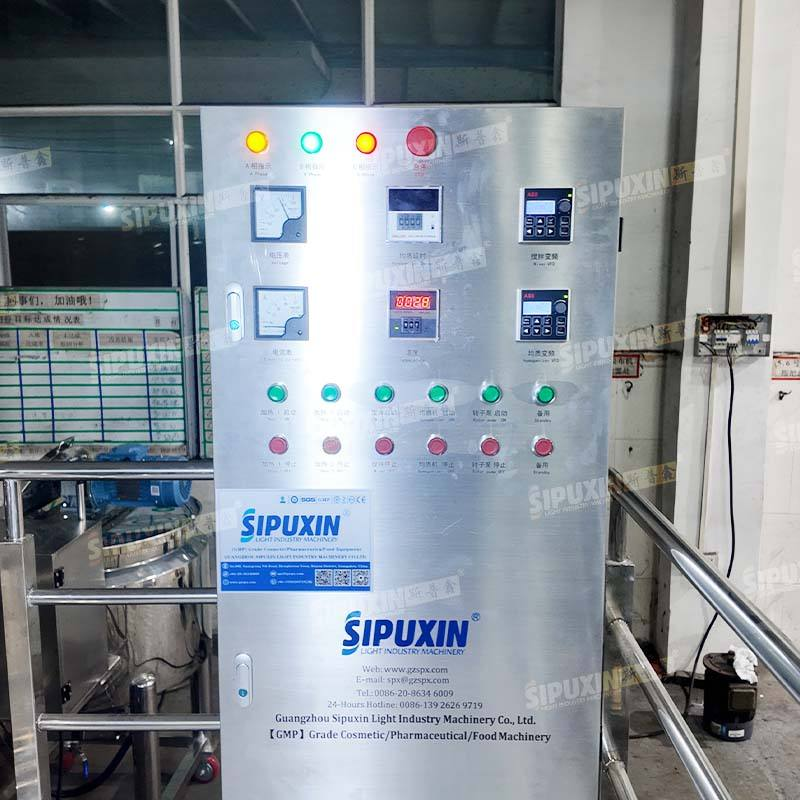

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

Stair and operating platform,handrail

Material:SUS.304

Thickness:2mm

Function：

1.It is water-proof and oil-proof,to prevent people from slipping.

2.It is very easy to clean and maintain it.

3.It provides a place for people to operate it.

Company Profile

03:00

03:00

Guangzhou Sipuixin Light Industry Machinery

We,Guangzhou Sipuxin Light Industry Machine Co.Ltd.,locates in No.380 Guangcong 9th Road,Zhongluotan Town ,Baiyun District,Guangzhou,China--the core technology area for machinery design and manufacture.

Based on Jiangsu light industry Research Institute and Germany top homogenizing technology, with solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory, Sipuxin is professional manufacturer for Vacuum homogenizing emulsifier, Mixing tank, RO water treatment, Storage tank, CIP cleaning system,Filling/Capping/Labeling
machine, Ink-jet/laser printing machine and other packing machine.
We have passed CE, BV,TUV, SGS quality certificate, and coincident with GMP standard.

Factory setting

Our showroom

production configuration

Engineering Case

Package

FAQ

1.Are you a factory? Yes, we are a factory with more than 20 years experiences. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.

4.Can your product be customized? Yes, we can customize products according to your needs.

5.What is the warranty period for your product? One year.
