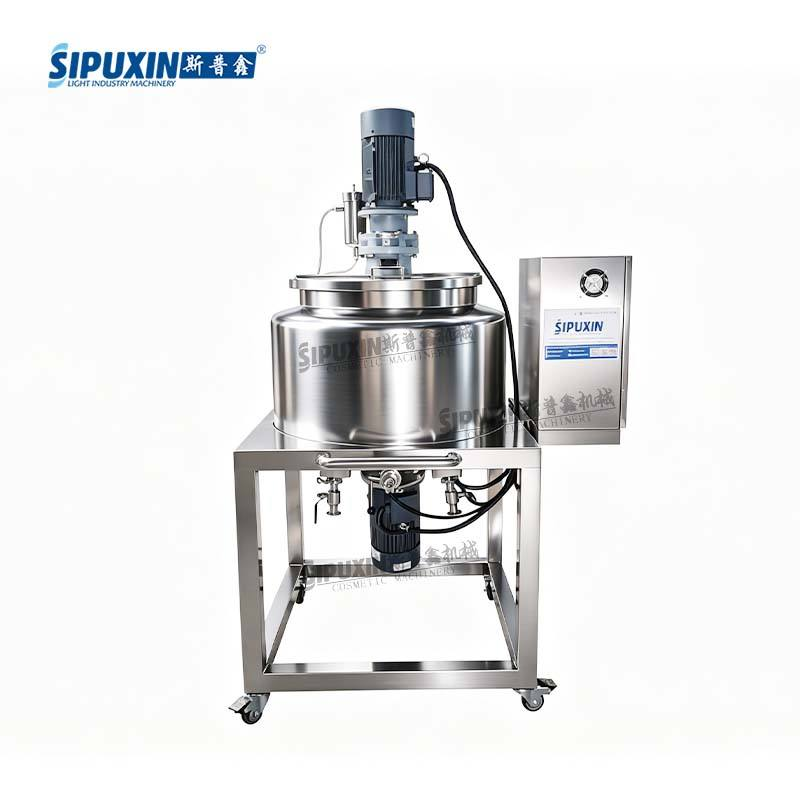

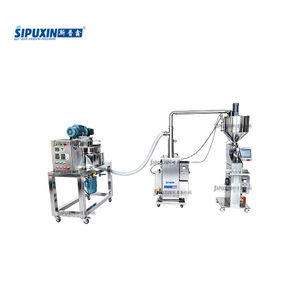

Portable Heating Mixing Emulsification Tank with Homogenizer for Shampoo Liquid Soap Production

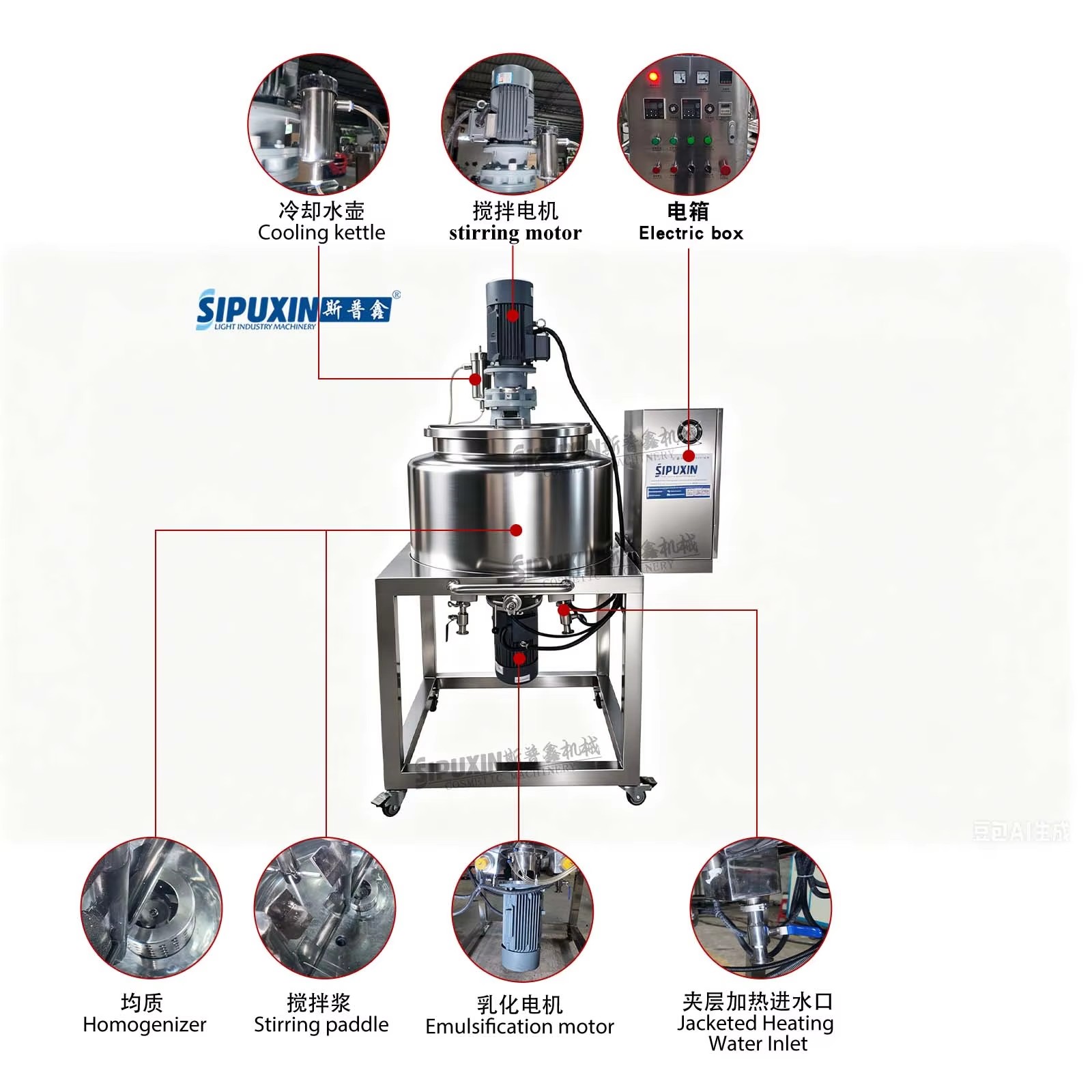

Machine components details

Pictures for reference

Lid accessories

Flip open cover is for material feeding easily.

With a motor from ABB,Switzerland brand

Mixing system

Frame-wall fixed mxier with side Teflon scraper

Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

Homogenizing system

High shear homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

Bottom discharge

The bottom discharge hole with manual valve control.

4 ways of discharging:

1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity

2.Pressure discharge:Add air,give it pressure to discharge the product.

3.Pump discharge:Use pump(like lobe pump) to discharge the product.

4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

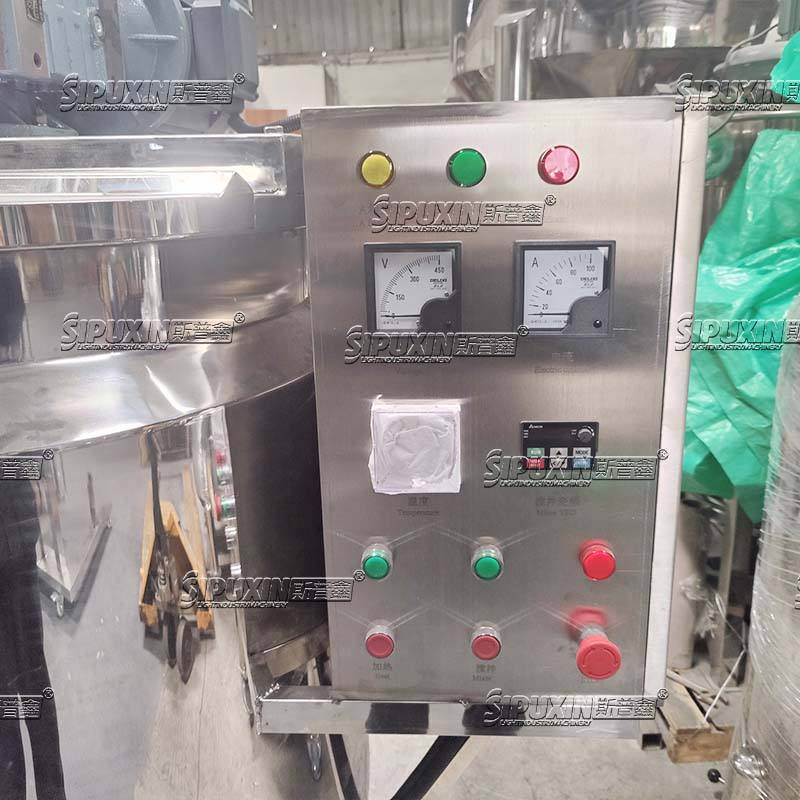

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

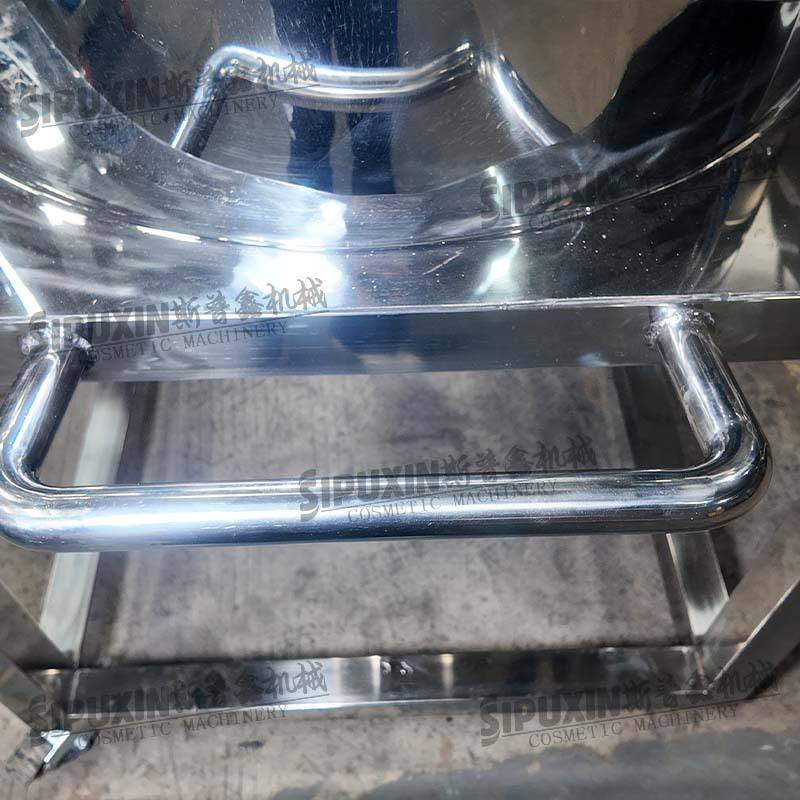

Handle

Material:SUS.304

Function：

It is easy for people to move this machine

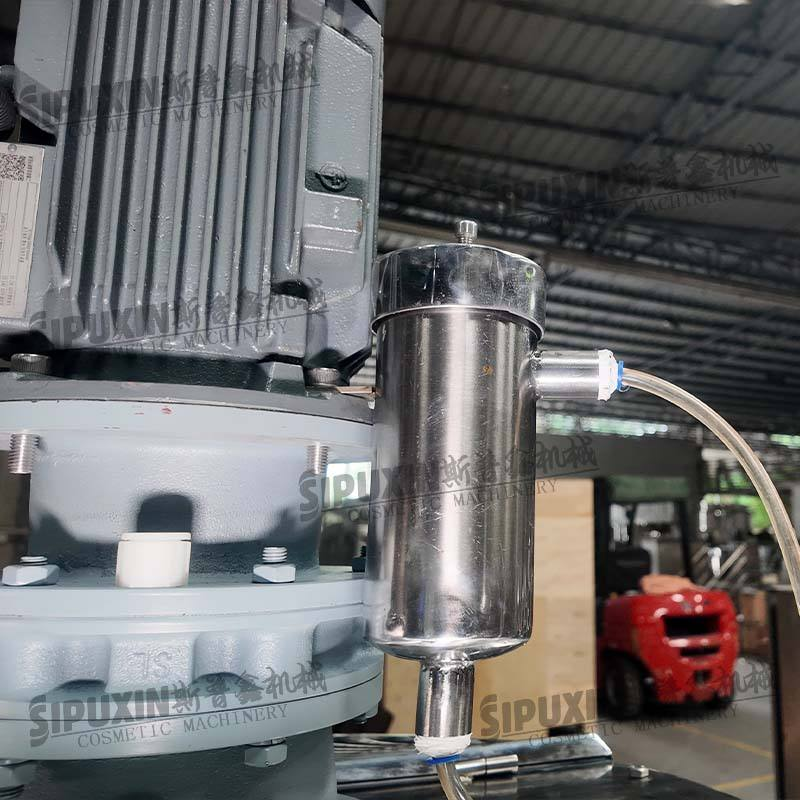

Cooling pot

Machine will generate many heat when running.So the temperature of the homogenizer will be very high.

But with the help of the cooling pot.

It will provide the water to bring the heat out without stop.

Function：

Provides circulating cooling for mixing tank's homogenizer.
