Suitable for various solid soap products: handmade essential oil soap, hotel mini bath soap, laundry washing soap, transparent soap, fruit soap, etc. Widely matched with soap molding production line to realize fully automatic continuous packaging.
Product Overview

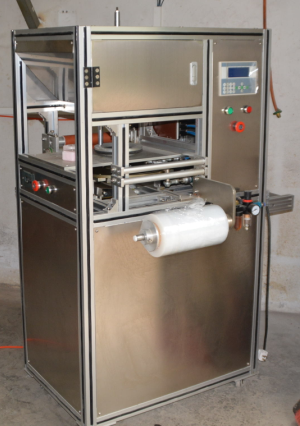

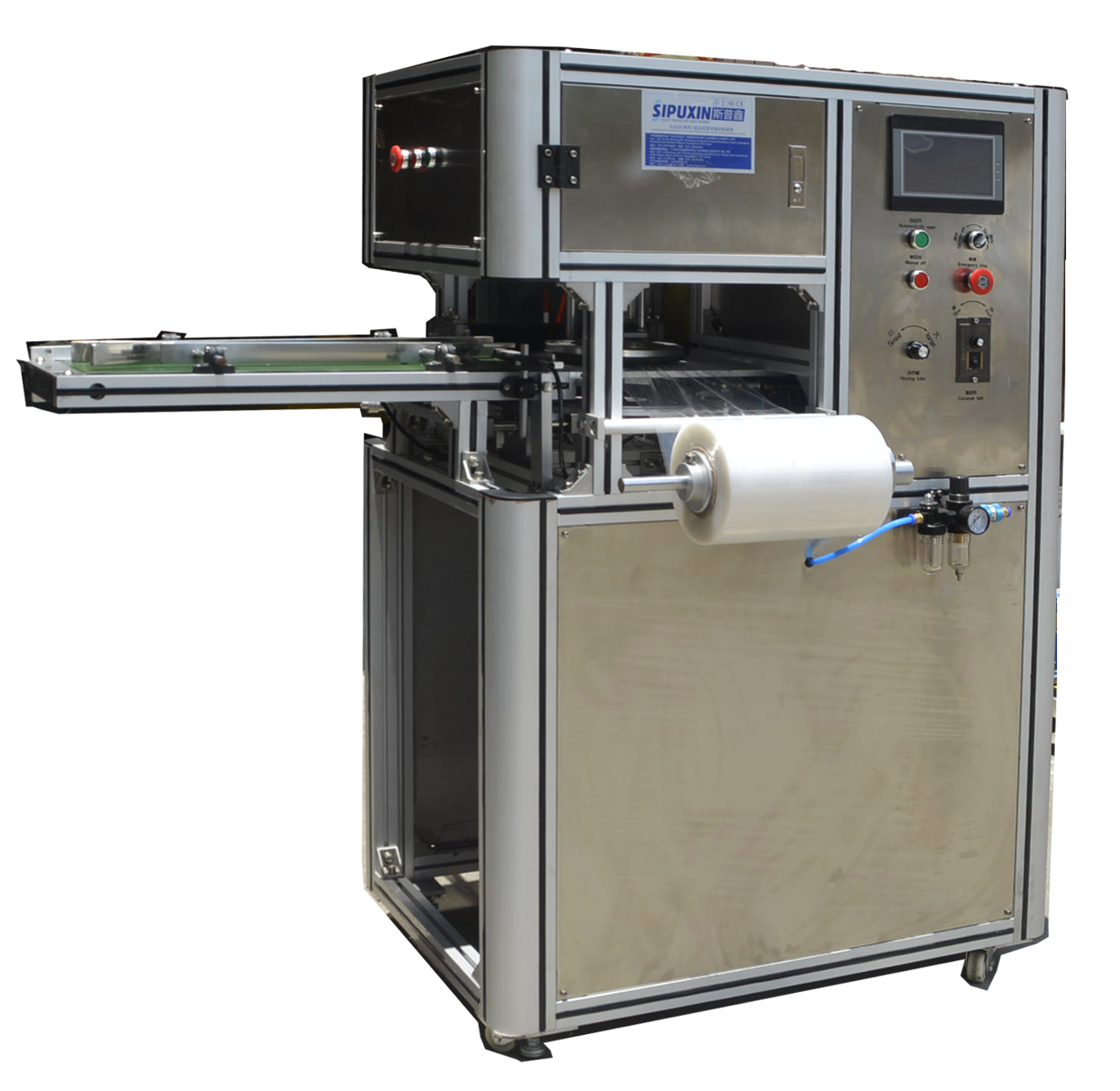

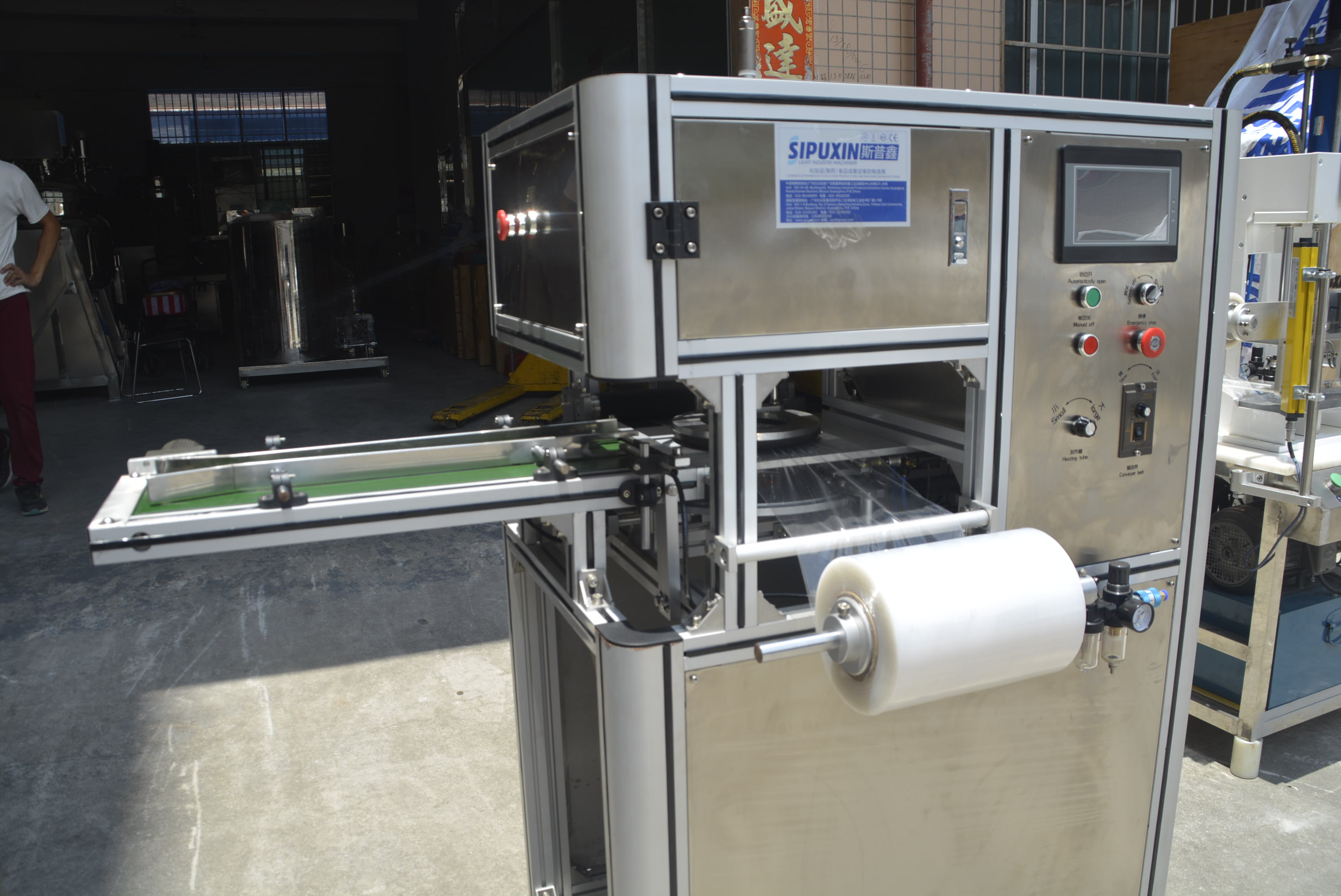

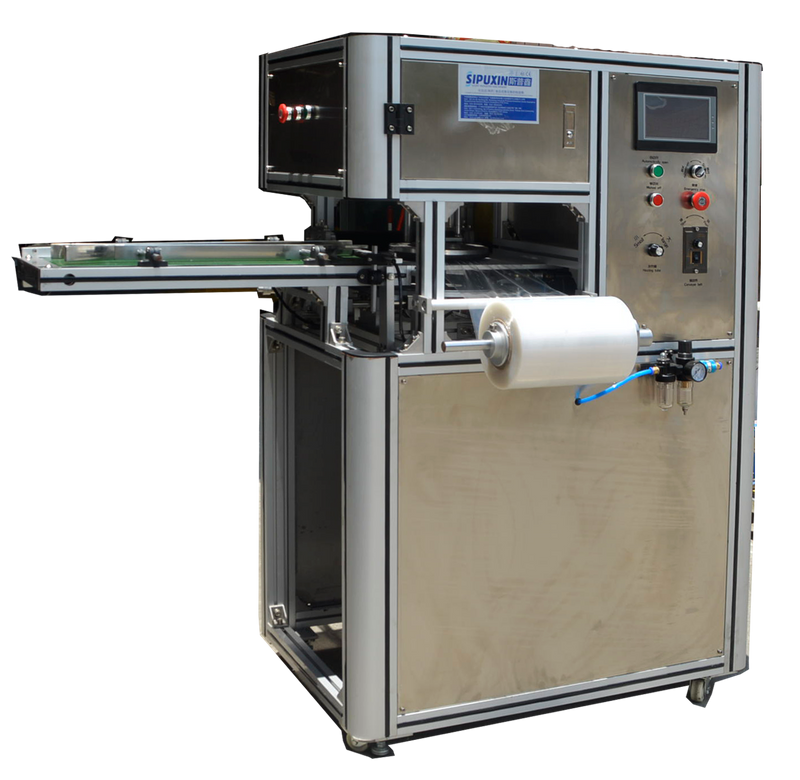

our automatic soap shrink wrapping machine is an all-in-one packaging device integrating film unwinding, automatic feeding, sealing cutting and heat shrink forming, independently developed for soap production lines.Put the soap blank into the feeding station, the machine automatically pulls the transparent shrink film, wraps the soap completely, then cuts and seals the film edge, finally completes heat shrinking to make the film closely fit the soap surface.
Machine Composition
SUS304 Stainless Steel Cabinet: Anti-rust, easy to clean, meet daily chemical hygiene standard; fully enclosed safety structure to avoid accidental injury.

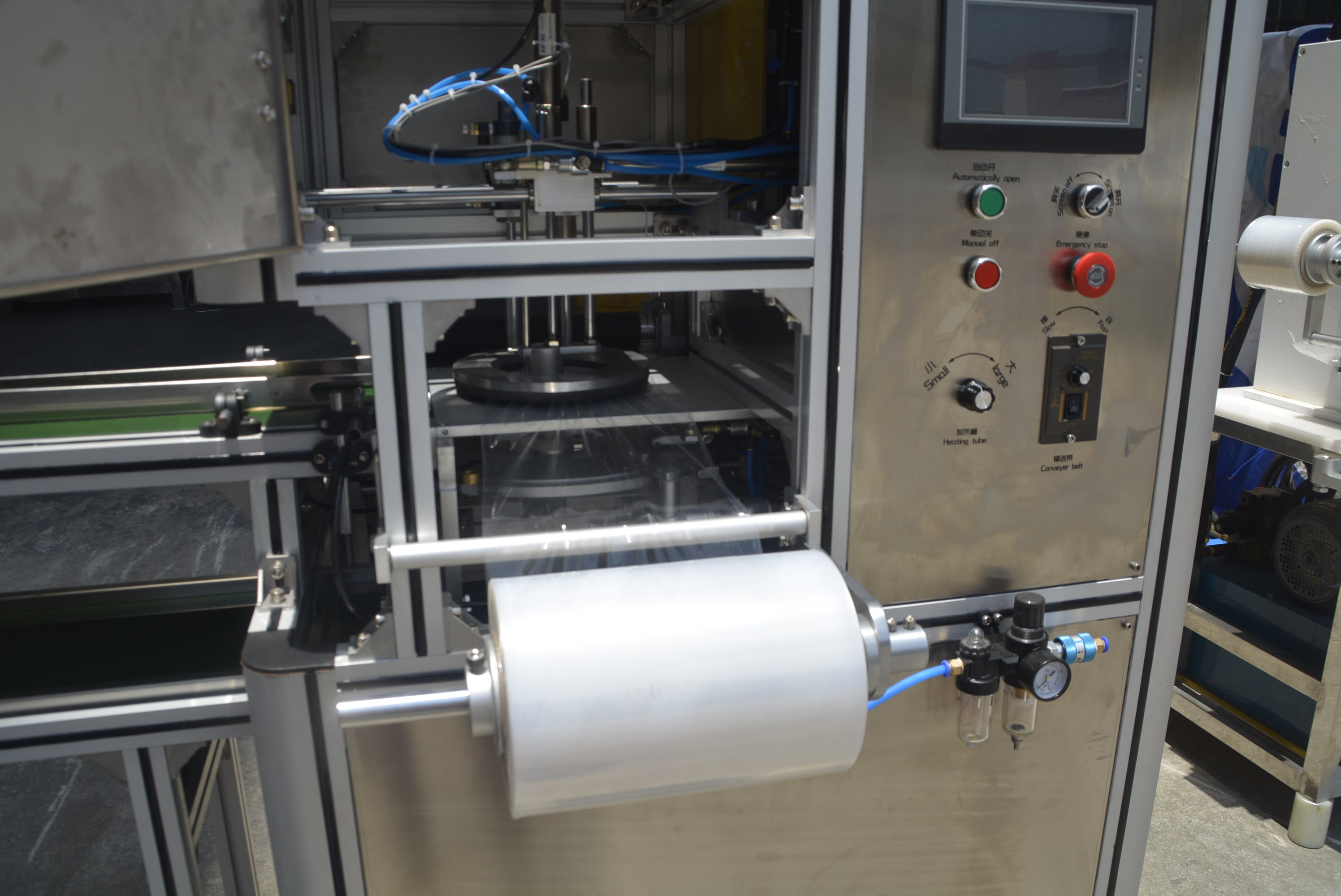

Automatic Film Unwinding Roller: Install shrink film roll, stable film conveying without deviation, convenient to replace film roll.

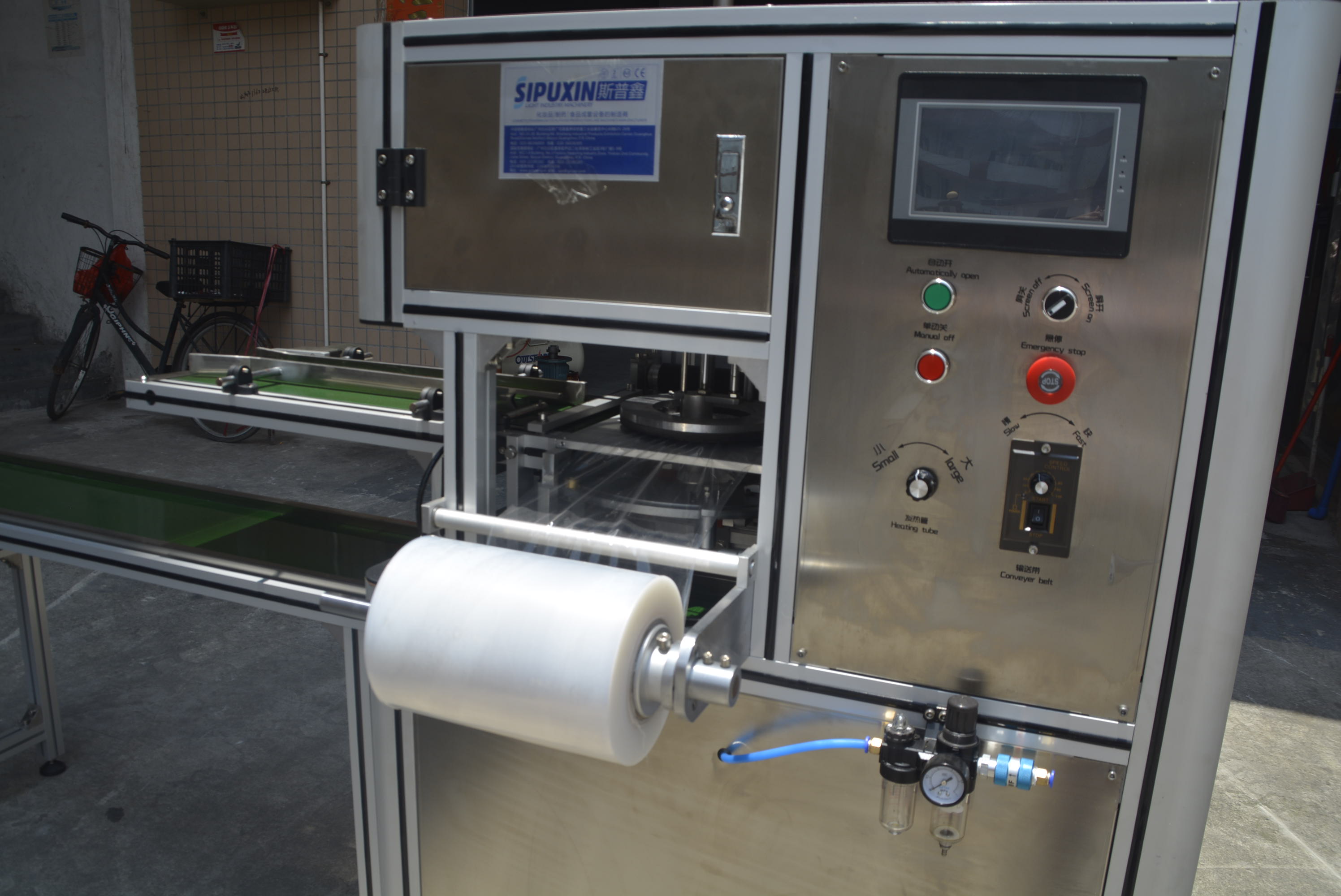

PLC Touch Screen Control Panel: Digital display packaging speed, shrink temperature, film length parameters, one-key adjustment, simple operation for new workers.

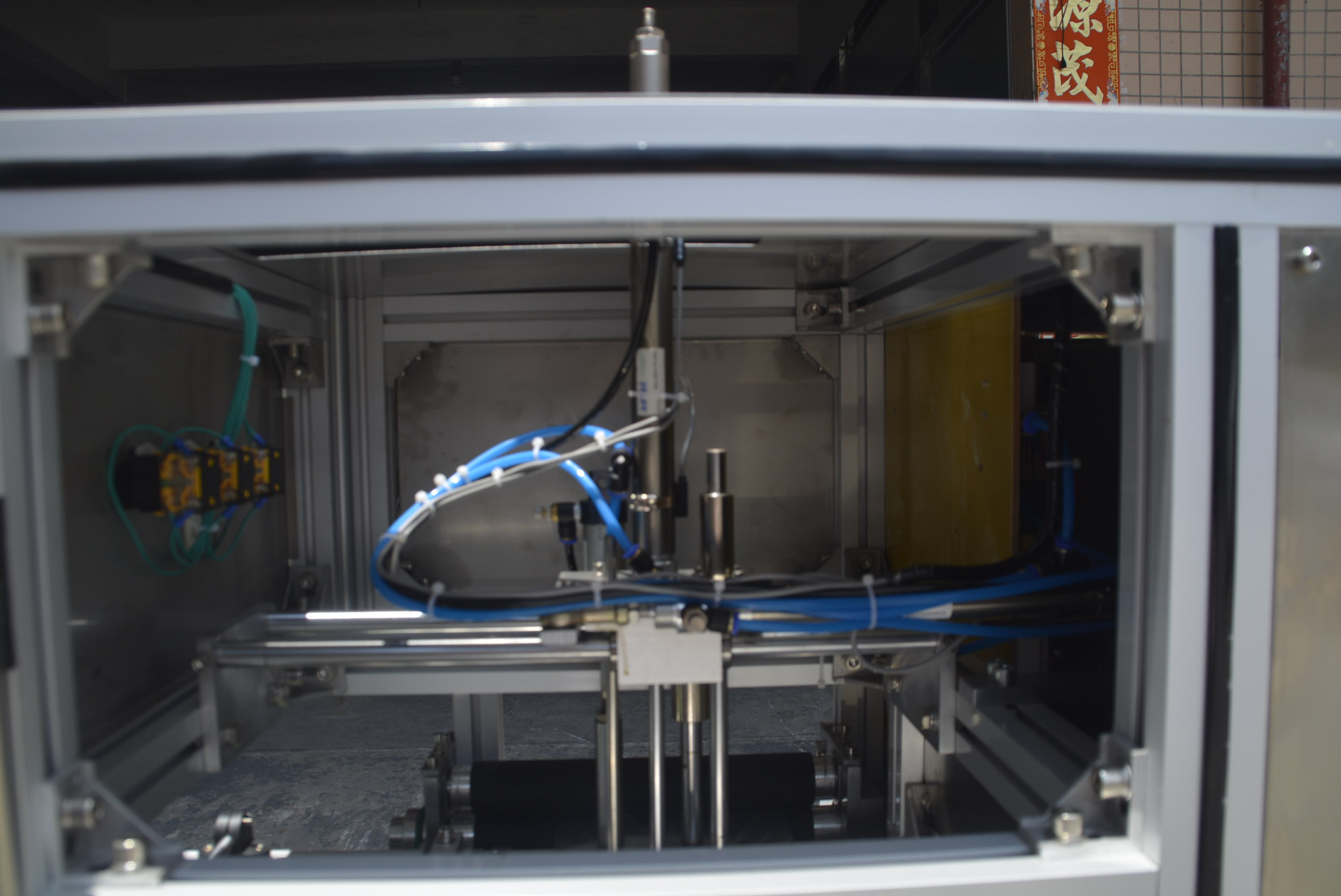

Pneumatic Sealing & Cutting Module: Air cylinder drives hot knife to seal and cut film synchronously, neat sealing edge, no film cracking, no air leakage.
Built-in Heat Shrink Tunnel: Internal constant temperature heating system, uniform heat distribution, film tightly attached to soap without wrinkling or burning.
6. Safety Operation Buttons: Start, stop, emergency stop buttons on both sides of machine, quickly cut off power in case of abnormal situation.
7. Pneumatic Pressure Regulating Valve: Adjust air pressure of sealing cutter according to different film thickness, compatible PVC, POF transparent shrink film. 3.
Core Advantages
✅ Integrated automatic packaging: Feeding, film wrapping, sealing, cutting and heat shrinking finished by one machine, save manual packaging labor cost, high efficiency.
✅ Stainless steel whole body: Corrosion-resistant, easy to wipe and clean, suitable for long-term operation in soap factory wet environment.
✅ PLC intelligent control: All packaging parameters adjustable on touch screen, support different sizes of soap bars without complicated mold replacement.
✅ Stable pneumatic sealing system: Clean sealing lines, no film breakage, packaging appearance neat and high-end, improve product market competitiveness.
✅ Small floor space: Compact vertical integrated design, save workshop area, easy to connect with front soap forming machine to form full automatic production line.
✅ Low maintenance cost: Standardized spare parts, core electrical components with long service life, one year free warranty.
Usage & Application
Applicable Products
Handmade soap, bath soap, hotel disposable soap, laundry soap, transparent soap, herbal soap, cosmetic solid soap
Applicable Packaging Film
POF heat shrink film, PVC shrink film
Applicable Industries
Daily chemical soap factory, handmade soap processing plant, hotel supplies manufacturing factory, cosmetic solid cleansing product factory
| Item | Standard Parameter |
| Machine Model | SPX-SW01 |
| Whole Machine Material | SUS304 Stainless Steel |
| Control System | PLC + Touch Screen |
| Power Supply | 220V / 50Hz Single Phase |
| Total Power | 3.2KW |
| Packing Speed | 15~35 pieces per minute |
| Applicable Soap Size | Length 30~120mm, Width 20~80mm, Height 10~40mm |
| Shrink Film Width Range | 50~160mm |
| Film Type | POF / PVC transparent shrink film |
| Working Air Pressure | 0.4~0.6Mpa |
| Overall Dimension | L850 × W650 × H1420mm |
| Net Weight | 260KG |
| Warranty Period | 1 year for core electrical parts |
