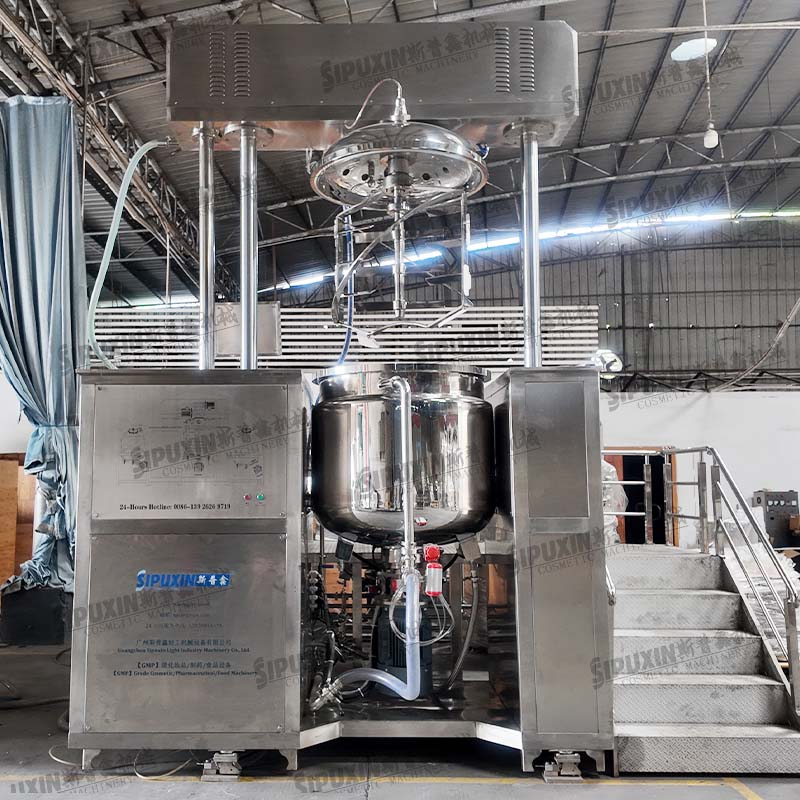

This 500L Weighing Hydraulic Lifting Vacuum Emulsifier is professional homogeneous production equipment independently developed by SIPUXIN. Equipped with precise weighing module, hydraulic lifting turnover structure, anchor stirring + top high-speed homogenizer and PLC automatic control system. It adopts SUS304/SUS316L sanitary stainless steel, supports electric heating constant temperature and vacuum deaeration. Perfect for mass production of cosmetics, daily chemicals, pharmaceutical ointments and thick food sauces, with stable product texture and convenient tank cleaning and maintenance.
Our 500L Weighing Hydraulic Lifting Vacuum Emulsifier is a premium vacuum homogenizing machine tailored for medium & large factories engaged in cosmetics, daily chemicals, pharmaceutical preparations and food processing. Integrated with online weighing function, hydraulic lifting design and negative pressure vacuum emulsification technology, it solves the pain points of inaccurate formula proportion, difficult tank cleaning, bubbly rough finished products during traditional cream production.
Core Advantages
Built-in Weighing Module
Real-time dynamic weighing for raw material feeding, no extra electronic scale required. Formula ratio is highly accurate, effectively unifies batch product quality.
Hydraulic Lifting & Tilting Structure
The main tank can be wholly lifted and overturned for discharging and full interior cleaning, avoids cross contamination when switching different formulas.

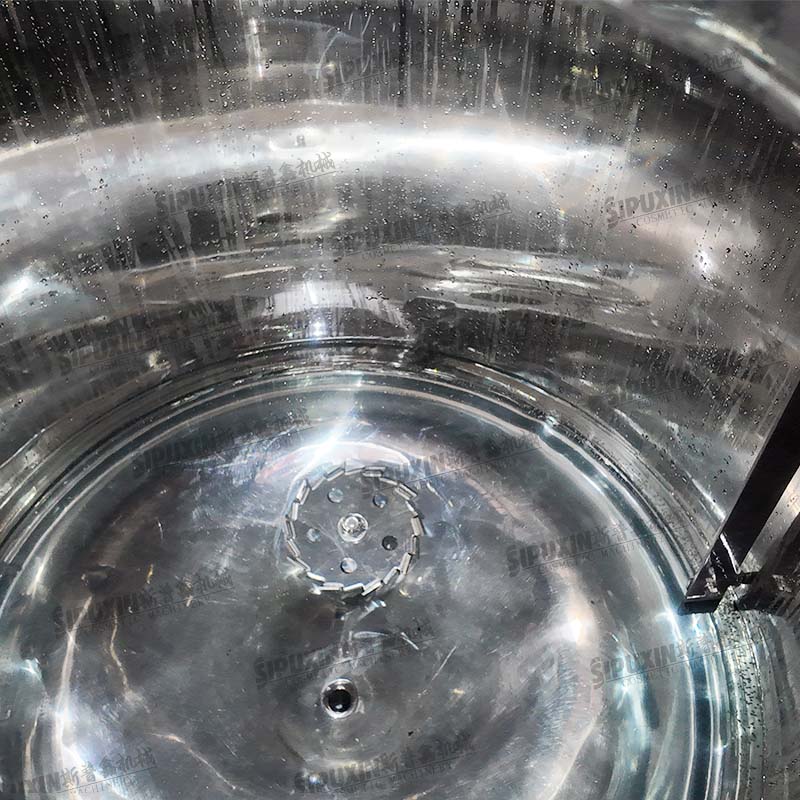

Vacuum Circulation Homogenization System
Work under sealed negative pressure environment to eliminate bubbles completely. Finished cream, lotion or sauce is smooth, glossy, fine-textured and with longer shelf life.

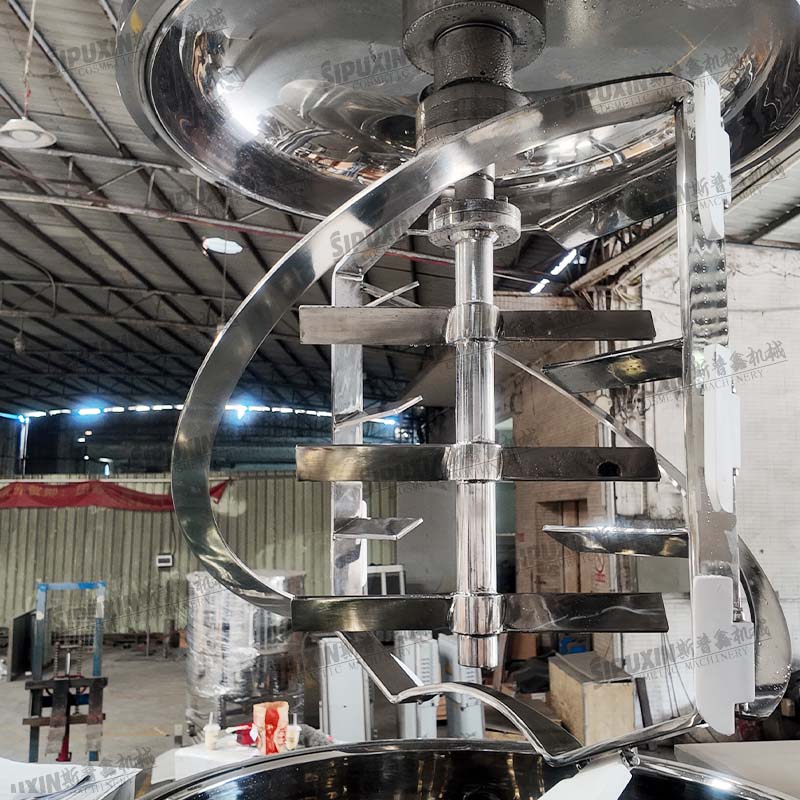

Dual Mixing System
Slow anchor stirring prevents material deposition at tank bottom; top high-speed homogenizer provides strong shear force to fully fuse oil phase & water phase for ideal emulsification effect.

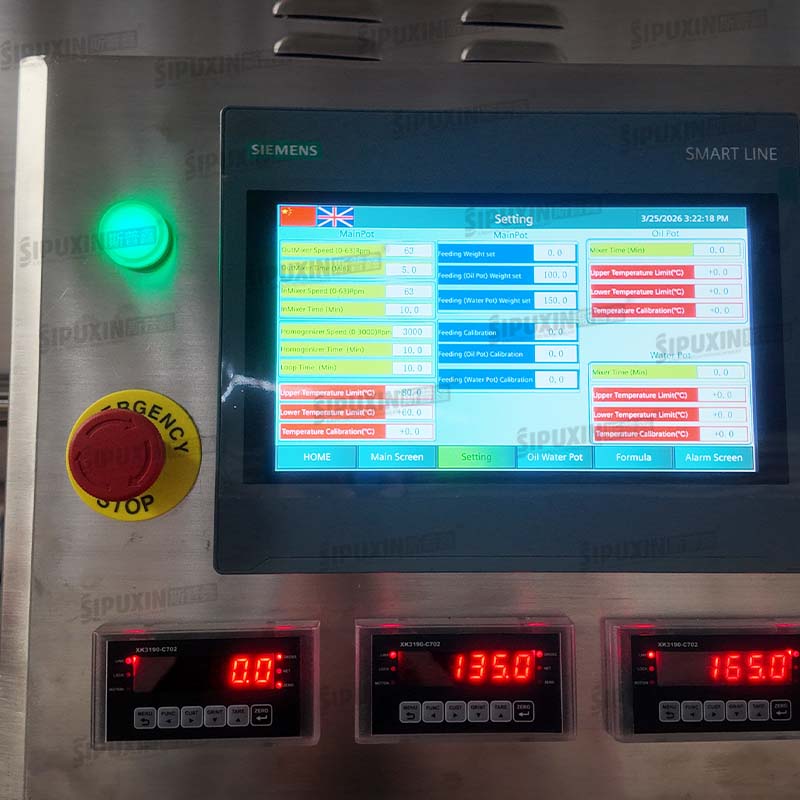

PLC Intelligent Automatic Control
Touch screen panel stores multiple production formulas, adjustable stirring speed, homogenizing speed, temperature, vacuum degree and working time automatically, greatly lowering operation difficulty.
Sanitary Stainless Steel Construction
Contact parts adopt SUS316L stainless steel, compliant with cosmetic, food and pharmaceutical hygiene standards, corrosion-resistant and easy to sanitize. Electric heating system maintains stable production temperature.
Basic Technical Parameters
Effective Volume: 500L
Homogenizer Power: 4kW
Mixing Speed: 0~63rpm
Voltage: 220V/380V Customizable
Material: SUS304 / SUS316L Stainless Steel
Heating Mode: Electric Heating

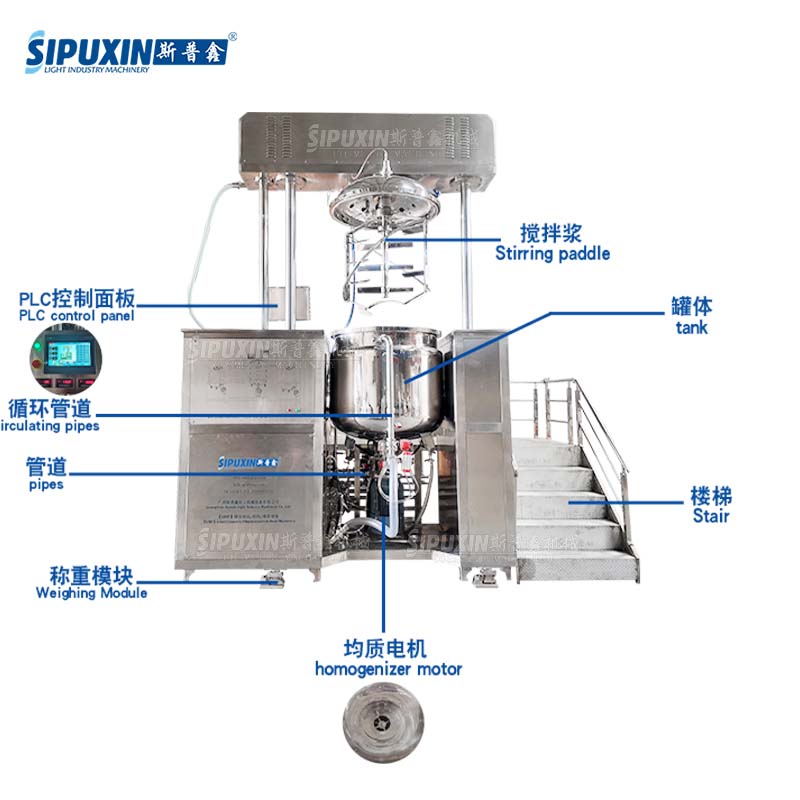

Configuration: Weighing System + Hydraulic Lifting + PLC Control + Circulating Pipeline
Application Scope
Skin care cream, body milk, facial lotion, hand cream, shampoo, hair conditioner, pharmaceutical ointment, medical gel, chili sauce, fruit puree, toothpaste, lipstick base and various viscous emulsified products.
After-sales Service
1 year full warranty for main components; overseas installation guidance, online technical support, factory inspection and customized size & configuration services are available.
