1000L Hydraulic Lifting Vacuum Emulsifier with PLC Control

1000L vacuum emulsifier, hydraulic lifting vacuum emulsifier, PLC controlled vacuum emulsifying machine, vacuum emulsifier with oil‑water phase tanks, large batch cosmetic vacuum emulsifier, high viscosity paste vacuum emulsifying machine, SUS316L vacuum homogenizer, GMP standard emulsifier, toothpaste production emulsifier, industrial vacuum mixing equipment

Core Components:	Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Material:	SUS304, SUS316L
Product Type:	Cosmetic , chemical , food , liquid soap
Heating method:	Electric / Steam
Dimension(LWH):	Custom Made
Package Type::	wooden case wooden case
Place of Origin:	Guangdong, ChinaGuangdong, China
Availability:

Quantity:



Inquire Add to Basket

Model:
SZR
Brand:
SPX

Product Description

Products overview

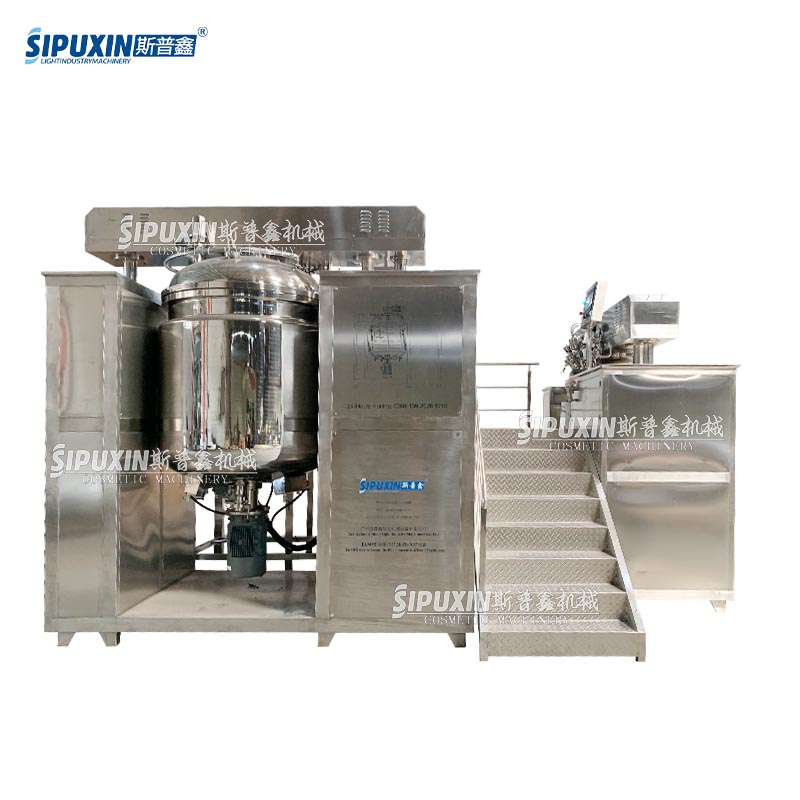

Our 1000L hydraulic lifting vacuum emulsifier is a large‑scale industrial emulsification unit built for medium‑to‑large batch manufacturing of cosmetic creams, lotions, ointments, toothpaste and other high‑viscosity paste products.It comes with separate oil‑phase and water‑phase tanks for independent pre‑heating, dissolving and pre‑stirring of raw materials. Prepared materials are drawn into the main tank via vacuum suction to achieve complete homogenization and stable formula performance.

Adopting hydraulic lifting mechanism, the whole stirring‑homogenizing assembly can be lifted entirely. It provides full access to tank interior, greatly simplifying cleaning, homogenizer inspection and sealing parts replacement. PLC touch‑screen control supports formula memory, parameter setting of stirring speed, homogenizer speed, temperature and vacuum degree, switching between manual and automatic operation modes.

All parts touching raw materials are SUS316L stainless steel with mirror polishing, meeting GMP hygiene requirements. Equipped with heating‑cooling jacket, vacuum defoaming system and complete operating platform with stairs. Multiple customization options including heating mode, explosion‑proof components and local‑standard voltage are offered to match different factory production conditions.

More pics for your reference

Homogenizer

Tank body

Pneumatic Control Valve

Frame-wall agitator with Tefon scrapper

— Product Advantages

Hydraulic Lifting Structure for Convenient Maintenance
The entire stirring and homogenizing assembly can be lifted by hydraulic system. Operators gain full access to the tank interior for thorough cleaning of high‑viscosity paste residue, homogenizer inspection and seal replacement. It solves the cleaning dead‑corner problem of large‑volume emulsification tank.
Independent Oil‑Water Phase Tanks for Stable Mass Production
Separate oil‑phase and water‑phase tanks complete pre‑heating, dissolving and pre‑stirring respectively. Raw materials are sucked into main tank by vacuum. Uniform raw‑material treatment guarantees consistent emulsification effect and stable finished‑product quality for large‑batch production.
PLC Touch‑Screen Automatic Control with Pneumatic Control Valves
Equipped with PLC touch‑screen system cooperating with pneumatic control valves. Production formulas can be stored and called. Pipeline on‑off, stirring speed, homogenizer speed, temperature and vacuum degree are automatically executed according to preset recipes. Manual‑automatic switching is supported, greatly reducing manual operation errors and improving batch repeatability.
Dual‑action Mixing & Homogenizing System without Dead Zones
Anchor‑type wall‑scraper agitator matches bottom high‑speed homogenizer. Even high‑viscosity toothpaste, ointment and cream can achieve uniform mixing and fine emulsification, improving product texture and production efficiency.
High‑efficiency Vacuum Defoaming Performance
It can reach ‑0.08~‑0.095 MPa vacuum degree. Air bubbles inside paste are fully removed, avoiding pores and granular defects, delivering smooth and dense finished products.
GMP‑compliant Sanitary Construction
All medium‑contact parts adopt SUS316L stainless steel with mirror polishing. Sanitary pneumatic valves feature no‑dead‑angle flow‑path design, easy for CIP cleaning, meeting hygiene standards for cosmetic, pharmaceutical and food production.
Complete Supporting Configuration for Industrial Production
Comes with heating‑cooling jacket, vacuum pump unit, operating platform and anti‑slip stairs. Optimized for continuous long‑time running of factory‑scale 1000‑liter batches.
Rich Customization Options
Support electric / steam heating switch, explosion‑proof electrical components, local‑standard voltage adaptation, powder feeding system and other customized modifications according to workshop layout and production formulas.

About us

Help Customers Success and achieve development with customer.
As a company focused on helping customers succeed and achieve development, we are dedicated to providing high-quality machinery equipment solutions that are tailored to meet your unique needs and specifications. Our range of products includes filling machines, labeling machines, packaging machines, and more.

We pay more attention to every machine's packing and loading, also check carefully before shipping.
All of our machine are packed in ply wooden case, which is safe for shipping.
We take pride in our products and the satisfaction of our customers is our top priority. We are confident that our products will exceed your expectations and we look forward to doing business with you.

FAQ

Q:What's our main products?
Vacuum homogenizer and mixing kettle are our main products, we provide customized, we have done liquid washing production line, cream production line, perfume production line and so on.

Q: How to ensure that I received the machine undamaged?
 A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.

Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.

Q:Who are we?
A:We are a factory with more than 20 years experiences.Guangzhou Sipuxin Light Industry Machinery Co.,Ltd.is a professional manufacturer of whole-set equipment for such industries as cosmetics,pharmaceutical,food and daily chemical,etc...We solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory.

Q:Can you make the machine according to buyer's request?
A:Yes, OEM is acceptable. Most of our machines are customized design based on cus-tomer's requirements or situation.
