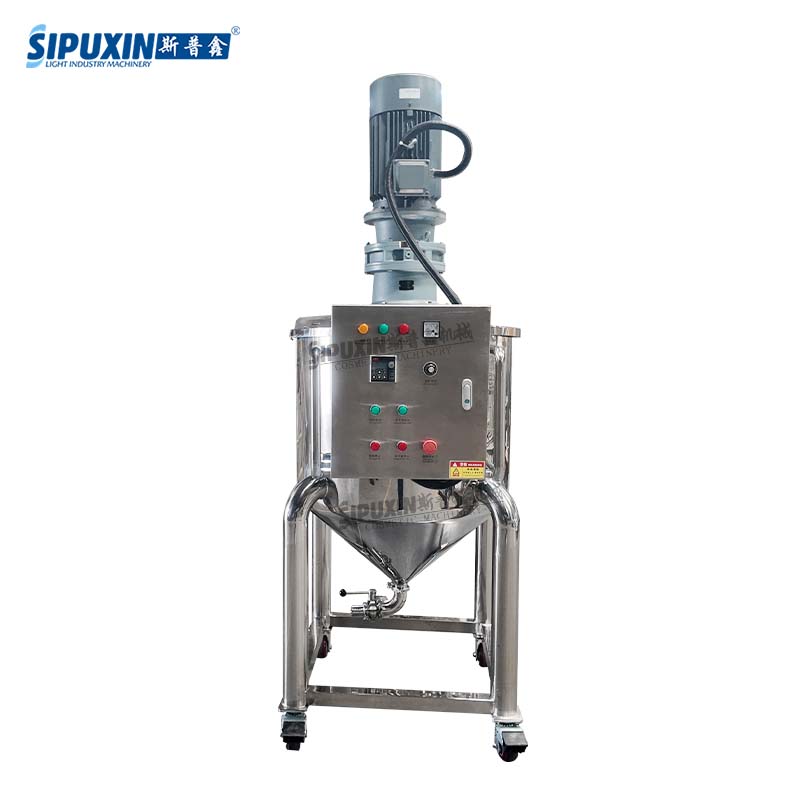

300L SUS 316 Movable Single-Layer Mixing Tank with Conical Bottom
Product Overview
This movable single-layer mixing tank is constructed with food-grade SUS316 stainless steel. Designed with conical bottom structure to realize thorough material discharge without residue. Installed with heavy-duty universal wheels, easy to transfer between production stations. It is ideal equipment for liquid mixing, blending and temporary storage for cosmetic, daily chemical, beverage and chemical industries.
Main Features
Tank material: SUS316 stainless steel, anti-corrosion, easy to clean, meets GMP hygiene standard Conical bottom design, equipped with bottom discharge valve, no material leftover Movable casters with brake function, convenient workshop transportation Single-layer structure, support customized agitator: paddle mixer, anchor stirrer, high shear homogenizer optional Smooth internal mirror polishing, no dead corner, convenient CIP cleaning Multiple capacity options: 50L~5000L available for selection
Application Range
Suitable for mixing shampoo, body wash, lotion, perfume, liquid soap, essence, oral liquid and other liquid products in cosmetic, pharmaceutical, food and fine chemical industry.
Technical Parameter
Effective Volume: 300L Tank Material: SUS316 Stainless Steel Structure: Single Layer, Conical Bottom Mobility: Universal movable wheels with brake Working Temperature: Normal temperature (heating/cooling jacket can be customized) Mixing Motor: Customized power on request

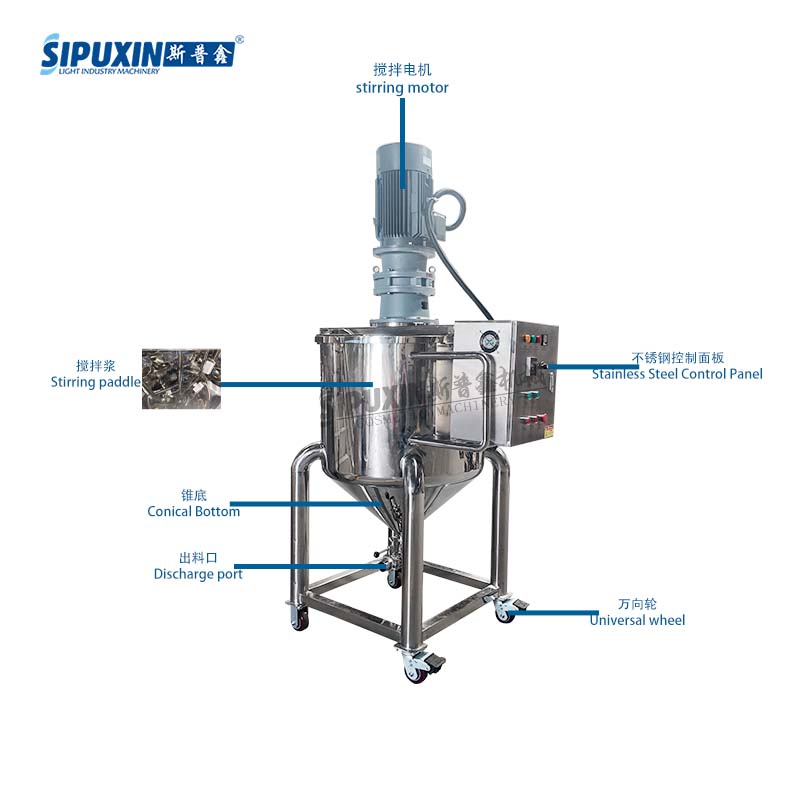

No.
Component Name
Function Description
1
Stirring Motor
Supplies power to drive the stirring paddle. Power and rotating speed can be selected according to material viscosity to achieve uniform blending.
2
Stainless Steel Control Panel
Controls start, stop and speed adjustment of the mixer. Stainless steel housing is waterproof and anticorrosive for safe and convenient operation.
3
Stirring Paddle
Rotates to disperse and blend raw materials. Paddle style can be customized to match different liquid materials.
4
Conical Bottom
Tapered design prevents material dead zones, guides materials to the outlet and reduces residue after discharging.
5
Discharge Port
Located at the lowest point of the cone bottom, fitted with valve for fast, clean and complete material discharge.
6
Universal Wheel
Heavy-duty casters with brake lock. Allow flexible movement and stable positioning in the workshop.
7
Tank Body
Made of SUS316 stainless steel, corrosion-resistant and easy to clean, meeting GMP sanitary requirements. Jacket for heating/cooling is optional.
