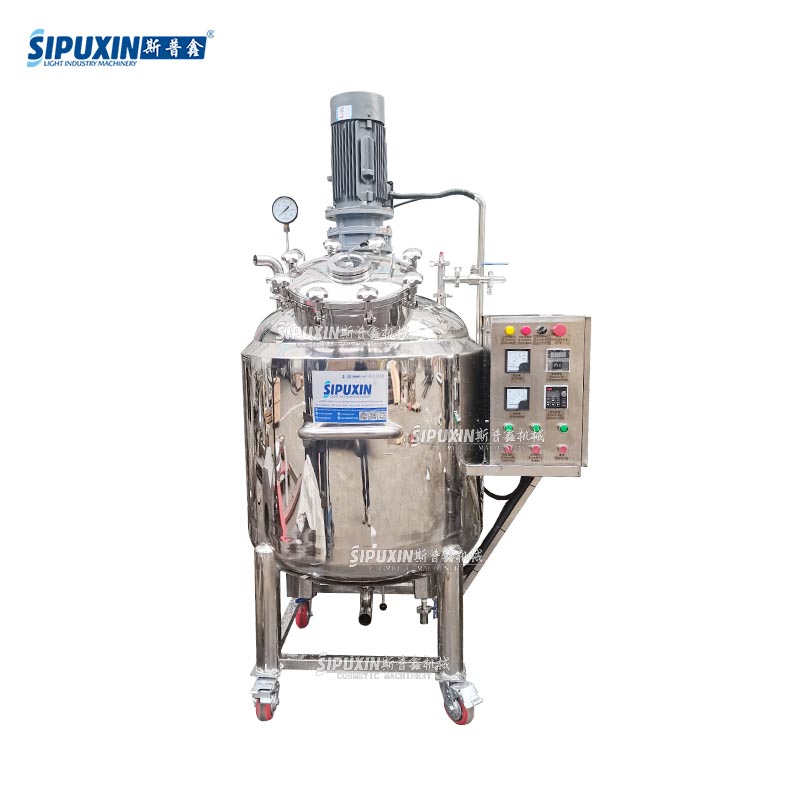

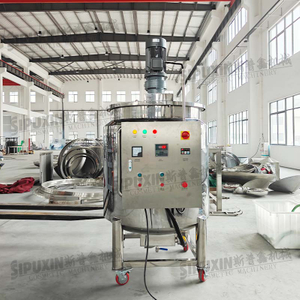

300L Electric Heating Movable Mixing Tank

300L Electric Heating Movable Mixing Tank is an integrated processing equipment combining electric heating, temperature control, mechanical stirring and flexible transfer. It is designed for heating, dissolving, mixing, blending and thermal preservation of liquid, semi-liquid and paste materials in small & medium batches.
Availability:
Quantity:
Product Description


Product Introduction

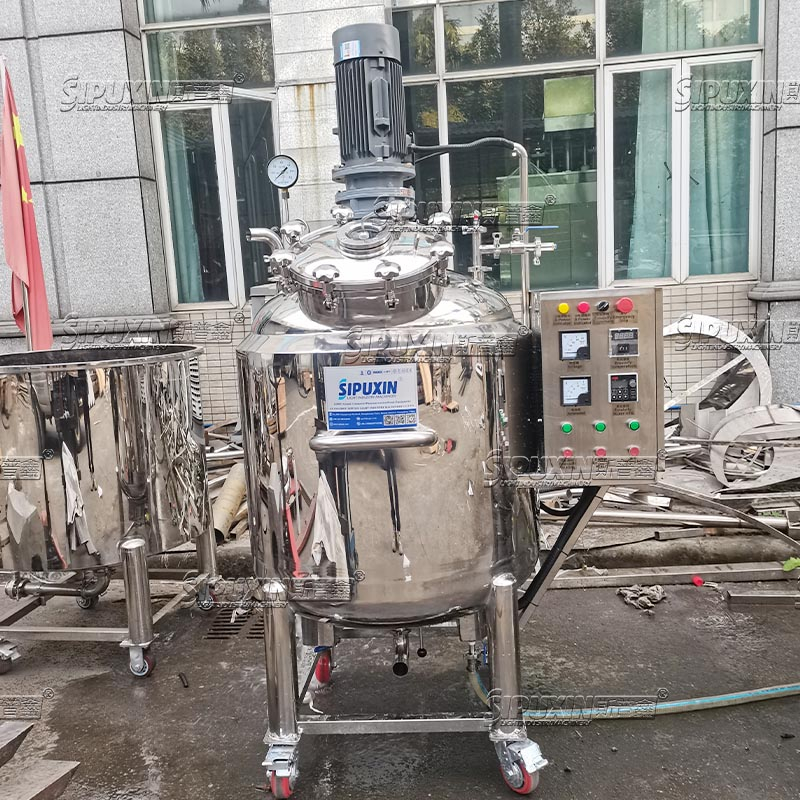

300L Electric Heating Movable Mixing Tank is an integrated processing equipment combining electric heating, temperature control, mechanical stirring and flexible transfer. It is designed for heating, dissolving, mixing, blending and thermal preservation of liquid, semi-liquid and paste materials in small & medium batches.

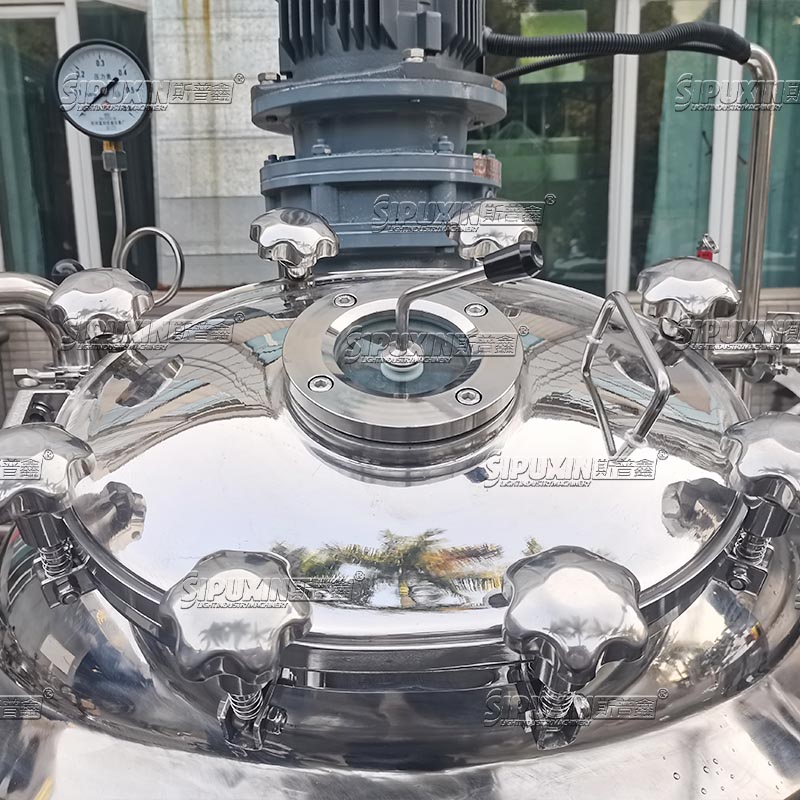

The tank body is made of food-grade stainless steel. Equipped with an electric heating system and intelligent temperature controller, it achieves uniform heating and precise constant temperature. The variable-frequency stirring system can prevent material stratification and precipitation to guarantee consistent mixing effect. Fitted with brake-type universal wheels, the machine can be moved freely inside workshops.

It is widely applied in cosmetics, daily chemical, food, pharmaceutical and fine chemical industries, suitable for cream, lotion, detergent, syrup and other material preparation. The sealed tank structure can be customized, supporting vacuum working condition upon request. Easy to clean, stable to operate and complete with safety protection devices.

Technical Parameters

Item

Standard Specification

Optional Configuration

Effective Volume

300L

Customized: 200L / 500L

Tank Material

SUS304 Stainless Steel

SUS316L Stainless Steel

Heating Power

9kW

6kW / 12kW /15kW optional

Temperature Range

Room temperature ~ 180℃

Up to 250℃ for thermal oil heating

Temperature Accuracy

±2℃

±1℃ high-precision thermostat

Stirring Motor Power

1.5kW

0.75kW / 2.2kW / 3kW optional

Stirring Speed

0~60 rpm (Variable Frequency)

0~120rpm with high-speed homogenizer

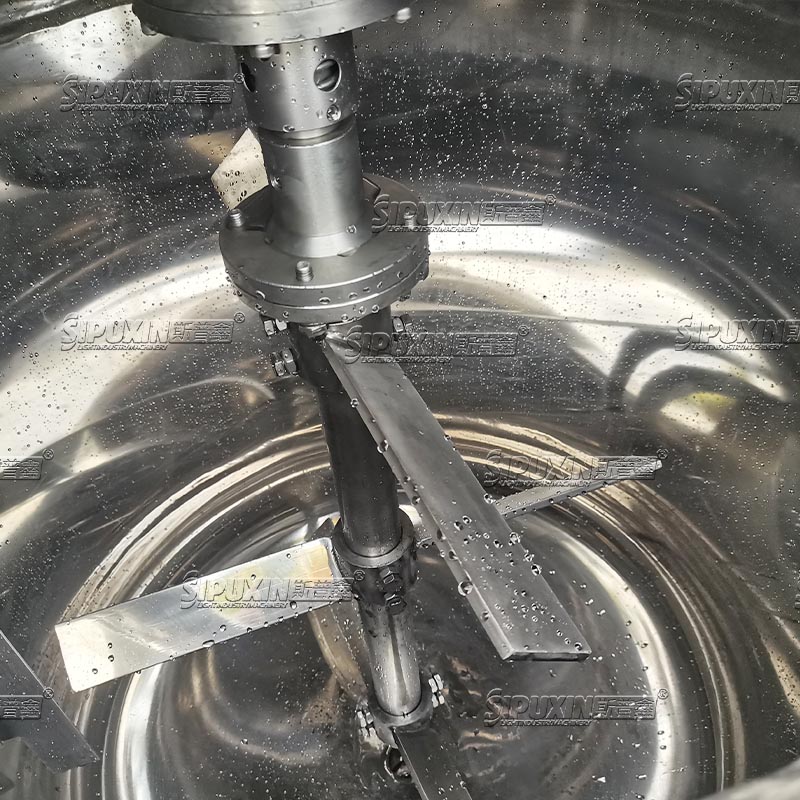

Stirring Paddle

Anchor type

Paddle / Ribbon / Turbine type

Power Supply

380V/50Hz, 3 Phase

220V single phase

Mobile Wheel

4-inch PU caster with brake

Heavy-duty stainless steel casters

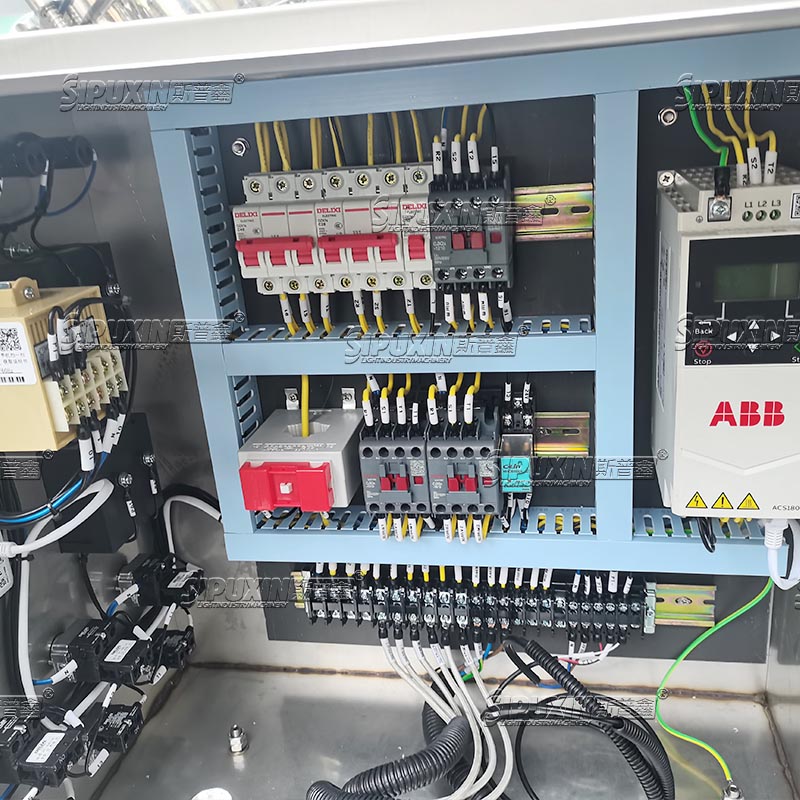

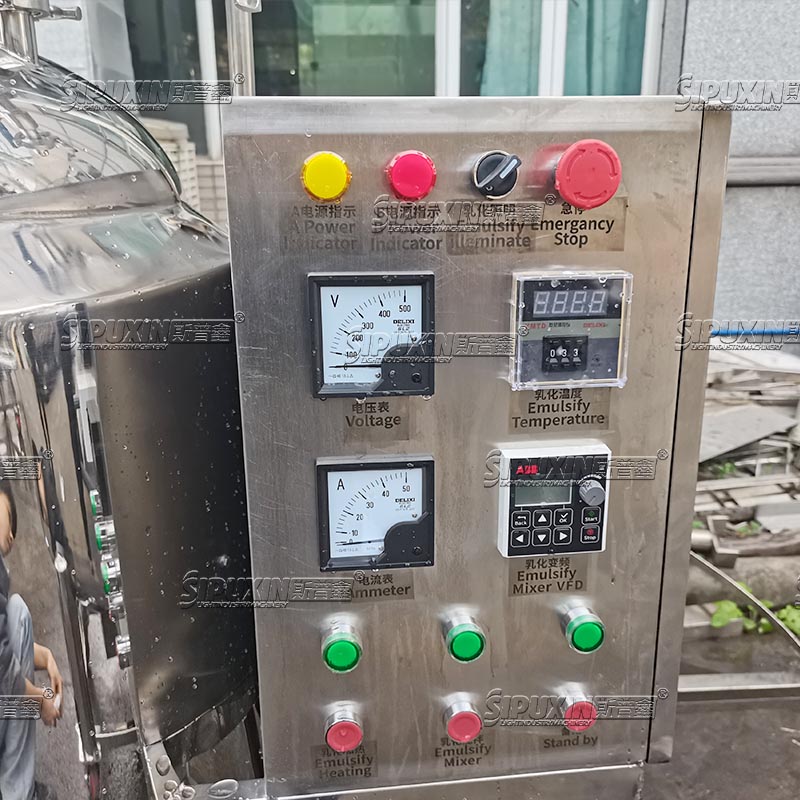

Control System

Button control panel

PLC touch screen control

Optional Function

Normal pressure type

Vacuum system, explosion-proof motor, CIP cleaning
