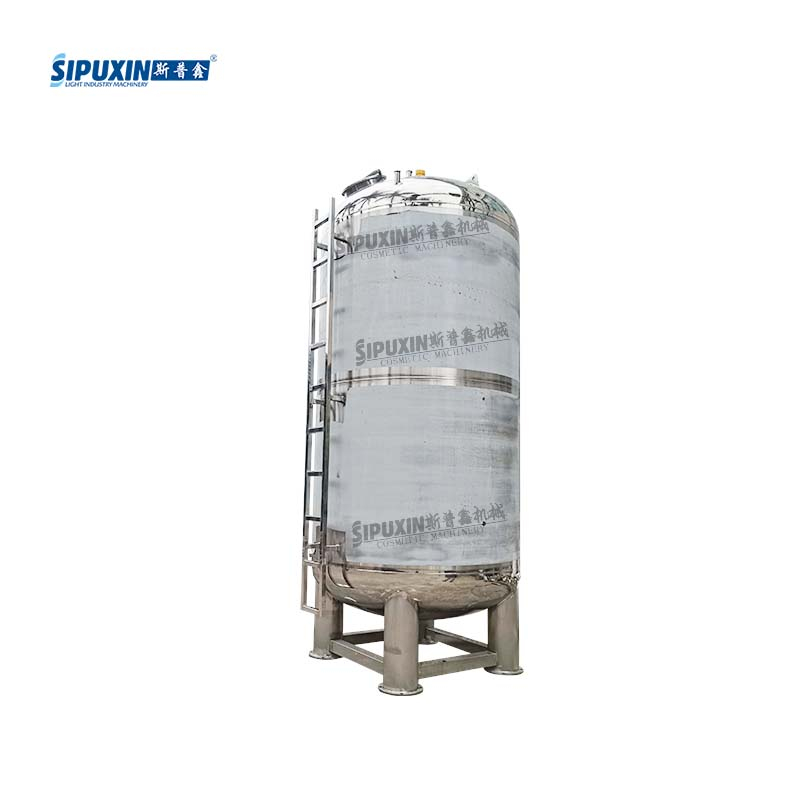

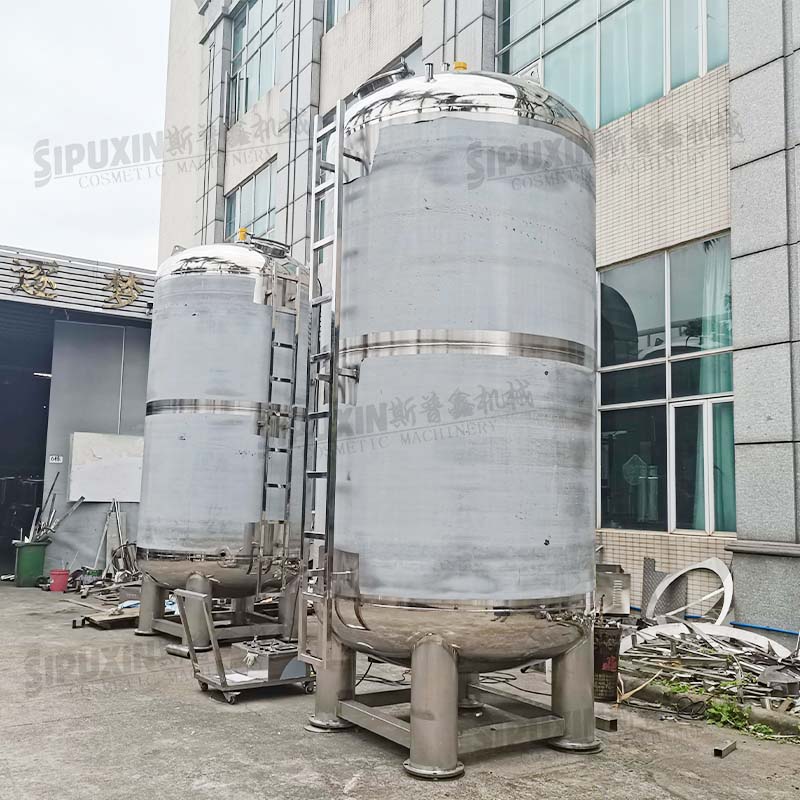

10000L SUS304 Stainless Steel Storage Tank Vertical Liquid Storage Vessel With Radar Level Transmitter

1

Introduction

This vertical 10000L stainless steel storage tank is fully made of SUS304 mirror polished stainless steel, matched with high-precision radar level gauge to real-time monitor liquid volume. Equipped with side climbing ladder, manhole, inlet & outlet ports, vent valve and support legs. Ideal for storing purified water, cosmetic raw materials, shampoo, lotion, chemical solvent and food liquid, widely used in cosmetic, daily chemical, food and fine chemical factories.

Machine composition

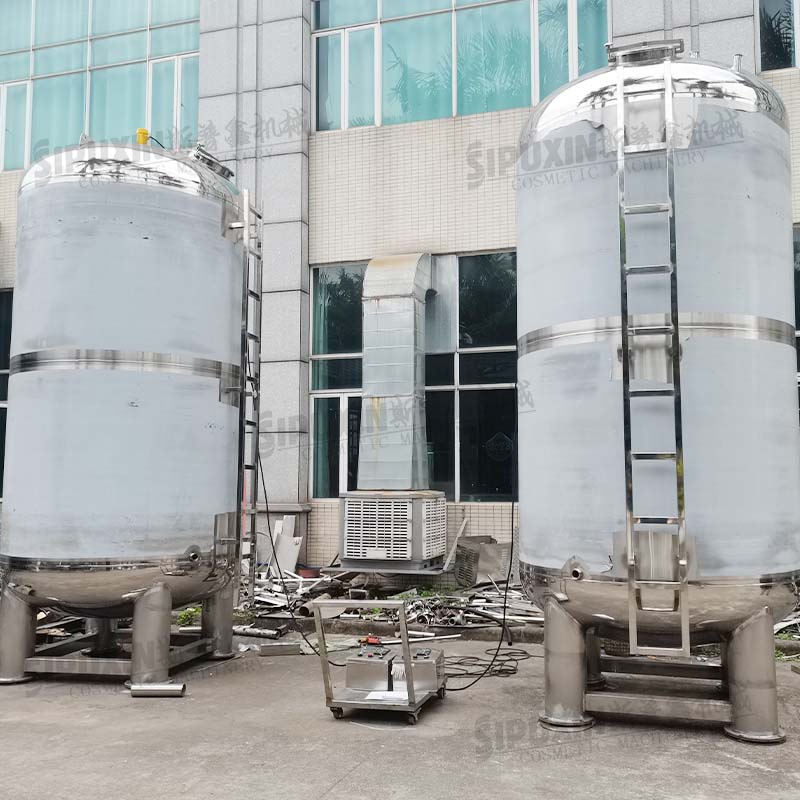

• 10000L vertical tank body, SUS304 mirror polishing

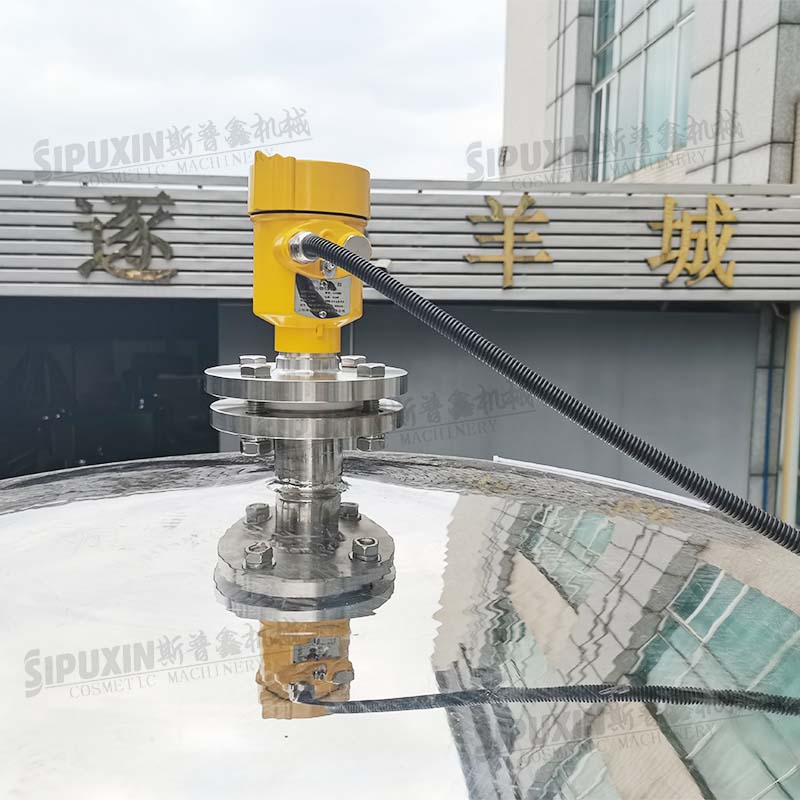

• Radar liquid level gauge (real-time liquid level monitoring)

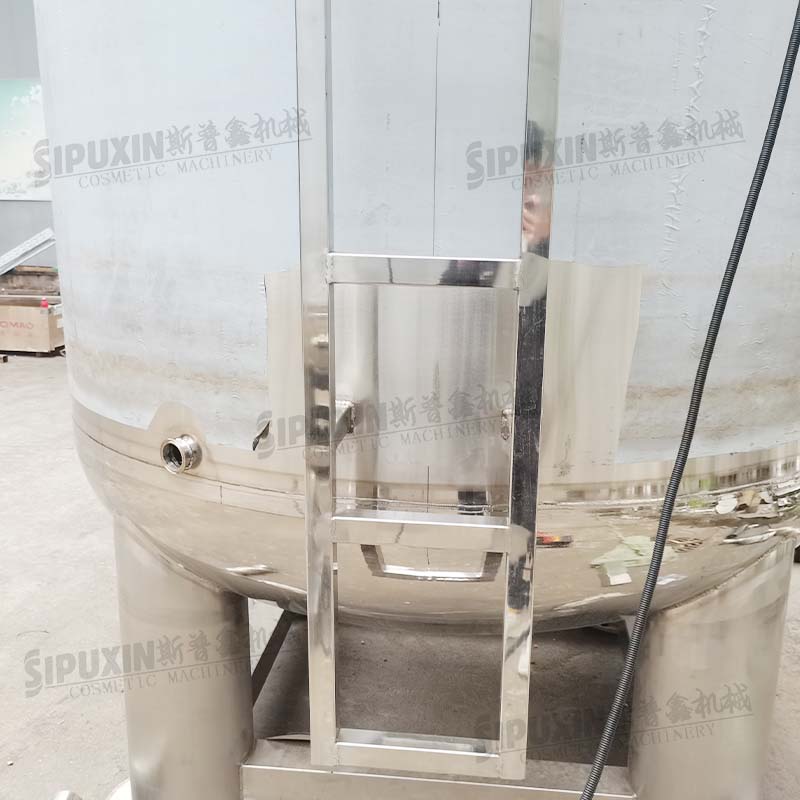

• Stainless steel side climbing ladder & guardrail

• Round manhole for cleaning & inspection

• Raw material inlet, discharge outlet, overflow port, exhaust valve

• Reinforced support legs & stable base frame

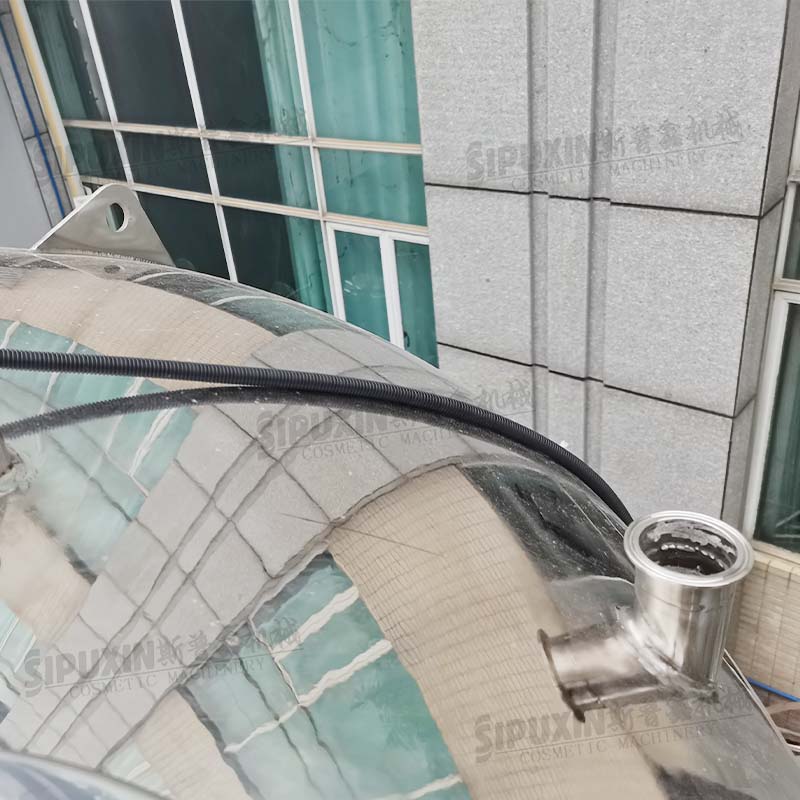

• Sanitary pipe fittings, sampling port

Usage and Application

• 10000L vertical tank body, SUS304 mirror polishing

• Radar liquid level gauge (real-time liquid level monitoring)

• Stainless steel side climbing ladder & guardrail

• Round manhole for cleaning & inspection

• Raw material inlet, discharge outlet, overflow port, exhaust valve

• Reinforced support legs & stable base frame

• Sanitary pipe fittings, sampling port

Core Advantage

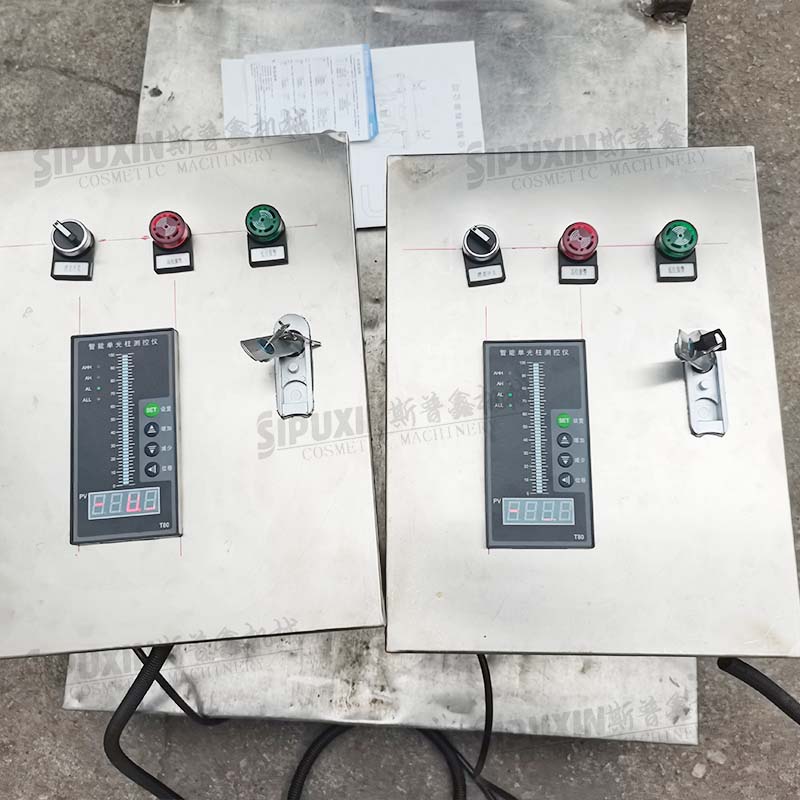

1.Easy To OperateRadar level gauge displays liquid level data automatically, no manual measurement needed; simple valve control for feeding and discharging.

2. High-AccuracyRadar level transmitter with ±1mm measuring precision, accurately reflect residual liquid volume inside tank.

3. Long Service LifeThickened stainless steel plate, anti-rust, anti-corrosion, resistant to daily chemical weak acid & alkali liquid.

4. Low Noise LevelStatic storage equipment without running motor, zero operation noise.

5. Energy SavingNo heating or power-consuming operation during storage, only low power for level sensor.

Item	Specification
Model	SPX-10000L Storage Tank
Effective Volume	10000L (10Ton)
Material Contact Part	SUS304 Stainless Steel, Mirror Polished
Tank Structure	Vertical single layer storage tank
Matching Accessory	Radar level gauge, climbing ladder, manhole, multi-way ports
Level Measuring Precision	±1 mm
Working Temperature	0~80℃
Working Pressure	Normal atmospheric pressure
Overall Dimension	D2200 × H3200 mm
Net Weight	1280 kg
Voltage for Level Gauge	24V DC low power
Certification	CE, ISO9001, GMP compliant
