Single Head Hot Filling Machine With Cooling Tunnel Production Line For Honey, Syrup, Wax, Hot Cosmetic Paste, Hot Oil Automatic Filling & Rapid Cooling

Integrated production line includes single head hot filling machine and large cooling tunnel. Specially for hot filling high temperature materials like honey, plant syrup, cosmetic wax, hot oil, hair removal wax.

material:	stainless steel
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-fcooling-728
Brand:
Sipuxin

Product Description

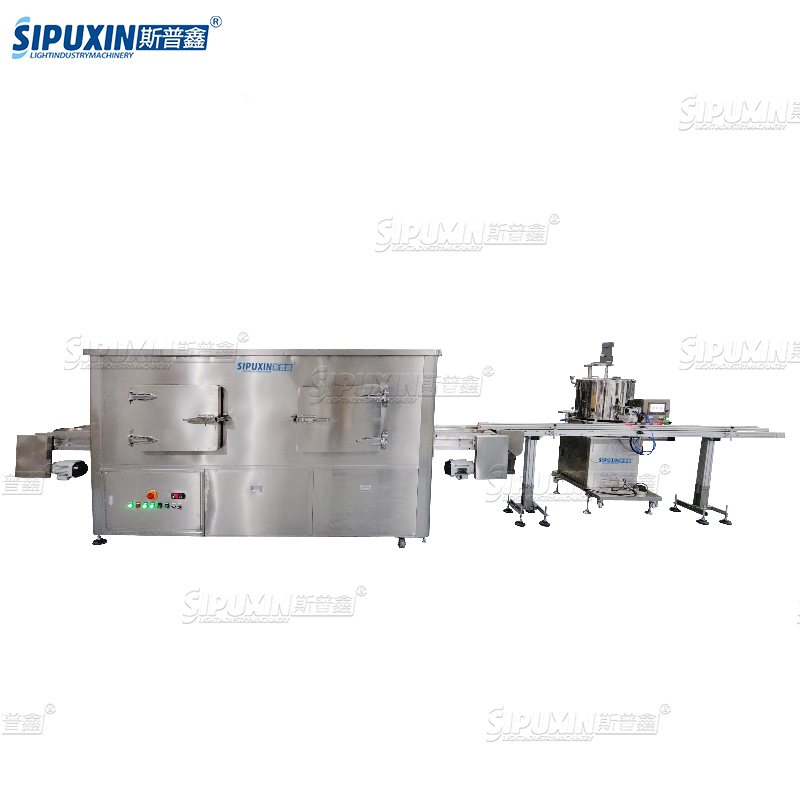

Integrated production line includes single head hot filling machine and large cooling tunnel. Specially for hot filling high temperature materials like honey, plant syrup, cosmetic wax, hot oil, hair removal wax. After hot filling, bottles enter tunnel for fast low-temperature solidification and cooling, full automatic conveyor operation, high production efficiency.

Product Overview

This complete automatic production line combines single head hot filling equipment and industrial refrigeration cooling tunnel, customized for high-temperature hot filling industry.Many raw materials such as honey, syrup, cosmetic wax, depilatory wax, essential hot oil need to be kept liquid under high temperature during filling, and rapidly cooled and solidified after filling. This integrated line realizes automatic bottle feeding, constant temperature hot filling, conveyor transportation, tunnel rapid cooling and finished bottle output, fully automatic continuous production, greatly saving manual operation.

Core Advantages

Integrated one-stop production line: hot filling + cooling tunnel matched together, automatic conveyor connects each station, no manual bottle transfer, high automation.
2. Single head constant temperature hot filling machine: built-in heating and thermal insulation tank, keep materials liquid at constant temperature, prevent wax, honey and syrup from solidifying and blocking the pump; PLC touch screen control, adjustable filling volume, high filling precision.
3. Large stainless steel refrigeration cooling tunnel: internal low-temperature circulation refrigeration system, fast heat dissipation for filled hot bottles, quickly solidify wax and thick syrup inside bottles, avoid bottle deformation and material leakage caused by high temperature.
4. Full SUS304 stainless steel structure for the whole line, mirror polishing, easy to clean, meet food and cosmetic GMP hygiene standards.
5. Stable conveyor belt transmission, adjustable conveying speed, match filling speed and cooling time according to different materials.
6. Wide application range: depilatory wax, honey, fruit syrup, cosmetic hot wax, hot massage oil, lip gloss base, chocolate slurry and other high-temperature filling materials.

Machine Composition

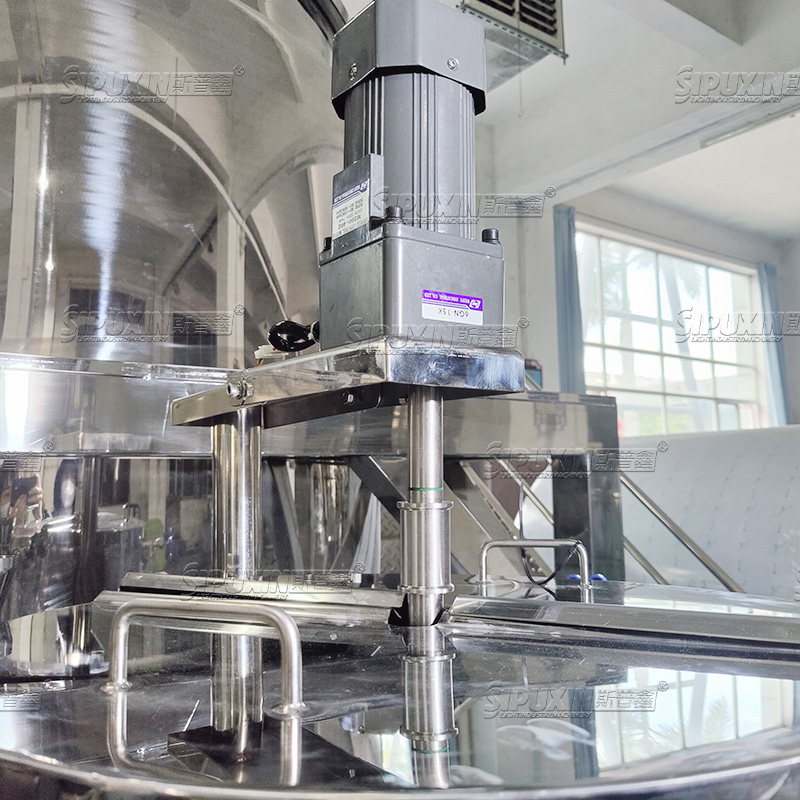

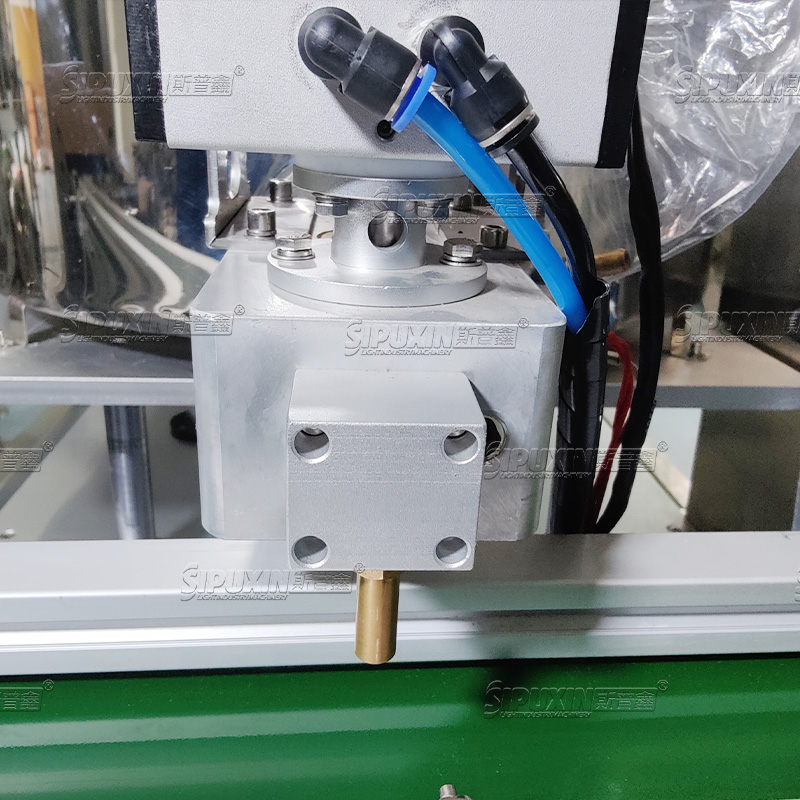

Single head constant temperature hot filling host (heating stirring tank + filling pump + PLC touch control)

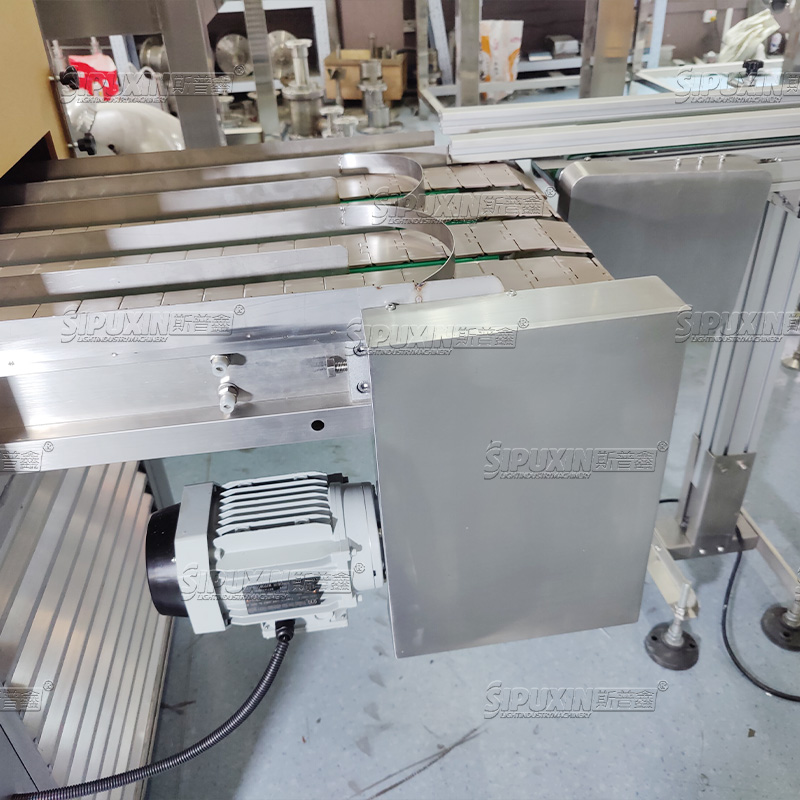

Automatic stainless steel conveyor belt

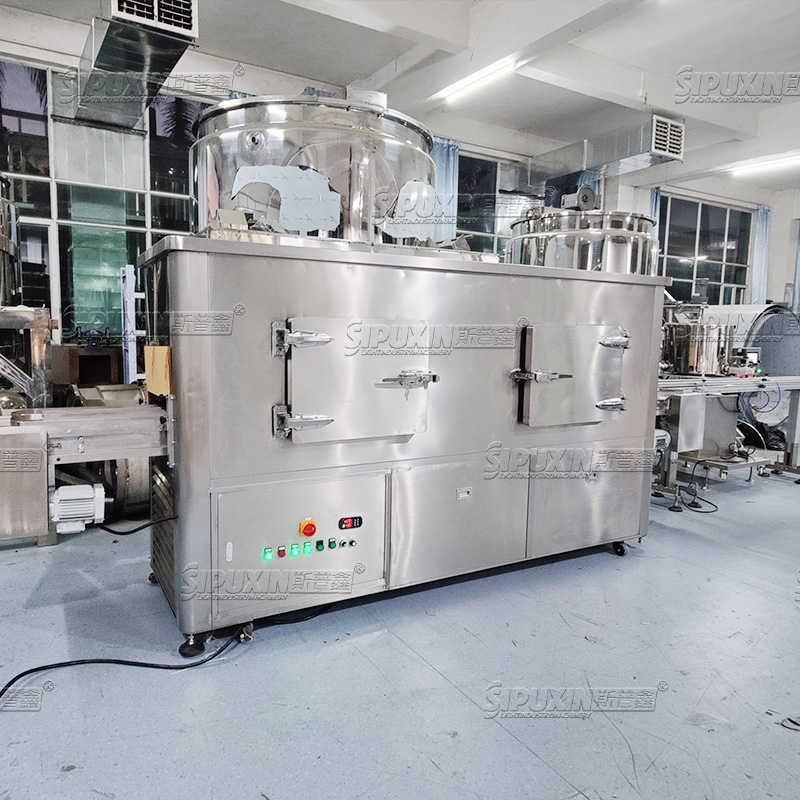

Large industrial refrigeration cooling tunnel with refrigeration unit
Bottle feeding guide frame and finished bottle output platform
Independent electric control cabinet for filling machine and cooling tunnel

Parameter	Specification
Model	SPX-SH Single Head Hot Filling Machine With Cooling Tunnel Line
Filling Head	Single Head Hot Insulation Filling
Filling Range	10ml ~ 1000ml Customizable
Filling Precision	≤ ±1.5%
Filling Tank	Heating & Thermal Insulation SUS304 Tank With Stirrer
Cooling Tunnel	Independent Refrigeration Circulation System, Low Temp Rapid Cooling
Conveyor	Stainless Steel Chain Conveyor, Speed Adjustable
Whole Line Material	SUS304 Stainless Steel
Applicable Materials	Honey, Syrup, Depilatory Wax, Cosmetic Hot Wax, Hot Oil, Lip Gloss Base, Hot Food Slurry
