2000L Hydraulic Lifting Vacuum Homogenizing Emulsifier With External Circulation Emulsifying Pump & Oil‑Water Pot

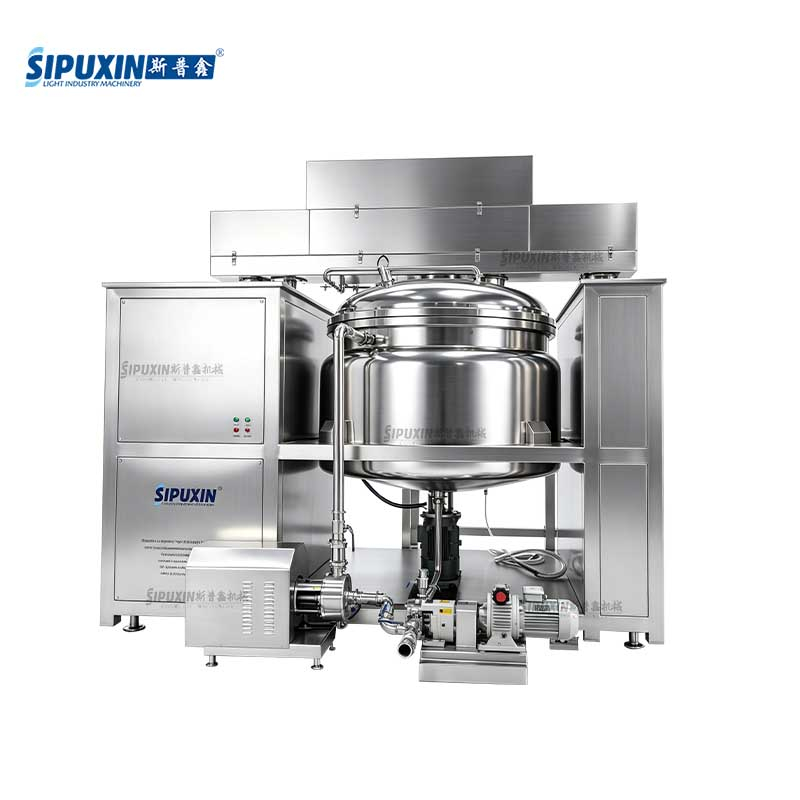

This 2000L hydraulic lifting vacuum homogenizing emulsifier is built for large‑batch industrial production of cosmetic creams, lotions, pharmaceutical ointments and food sauces.
Fitted with independent oil‑water pots for raw‑material pretreatment, it adopts an external circulation high‑shear emulsifying pump to eliminate mixing dead corners in large tanks for finer, more stable finished products.
Hydraulic lifting facilitates tank inspection and thorough cleaning. All wetted parts are SUS316L mirror‑polished to meet GMP standards. Equipped with wall‑scraping agitator and PLC touch‑screen control, it handles viscosity from 100‑50000 cps. Optional CIP system, vacuum feeder and discharge pump are available for customized production requirements

Core Components:	Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Material:	SUS304, SUS316L
Product Type:	Cosmetic , chemical , food , liquid soap
Heating method:	Electric / Steam
Dimension(LWH):	Custom Made
Package Type::	wooden case wooden case
Place of Origin:	Guangdong, ChinaGuangdong, China
Availability:

Quantity:



Inquire Add to Basket

Model:
SZR
Brand:
SPX

Product Description

Products overview

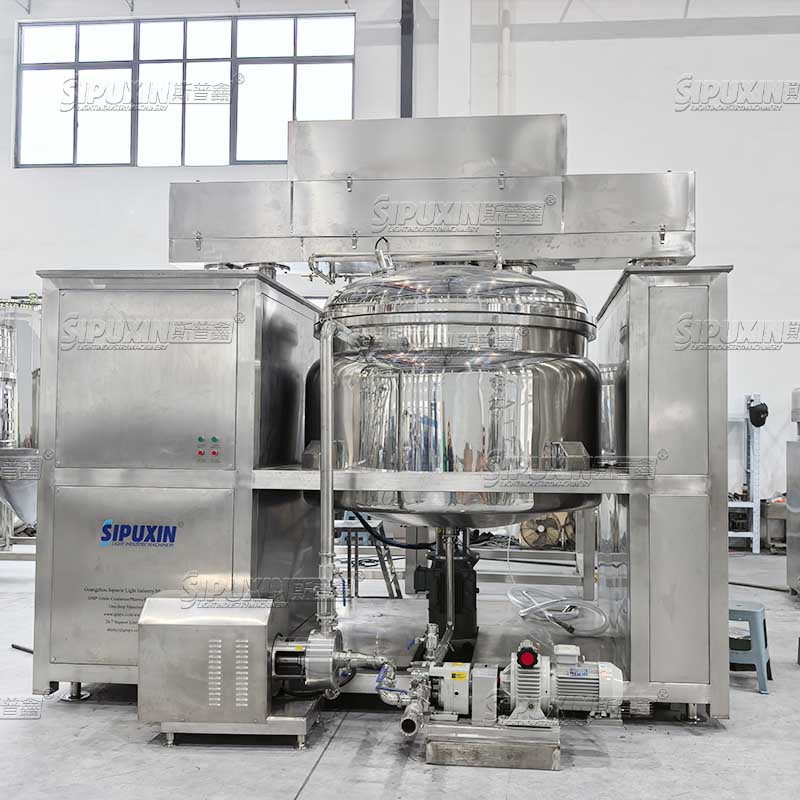

This 2000L hydraulic lifting vacuum homogenizing emulsifier is specially engineered for large‑scale industrial batch production of cosmetic creams, lotions, body butters, pharmaceutical ointments and food sauces. It comes with complete supporting independent oil‑phase and water‑phase pots for raw material pre‑melting and dissolving.

Different from conventional internal homogenizer design, this unit adopts an external circulation high‑shear emulsifying pump. Materials circulate continuously out of the main tank through the pipeline for high‑speed shearing, dispersion and emulsification, then flow back into the main tank. This design effectively eliminates mixing dead zones inside the large‑volume tank, delivers finer particle size, improves product stability and shortens overall processing cycle.

The hydraulic lifting structure enables the upper mixing assembly to lift entirely, bringing great convenience for tank inspection, manual feeding, residue checking and thorough cleaning between batches. Wetted components are manufactured from SUS316L stainless steel with high‑precision mirror polishing, complying with GMP hygiene requirements. Wall‑scraping agitator prevents high‑viscosity materials from sticking to tank walls. Full‑function PLC touch‑screen control realizes automatic heating, cooling, vacuum defoaming, stirring and circulation operation.

Suitable for material viscosity ranging from 100 cps to 50000 cps. Flexible configuration options include CIP cleaning system, vacuum feeding device and discharge pump to satisfy diversified production‑line demands for cosmetic, pharmaceutical and food factories.

More pics for your reference

Homogenizer

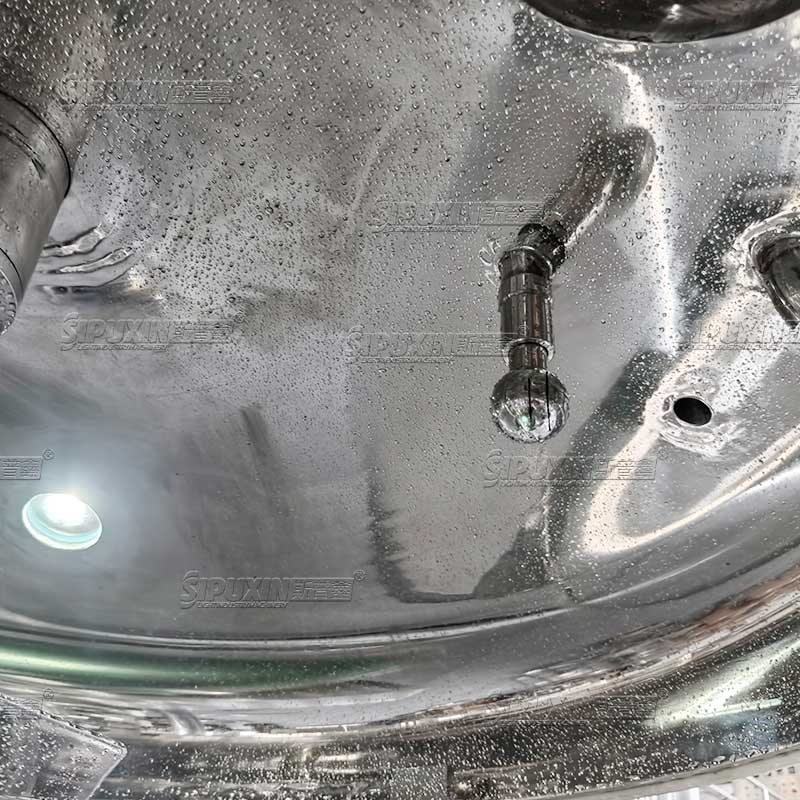

Tank body

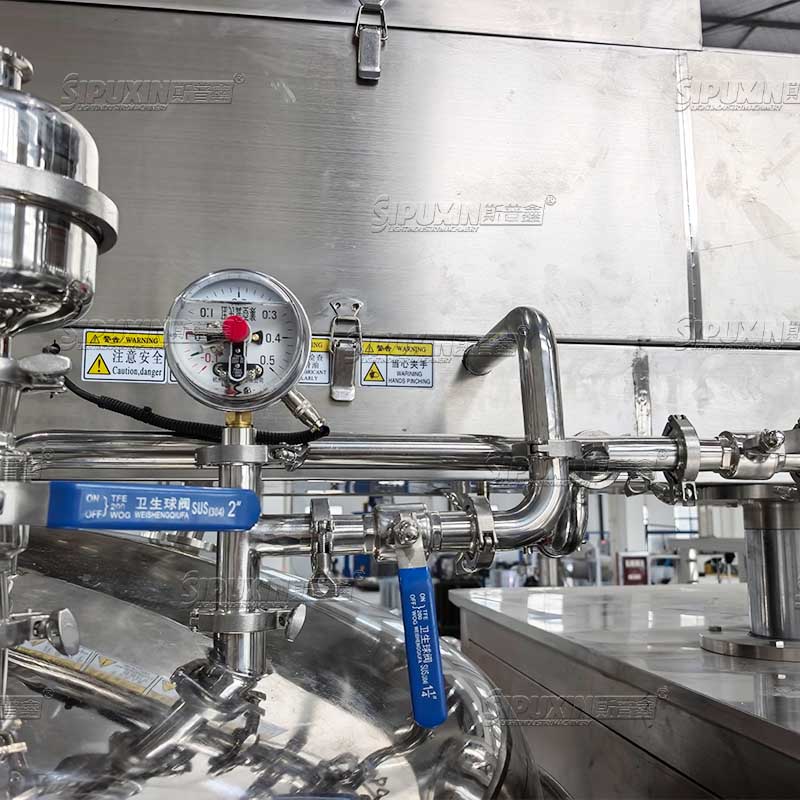

Pneumatic Control Valve

Frame-wall agitator with Tefon scrapper

— Product Advantages

Hydraulic Lifting Structure for Convenient MaintenanceThe entire stirring and homogenizing assembly can be lifted by hydraulic system. Operators gain full access to the tank interior for thorough cleaning of high‑viscosity paste residue, homogenizer inspection and seal replacement. It solves the cleaning dead‑corner problem of large‑volume emulsification tank.
Independent Oil‑Water Phase Tanks for Stable Mass ProductionSeparate oil‑phase and water‑phase tanks complete pre‑heating, dissolving and pre‑stirring respectively. Raw materials are sucked into main tank by vacuum. Uniform raw‑material treatment guarantees consistent emulsification effect and stable finished‑product quality for large‑batch production.
PLC Touch‑Screen Automatic Control with Pneumatic Control ValvesEquipped with PLC touch‑screen system cooperating with pneumatic control valves. Production formulas can be stored and called. Pipeline on‑off, stirring speed, homogenizer speed, temperature and vacuum degree are automatically executed according to preset recipes. Manual‑automatic switching is supported, greatly reducing manual operation errors and improving batch repeatability.
Dual‑action Mixing & Homogenizing System without Dead ZonesAnchor‑type wall‑scraper agitator matches
About us

Help Customers Success and achieve development with customer.
As a company focused on helping customers succeed and achieve development, we are dedicated to providing high-quality machinery equipment solutions that are tailored to meet your unique needs and specifications. Our range of products includes filling machines, labeling machines, packaging machines, and more.

We pay more attention to every machine's packing and loading, also check carefully before shipping.
All of our machine are packed in ply wooden case, which is safe for shipping.
We take pride in our products and the satisfaction of our customers is our top priority. We are confident that our products will exceed your expectations and we look forward to doing business with you.

FAQ

What is the purpose of the hydraulic lifting structure for the 2000L large tank?

A: The hydraulic lifting system drives the upper stirring and homogenizing assembly to lift integrally. For large-capacity equipment, it completely solves the difficulties of internal tank cleaning, residue inspection, manual feeding and equipment maintenance. After lifting, the operator can fully access the inside of the tank without dead corners, which is convenient for daily maintenance and model replacement cleaning, and effectively avoids cross-contamination of batches.

Is the lifting speed and height adjustable? Is the operation safe?

A: The lifting stroke is professionally customized for the 2000L tank body with stable and fixed lifting and lowering speed. The equipment is equipped with multiple safety protection devices such as limit switches and anti-falling protection. The hydraulic system runs stably with low noise. It is strictly forbidden to lift the upper cover when the tank is in a vacuum state to avoid equipment failure and safety accidents.

What should I do if the hydraulic lifting fails or leaks oil?

A: First cut off the power and stop the operation. Check whether the hydraulic oil level is normal, whether the power circuit of the hydraulic station is faulty, and whether the limit switch is triggered. Oil leakage is mostly caused by aging of the sealing ring, which can be solved by replacing the special hydraulic sealing accessories. It is forbidden to disassemble the hydraulic system privately.
