SJB-m-2668
Sipuxin

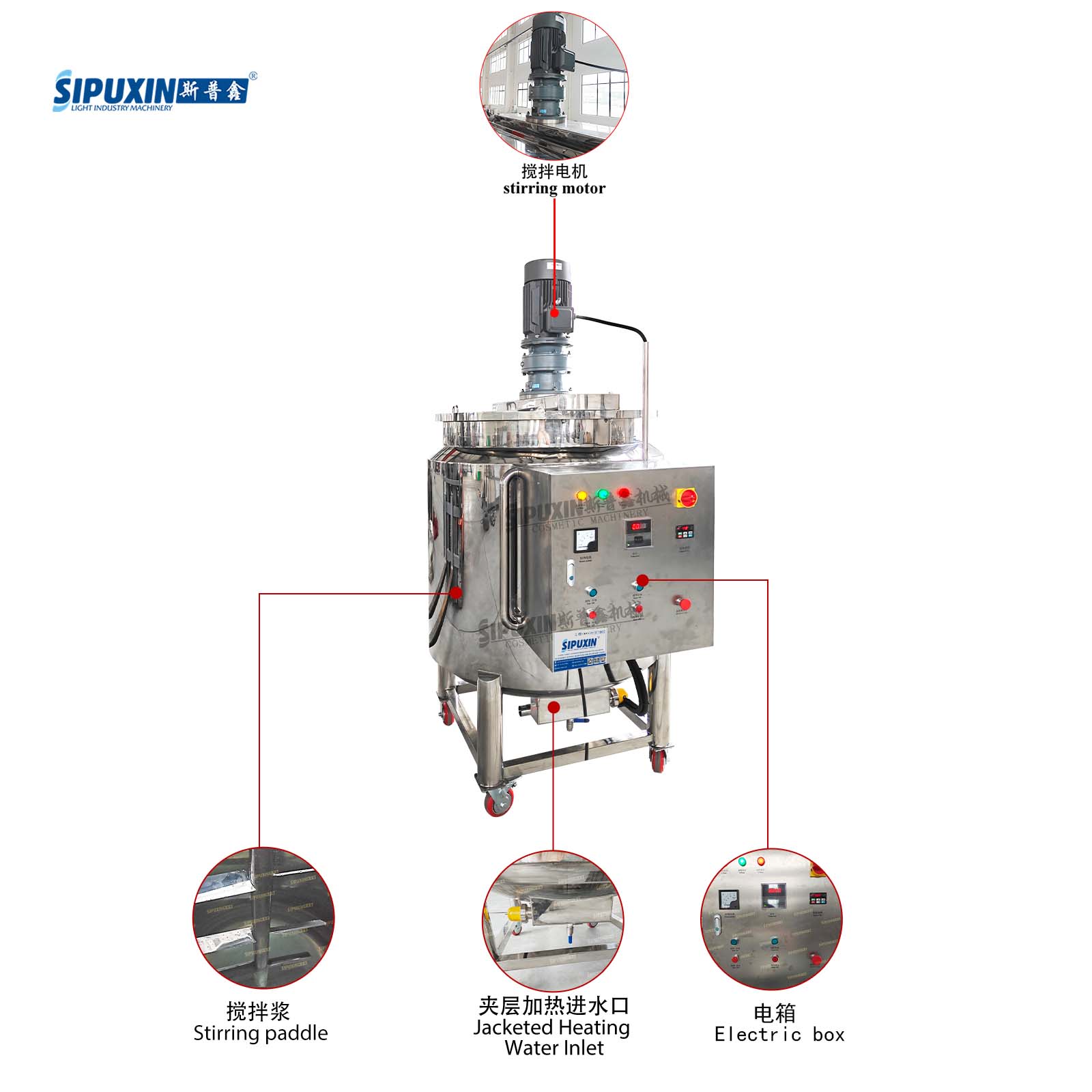

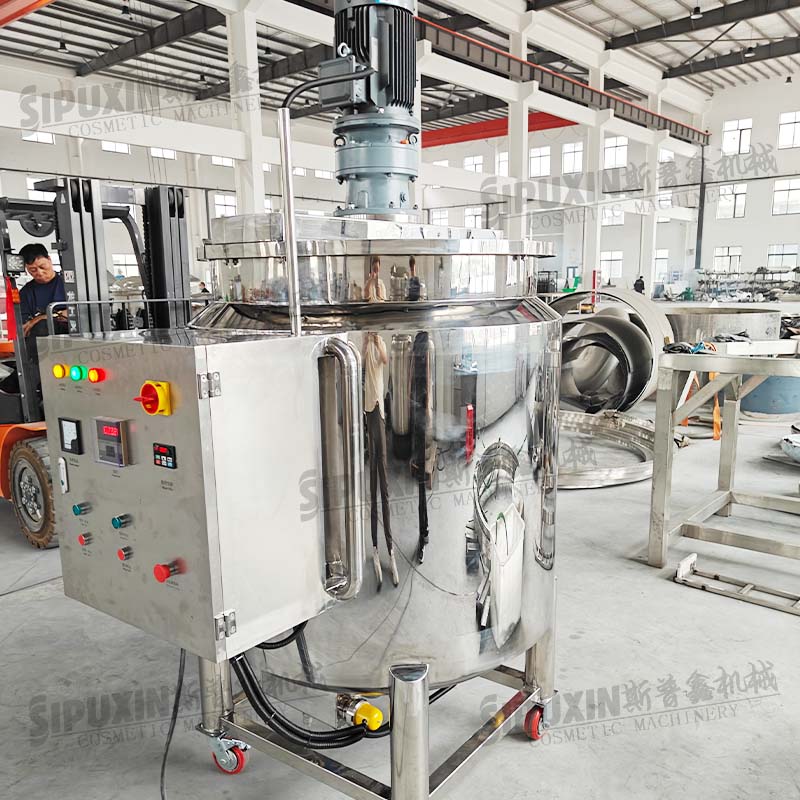

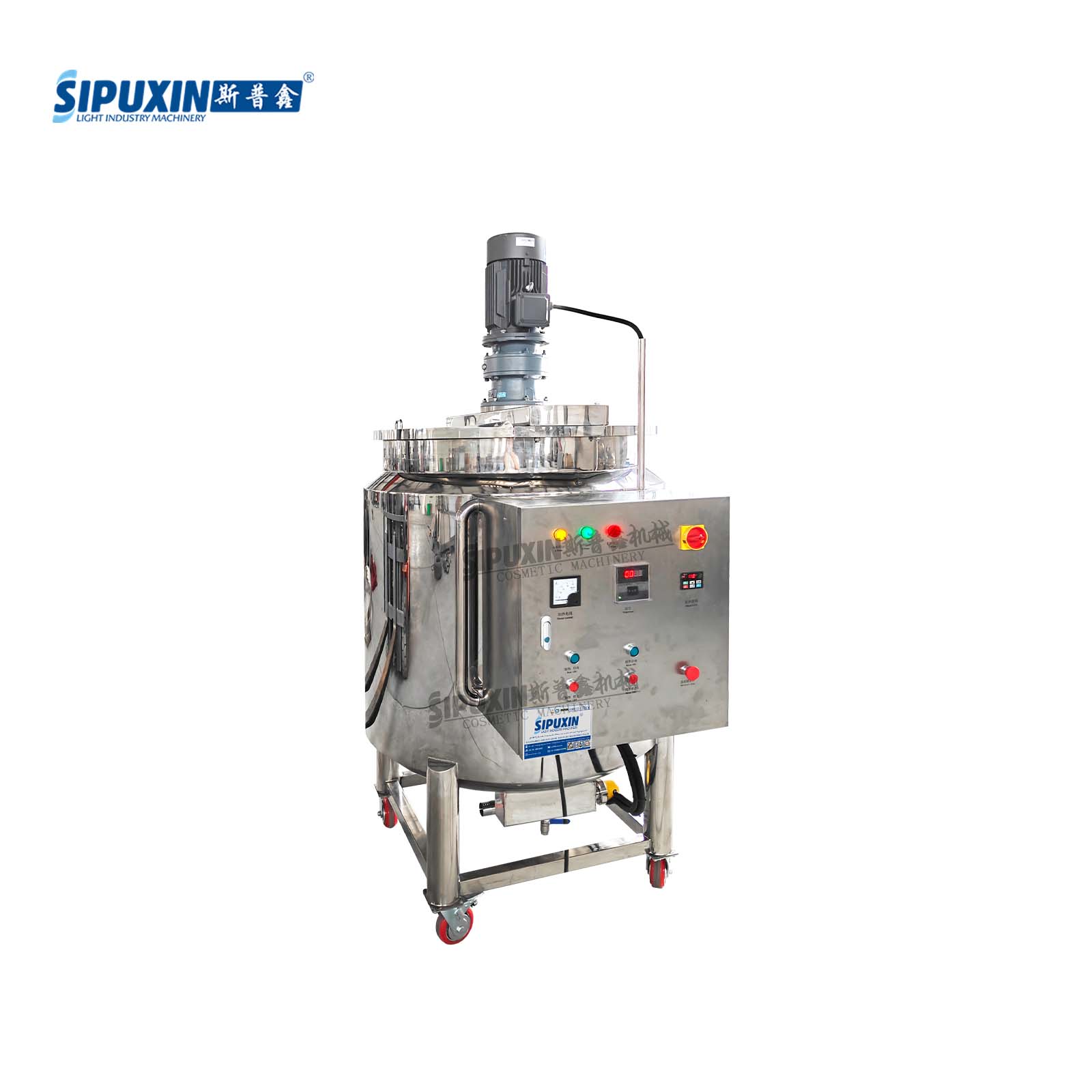

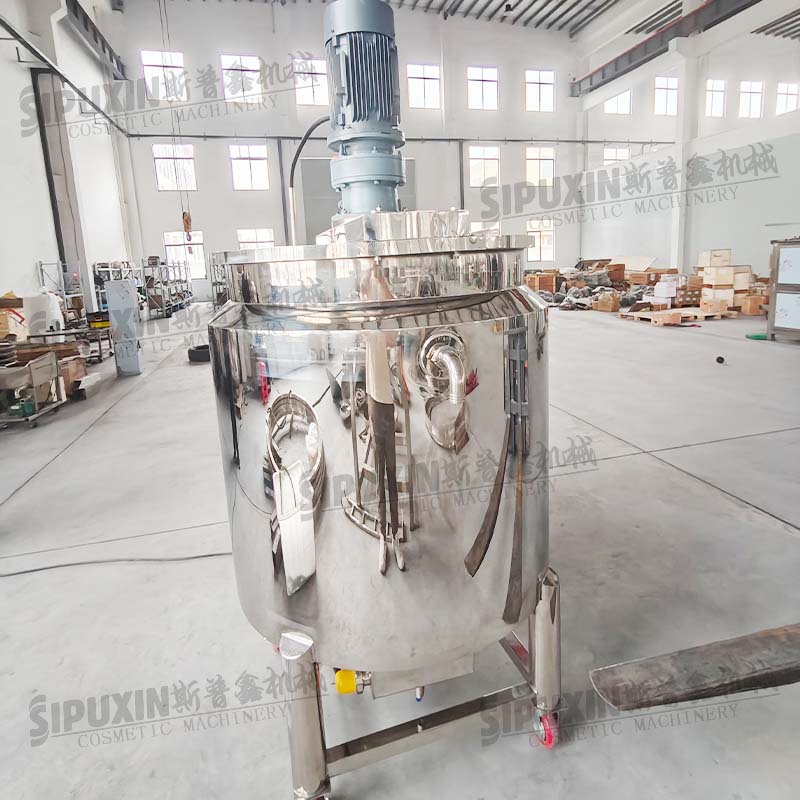

700L mobile electric heating mixing tank is a versatile processing equipment designed for liquid mixing and heating in cosmetic, food, and chemical industries. The tank body is made of high-quality SS304 stainless steel, which is sanitary, corrosion-resistant, and easy to clean. It is equipped with a top-mounted stirring motor and paddle, ensuring uniform mixing of materials with different viscosities. The jacketed water-circulation heating system provides gentle and even heating, protecting temperature-sensitive formulations. The universal wheels at the bottom allow flexible movement and easy position switching in the workshop. The integrated electric control box supports temperature and speed adjustment, making operation simple and convenient. It is an ideal equipment for producing shampoos, body washes, liquid soaps, syrups, and more.
| Parameter | Specification |
|---|---|
| Product Name | 700L Mobile Electric Heating Mixing Tank |
| Working Capacity | 700L |
| Tank Material | SS304 Stainless Steel (product contact parts) |
| Surface Finish | Polished (Ra ≤ 0.8μm) |
| Heating Type | Electric jacketed water circulation heating |
| Heating Power | 3-6 kW (customizable) |
| Max Working Temperature | 95℃ |
| Temperature Control Accuracy | ±1℃ |

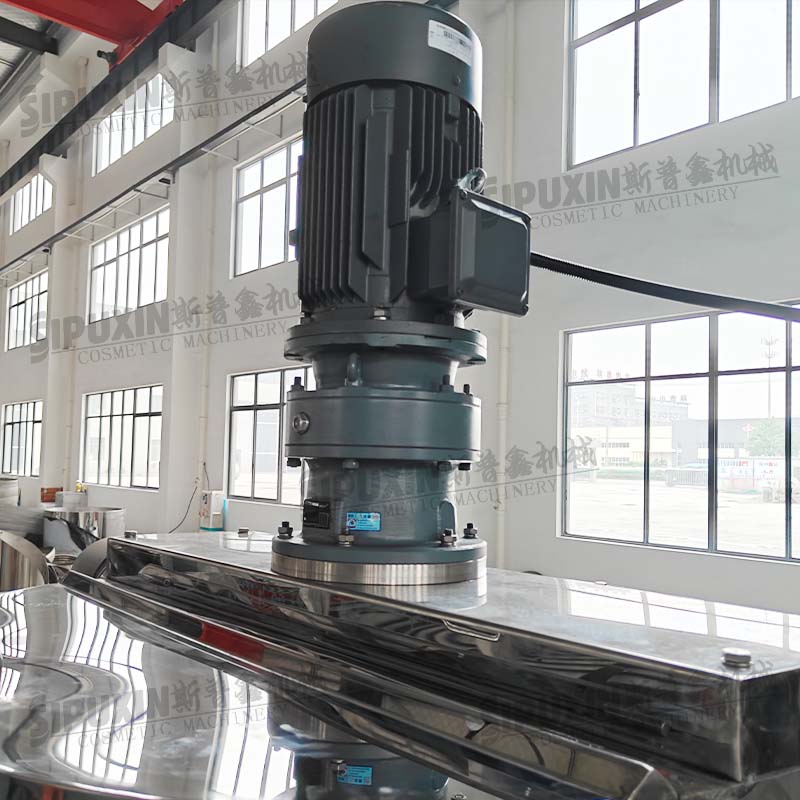

| Mixing Motor Power | 0.75-1.5 kW (customizable) |
| Mixing Speed | 0-60 rpm (variable frequency adjustable) |

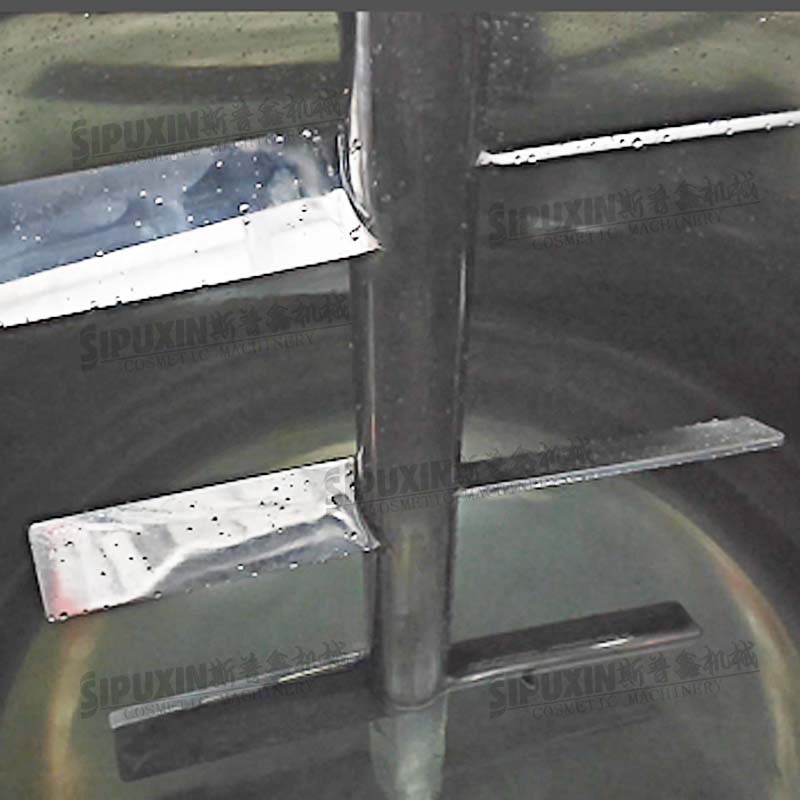

| Agitator Type | Anchor-type stirring paddle |
| Operation Mode | Semi-automatic control |

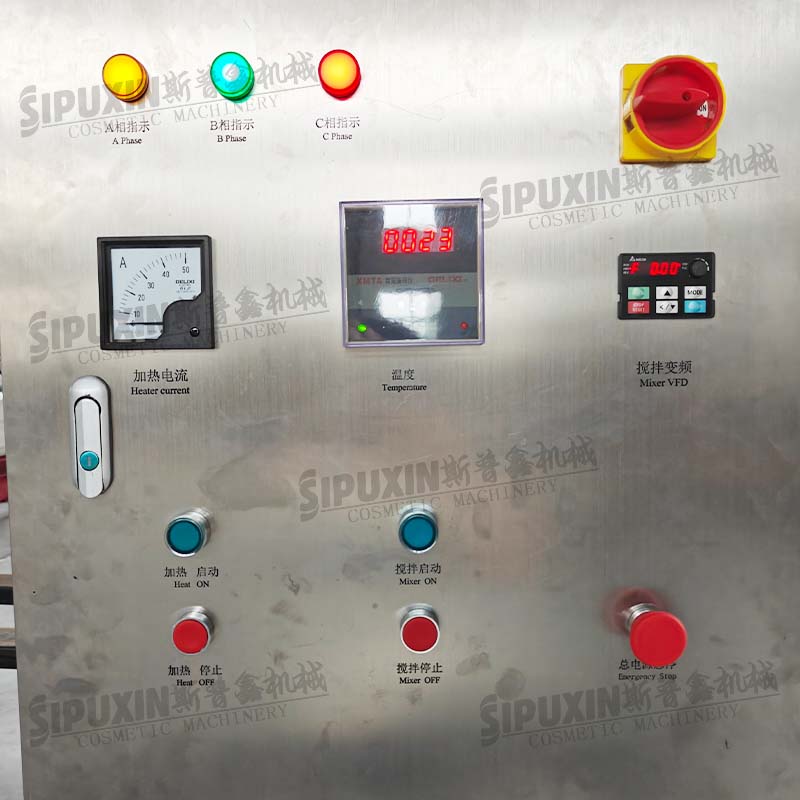

| Control System | Integrated electric control box with temperature/speed adjustment |
| Mobility | Equipped with 4 universal casters (2 with brakes) |

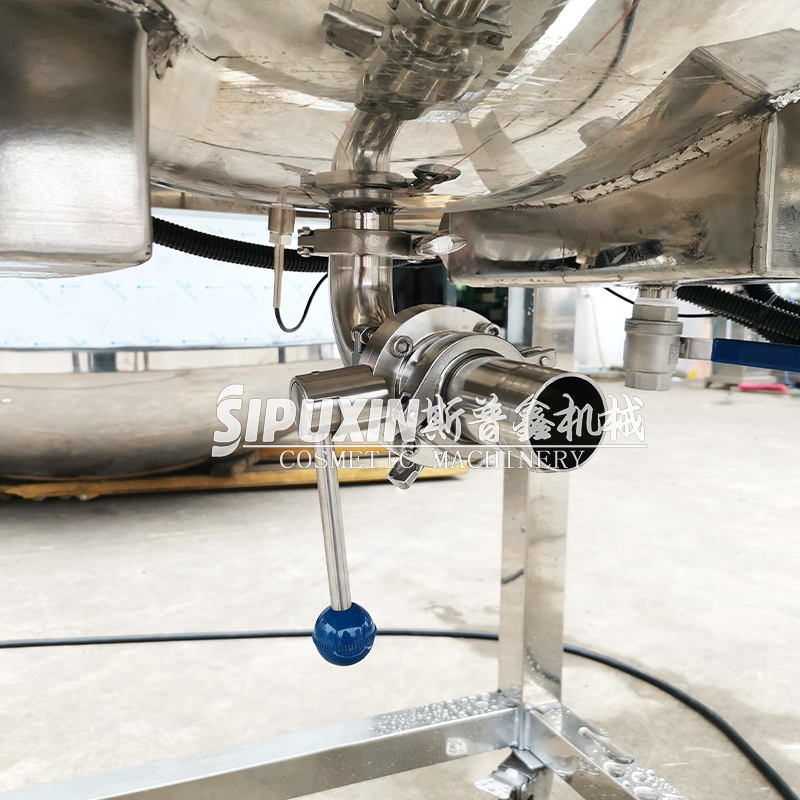

| Inlet/Outlet Ports | 1x feed port, 1x discharge port, 1x heating water inlet |
| Max Working Pressure | Atmospheric pressure |
| Application | Shampoo, liquid soap, lotion, syrup, chemical liquid |
| Voltage | 220V/380V, 50/60Hz (customizable) |
| Overall Dimension | Approx. Φ800 × 1600 mm (customizable) |
| Net Weight | Approx. 250-350 kg (varies with configuration) |
| Optional Features | SS316L material, insulation layer, explosion-proof motor, PLC control |
