50 L Electric Heating Hydraulic Lift Vacuum Homogenizing Emulsion Pot

The vacuum homogenizer is mainly composed of main tank ,oil tank,water tank cover, tank body, mixing system,homogenizing system, vacuum system ,operation platform, PLC etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-1
Brand:
SPX

Product Description

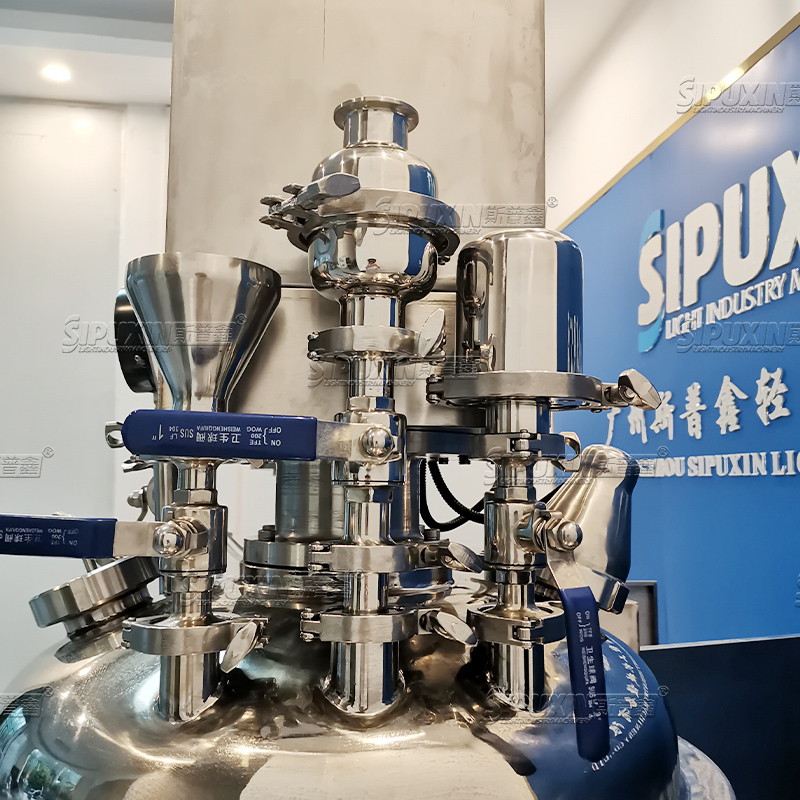

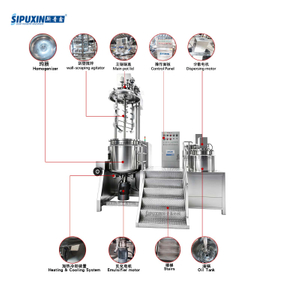

Machine components details

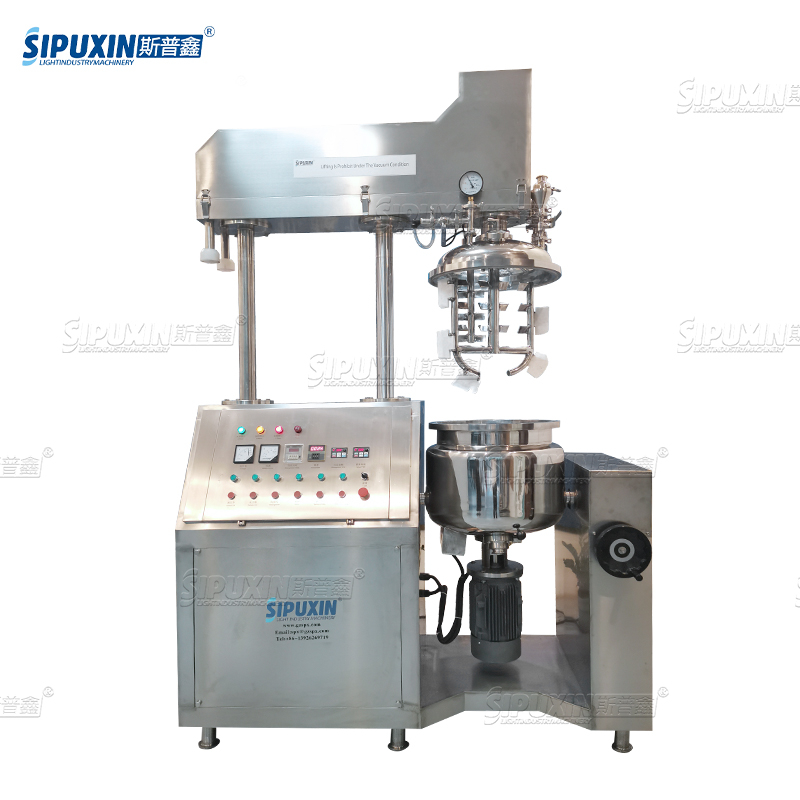

50 L electric heating fixed emulsifying vacuum homogenizing emulsifier tank

Machine composition:

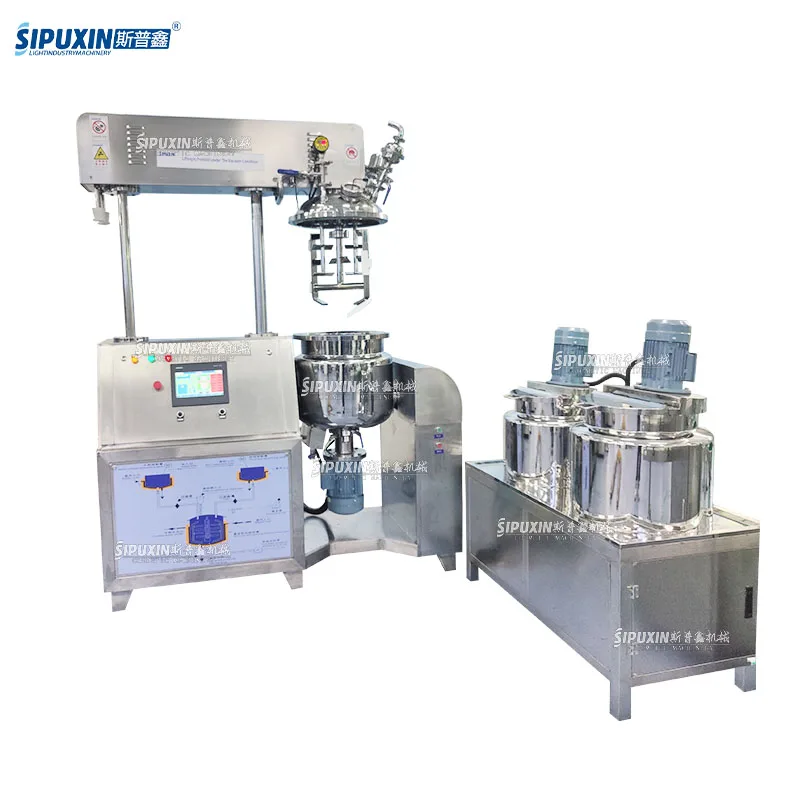

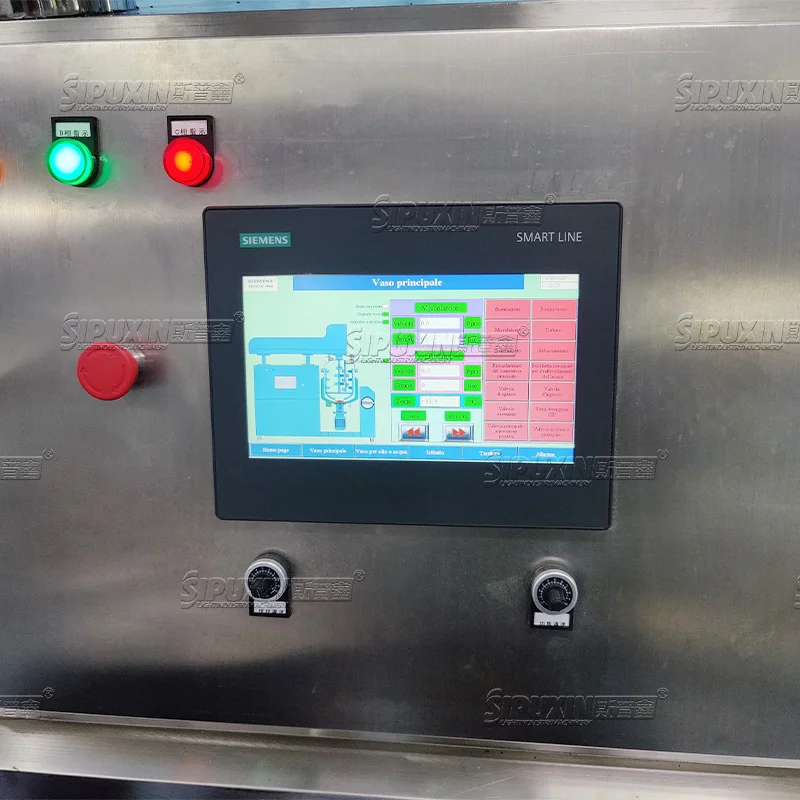

The vacuum homogenizer is mainly composed of main tank ,oil tank,water tank cover, tank body, mixing system,homogenizing system, vacuum system ,operation platform, PLC etc.
Usage and Application:
Our machine is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paintand ink, nanometer materials,petrochemical industry, printing and rubber, electrics and electronics and fine chemical industryetc., the emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Main tank

Capacity	50L
Material	Stainless steel sus304/sus316L
Heating way	Power:6KW Electric heating water in jacket with tap-water cooling system
Mixing way	Power: 2.2KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade

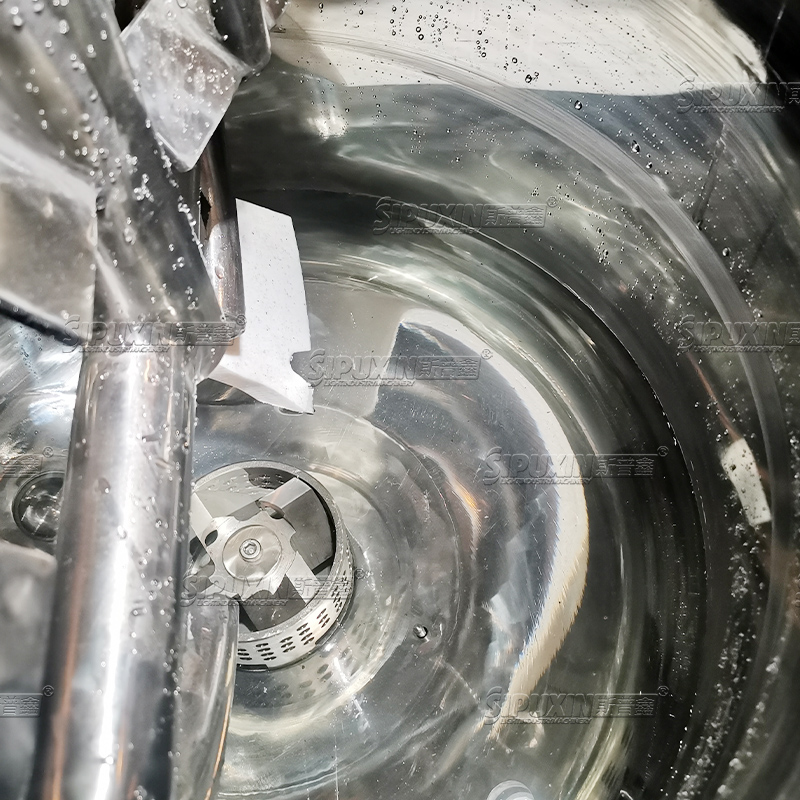

Homogenizer way	Power: 3KW; Speed: 0-3000RPM,speed adjustable
Vacuum system	power: 1.1KW

Oil tank
Capacity	30L
Material	Stainless steel sus304/sus316L
Heating way	Power:6KW
Dispersing way	Power:0.37KW
Water tank
Capacity	40L
Material	Stainless steel sus304/sus316L
Heating way	Power:6KW
Dispersing way	Power:0.37KW
