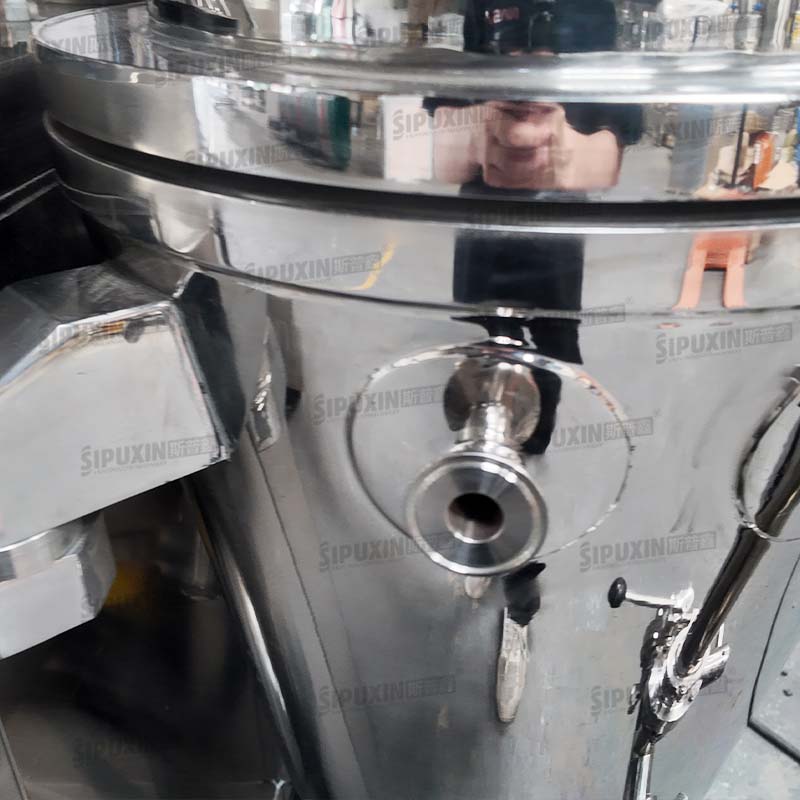

30L Conical Bottom Laboratory Vacuum Emulsifier

30L conical bottom lab vacuum emulsifier adopts cone tank design for complete material discharge. Vacuum high shear homogenizer for cosmetic cream, lotion, ointment small batch R&D and pilot test. SUS304/SUS316L optional.
Core Components:
Material:
Product Type:
Heating method:
Dimension(L*W*H):
Package Type::
Place of Origin:
Availability:
Quantity:
  • SZR

  • SPX

Product Description

Products overview











Compact 30L conical bottom lab vacuum emulsifier with high shear homogenizer. Vacuum defoaming, optional heating & cooling jacket. Ideal for R&D and small trial production of cosmetic cream, paste and ointment. SUS304 / SUS316L available.

More pics for your reference

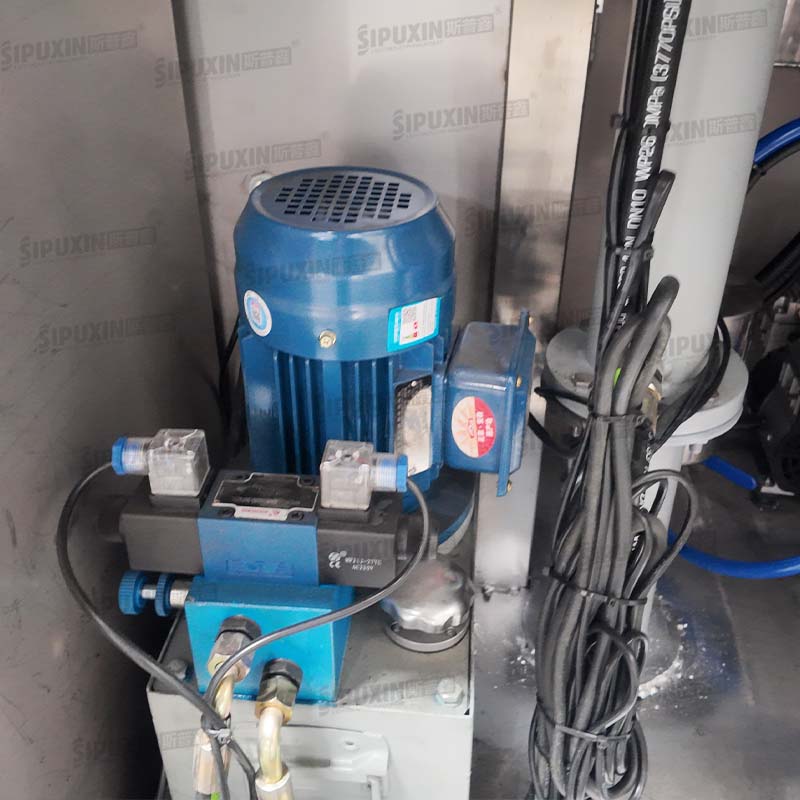

Lifting motor

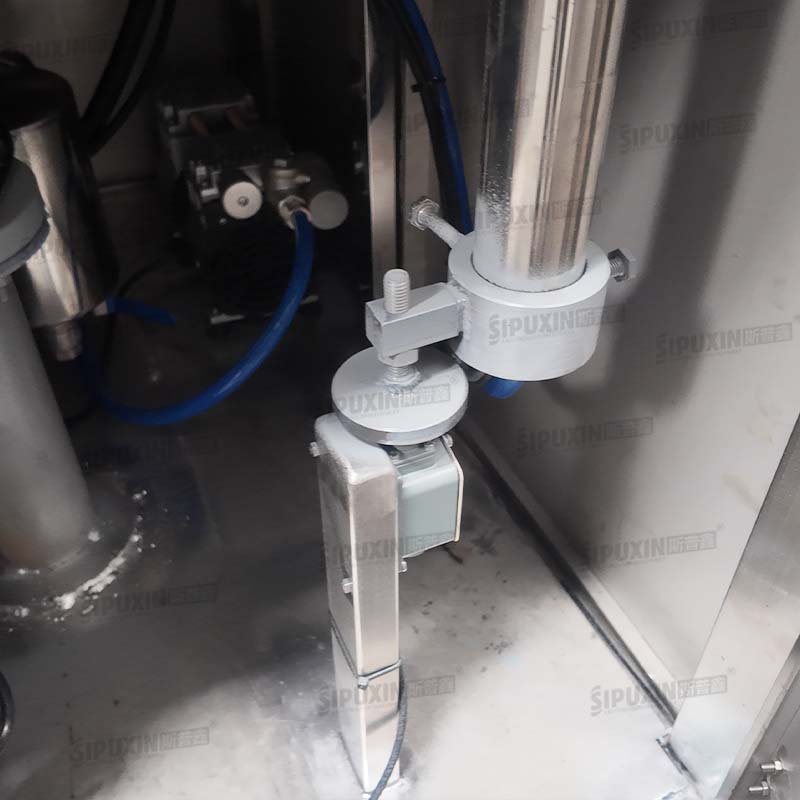

         Handle

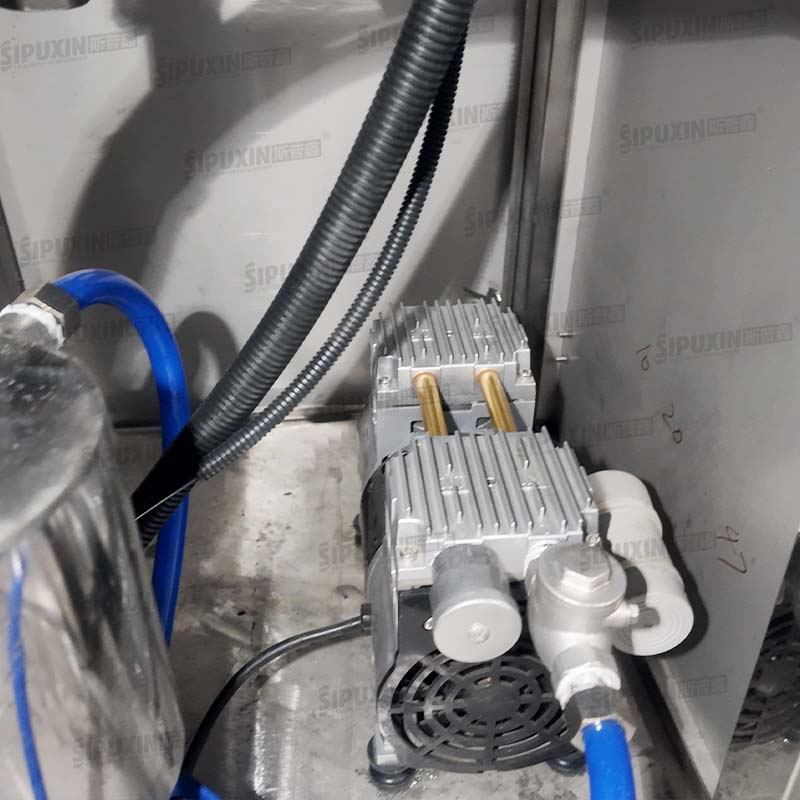

     Motor

   Electrical component

— Product Advantages

  • Conical bottom tank design ensures complete material discharge with minimal residue, which is especially suitable for viscous cream, paste and ointment.

  • Integrated vacuum system realizes defoaming during emulsification, avoiding bubbles inside finished products and improving product appearance and stability.

  • Built-in high shear homogenizer provides strong emulsifying force, achieving fine and uniform particle size for cosmetic formulas.

  • Lab-scale compact structure, easy to move and operate, perfect for formula R&D, sample making and small batch trial production.

  • Tank material optional SUS304 or SUS316L stainless steel, with sanitary internal polishing, easy to clean and meet hygiene requirements.

  • Optional heating/cooling jacket to control material temperature precisely for different emulsification processes.

  • Humanized control system, adjustable stirring and homogenizing speed, convenient for technicians to test different formulas.

  • Good sealing performance, stable vacuum maintaining, no leakage during vacuum emulsifying operation.

  • About us


Help Customers Success and achieve development with customer.

As a company focused on helping customers succeed and achieve development, we are dedicated to providing high-quality machinery equipment solutions that are tailored to meet your unique needs and specifications. Our range of products includes filling machines, labeling machines, packaging machines, and more.

We pay more attention to every machine's packing and loading, also check carefully before shipping.

All of our machine are packed in ply wooden case, which is safe for shipping.

We take pride in our products and the satisfaction of our customers is our top priority. We are confident that our products will exceed your expectations and we look forward to doing business with you.

FAQ

Q1 Are you a real manufacturing factory

A Yes we are original equipment manufacturer. We own production workshops in Guangzhou and Yangzhou. Customers can arrange video factory tour or physical site visit to check our production condition.

Q2 What is the working principle of this 200L vacuum emulsifier

A This machine adopts three motor structure. Two motors are installed on tank top. One for low speed overall stirring, another for high speed material dispersion. The bottom homogenizer provides high shear emulsification. All processing is finished under vacuum condition to remove bubbles and avoid material oxidation.

Q3 What products can this 200L vacuum homogenizing emulsifier produce

A It is widely used for cosmetic cream, body lotion, facial mask, shampoo, hair conditioner, ointment and other viscous daily chemical or pharmaceutical products.

Q4 What material for parts touching raw materials

A The material contact parts adopt SUS316L stainless steel. Inner tank surface is fine mirror polishing, which meets GMP sanitary standard for cosmetic and medicine production.

Q5 Can I choose heating mode for this machine

A Yes. Both electric heating and steam heating are optional. Please inform us your site condition, we will configure suitable heating solution for you.

Q6 Can you customize machine configuration

A Sure. We support customization for discharging method, vacuum system, control cabinet, observation window and other accessories according to your raw material feature and production requirement.

Q7 How long is the production lead time

A Normally 25‑35 working days for standard 200L vacuum emulsifier. If you need special customized configuration, we will confirm exact lead time after technical discussion.

Q8 What is your payment term

A We usually accept T T payment. 30 percent deposit for production, 70 percent balance before shipment. Other payment methods can be further negotiated.

Q9 Do you provide installation and training service

A We can supply remote online guidance with operation manual and operation videos. We also support sending engineers to customer site for installation commissioning and operator training.

Q10 What about your after sales service

A We provide one year warranty for whole machine except easy worn spare parts. Lifelong technical consultation support is available. When machine has problems you can send pictures or videos, our technical team will give feedback quickly. Spare parts can be supplied at cost price after warranty period.

Q11 What about packing before shipment

A The machine will be wrapped with plastic film and packed in export plywood wooden case to prevent damage during long sea transportation.
