This 1000L double hydraulic lifting vacuum emulsifier adopts bidirectional stirring structure with PTFE wall scraper to avoid material sticking and eliminate stirring dead angle. It is equipped with vacuum high-speed homogenizing system to realize bubble-free, fine and stable emulsification.

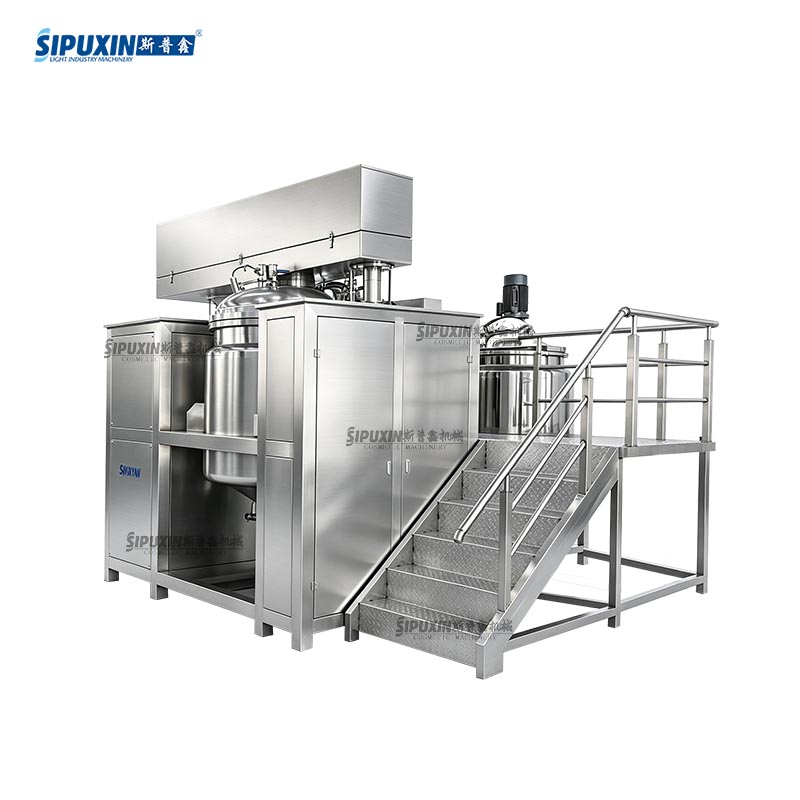

This 1000L hydraulic lifting vacuum emulsifier is independently developed by SIPUXIN, adopting bidirectional stirring + top homogenizing structure, electric heating system and vacuum deaeration technology. It is widely used for emulsification and homogenization of cosmetics, daily chemicals and food viscous materials, such as facial cream, body lotion, ointment, sauce and paste products. Under vacuum environment, materials achieve fine mixing, emulsifying and particle refinement without bubbles, greatly improving product stability and texture.
Main Parameters
Item
Specification
Model
1000L Double Hydraulic Lifting Vacuum Emulsifier
Effective Volume
1000L
Total Power
5.5KW
Voltage
220V/380V (Customizable)
Main Mixing Speed
0–63 rpm
Homogenizer
Top high-shear homogenizer
Mixing System
Bidirectional stirring with PTFE wall scraper
Heating Method
Electric heating (water/oil heating optional)
Lifting Mode
Double hydraulic lifting
Contact Material
SUS316L / SUS304 stainless steel
Operation Mode
Vacuum negative pressure mixing
Application
Cosmetics, daily chemicals, food industry
After-sales
1-year warranty, online & overseas technical support
Core Advantages
Double hydraulic lifting design
The main tank can be lifted up and down automatically, convenient for feeding, cleaning and discharging; easy tank separation reduces dead corners and meets GMP cleaning requirements.
Bidirectional stirring + PTFE wall scraper
Inner and outer frame bidirectional mixing, matched with imported PTFE scraper, continuously scraping materials on tank wall to avoid material adhesion and ensure uniform heating and mixing.
Top high-shear homogenizer
High-speed shear breaks material particles, realizes nano-level emulsification, makes cream delicate, smooth and long shelf life.
Vacuum deaeration system
Work under vacuum condition to avoid air mixing, eliminate bubbles in finished products, prevent oxidation and discoloration, improve surface gloss.
Stainless steel sanitary structure
Material contact part adopts SUS316L stainless steel, mirror polishing, no dead corners, easy CIP cleaning, suitable for cosmetic and food hygienic production standards.
Intelligent control system
Stable temperature control, adjustable stirring speed, vacuum pressure monitoring; optional PLC touch screen for automatic production recording and parameter storage.
Application Scope
Cosmetics: face cream, body lotion, massage cream, eye cream, ointment, hair conditioner
Daily chemicals: hand cream, paste detergent, facial mask paste
Food industry: sauce, paste, jam, cream food
Pharmaceuticals: external ointment, gel products
Working Principle
Raw materials are added into the main pot and auxiliary pots. Under vacuum environment, bidirectional frame stirrer slowly mixes materials, while the top homogenizer performs high-speed shear emulsification. The heating system maintains constant temperature for reaction. After emulsification is completed, the hydraulic system lifts the mixing frame, and finished materials can be discharged from the bottom outlet.
Package & Service
Packing: standard export wooden case or film packaging
Warranty: 1-year free maintenance for core components
