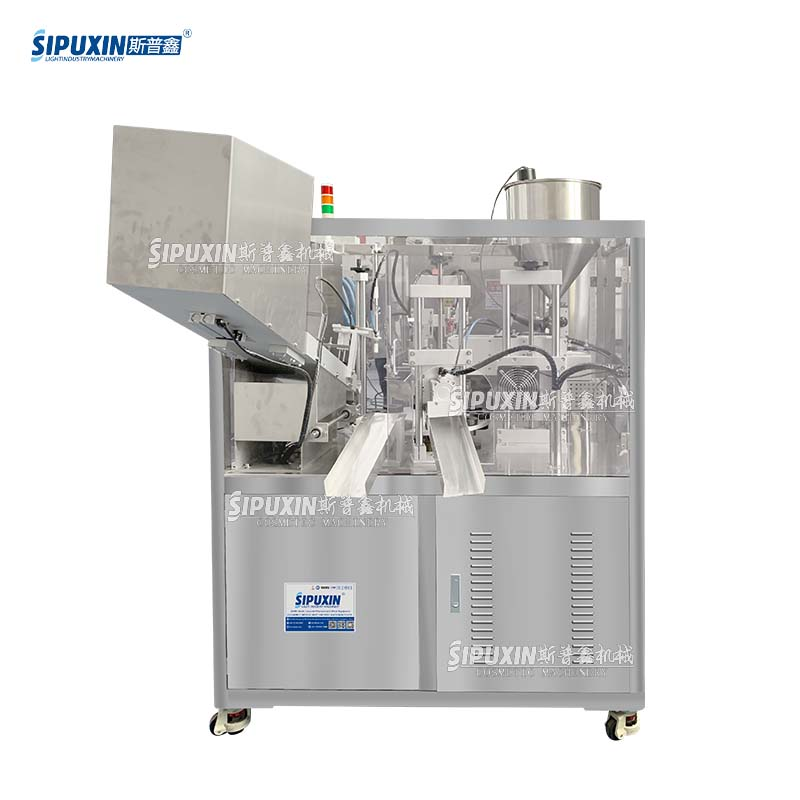

The Fully Automatic Ultrasonic Tube Filling and Sealing Machine is a high-efficiency, intelligent packaging equipment designed for tube packaging in industries such as cosmetics, pharmaceuticals, food, and chemicals. This machine integrates filling and sealing functions, utilizing advanced ultrasonic sealing technology to ensure strong, aesthetically pleasing, and contamination-free sealing, significantly improving production efficiency and product quality.
Key Features
1.Fully Automated Operation
Equipped with a PLC control system and HMI (Human-Machine Interface) for one-touch operation, minimizing manual intervention and reducing labor intensity.
2.High-Precision Filling
Features a precision filling system with adjustable filling volume, ensuring accuracy within ±2% for consistent filling in each tube.
3.Ultrasonic Sealing Technology
Uses ultrasonic sealing, eliminating the need for heat. The sealing process is fast (0.5-1 second per tube), strong, and leak-proof, suitable for various materials
4.Wide Compatibility
Adaptable to different tube specifications (diameter: 10-50mm, length: 50-200mm). Quick mold changes enable flexible production switching for multiple product types.
5.Hygienic & Safe Design
Machine made of 304&316 stainless steel, compliant with GMP standards, ensuring easy cleaning and production safety.
6.High-Speed & Stable Performance
Production speed: 20-50 tubes/minute (depending on tube size and material), with stable operation and low failure rate, ideal for large-scale continuous production.
7.Intelligent Detection Functions
Includes no-tube-no-filling and no-tube-no-sealing detection to avoid waste. Optional vision inspection system for quality control.

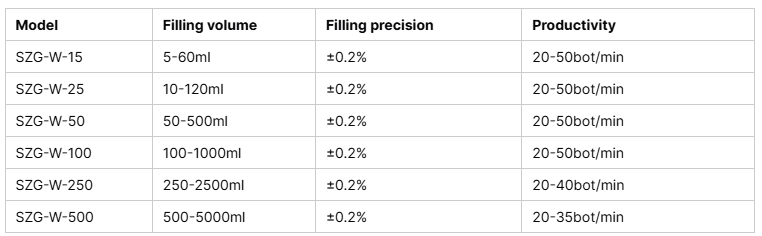

Parameter Table
Applications
Cosmetics: Face wash, hand cream, toothpaste, etc.
