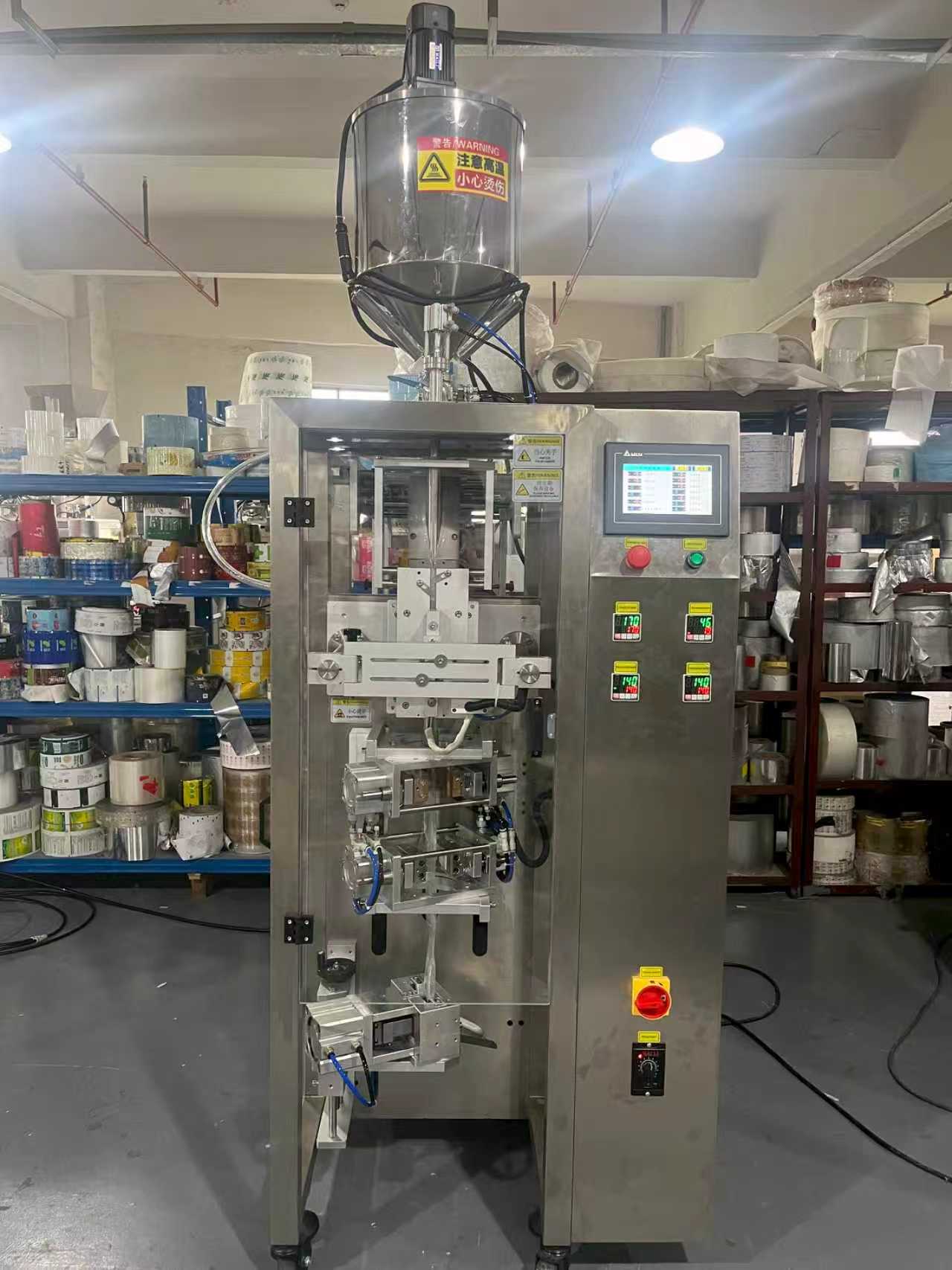

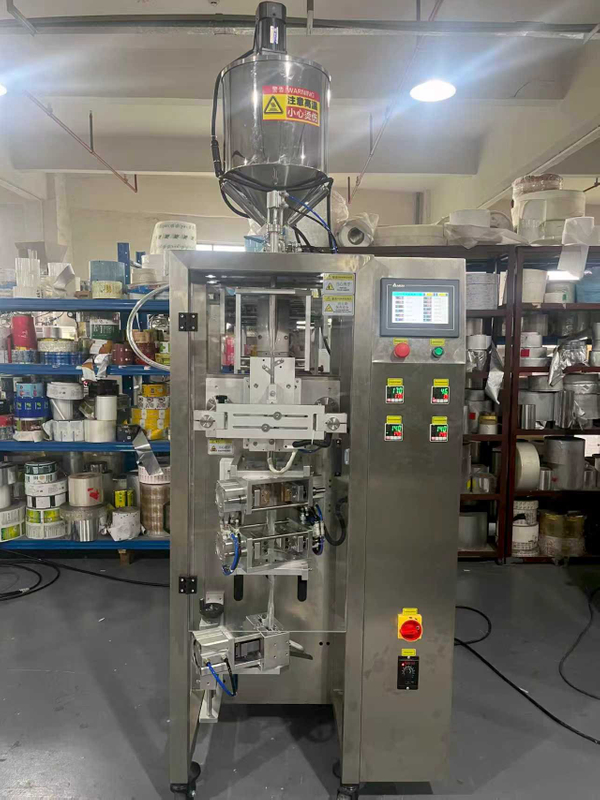

Special-shaped Sachet Packing Machine with Heating Function

The SPX-DY220 back sealing automatic packaging machine has a series of automatic functions such as feeding, measuring, bag making, filling, sealing, date printing, and finished product output. This machine adopts high-precision film transport system, PLC program control, advanced touch based human-machine interface, photoelectric automatic tracking, PID digital constant temperature control system, etc., making the operation of the whole machine simpler and more complete. It is the preferred equipment for improving production efficiency, reducing labor intensity, and improving packaging grade in the food and drug packaging industry. This equipment is an automatic packaging machine used for bag packaging of cold-rolled pure aluminum composite packaging, multi-layer composite film, plastic film, etc. The accompanying multi-channel material filling device can continuously fill the packaging bags with packaging materials and simultaneously cut out single or multiple packages.

Applicable Industries::	Food, cosmetics, chemicals
Speed:	30-50bag/min
Weight (KG):	400
Power (KW):	6.5
Brand Name:	SIPUXIN
Surface treatment: :	polishing
Material:	Stainless steel SUS304
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-DY220
Brand:
SIPUXIN

Product Description

Product overview

Semi-automatic special-shaped Sachet packing machine

Our semi-automatic irregular-shaped bag packaging machine is designed for efficient and versatile packaging of non-standard pouches, including stand-up bags, gusseted bags, and other customized shapes. Ideal for food, pharmaceuticals, cosmetics, and industrial products, this system combines precision with user-friendly operation to enhance productivity while reducing labor costs.

Key Features:
- Adaptable Design: Handles various bag types (e.g., Doypack, side-seal, or V-seal) with adjustable sealing parameters.
- Intuitive Controls: Semi-automatic operation with touchscreen interface for easy adjustment of temperature, speed, and sealing time.
- High-Quality Sealing: Equipped with durable heating elements for consistent, leak-proof seals on multi-layered films.
- Compact & Safe: Robust stainless-steel construction with safety sensors to prevent overheating or misfeeds.
- Low Maintenance: Simplified mechanics ensure minimal downtime and easy cleaning.

Applications:
Perfect for small-to-medium enterprises (SMEs) seeking cost-effective, flexible packaging solutions for irregularly shaped products like snacks, granules, powders, or liquids.

Spuxin Machinery – Your trusted partner for innovative packaging technology. Contact us for customized solutions!

This version highlights your company’s expertise while keeping the description clear, technical, and market-oriented. Let me know if you'd like to emphasize specific features or industries!

87dd6118398567f44a53991129dd186

Equipment parameters
Item Name	Single-lane back-seal packaging machine
Machine model	Spx-DY220
Main technical specifications
Packaging Range	Widely used in the packaging of liquids and viscous liquids in food, medicine and chemical products. Choose the appropriate metering mechanism according to the material.
Packaging Function	It has a series of automatic functions such as automatic feeding, metering, bag making, filling, sealing, date printing and finished product output. It can also realize automatic color code alignment according to user requirements. The loading part of this machine has changed the previous single loading method and adopted different loading machines according to different medicines, with rich loading types to meet different user needs.
Maximum Packaging Width (mm	220mm
Number of Cuts (Vertical Rows)	1 row
Packaging Material	Nylon film/polyester film composite, polyester film/polyester composite film, nylon film/pure aluminum foil/polyester film composite, polyester film/pure aluminum foil composite, polyester film and other materials that can provide heat sealing function composite. (Packaging materials cannot be flammable, explosive, perishable, or other materials listed as hazardous chemicals or substances)
	Maximum packaging material width: 220mm; Maximum packaging material outer diameter: φ320mm; Packaging material core diameter: φ75mm; Packaging material thickness: 0.05-0.1mm
Filling Qualification Rate (%)	99.5％
Power Specifications	Customized according to local voltage
Total Power Consumption (kW)	Customized according to local voltage&current
Compressed Air Pressure (MPa	0.6 MPa
Compressed Air Consumption (m³/h	1.4 m³/min
Noise Level (dBA)	78dB(A)
Filling range	70ml-100ml（Adjustable）
Dimensions (LWH)	130014002800mm
Packaging Materia	Liquids
Cross-Cutting Frequency	30-50 times/minute, adjustable according to application requirements. Single-row
Weight (kg)	400kg
Production Process Automation Capability	Material filling, packaging material tension, sealing temperature, cutting speed, and tangent control, with stepless speed regulation
