Lipstick Lip Balm Gloss Oil Viscous Fluid Eyeliner Heating Stirring Filling Machine

Application
The machine is designed for liquid paste cosmetics,such as lipstick,pen lipstick,eyebrow pencil,lip oil,lip gross,etc.Independent barrel mixing and temperature control design to meet the demand of diversified raw materials.Advanced Automatic Technology(man interface,PLC /HMI progarm control)is adopted to simplify the system operation procedure,and the overall performance is more stable.Each unit (barrel,pump,tube,nozzle）adopts intelligent thermostat for independent control.The whole machine is easy to use,and does not need to spend much time training.

Power (KW):	1.1
Applicable Industries::	lipgross
Warranty of core components:	1 year
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-17
Brand:
SPX

Product Description

 Performance

 1.20L double-heated heating barrel,and the temperature and stirring speed can be adjusted.

 2.12 nozzles can fill 12pcs one time.

 3.Piston filling system,driven by the stepper motor,numerical control.

 4.Rotory swich,driven by the cylinder.

 5.Trough stirring device,driven by the motor.and it can prevent gold onion and pearl precipitation.

 6.Mold lifting function,driven by the stepper motor,numerial control.

 7.Patented nozzle tube heating plate design.

8.Color man-machine touch panel interface,all-round numerial control,easy manipulation,convenient and accurate.

Machine weight	About 20kg
Product name	viscious fluid filling machine doser filler
Material	SUS304/316L
Function	doser
Driven Type	Electric heating
Outside dimention	8507501745MM
Advantage	Customized

Details Images

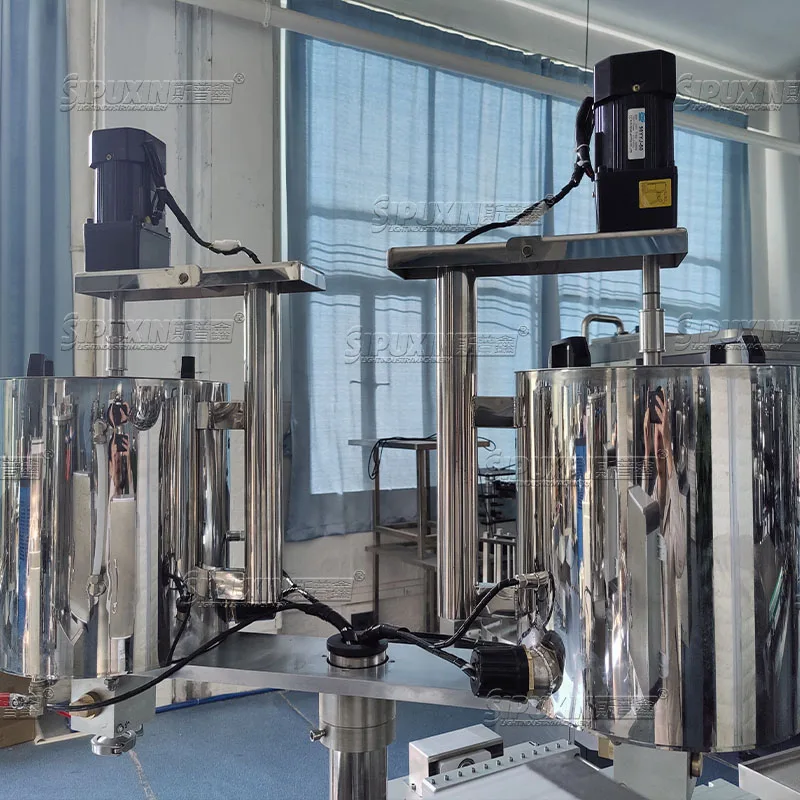

Double heating stirring barrels


 The mixing motor and the 20L hopper to fill viscious liquid lip stick lip oil lip balm.

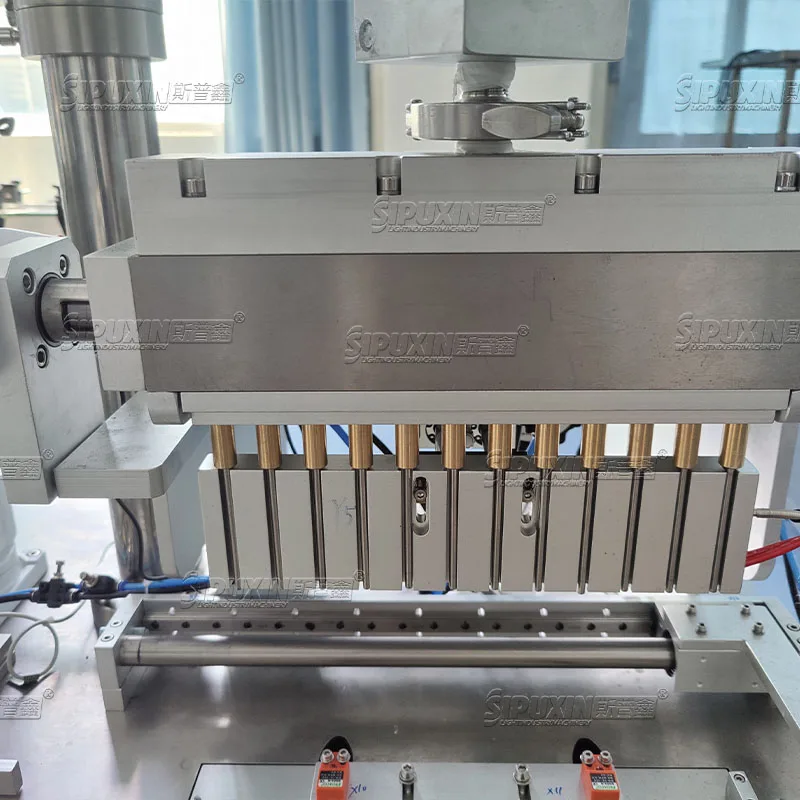

12 hoses in one mold

 12 hoses in 1 mold,one time can dosing 12 tubes,the filling capacity can be setted and controled by HMI.

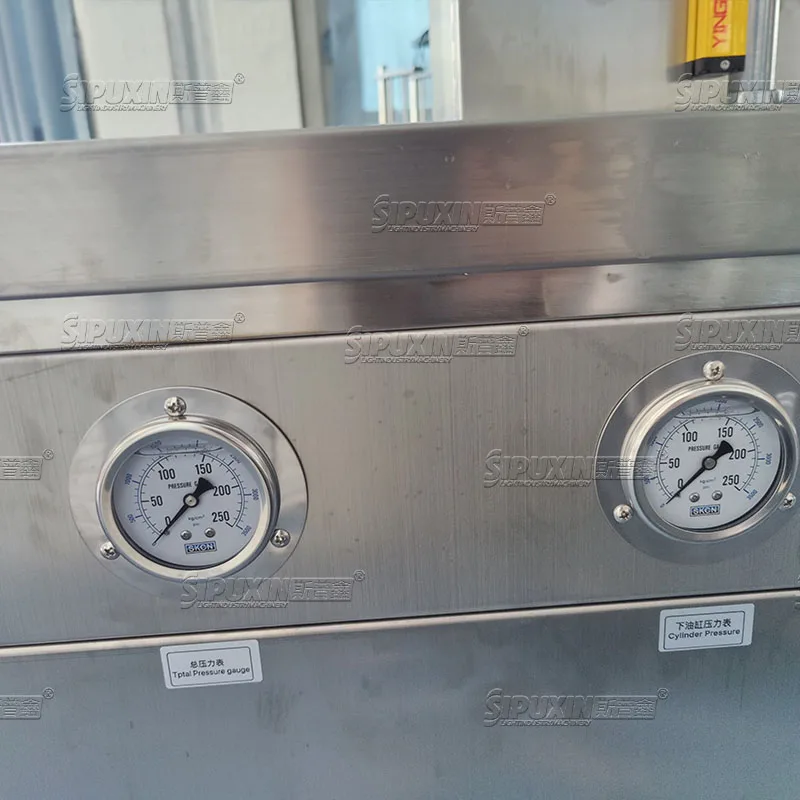

Pressure gauge

 We will install 2 pressure gauges.One is to  the detect the machine working pressure the other is filling cylinder's pressure driving the piston can fill normally.
