Full-auto 2 Nozzles Gear Pump Filling Machine

Our automatic double-head gear pump filling machine uses servo gear pump metering with PLC touch control. Double synchronous filling heads boost production efficiency, all liquid contact parts adopt 316L stainless steel for sanitation & anti-corrosion. Featured with no-drop filling nozzle and no-bottle no-filling function to prevent leakage. Suitable for cosmetic lotion, cream, edible oil, detergent and various viscous liquids, filling range customizable, easy to clean and maintain.

Speed:	2000BPH
material:	stainless steel
Driven Type::	servo motor
Core Components: :	Motor,
Dimension(LWH):	can be customized
Optional models:	1 head filling/2 heads filling
MOQ:	1 set
Availability:

Quantity:



Inquire Add to Basket

Brand:
SPX

Product Description

2 heads gear pump filling machine

Application :

This inline automatic filler is equipped with two independent servo-driven gear pumps, adopting SUS316L sanitary pump head and full SUS304 stainless steel frame, complying with GMP food & cosmetic hygiene standard. Controlled by PLC + color touch screen, filling volume and running speed can be digitally set directly, with filling precision within ±0.5% error. Two filling nozzles work synchronously to lift production output greatly; built-in no-bottle-no-filling sensor avoids material waste effectively. It fits low to high viscous fluid, widely used for shampoo, lotion, cream, edible oil, detergent, lubricant and chemical liquid filling in cosmetic, food, daily chemical & chemical industries. Supporting customized filling range from 5ml to 5000ml, it can connect with conveyor, capper and labeling machine to form full automatic filling production line.

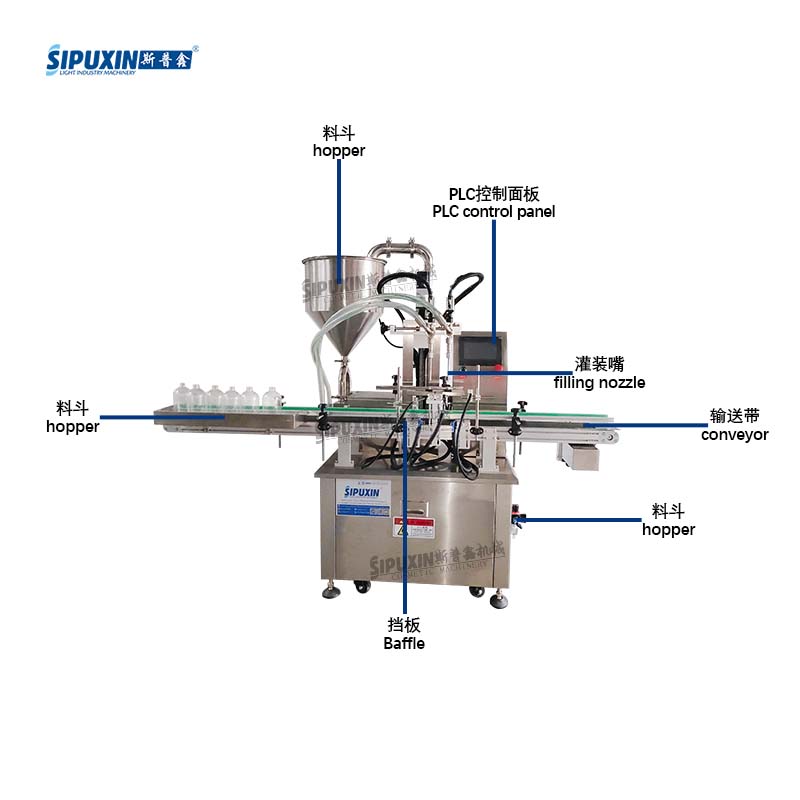

.Details description

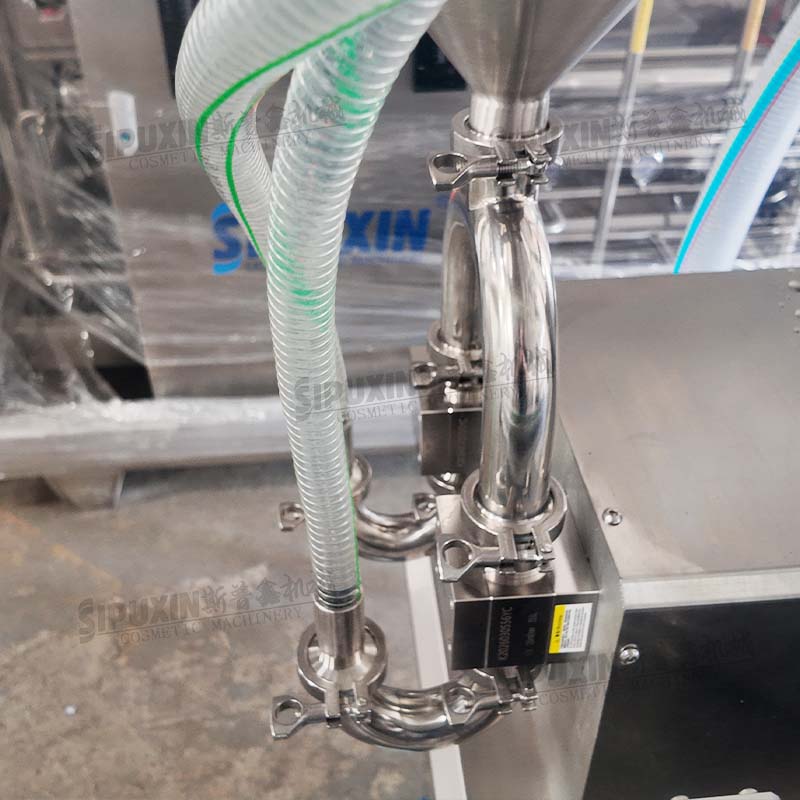

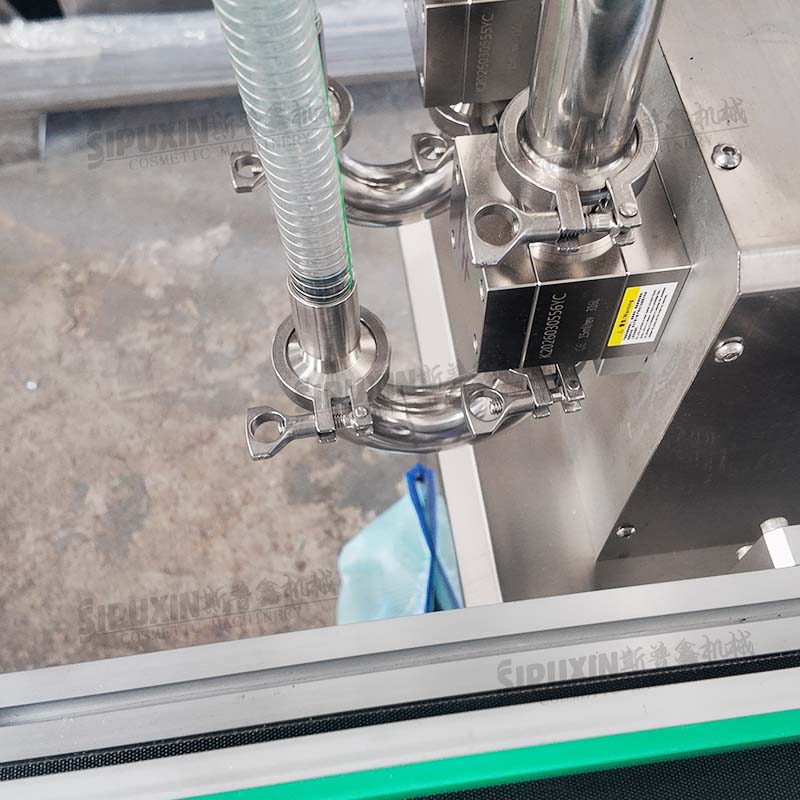

Two red hoses suck up the material to be filled to the filling nozzles under the suction of the pump.

T

Advantage

High Filling Precision
Servo gear pump metering design ensures filling tolerance within ±0.5%, stable dosing for different viscosity liquids and reduces raw material waste.
Dual-head High Efficiency
Two independent filling nozzles run synchronously, greatly improving production speed and suitable for medium & large batch continuous production.
User-friendly PLC Control
Equipped with color touch screen, filling volume, speed and delay time can be digitally adjusted directly; parameter saving function avoids repeated setting.
Sanitary Stainless Steel Structure
Liquid contact parts adopt SUS316L stainless steel, machine frame SUS304, easy to disassemble and clean, meet GMP standard for cosmetic, food and pharmaceutical industry.
Anti-leakage & Protection Function
Built-in drip-proof nozzle and no-bottle-no-filling sensor to prevent liquid dripping and empty filling, effectively save materials.
Strong Compatibility & Customization
Applicable for thin liquid to thick paste like lotion, cream, shampoo, edible oil; filling range and machine size can be customized, easy to link with conveyor, capping and labeling machines for full production line.
