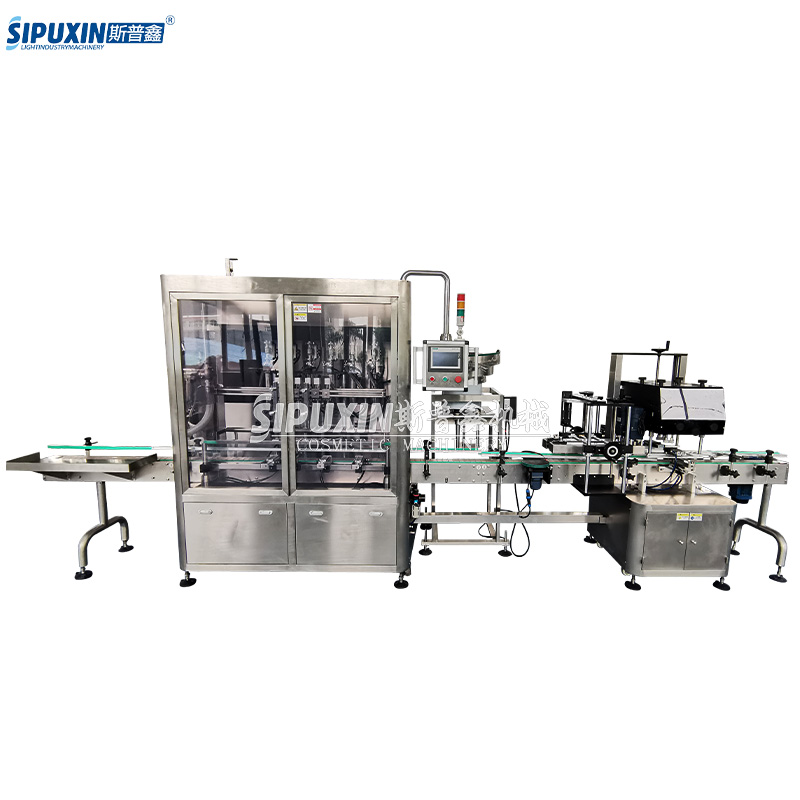

Full Automatic Servo 6 Nozzles Bottle Cosmetic Liquid Filling Machine

00:0202:57

Product Description
Application
1.It is suitable for various kinds of high viscosity liquid products such as chemical,food,medical,grease industries etc.
2.It is easy for maintenance,operation,adjustment.It doesn't need any tools.It is with precise filling system,it will not start filling if there is no bottles and it is also with count function.
Performance
1.This machine can be made to 2-12 fillig nozzles.The speed of conveyor belt can be adjusted.It is made of imported stainless steel frame bracket,Japan Mitsubishi touch screen etc.
2.Special configuration:efficient anti-leakage and dripping.Automatic falling and raising desigh make it better for foam products.It is with positioner for sensor the bottle mouths.The filling nozzles can be made to order.

Video outgoing-inspection:	online provided
Core Components:	sevo motor
Material:	SS316
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-15
Brand:
SPX

Product Description

Filling volume	50-500ml
Product name	food high viscosity filling machine
Material	SUS304/316L
Function	Fully automatic filling machine
Working capacity	2500-3000 bottles/hour(based on 500ml)
Driven Type	Electric and pneumatic
Bottle size	50mm≤φ≤115mm 160mm≤H≤320mm

Details Images

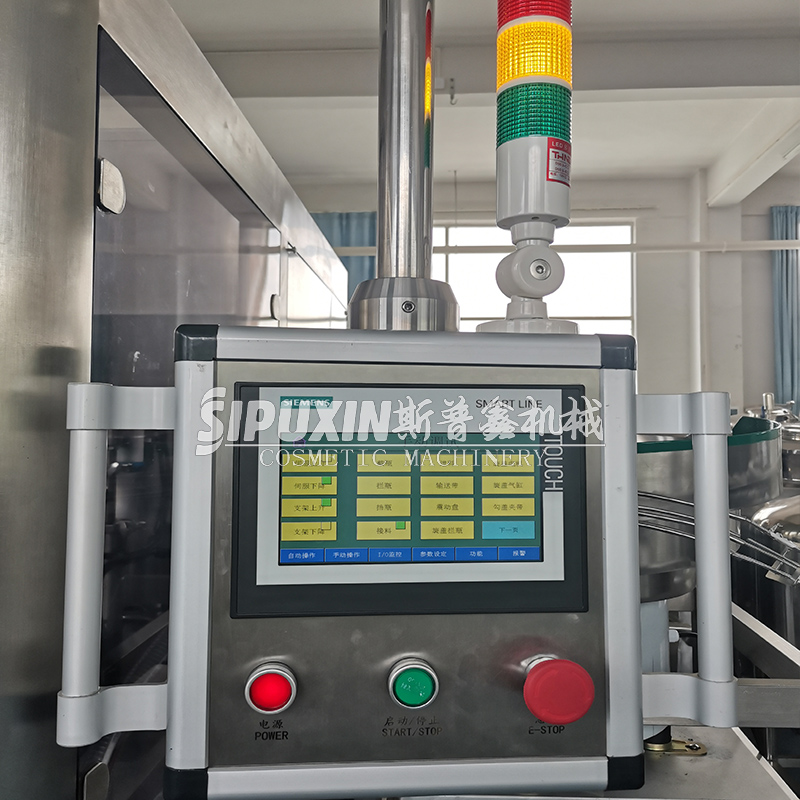

PLC Control Pale


The touch-screen control panel uses Siemens world-renowned brands, with guaranteed quality, convenient for the operator to operate
various functions, adjustable frequency, quick start, and immediate stop, which is very sensitive.

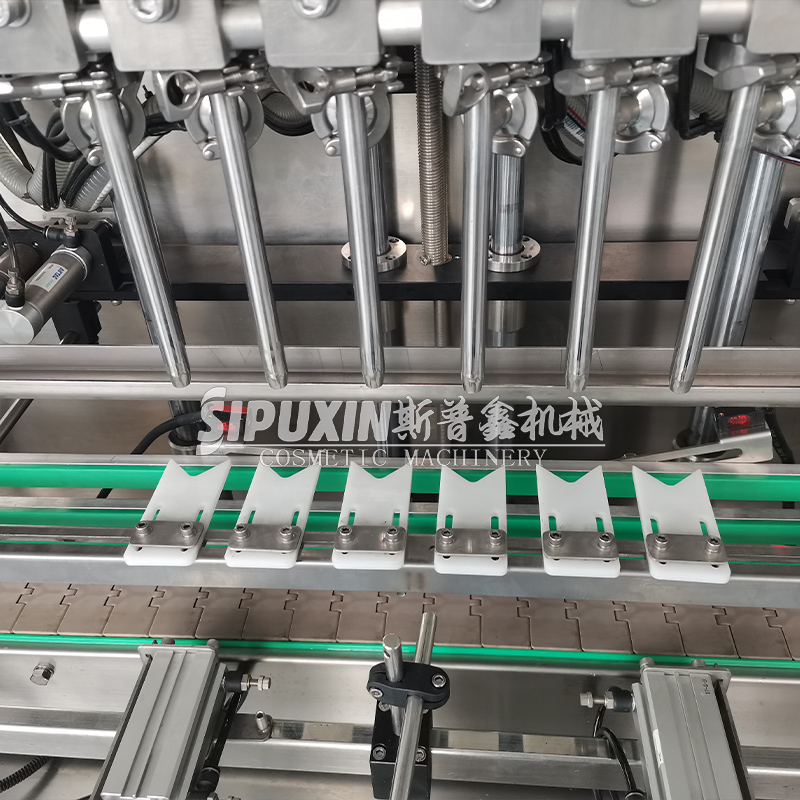

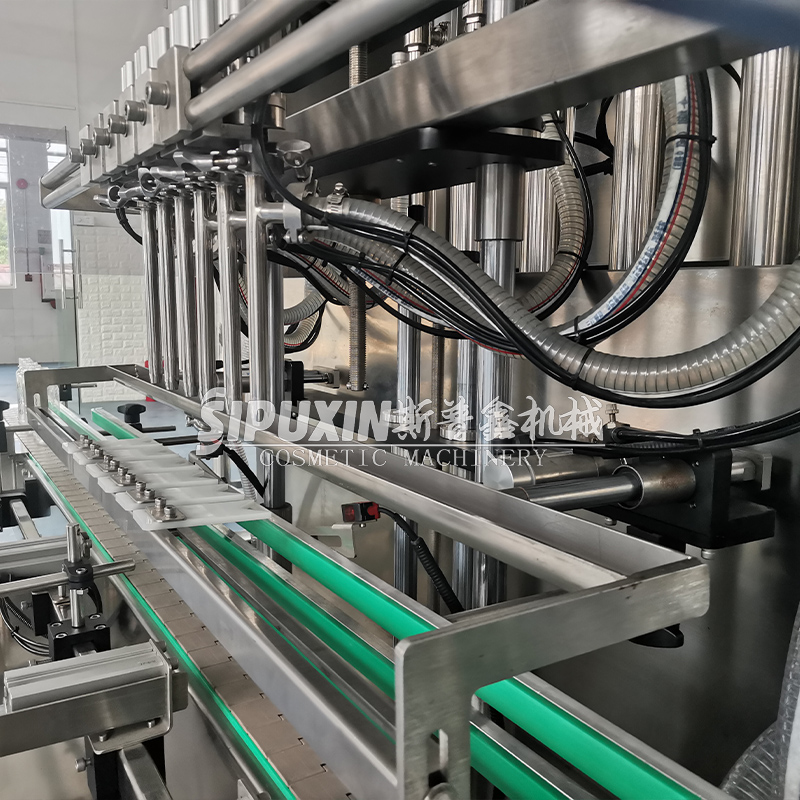

Filling system


 Filling system has the function of shrinking, no drop leak, bottom diving fill, no foam.

High-precision pressure gauge



By mastering the pressure parameters, it provides a reliable basis for the operator to monitor, control and regulate production.

Pneumatic double diaphragm pump

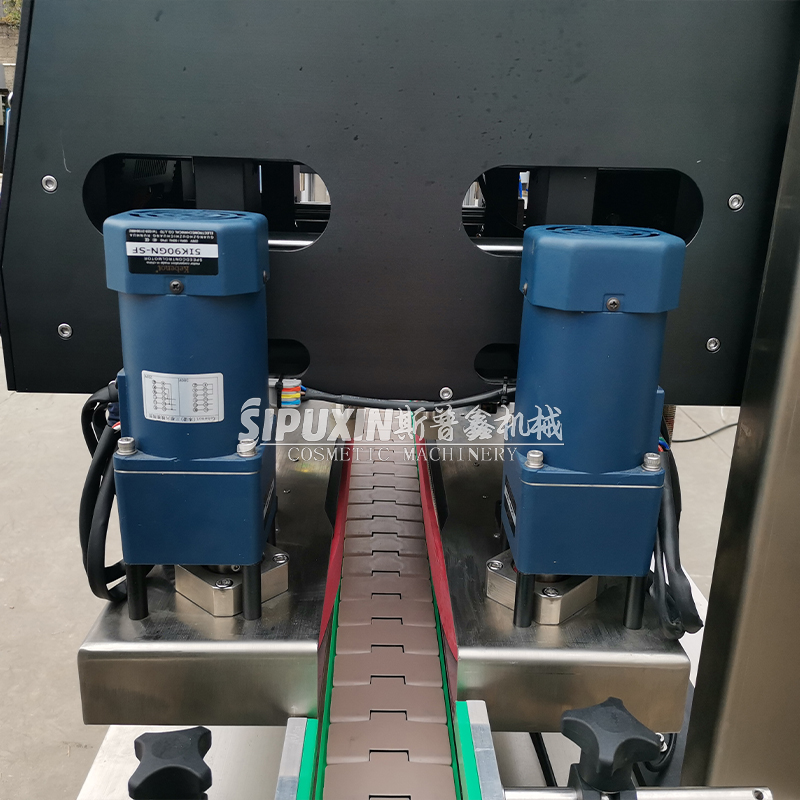

motor

The piston ring of volumetric injection pump use different material of silicone, plyflon or other kinds according to liquid characteristic, use cerrramic pump in special industry.
