Electric heating water in jacket with tap-water cooling system
Mixing way
Power: 4KW; Speed: 0-63 r/min
Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade
Control way
Button control/PLC+Touch screen
MOQ
1 Set
Origin
Guangzhou/Yangzhou,China
Sale warranty
1 year
After sale service
24 hour online video technical suppoert

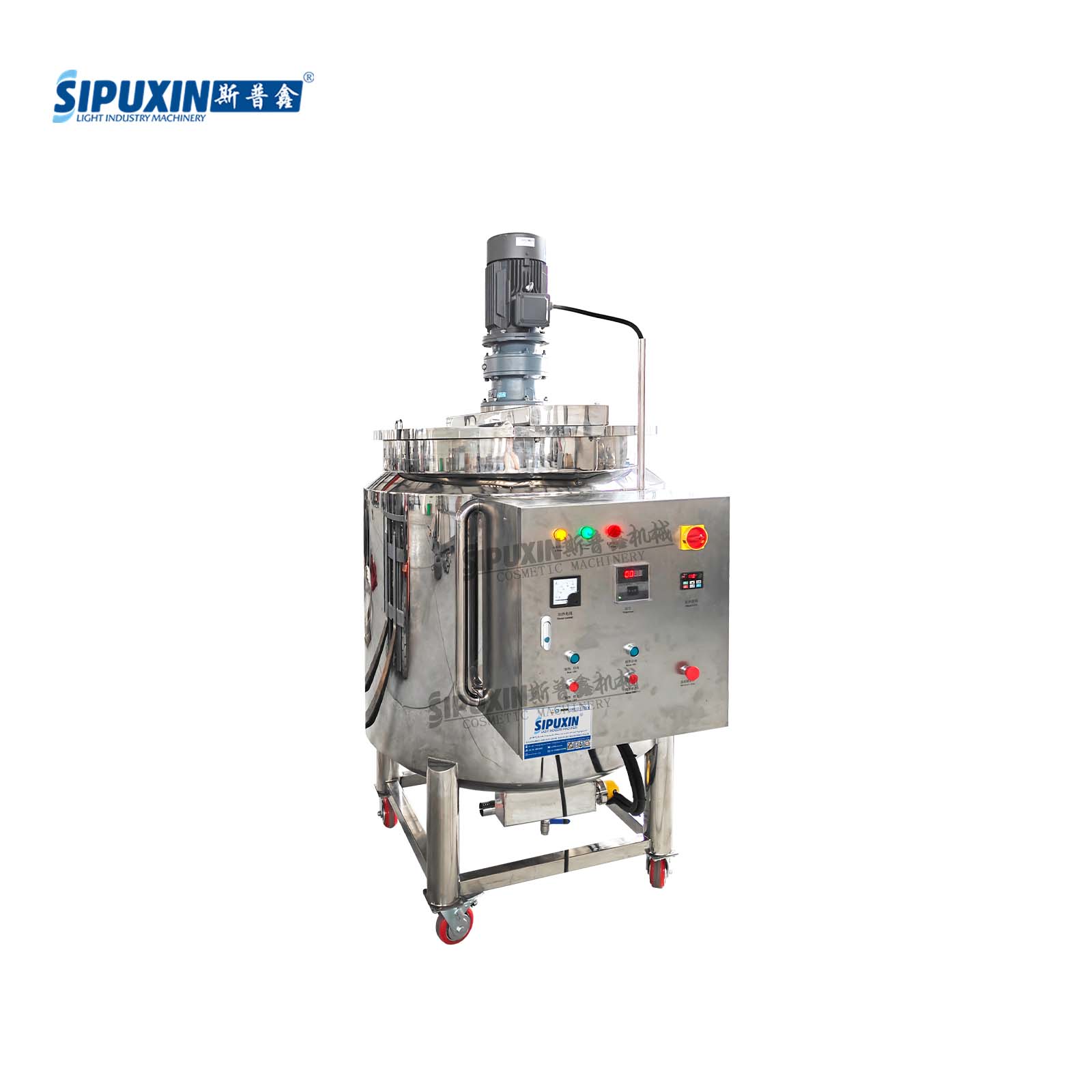

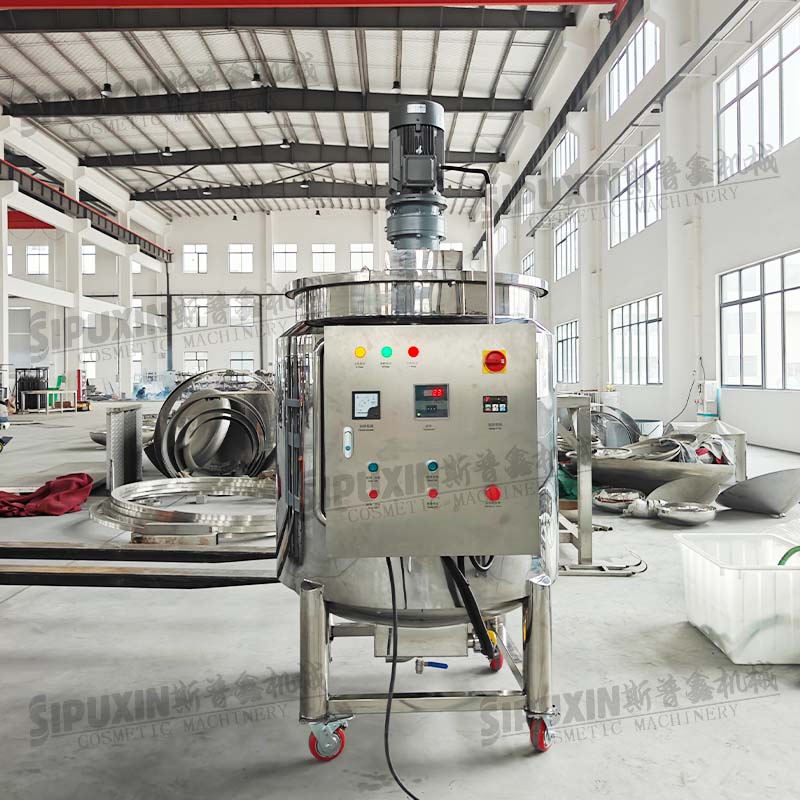

Pictures for reference
Lid accessories
Flip open cover for feeding raw material easily.
With motor from SIEMENS ,Germany brand.

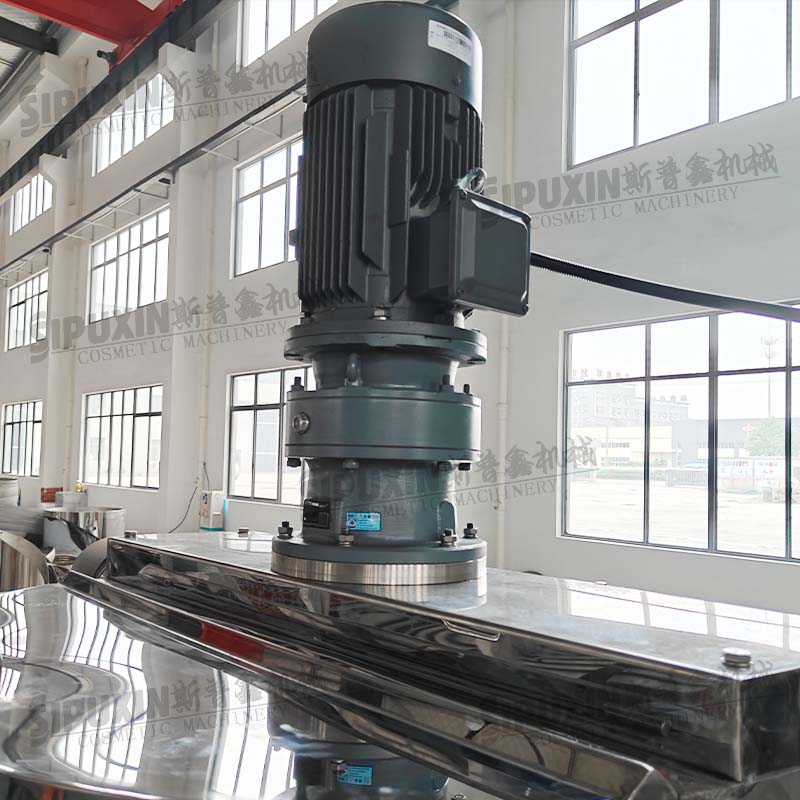

Mixing system
Top blender
Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor. Material:SUS.316 Effect: The mixer of the machine achieves rapid dispersion and homogenization through directional shear force and circulating flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low, which is suitable for producing the chemical product.
Heating device
The heating device is mounted on the bottom of the tank
Function:
Heat the raw material

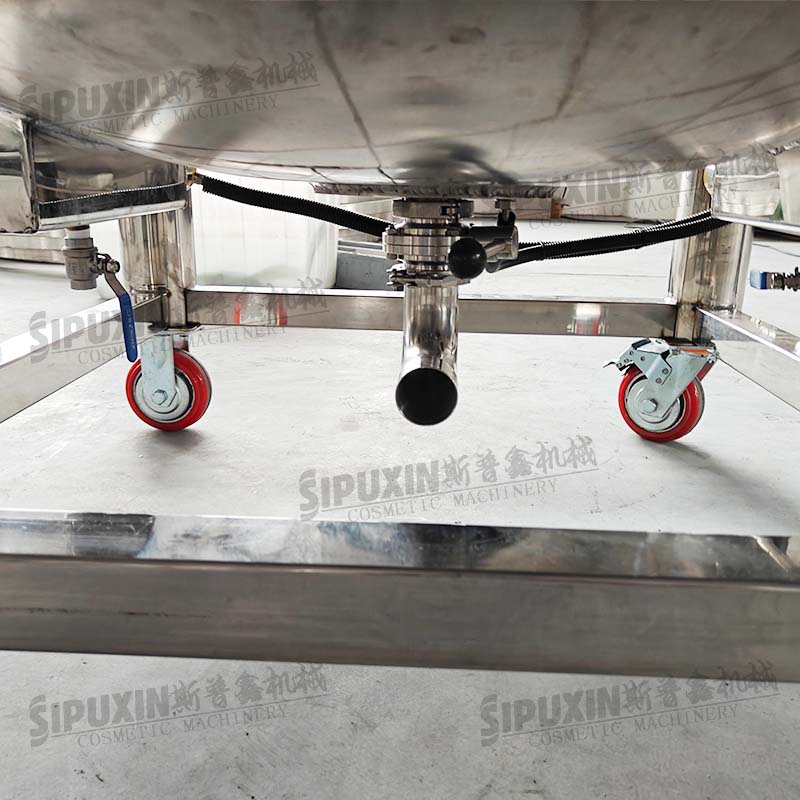

Movable caster
The tank is equipped with the 4 strong movable casters with locking function.
It is very convenient for people to move the tank everywhere.
Bottom discharge
The bottom discharge hole with manual valve control.
4 ways of discharging:
1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity
2.Pressure discharge:Add air,give it pressure to discharge the product.
3.Pump discharge:Use pump(like lobe pump) to discharge the product.
4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

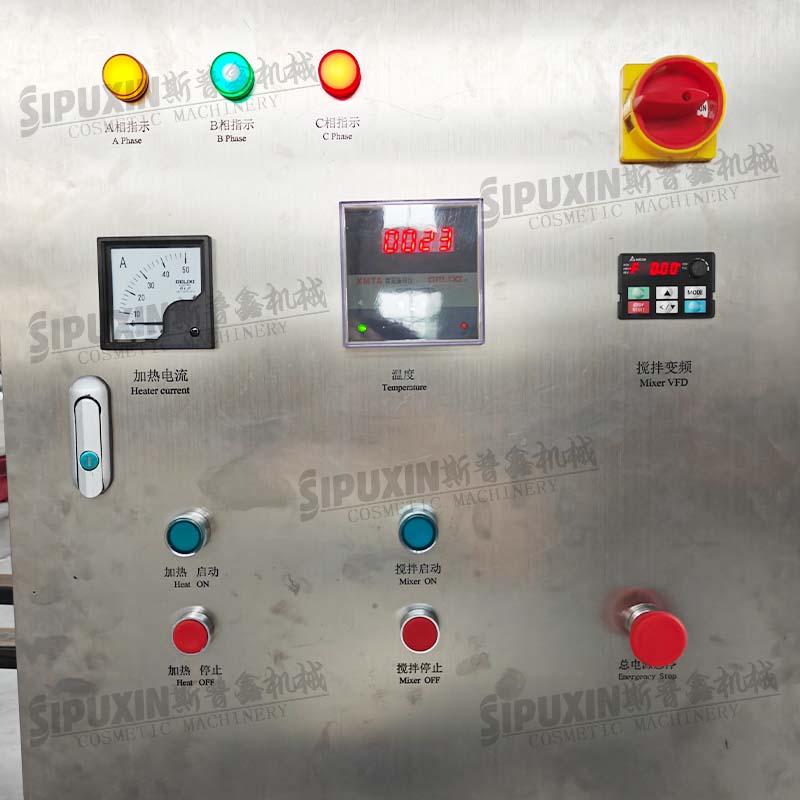

Button control box
Material:SUS.304
Components:Power switch,voltage,current,speed adjustment,temperature controller,self-protection system etc.
* Be able to display, set and adjust the center mixer speed . * Be able to display, set and adjust temperature
