1000L Fixed Vacuum Homogenizing Emulsifier for Cosmetics / Food / Pharma

Our 1000L Fixed Vacuum Emulsifier is a high-capacity, industrial-grade emulsification system engineered for the large-scale production of creams, lotions, ointments, sauces, and other high-viscosity products in cosmetics, pharmaceuticals, food, and chemical industries. Built with a fixed-tank design, this complete set integrates oil phase tank, water phase tank, emulsification main tank, vacuum system, heating/cooling system, high-shear homogenizer, stirring system, and PLC control cabinet, forming a fully automated production line for consistent, bubble-free emulsions.

Speed:	stirring speed:0-60rpm;homogenizing speed:0-3000rpm
Weight (KG):	850
Machine material::	stainless steel 304/316
Driven Type::	motor
Color:	silver
control panel:	button control panel
After-sales Service Provided::	online support
Availability:

Quantity:



Inquire Add to Basket

Model:
SZR
Brand:
SPX

Product Description

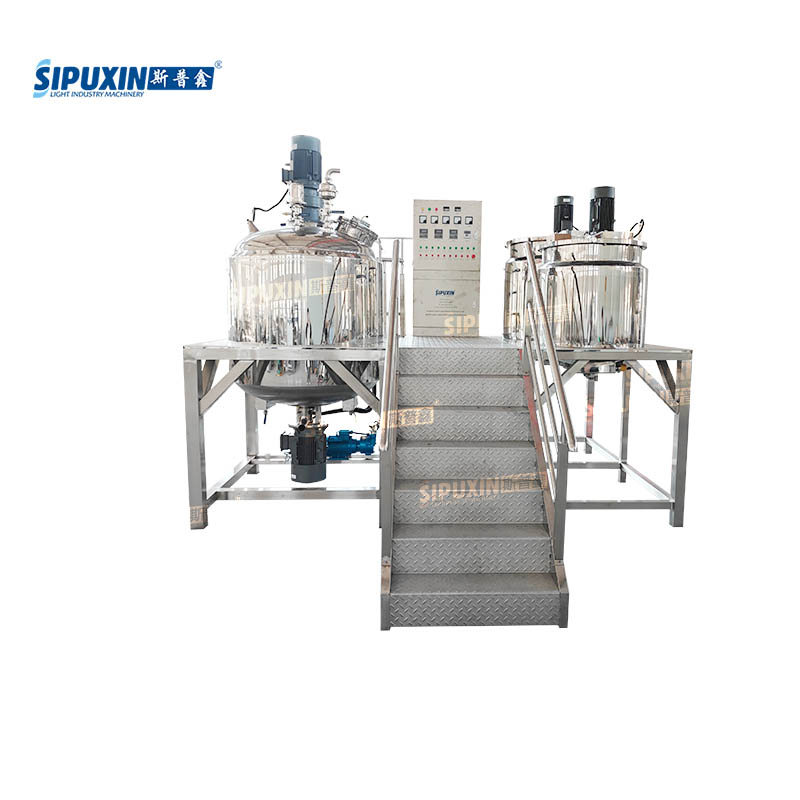

1000L Fixed Vacuum Emulsifier | Product Overview This 1000L fixed vacuum emulsifier is a high-efficiency, industrial-grade emulsification system tailored for medium-to-large batch production in cosmetics, pharmaceuticals, food processing, and chemical industries. Designed with a fixed tank structure, it integrates oil phase melting tank, water phase mixing tank, emulsification main tank, high-shear homogenizer, anchor-type scraping stirrer, vacuum deaeration system, heating/cooling jacket, and PLC control system into one complete, automated unit, delivering stable, bubble-free, fine-particle emulsions consistently.
✅ Core Product Advantages1000L Standard Working Capacity: Optimized for batch production with a maximum working volume of 1000L, ideal for scaling up commercial manufacturing of creams, lotions, ointments, sauces, and high-viscosity products.
Fixed Tank, Space-Saving Design: The stationary main tank eliminates complex lifting mechanisms, simplifying installation, reducing maintenance needs, and improving operational stability.

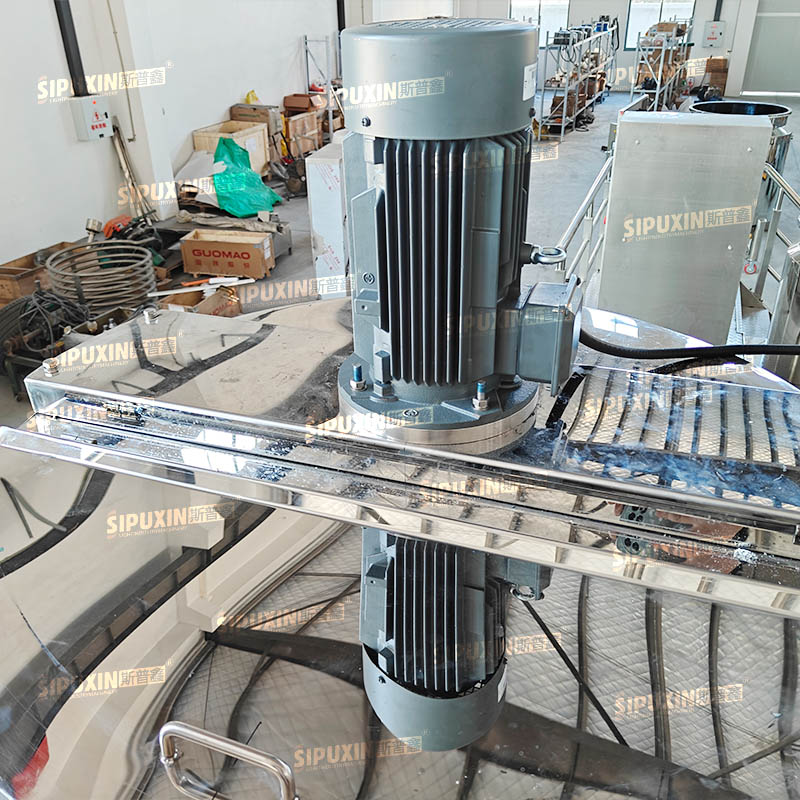

Three-Stage High-Shear Homogenization: Equipped with a high-speed, bottom-mounted homogenizer (0–3000rpm adjustable), paired with anchor-type scraping stirring, to achieve uniform particle size distribution down to 1–5μm, ensuring smooth, long-lasting product stability.

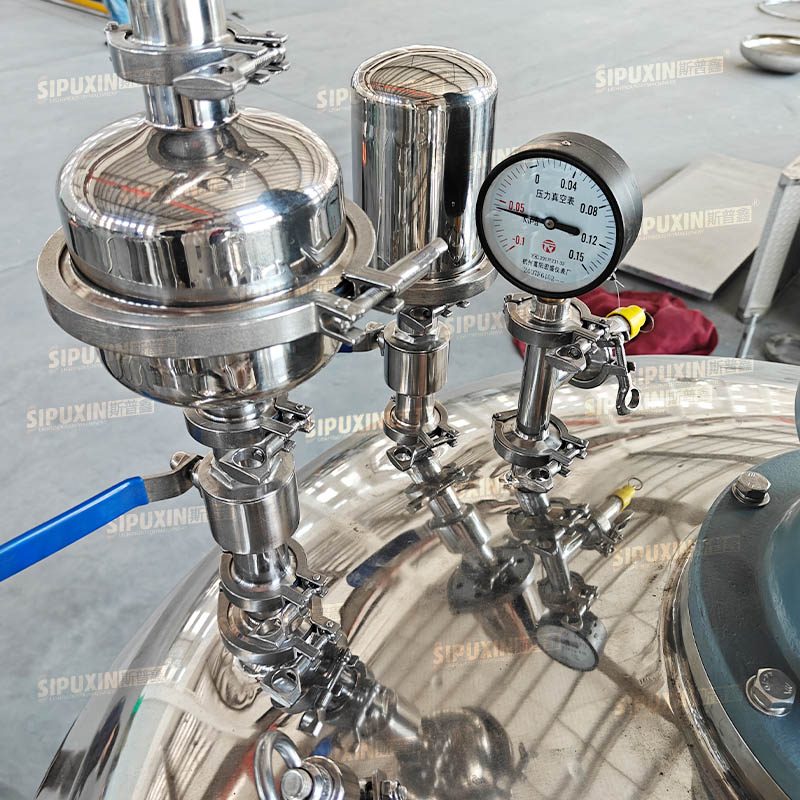

Full Vacuum Deaeration: Operates under negative pressure (-0.095MPa) to remove air bubbles during emulsification, preventing product oxidation, discoloration, and bacterial contamination, while improving texture and shelf life.
Precise Temperature Control: The jacketed tank supports electric or steam heating (up to 100℃) and water circulation cooling, with ±1℃ temperature accuracy, to meet the thermal processing requirements of various raw materials.
GMP-Compliant Hygiene: All product-contact parts are made of SUS316L stainless steel, with mirror-polished inner surfaces (Ra ≤ 0.4μm), fully compliant with food, pharmaceutical, and cosmetic hygiene standards.
Flexible Customization: Supports OEM/ODM customization for homogenizer power, stirring speed, heating/cooling methods, PLC + touchscreen control systems, and auxiliary functions (e.g., CIP cleaning, automatic feeding, formula memory) to match specific production processes.
 Typical ApplicationsCosmetics: Face creams, body lotions, serums, foundations, toothpaste, and hair care products
Pharmaceuticals: Ointments, creams, gels, and medicinal emulsions
Food & Beverage: Mayonnaise, ketchup, cheese spreads, jams, and fillings
Chemical Industry: Industrial emulsions, adhesives, and high-viscosity pastes

Our 1000L Fixed Vacuum Emulsifier combines industrial-grade performance, hygiene compliance, and user-centric design to deliver reliable, high-efficiency emulsification for large-scale production. Built with a robust fixed-tank structure, it eliminates the complexity of lifting mechanisms, ensuring stable operation and simplified maintenance while saving valuable factory space. Equipped with a high-shear homogenizer and anchor scraping stirrer, it achieves ultra-fine, uniform emulsification with particle sizes down to 1–5μm, paired with full vacuum deaeration to eliminate air bubbles, prevent oxidation, and enhance product texture and shelf life. The jacketed tank supports precise heating and cooling with ±1℃ accuracy, while all product-contact parts are crafted from food-grade SUS316L stainless steel, meeting strict GMP standards for cosmetics, pharmaceuticals, and food applications. With customizable configurations for homogenization speed, control systems, and auxiliary functions, this emulsifier is engineered to adapt to diverse production processes, helping you achieve consistent, high-quality results batch after batch.

item	value
Mixer Type	Agitator
Capacity	1000L
Dimension(LWH)	Customized
Material Processed	Toothpaste,cosmetic,lotion,cream,detergent,hand soap
Key Selling Points	Vacuum
Additional Functions	Automatic/Multifunction/Vaccum
Applicable Industries	Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, cosmetic,lotion,cream,detergent,hand soap factory
Material	Stainless Steel 304 / SUS316L

 Help Customers Success and achieve development with customer.

 We pay more attention to every machine's packing and loading, also check carefully before shipping. All of our machine are packed in ply wooden case, which is safe for shipping.

FAQ

Q: First time import, how can I believe that you would send product ?
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.

Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.

Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.

Q:Who are we?
 A:We are a factory with more than 20 years experiences.Guangzhou Sipuxin Light Industry Machinery Co.,Ltd.is a professional manufacturer of whole-set equipment for such industries as cosmetics,pharmaceutical,food and daily chemical,etc...We solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory.

Q:Can you make the machine according to buyer's request?
A:Yes, OEM is acceptable. Most of our machines are customized design based on cus-tomer's requirements or situation.
