Equipped with one air cleaning machine for cleaning perfume bottles and removing dust.
UV Sterilization
The UV sterilization unit on the linear perfume filling machine is designed to eliminate bacteria and microorganisms on the bottle surfaces and within the surrounding air, ensuring that the perfume remains hygienic and free from contamination during the filling process, and complies with cosmetic safety standards.

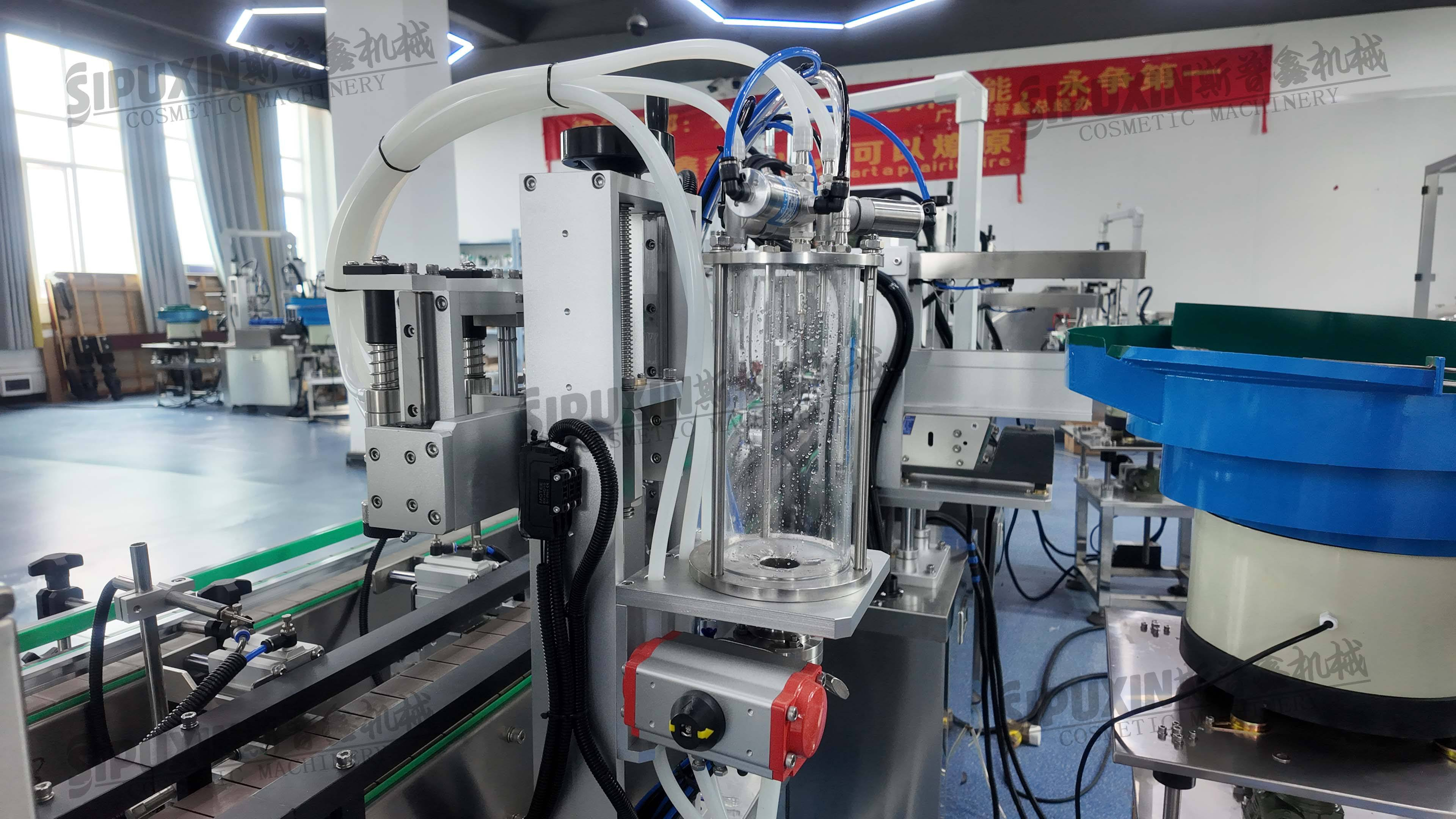

Filling nozzle
3 pieces of the vacuum filling nozzles fill the perfume to the bottles,it can make sure the liquid level of the bottle is at the same line.
And also remove the air out,make sure that there is no bubbles inside the bottles.
Pump feeding
This spray pump feeding station is connected with the vibration bowl.
When the vibration bowl start vibrating,it will feed the pump the this station automatically.
And then the robotic hand will clamp the pump into the bottle.
Pre-crimping
After the pump being fed into the bottle,some pump will be not very vertical to fit the bottles. So this pre-crimping station will press the pump a bit,make the pump vertically fit into the bottle,,make it ready for crimping officially.
Crimping
The crimping station will press the pump into the bottle ,and then crimping it,make the pump fixed with the bottles.
Collar feeding
This collar feeding station is connected with the vibration bowl. When the vibration bowl start vibrating,it will feed the pump the this station automatically. And then the robotic hand will clamp the collar into the bottle.
Collaring
The collaring station will press the collar down,make it fixed into the bottle.
Bottle pick out
The robotic hand will clamp the finished bottles out to the conveyor belt to the next process.
PLC control
This machine is equipped with a Siemens PLC control system and a human-machine interface touch screen. It can set parameters such as filling volume and filling speed, and has a remote sensing control function.
Company Profile
03:00
03:00
Factory setting
Our showroom
production configuration
Engineering Case
Package
FAQ
1.Are you a factory? Yes, we are a factory with more than 20 years experiences. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
4.Can your product be customized? Yes, we can customize products according to your needs.
5.What is the warranty period for your product? One year.
