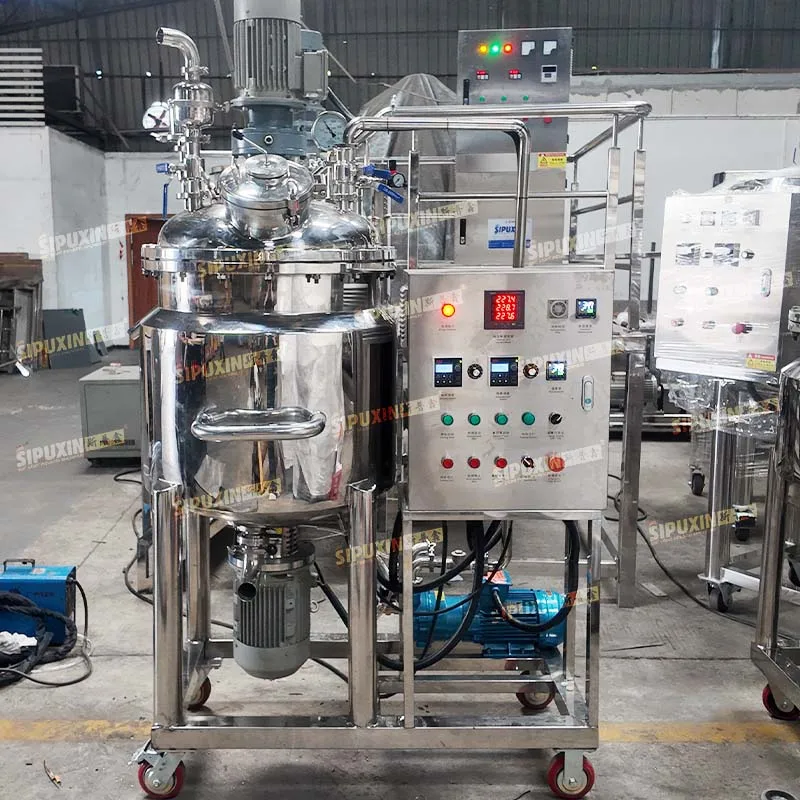

Movable Vacuum High Shear Homogenizing Emulsifying Machine with Button Control for Cosmetic Ointment and Cream Production
A vacuum emulsifying mixer is a special mixing equipment widely used in cosmetic, food and pharmaceutical industries. It mixes, emulsifies and homogenizes raw materials under vacuum condition. It can fully blend oil-phase and water-phase materials to form fine, stable and uniform emulsions without bubbles.
Electric heating water in jacket with tap-water cooling system
Mixing way
Power: 2.2KW; Speed: 0-63 r/min
Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade
Homogenizer way
Power: 4KW; Speed: 0-3000RPM,speed adjustable
Vacuum system
power: 2.2KW
Control way
Button control/PLC+Touch screen
MOQ
1 Set
Origin
Guangzhou/Yangzhou,China
Sale warranty
1 year
After sale service
24 hour online video technical suppoert

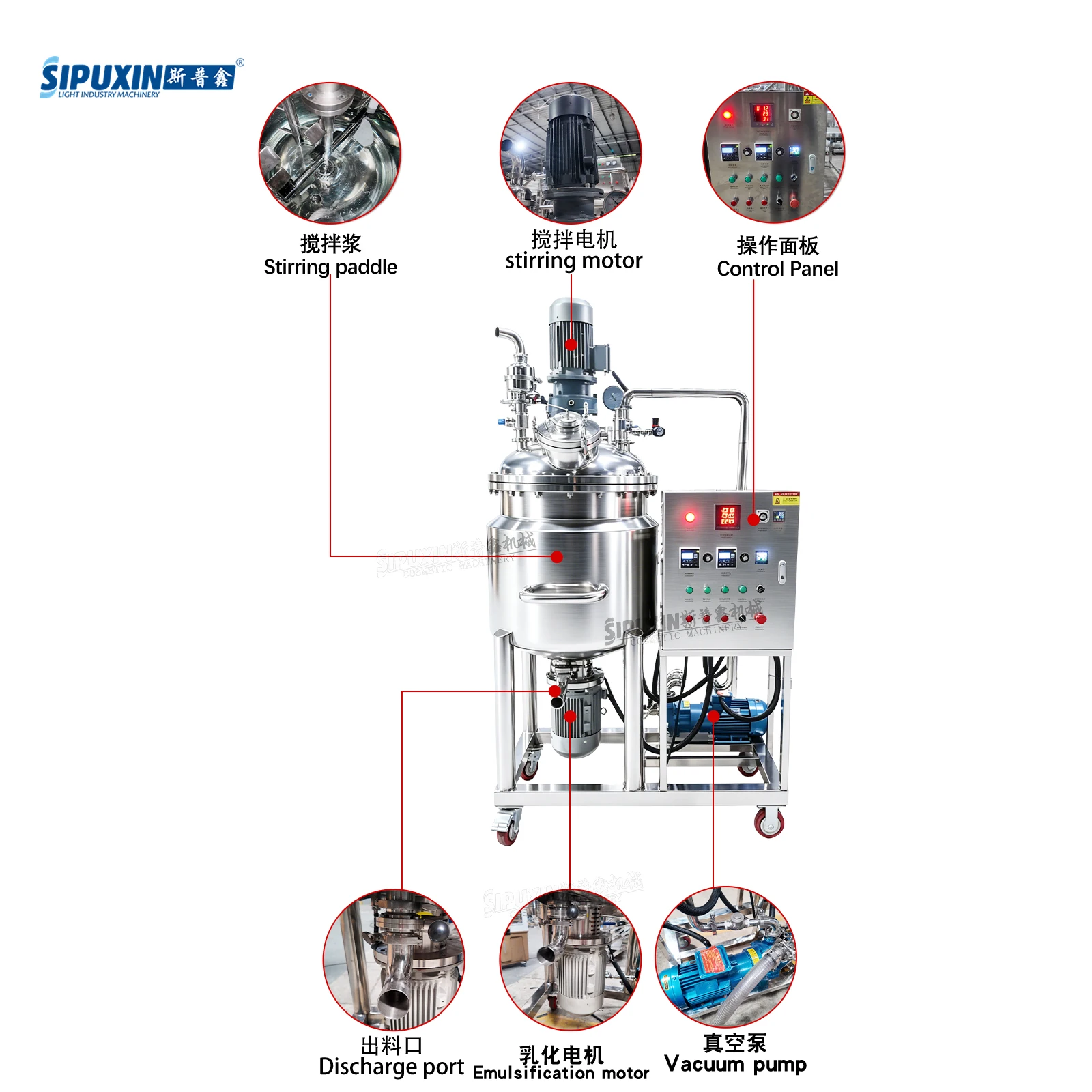

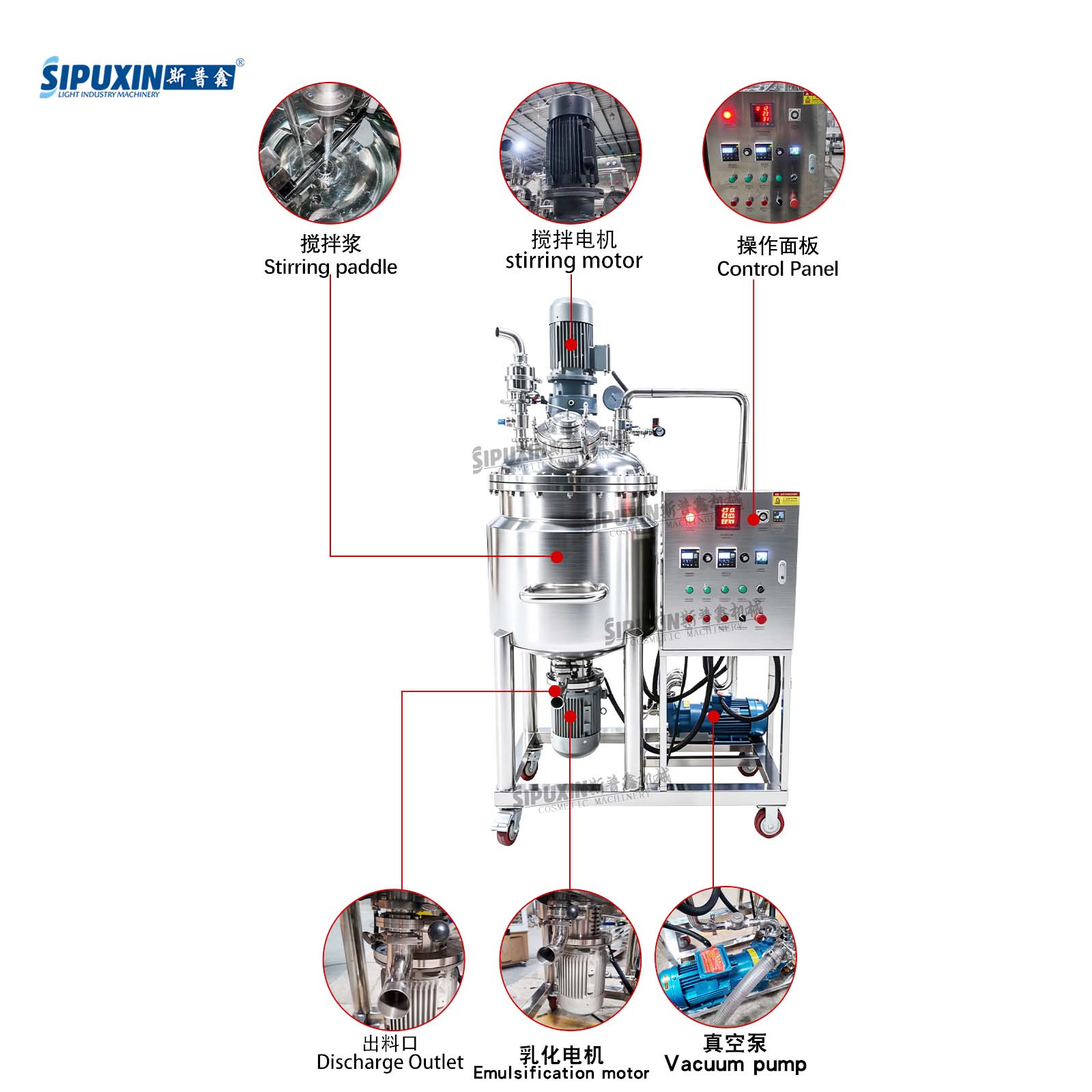

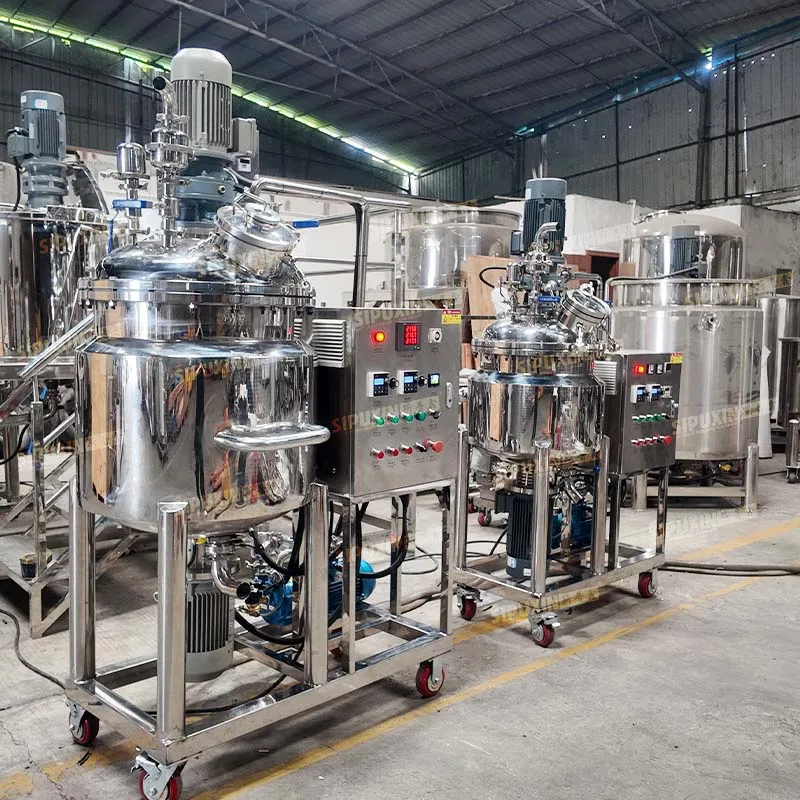

Pictures for reference

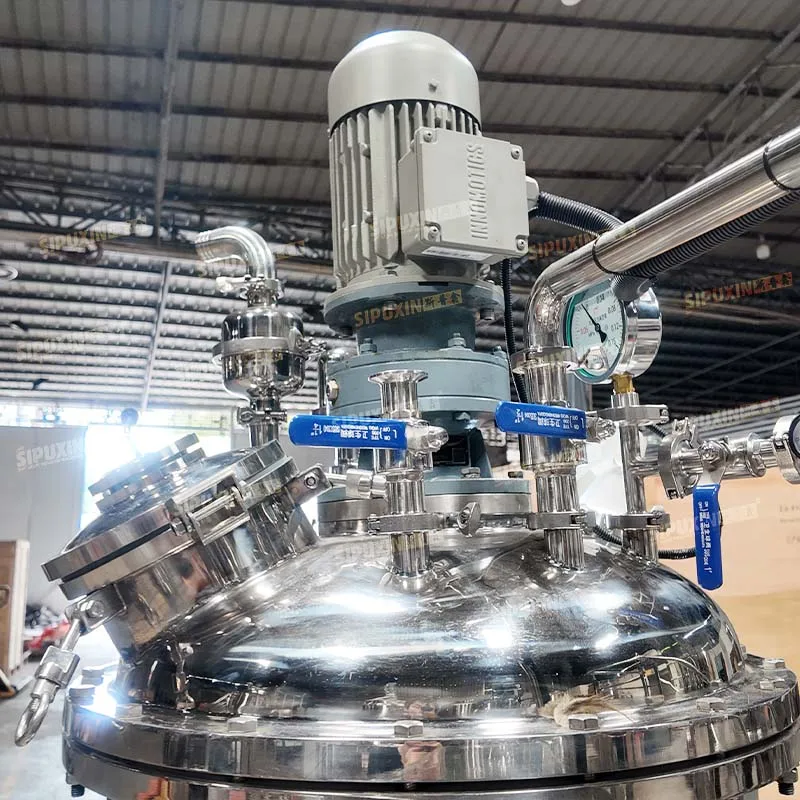

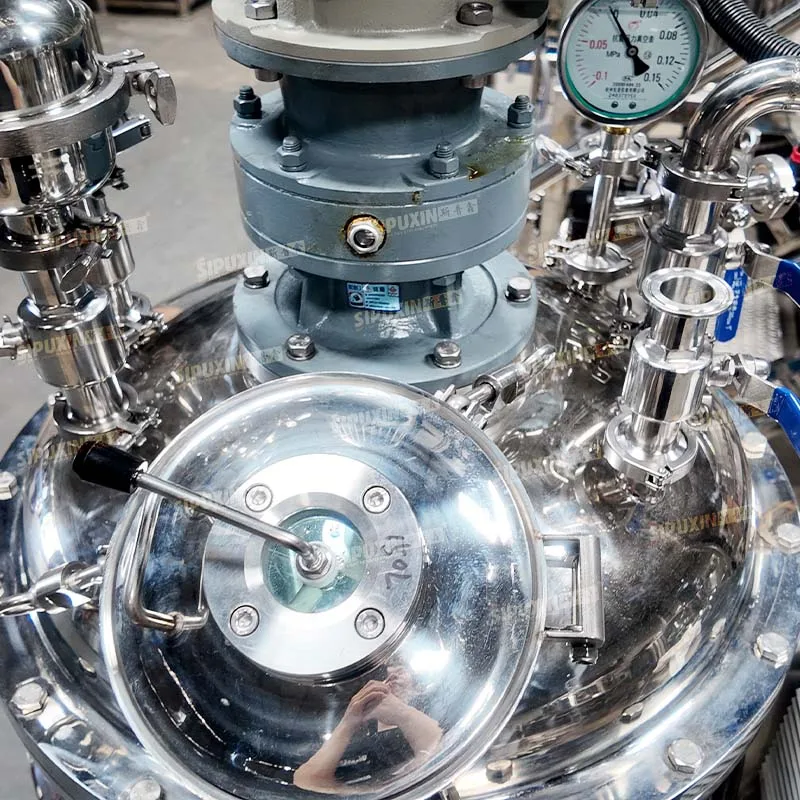

Lid accessories
Sight glass:For better observation of the working situation inside.
Material inlet:Transfer the material through vacuum sunction. Spice bucket:Add the fragrance and small additives. Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment. Clean device:Spray ball can 360 ° rotate to clean the pot. Lamp:For better observation . Vacuum pressure gauge:Set and display the pressure inside the pot.

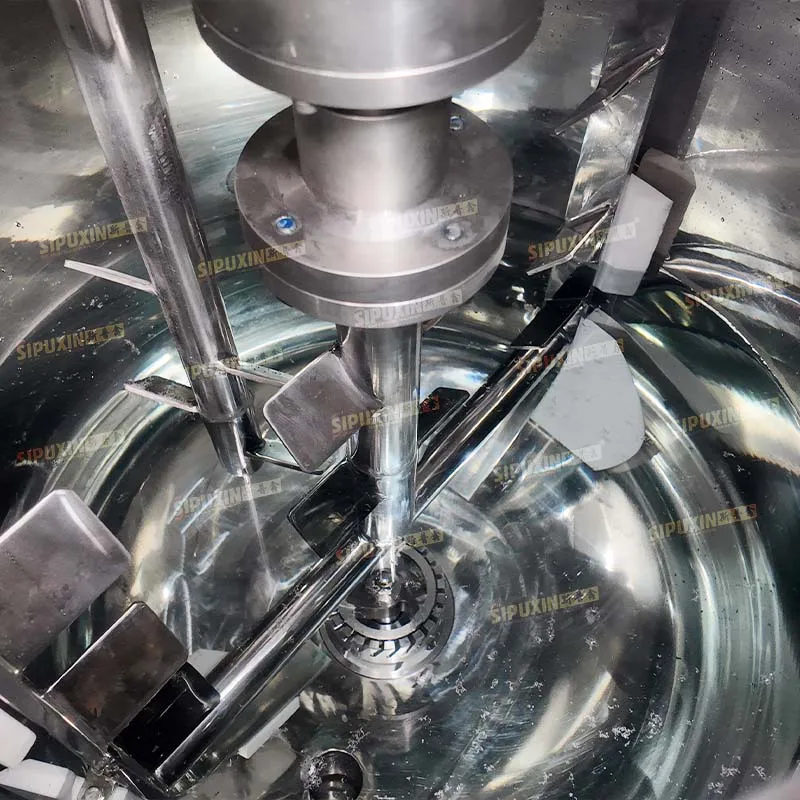

Mixing system
Frame-wall fixed mxier with side Teflon scraper
Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor. Material:SUS.316 Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low, which is suitable for the continuous emulsification of high viscosity materials.

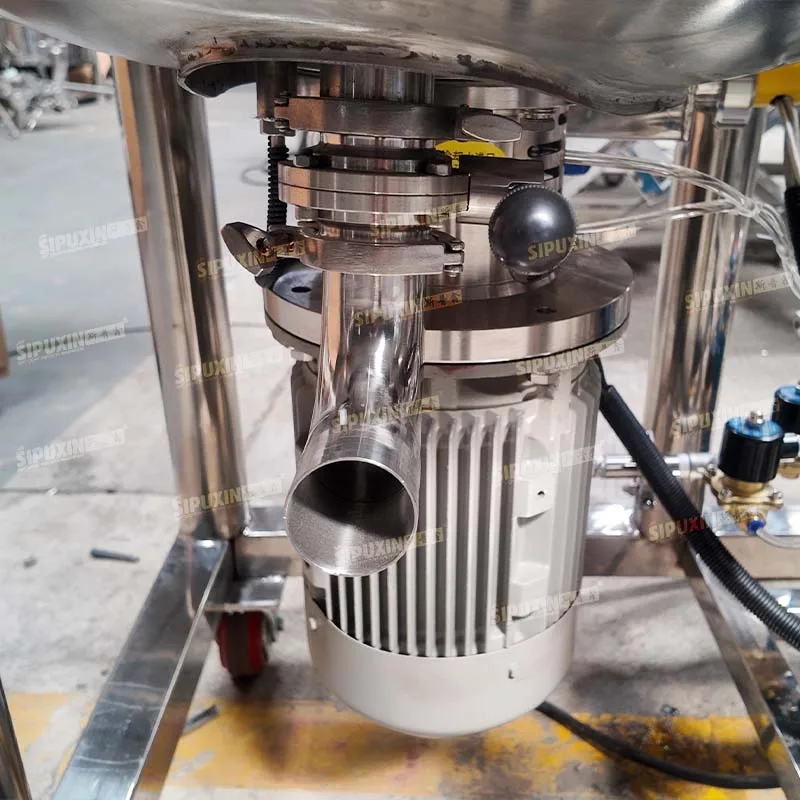

Homogenizing system
High shear homogenizer
Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor. Material:SUS.316
Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

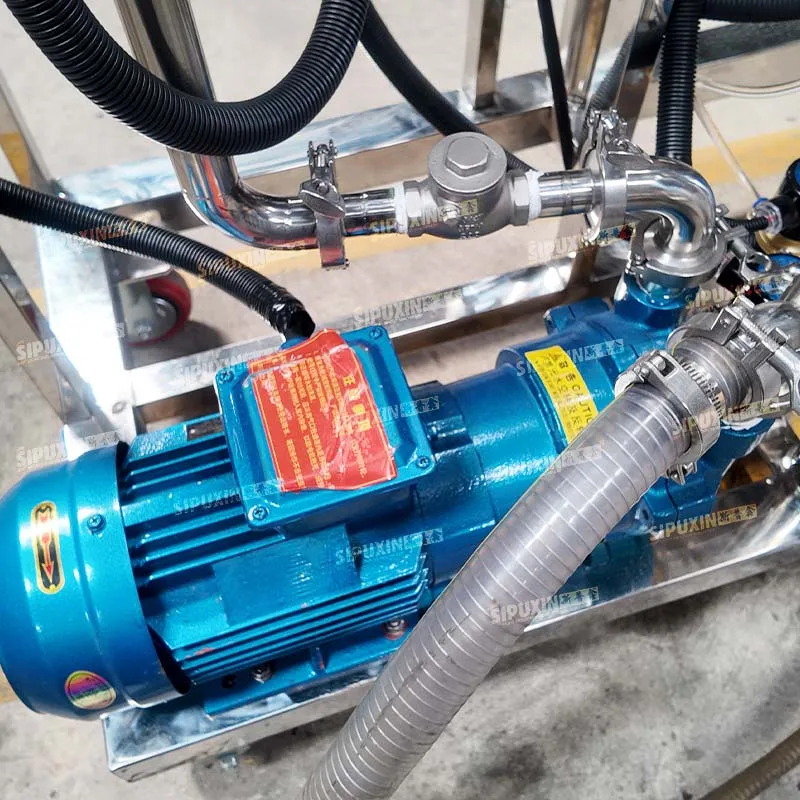

Vacuum pump
Vacuum pump is generally water ring vacuum pump,it is equipped with stainless steel circulating water tank and control solenoid valve. The maximum vacuum limit:0.1Mpa (generally 0.085Mpa)
Function:
1.Through vacuum, remove air and defoaming.
2.Transfer the raw material through vacuum suction
Bottom discharge
The bottom discharge hole with manual valve control.
4 ways of discharging:
1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity
2.Pressure discharge:Add air,give it pressure to discharge the product.
3.Pump discharge:Use pump(like lobe pump) to discharge the product.
4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

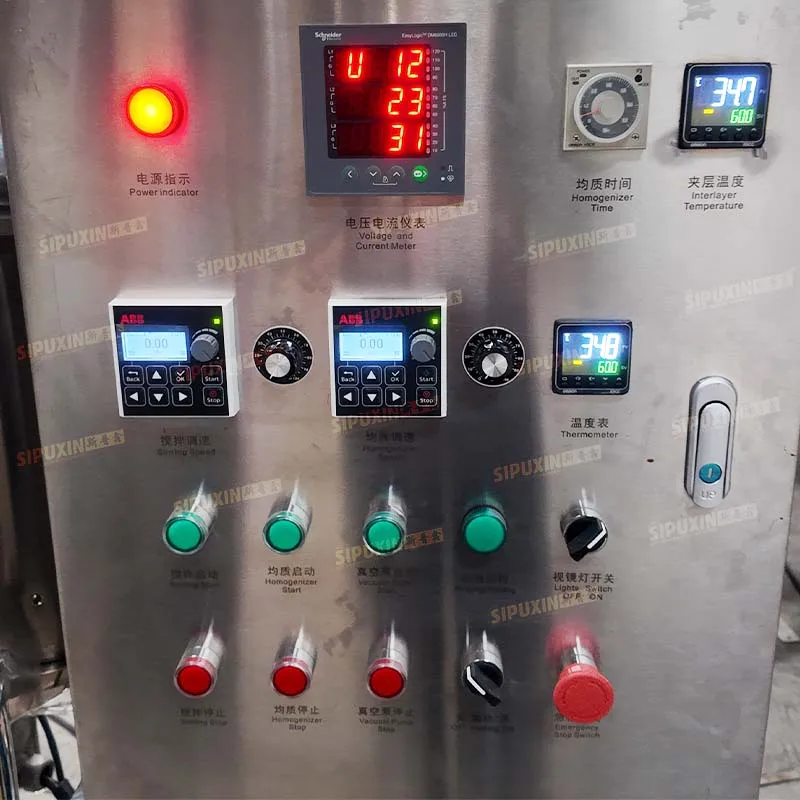

Button control box
Material:SUS.304
Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system etc.
* Be able to display, set and adjust the center mixer speed . * Be able to set and adjust the homogenizing speed * Be able to display, set and adjust temperature * Be able to display,set and adjust working time for homogenizer.
