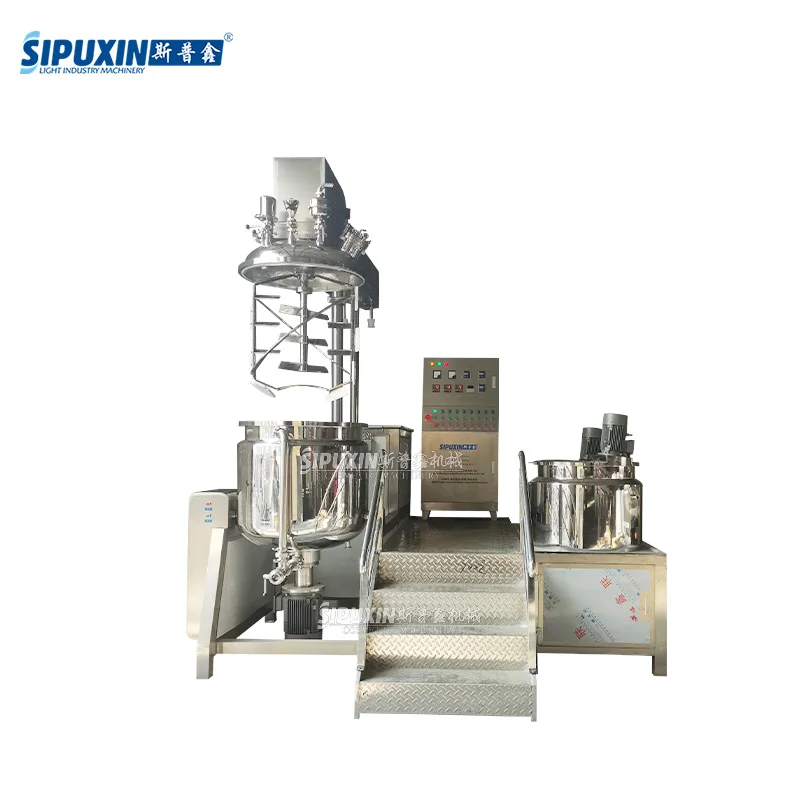

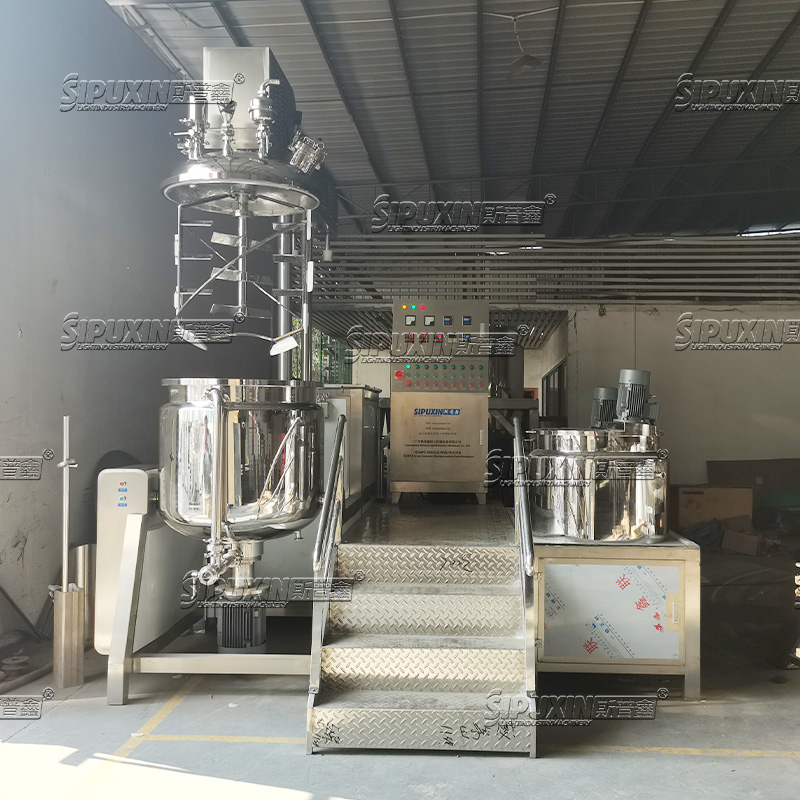

Hydraulic Lifting Vacuum Emulsifier with Internal and External Circulation for Cosmetic Cream Making

You are here: Home » Products » Vacuum Emulsifier » Hydraulic Lifting Vacuum Emulsifier with Internal and External Circulation for Cosmetic Cream Making

Share to:

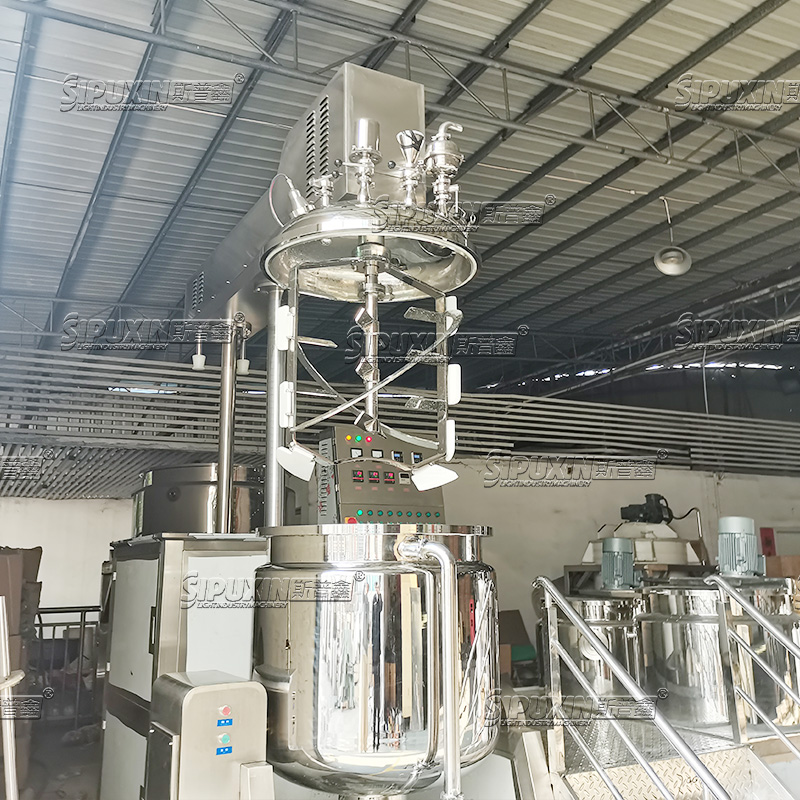

Hydraulic Lifting Vacuum Emulsifier with Internal and External Circulation for Cosmetic Cream Making

Applicable Industries::	Cosmetics food chemical
Product name:	Vcuum emulsifying machine
Mixing speed:	0-63 RPM
Homogenizer:	0-3000 RPM
Control:	Button control
Warranty:	1 year
After-sale service:	Online technical support
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-28
Brand:
SIPUXIN

Product Description

Machine components details

Capacity	300L
Material	Stainless steel sus304/sus316
Heating way	Power:18KW Steam heating water in jacket with tap-water cooling system
Mixing way	Power: 3.5KW; Speed: 0-63 r/min Mixer：2 Way mixing,center mixer with side Helical ribbon mixer
Homogenizer way	Power: 5.5KW; Speed: 0-3000RPM,speed adjustable
Vacuum system	power: 2.2KW
Control way	Button control
MOQ	1 Set
Origin	Guangzhou/Yangzhou,China
Sale warranty	1 year
After sale service	24 hour online video technical suppoert

Pictures for reference

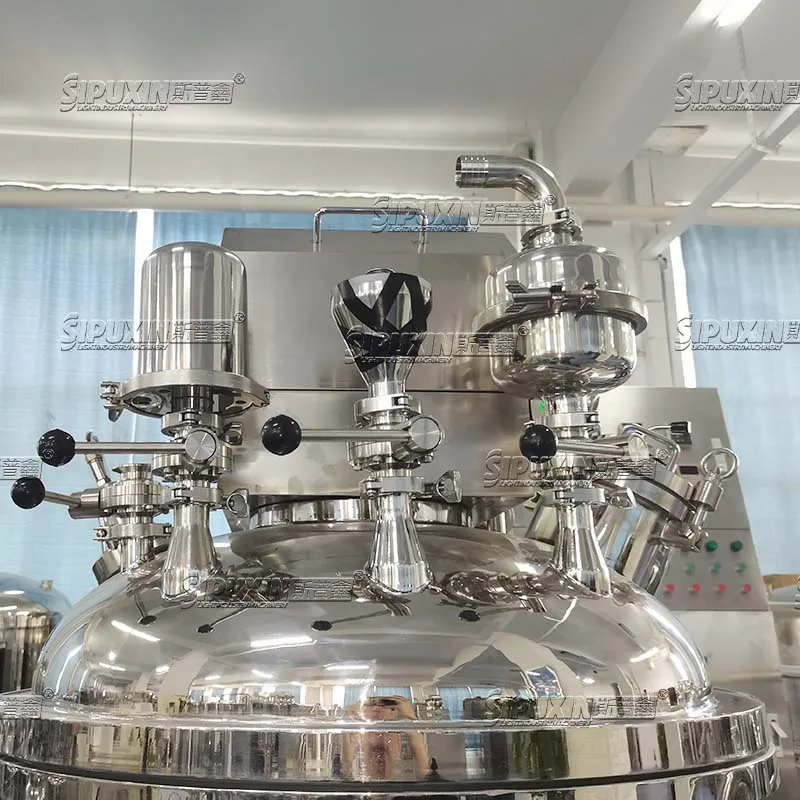

Lid accessories

Sight glass:For better observation of the working situation inside.

Material inlet:Transfer the material through vacuum sunction.
Spice bucket:Add the fragrance and small additives.
Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment.
Clean device:Spray ball can 360 ° rotate to clean the pot.
Lamp:For better observation .
Vacuum pressure gauge:Set and display the pressure inside the pot.

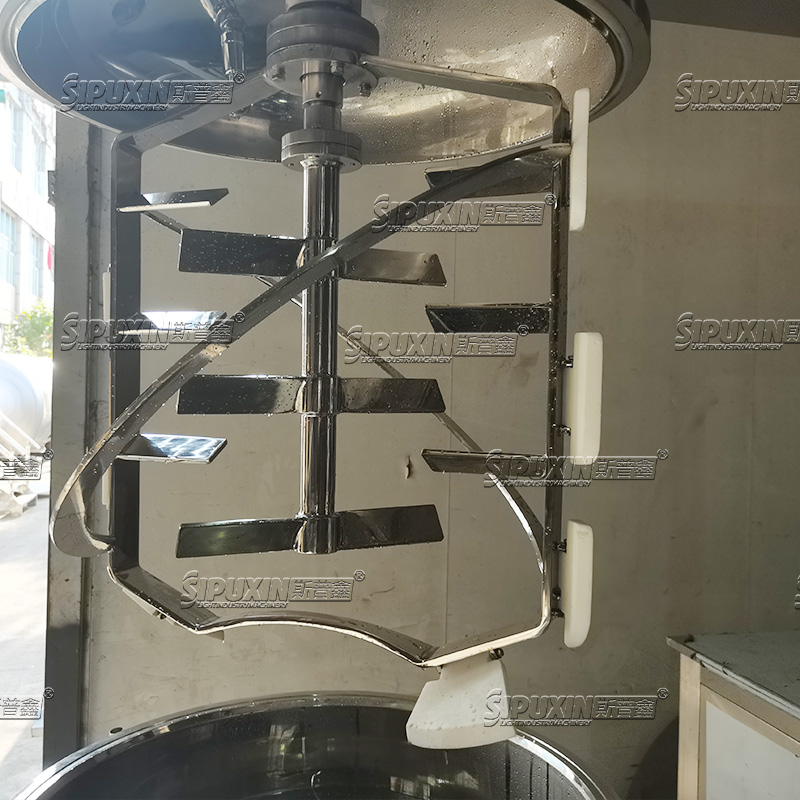

Mixing system

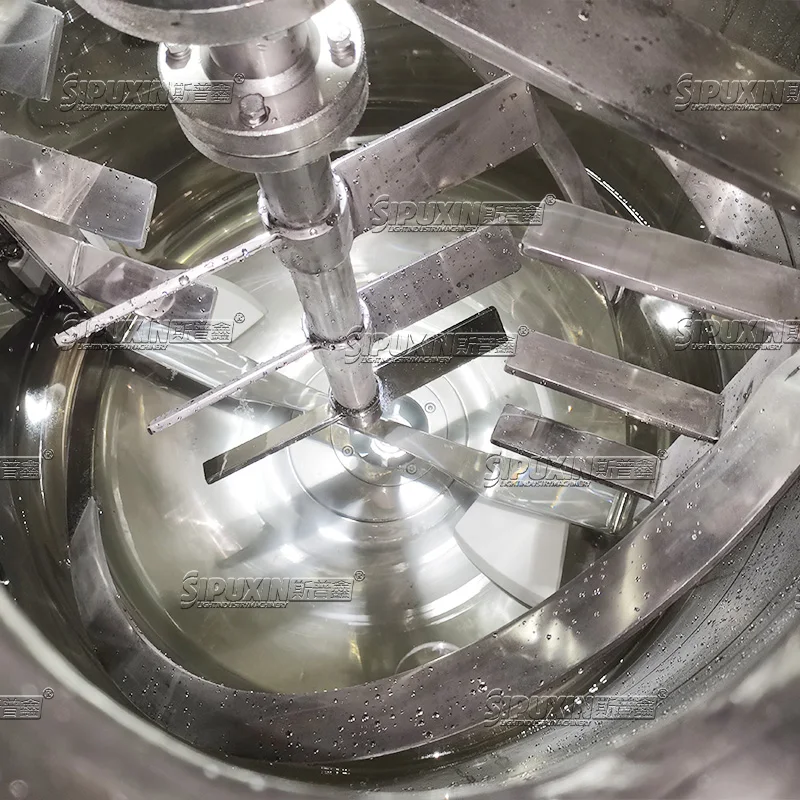

Center mixer with helical ribbon mixer

Speed: 0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

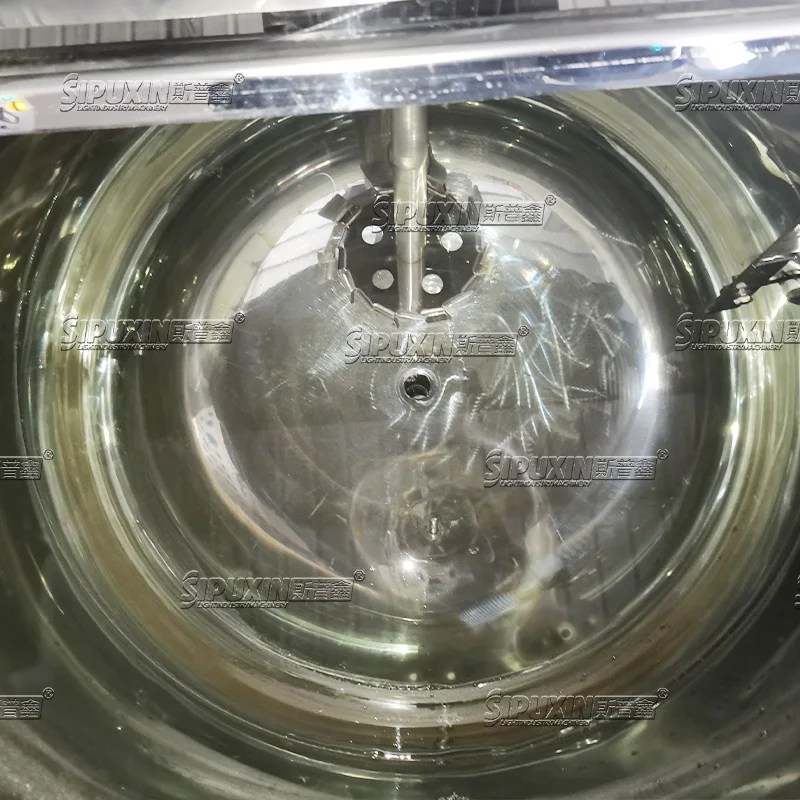

Homogenizing system

High shear homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

Oil and water phase pot

Dispersing mixer: 0-960 RPM
Material: SUS.316

Cover: Flip open cover

Function:Pre-heating and pre-mixing the raw material

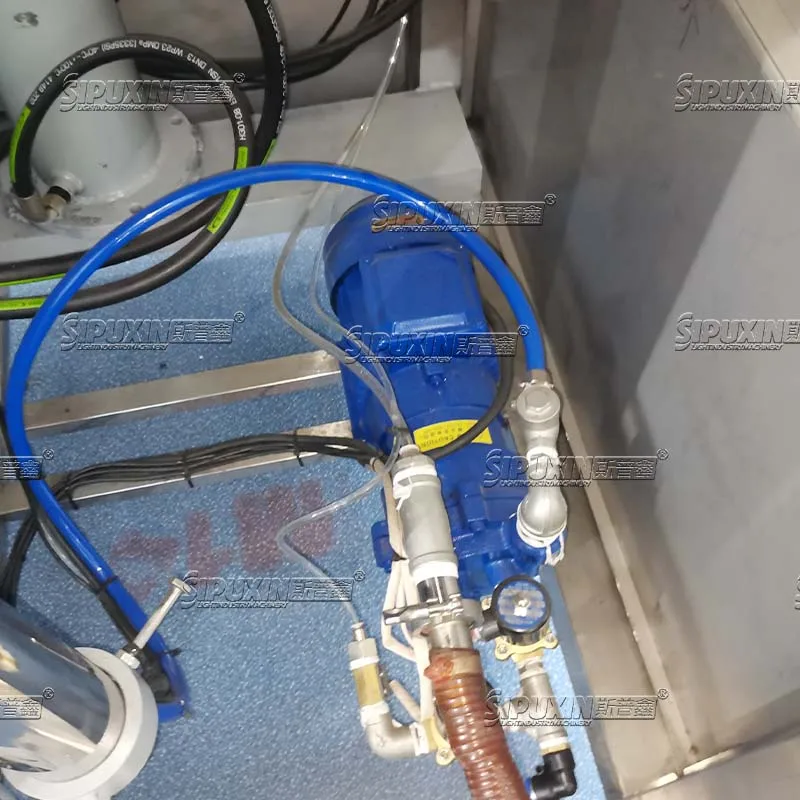

Vacuum pump

V acuum pump is generally water ring vacuum pump,it is equipped with stainless steel circulating water tank and control solenoid valve.
The maximum vacuum limit:0.1Mpa (generally 0.085Mpa)

Function:

1.Through vacuum, remove air and defoaming.

2.Transfer the raw material through vacuum suction

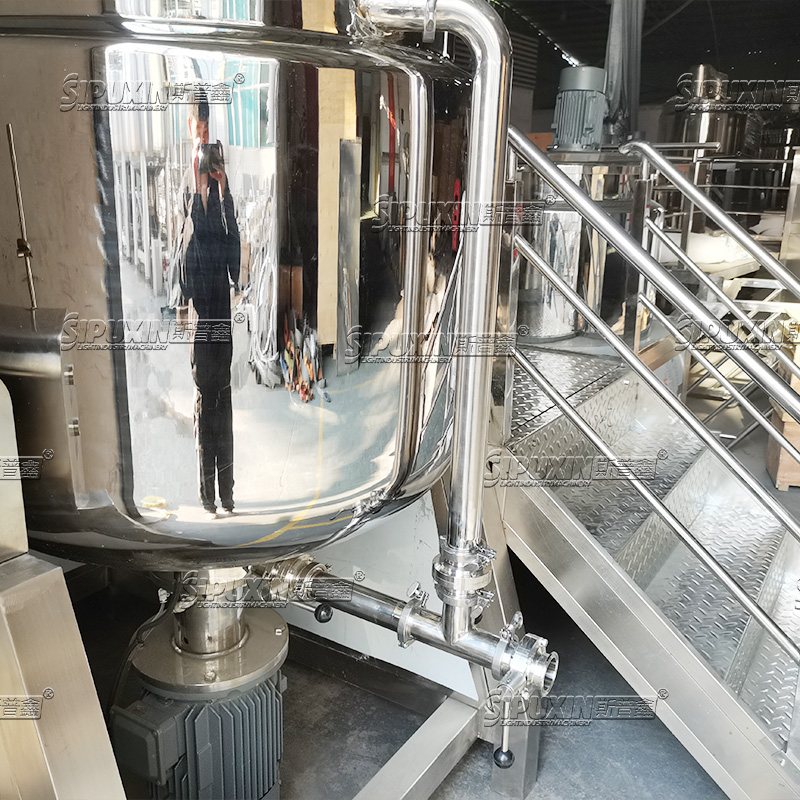

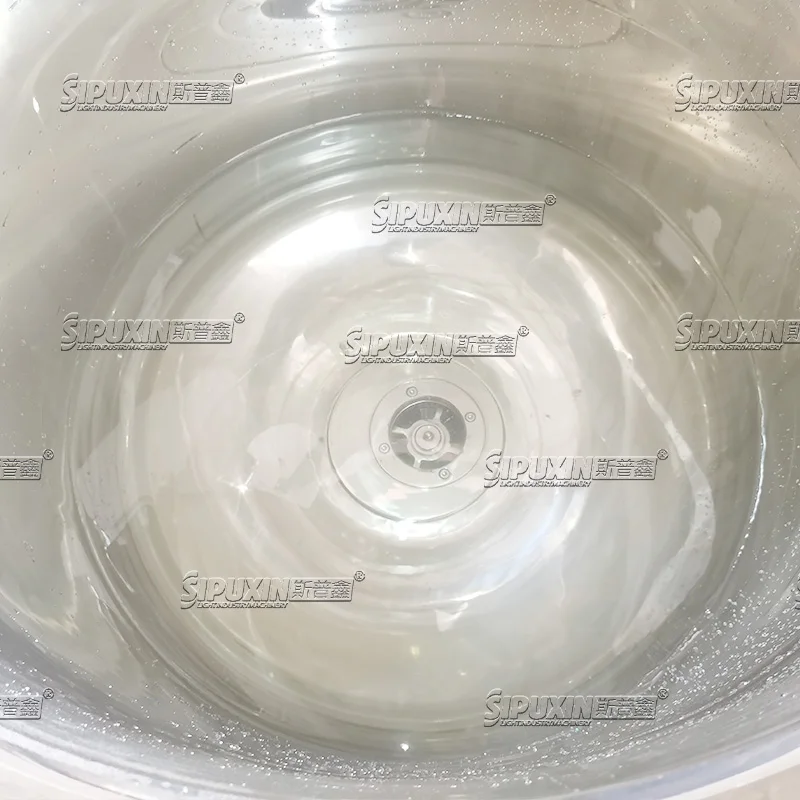

Internal and external circulation pipe(of the homogenizer)

It is internal and external homogenizing.

The material at the bottom will be sucked into the pipe by the strong force of the homogenizer.More and more material accumulate,squeezes each other.Then they return to the main pot for next round of mixing and emulsion.

So no matter the material is at the top,in the middle or at the bottom.All the material can be mixed and emulsified evenly,no dead corner.

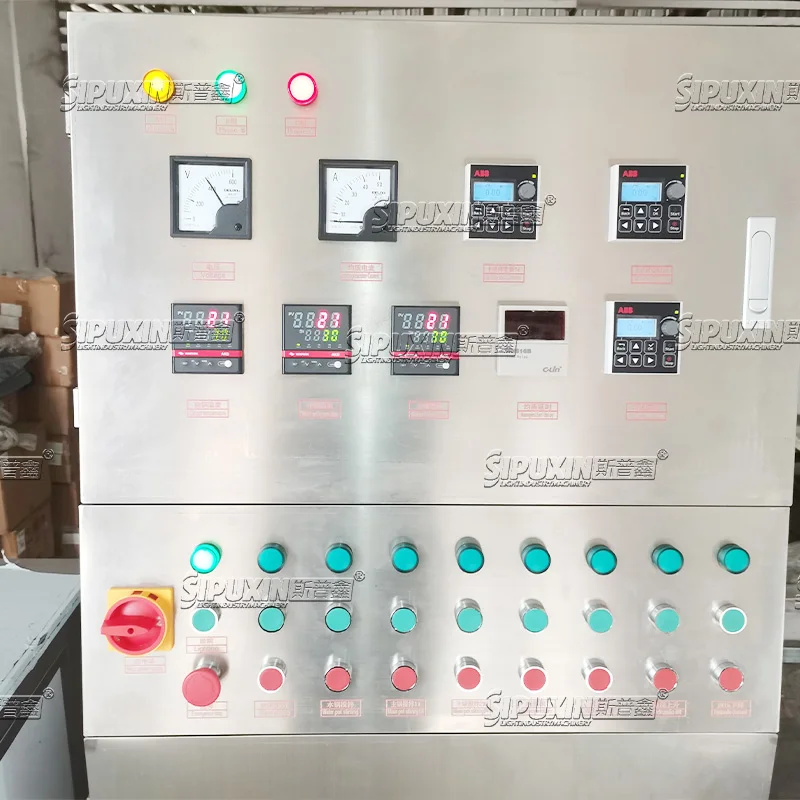

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.
