Hot Sale Automatic Round PET Plastic Bottle Label Sticker Applicator Machine For Labeling Bottles

You are here: Home » Products » Labeling Machine » Hot Sale Automatic Round PET Plastic Bottle Label Sticker Applicator Machine For Labeling Bottles

Share to:

Hot Sale Automatic Round PET Plastic Bottle Label Sticker Applicator Machine For Labeling Bottles

Suitable for :
A wide range of application, can meet the full circle of round bottle labeling or half circle labeling, labeling switch between bottles is simple, convenient adjustment; High degree of label overlap, label belt circumlocution using deviation correction mechanism, label belt does not deviate, label position X/Y/Z three directions and tilt a total of eight degrees of freedom adjustable, adjust no dead Angle, high degree of label overlap.

Availability:

Quantity:



Inquire Add to Basket

Model:
STB
Brand:
SPX

Product Description

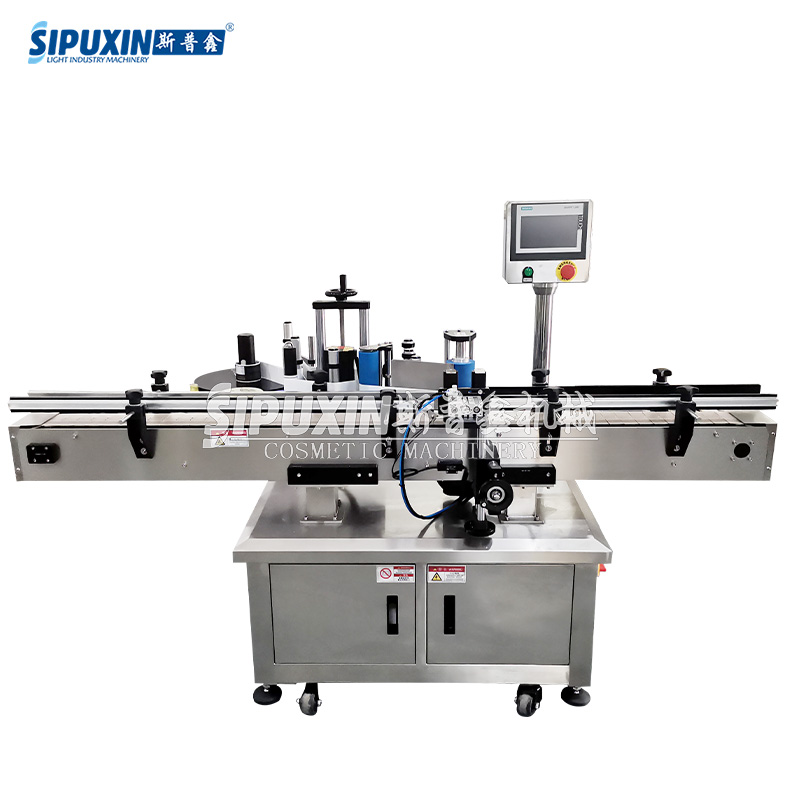

 Automatic Labeling Machine

Suitable for : A wide range of application, can meet the full circle of round bottle labeling or half circle labeling, labeling switch between bottles is simple, convenient adjustment; High degree of label overlap, label belt circumlocution using deviation correction mechanism, label belt does not deviate, label position X/Y/Z three directions and tilt a total of eight degrees of freedom adjustable, adjust no dead Angle, high degree of label overlap.

PLC Control Panel.

 PLC Control Panel is used to control the work of the various electrical appliances of the entire labeling machine. Its working principle: the external signal is input to the PLC, the control center sends out the control signal after analysis and processing, and the motor rotates to rotate the traction mechanism, so as to realize the traction of the label bottom paper, and the label is sent out and adhered to the surface to be attached..

Electric Eye.

 When the labeling object is sensed by the detection sensor, the labeling servo motor on the movement starts, and the machine peels off the label and attaches it to the surface of the object. At the same time, the delivery motor starts to work until the slider slides to a certain position and then stops. The label photo electricity senses the interval between each label on the label roll and controls the motor to stop, thereby controlling the machine to stop the label output..

Roll Paste Device.

 It is mainly used to combine the label with the bottle body more closely. It is composed of a sponge board and a rolling tape. The sponge board is stationary. The rolling tape is driven by a rolling motor, and the round bottle is rubbed to make the round bottle purely rolling. Make the self-adhesive label closely stick to the round bottle.

Conveyor belt.

 Conveyor belt is used to drive the products to be labeled into the labeling area and send the labeled products out of the labeling area. Linear continuous feeding, stable operation; with reminding and warning function, failure can automatically alarm, easy to maintain..

Air filter.

It is used to filter the water carried in the compressed gas, isolate the water vapor from the air by filtering the oil, and then store the water vapor in the water storage reservoir. Therefore, it is necessary to release the accumulated water every day when using it. It has its own pressure display and air pressure adjustment. It is a kind of protection device to prevent water vapor from flowing into the cylinder, causing water accumulation and blocking the cylinder.

Company Profile

     Our main production lines are Cream/Liquid/Perfume/Wax Line;main products include vacuum homogenizing emulsifier, mixing tank, RO water treatment, storage tank, various bottles filling capping labeling code printing and packing machine.     We support customers in factory design,model selection and provides one-stop considerate services including product design research and development engineering installation, technical consultation and after-sales maintenance, serving for many famous enterprises in domestic and abroad.     Our machinery have passed CE certification and coincident with GMF standard. We will keep on repaying customers' care via exquisite craftsmanship and continual improvement in product design,manufacturing, quality and service.

    Our main production lines are Cream/Liquid/Perfume/Wax Line;main products include vacuum homogenizing emulsifier, mixing tank, RO water treatment, storage tank, various bottles filling capping labeling code printing and packing machine.     We support customers in factory design,model selection and provides one-stop considerate services including product design research and development engineering installation, technical consultation and after-sales maintenance, serving for many famous enterprises in domestic and abroad.     Our machinery have passed CE certification and coincident with GMF standard. We will keep on repaying customers' care via exquisite craftsmanship and continual improvement in product design,manufacturing, quality and service.

certification

Fair and exhibition

Packing & Delivery

 We use plywood to pack the goods, which can not only better protect the goods in transit, but also prevent insects from biting the board.
