Full automatic 2 in1 filling and capping machine cosmatic cream lotion filling machine liquid soap filler

You are here: Home » Products » Bottle Filling Machine » Full automatic 2 in1 filling and capping machine cosmatic cream lotion filling machine liquid soap filler

Share to:

Full automatic 2 in1 filling and capping machine cosmatic cream lotion filling machine liquid soap filler

With the development of industry and the improvement of residents' living standards, filling machines have been widely used in many fields. In recent years, due to the decrease in the proportion of labor force and the continuous increase in worker wages, production costs have indirectly increased, which has to some extent affected the economic benefits of enterprises. Therefore, advanced production equipment is needed to improve production efficiency and reduce the number of employees to lower production costs. In order to solve the problems of slow operation speed and low efficiency in the filling station, it is necessary to optimize the design of the original filling line and improve work efficiency. This article mainly explains the current situation and development trends of filling equipment at home and abroad.

Video outgoing-inspection:	provided
Core Components:	motor,PLC
Color:	Silver
After-sales Service :	online provided
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-029
Brand:
SIPUXIN

Product Description

Product Presentation:

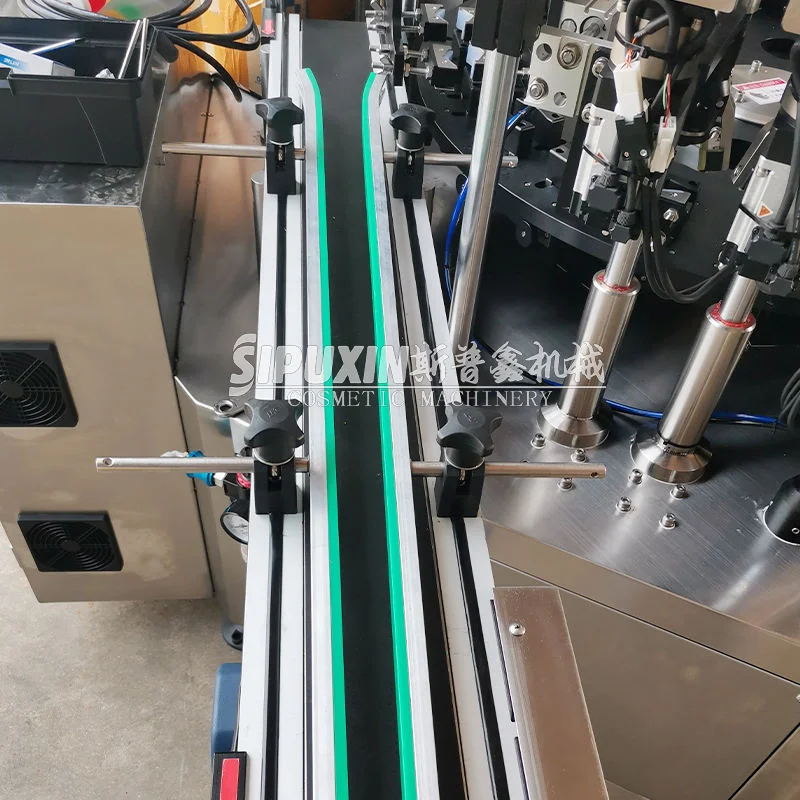

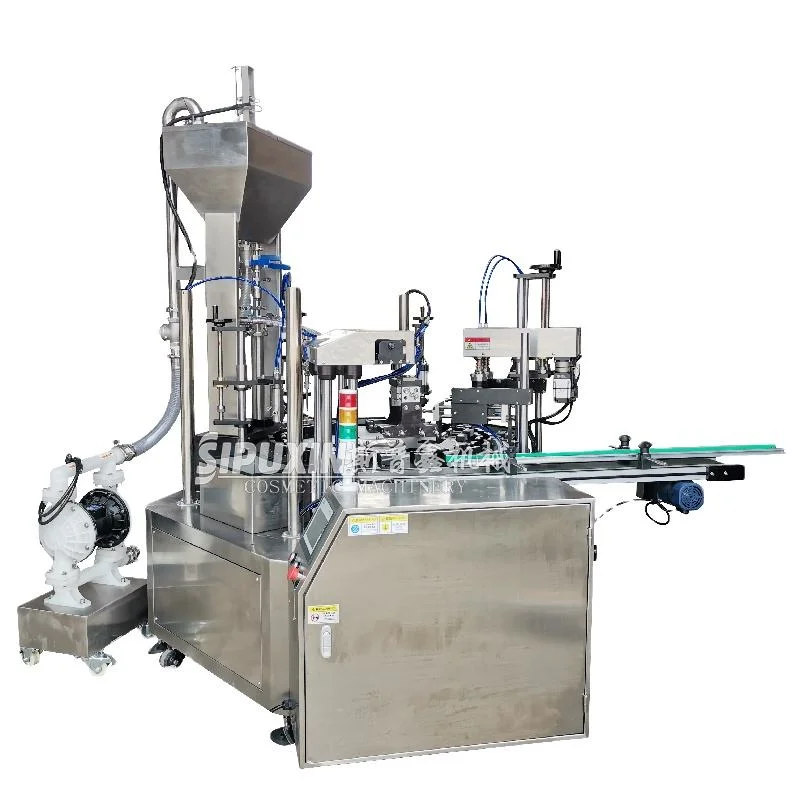

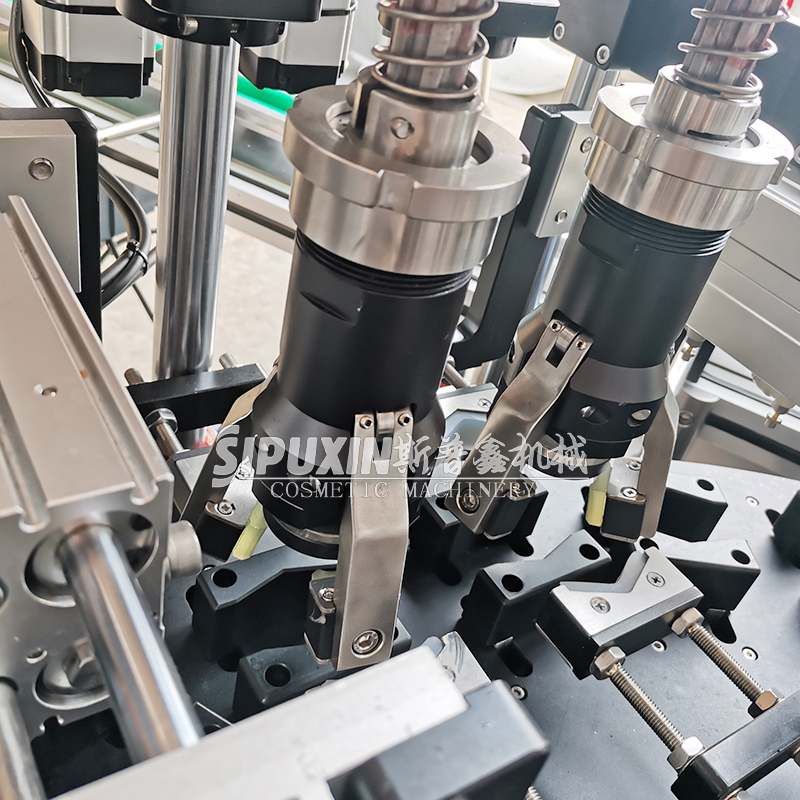

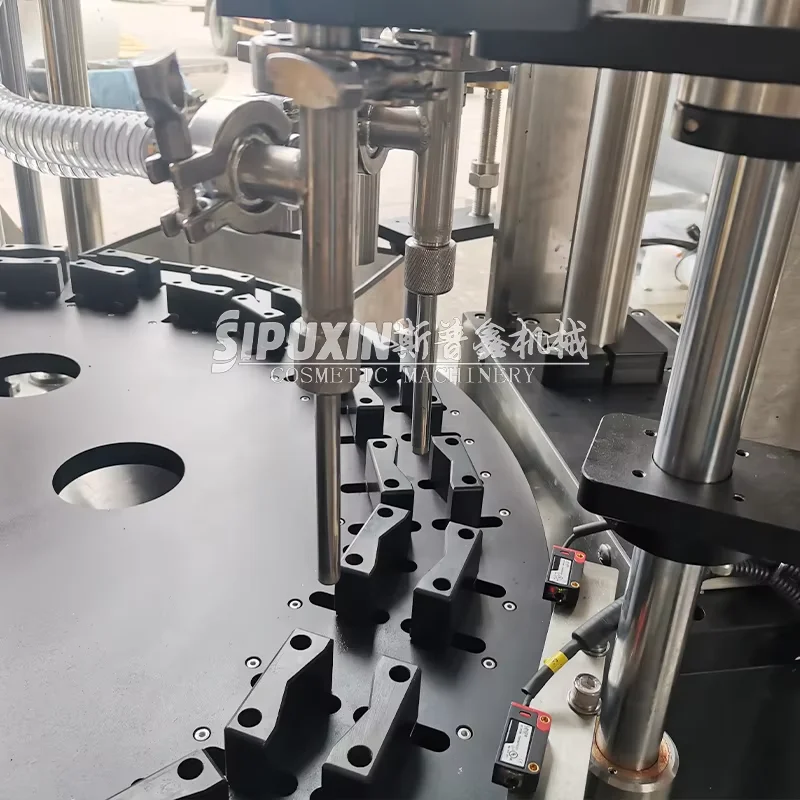

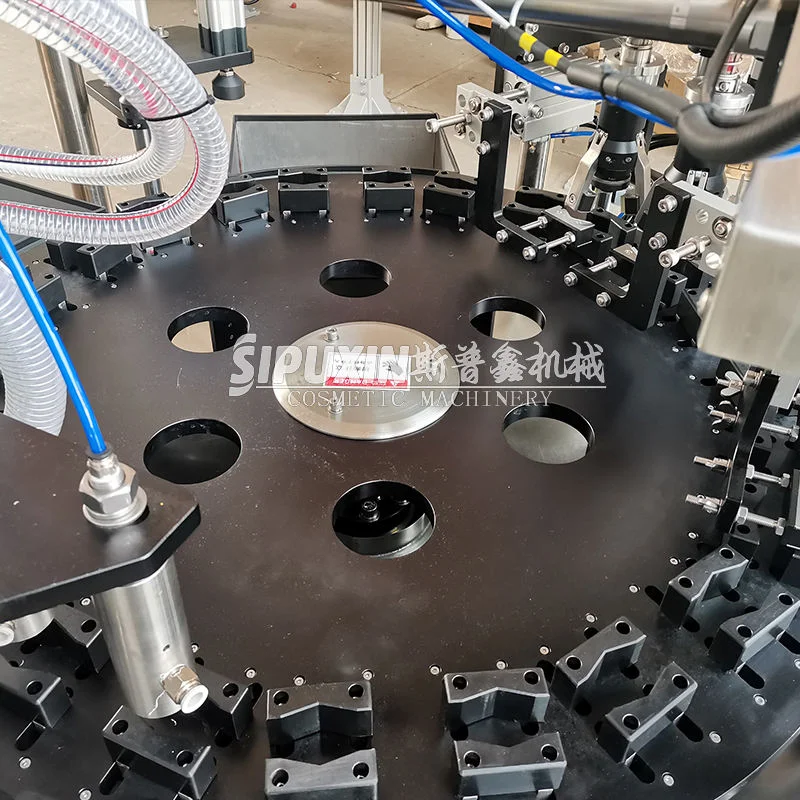

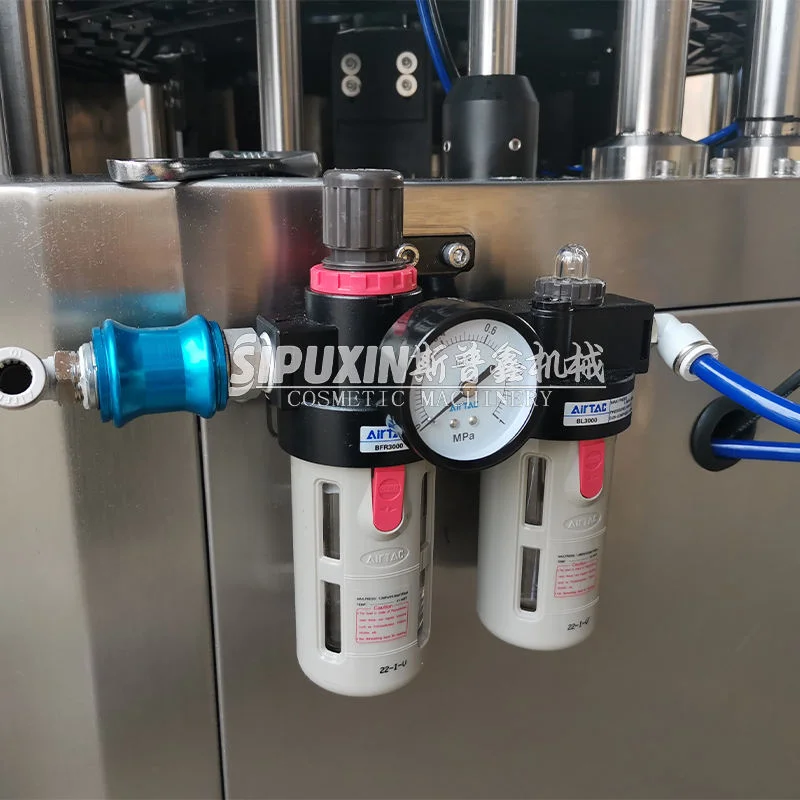

   This machine is an integrated Air cleaning, filling, plug pressing and capping machine. ○ It has a high degree of automation, high yield, wide adaptability, good stability and other characteristics. ○ Detection: the photoelectric sensor detects whether there is empty bottle on the working rotary chuck, and sends the detection signal to the control.   In the computer, it is used to control the filling with bottle, no filling without bottle. ○ Filling: If a bottle is detected in the front, PLC controls the filling nozzle to go into the bottle for filling. ○ Gland: the upper and lower gland is controlled by the CAM to ensure that the lower limit of the cap is in place. ○ Bottle out: the final capped bottle out of the conveyor belt. ○ Reasonable design, compact models, easy to operate, pneumatic parts are used in Taiwan AIRTAC pneumatic components. ○ Material contact

Product Information

item	value
Condition	New
Type	Filling Machine
Automatic Grade	Automatic
Driven Type	Electric
Core Components	Pressure vessel, PLC
Capacity	20-50 Bottles/min
Filling speed	30-50bottles/min (customization)
Material	Stainless Steel 304/316
Filling volume	25-250ML. 50-500ML.100-1000ML.250-2500ML
Filling nozzles	2/4/6/8/10/12(customized)
