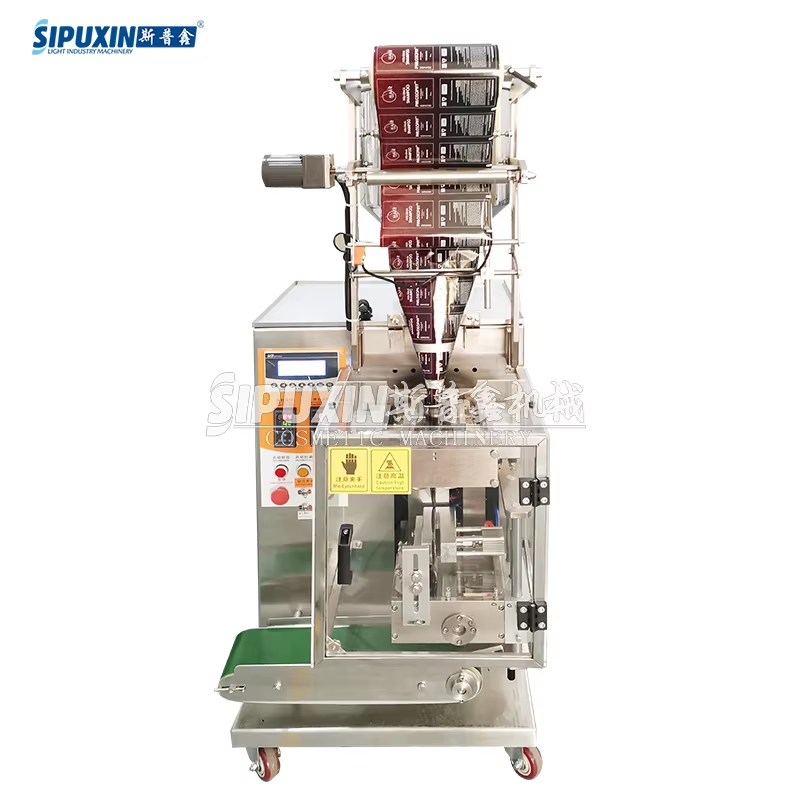

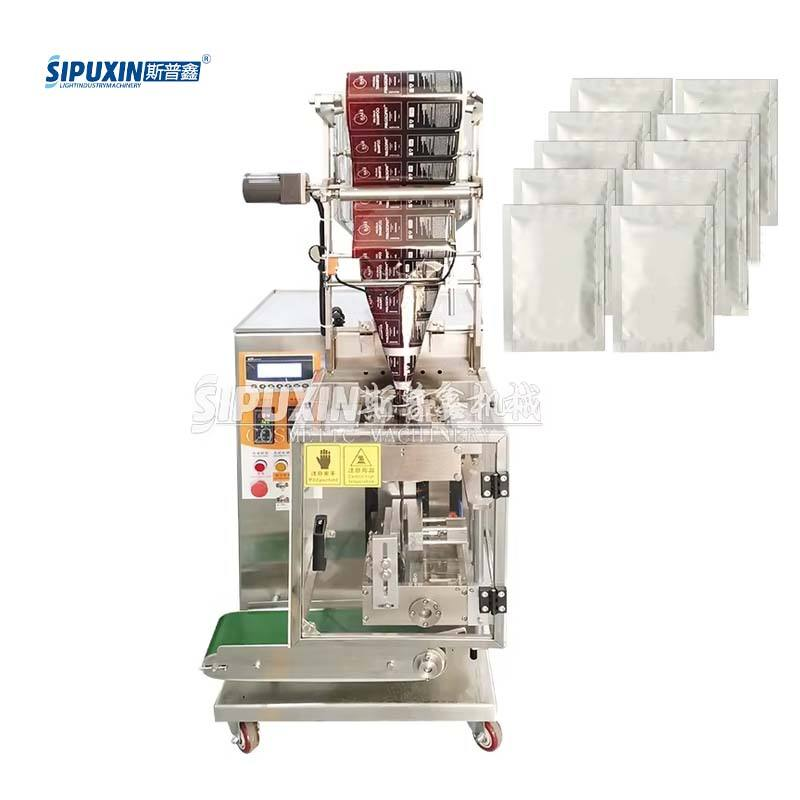

Function This machine is suitable for the filling of liquid products incosmetics like perume, sterilization water, wine, soy sauce, peanutoil, oyster sauce and lubricant oil etc. lt's the latest filling machinewith complete function. Customized design for more filling heads Easy to clean if filling colored materials.
Specification
Filling volume (ml)
25-250ml,50-500m,100-1000ml,250-2500mn
Filing speed(B/H)
10-90(可调adjustable)
Filing nozzles(Pos)
1-2-4-6-8-10-12
Power(KW)
0.8-1.5
Working perssure
5-7kg/m2
Filling accuracy
士1%
Demension(mm)
2000*1300*2100
Net weight(kg)
650
Product Dedails

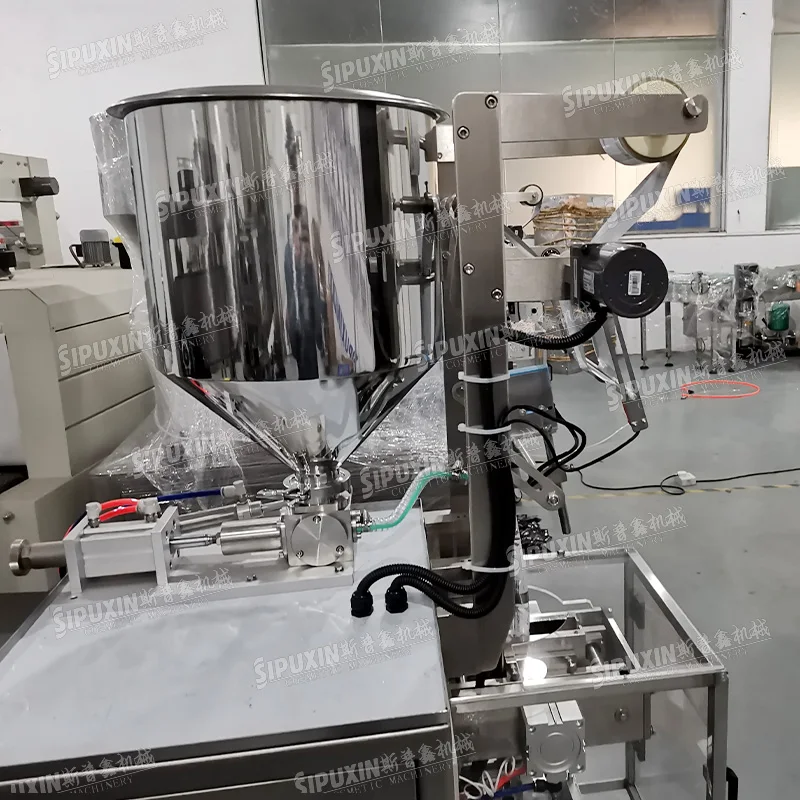

Piston charging hopper
Hopper, the product is filled through the hopper, the filling volume can be adjusted by thehand wheel, piston filling, highfilling accuracy. Both the hopperand the filling nozzle are madeof 304 stainless steel, which conforms to the GMP standard.

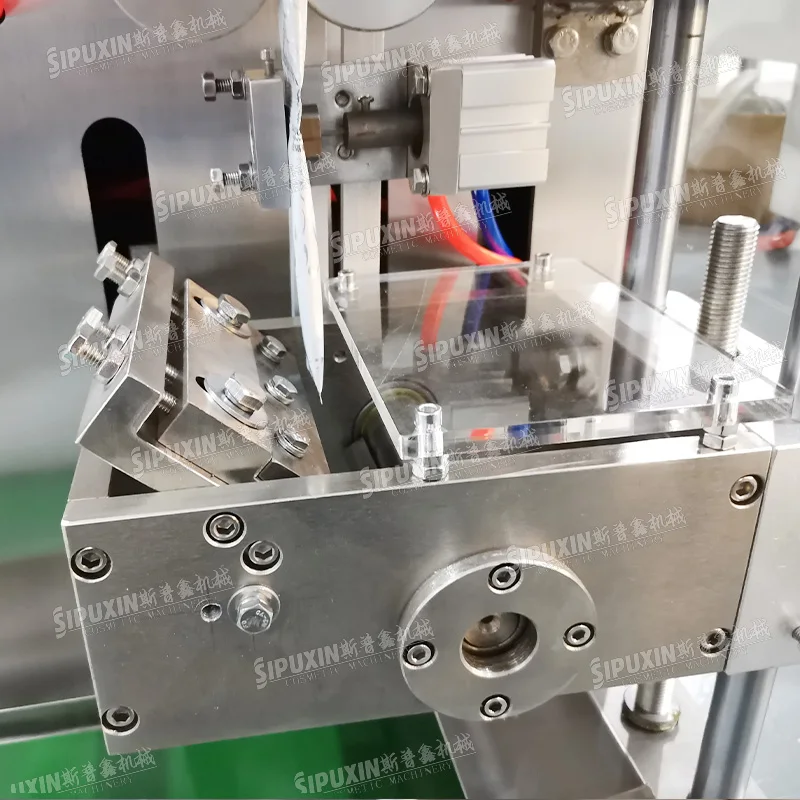

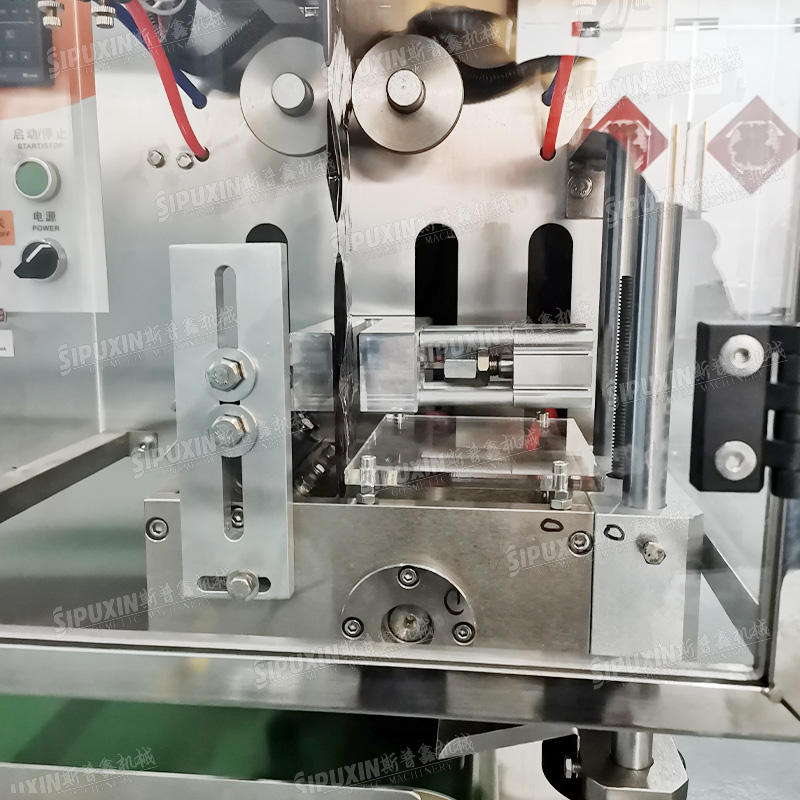

Heat-sealed part
The heat-sealing device is drivenby an air cylinder, and the packaging is sealed by heating!The sealing is tight and conforms to
the GMP standard, which effectively improves the production efficiency. Individual temperature control is better suitable for various packaging materials.

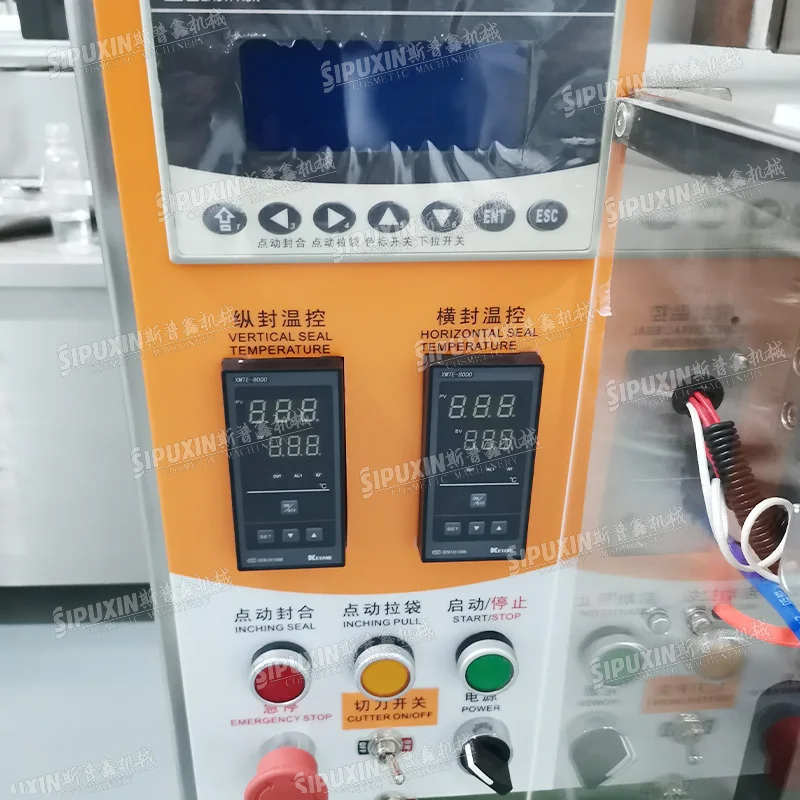

PLC control panel
Man-machine interface,parameter setting is convenient and quick. With fault self-diagnosis function, fault displayis clear at a
glance. lt is convenient and quick to control the number andspeed of bag charter machines and is suitable for large-scale automated production.English language operation interface.
