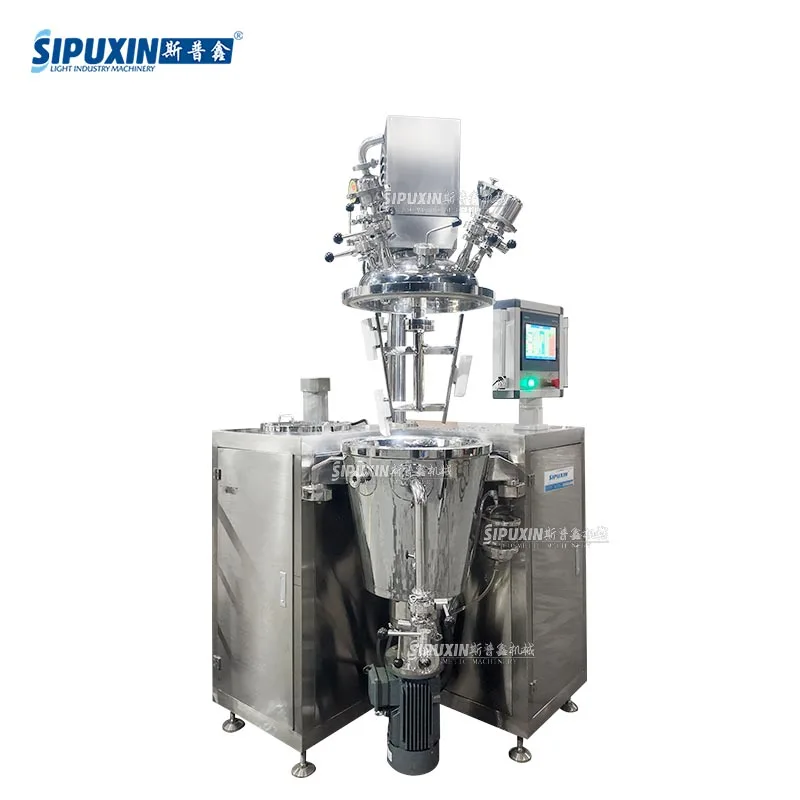

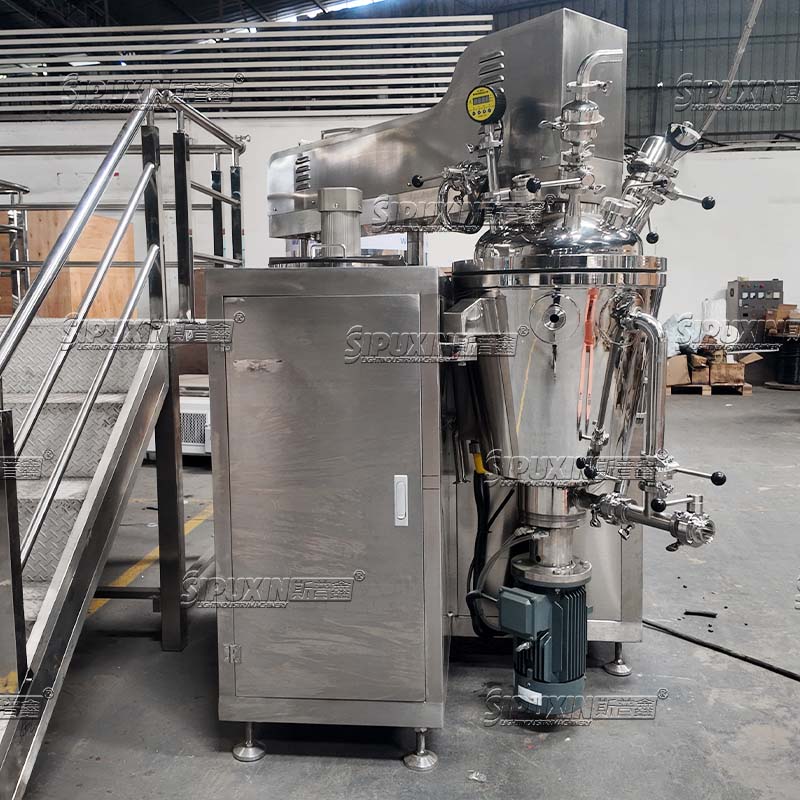

30L SUS316L Laboratory Conical Bottom Lifting Emulsifier High Shear Mixing Equipment

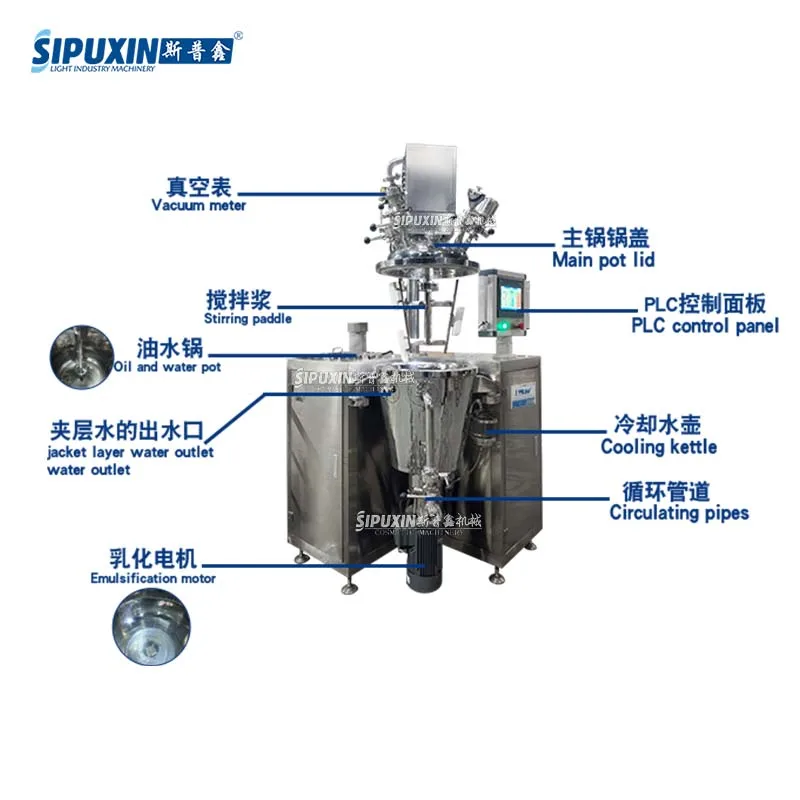

Machine components details

Pictures for reference

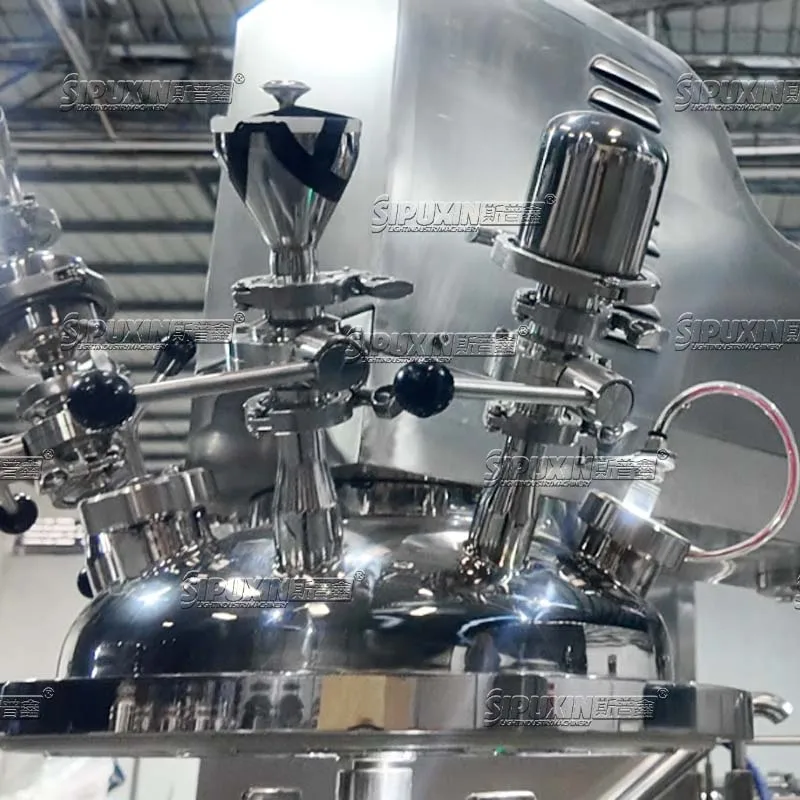

Lid accessories

Sight glass:For better observation of the working situation inside.

Material inlet:Transfer the material through vacuum sunction.
Spice bucket:Add the fragrance and small additives.
Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment.
Clean device:Spray ball can 360 ° rotate to clean the pot.
Lamp:For better observation .
Vacuum pressure gauge:Set and display the pressure inside the pot.

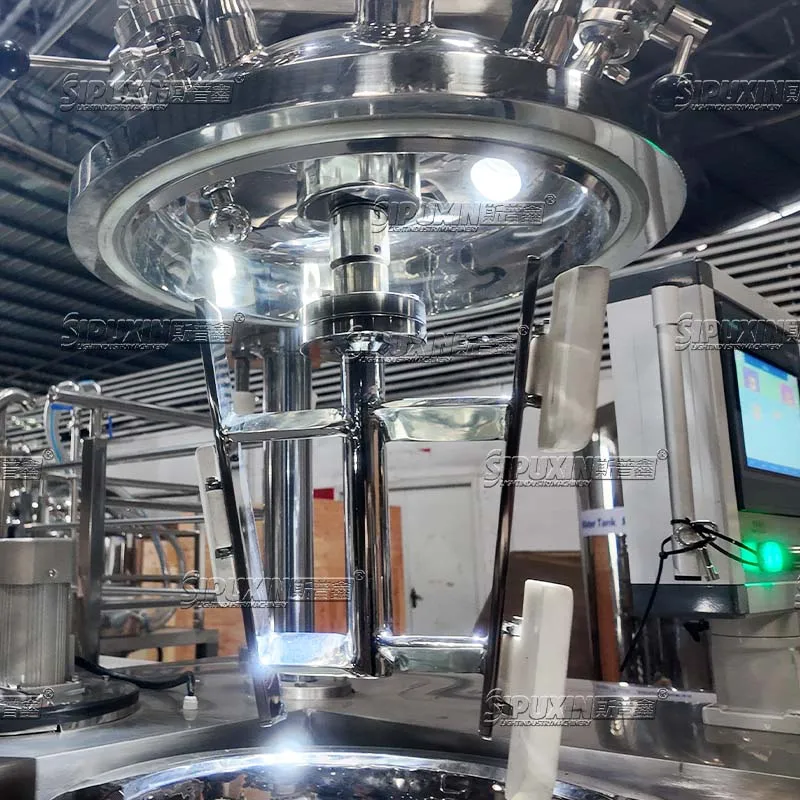

Mixing system

Center mixer with helical ribbon mixer
Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

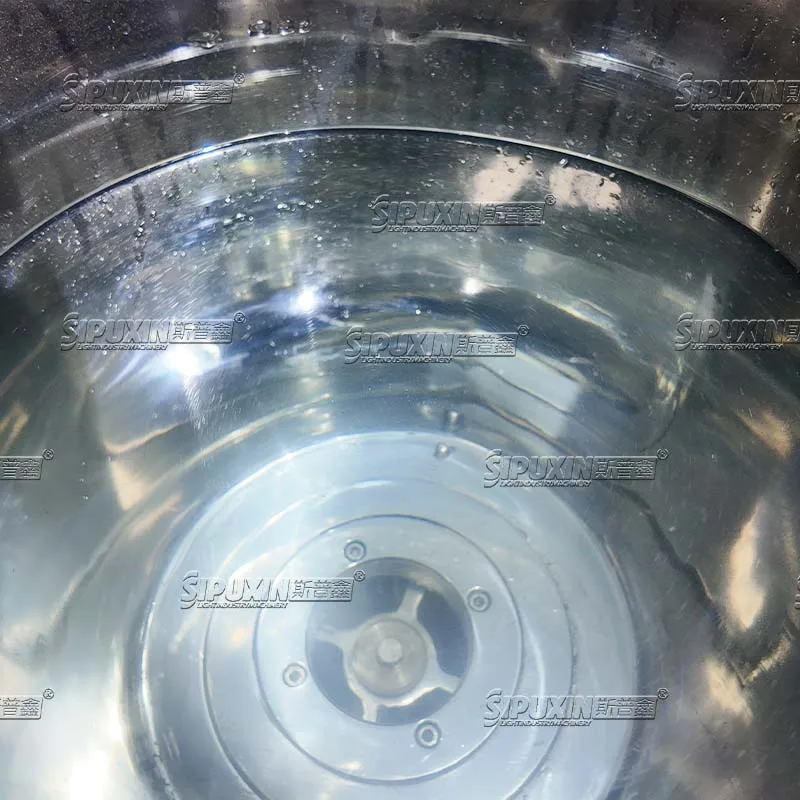

Homogenizing system

High shear homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

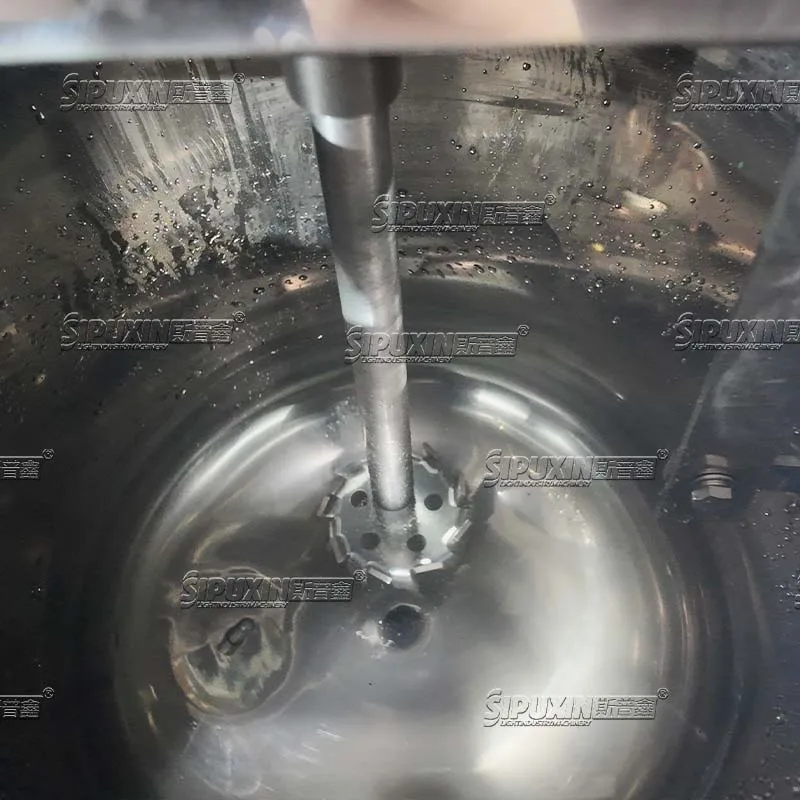

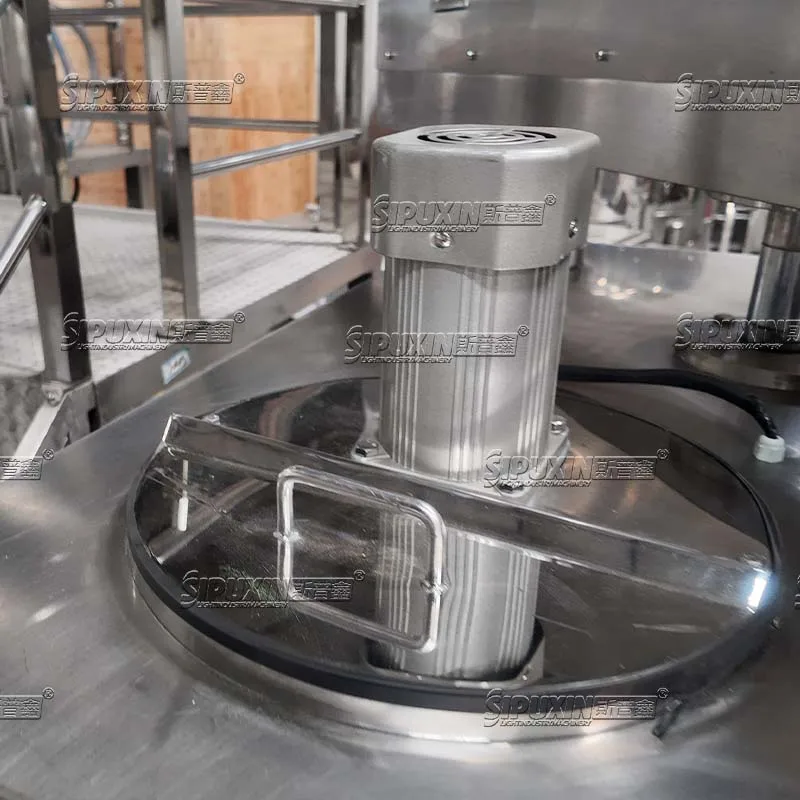

Oil phase pot

Dispersing mixer: 0-960 RPM
Material: SUS.316

Cover: Flip open cover

Function:Pre-heating and pre-mixing the raw material

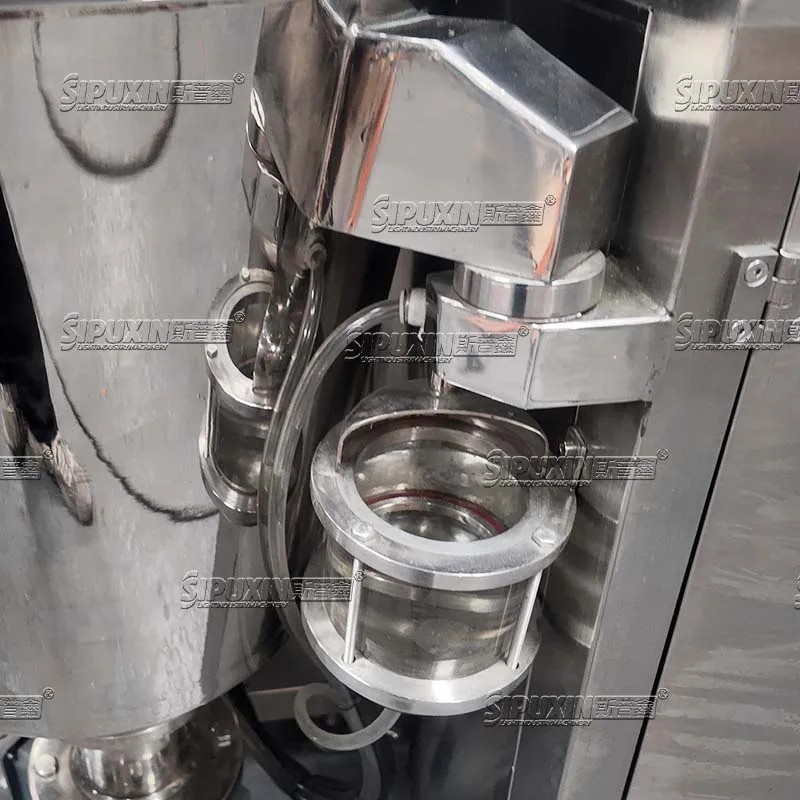

Cooling pot

When the homogenizer is working,it will generate many heat,so the temperature is very high.

But a cooling pot is added.The cooling water will enter the homogenizer to bring the heat out through the pipe.

So with the help of this cooling pot,the temperature will be lower.

Therefore,the cooling pot is for protecting the homogenizer.

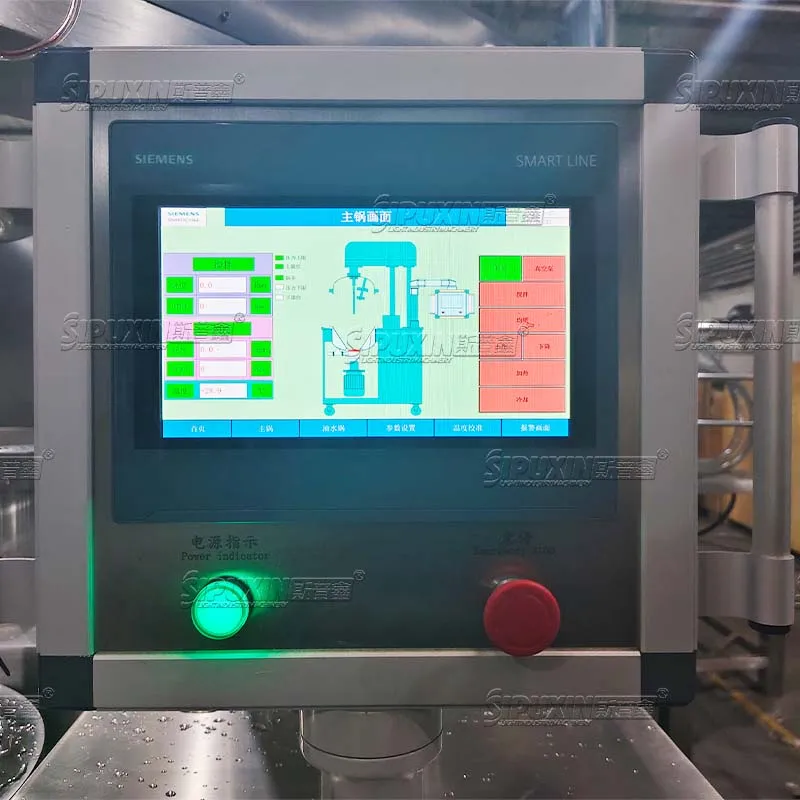

PLC + Touch screen

Brand:Siemens from Germany

Components:Power switch,emergency stop

Be able to display, set and adjust the center mixer speed .
Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

Internal and external circulation pipe(of the homogenizer)

It is internal and external homogenizing. The material at the bottom will be sucked into the pipe by the strong force of the homogenizer.More and more material accumulate,squeezes each other.Then they return to the main pot for next round of mixing and emulsion. So no matter the material is at the top,in the middle or at the bottom.All the material can be mixed and emulsified evenly,no dead corner.
