300L Hydraulic Lifting Vacuum Toothpaste Making Machine with Oil‑Water Phase Tanks

You are here: Home » Products » Vacuum Emulsifier » 300L Hydraulic Lifting Vacuum Toothpaste Making Machine with Oil‑Water Phase Tanks

Share to:

300L Hydraulic Lifting Vacuum Toothpaste Making Machine with Oil‑Water Phase Tanks

This 300L hydraulic lifting vacuum toothpaste making machine comes with independent oil‑water phase tanks. SUS316L material‑contact parts, vacuum defoaming, suitable for large‑batch toothpaste and high‑viscosity paste production. Customized options are available.

Core Components:	Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Material:	SUS304, SUS316L
Product Type:	Cosmetic , chemical , food , liquid soap
Heating method:	Electric / Steam
Dimension(LWH):	Custom Made
Package Type::	wooden case wooden case
Place of Origin:	Guangdong, ChinaGuangdong, China
Availability:

Quantity:



Inquire Add to Basket

Model:
SZR
Brand:
SPX

Product Description

Products overview

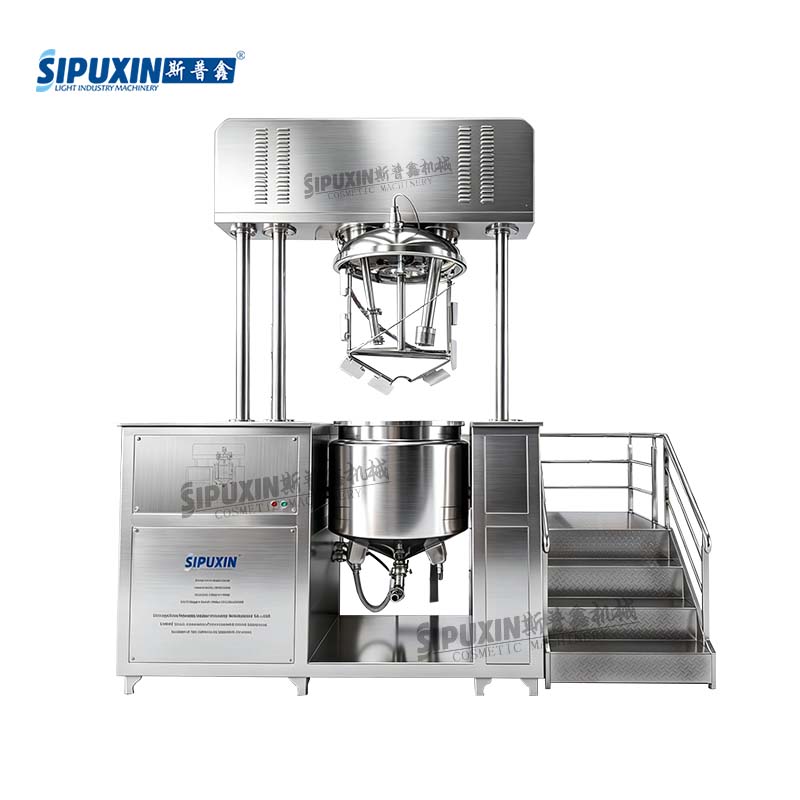

Our 300L hydraulic lifting vacuum toothpaste making machine is specially designed for mass production of toothpaste and other high‑viscosity paste products. Equipped with separate oil‑phase and water‑phase tanks, it realizes independent pre‑heating and pre‑stirring for oil‑based and water‑based raw materials. Materials are transferred into the main tank through vacuum suction for complete emulsification and mixing.

Adopting hydraulic lifting structure, the mixing head can be fully lifted for easy interior tank cleaning, homogenizer maintenance and seal replacement. All product‑contact components are made of SUS316L stainless steel with mirror polishing to meet GMP hygiene standards. The vacuum system effectively eliminates air bubbles to guarantee smooth and dense toothpaste texture. This machine is widely applied in dental paste, ointment and thick cosmetic paste manufacturing. Customization on control system, heating mode and electrical standard is supported.

More pics for your reference

CIP cleaning ball

Pressure gague

Bottom homogenizer

Frame-wall agitator with Tefon scrapper

— Product Advantages

Hydraulic Lifting Design for Easy Maintenance
Full hydraulic lifting upper cover and stirring system allows complete tank interior access. It greatly simplifies residue cleaning, homogenizer inspection and seal replacement, solving dead-angle cleaning problems for high-viscosity toothpaste paste.
Independent Oil-Water Phase Tanks for Stable Formula
Equipped with separate oil-phase and water-phase pre-mixing tanks. Raw materials are pre-heated, dissolved and stirred individually before vacuum feeding, ensuring uniform emulsification and stable toothpaste quality in mass production.
High Vacuum Defoaming for Smooth Paste Texture
Working vacuum reaches -0.08~-0.095MPa, which thoroughly removes internal air bubbles. The finished toothpaste is fine, dense, uniform without pores or granular texture.
Dual Mixing System with No Dead Zones
Low-speed wall-scraper mixing combined with high-speed bottom homogenizer. Even ultra-high-viscosity toothpaste can be mixed evenly, improving production consistency and emulsification efficiency.
GMP Standard Sanitary Structure
All material contact parts adopt SUS316L stainless steel with mirror polishing, no dead corners, easy to clean, fully compliant with cosmetic and toothpaste food-grade hygiene production requirements.
Stable & Durable Mass Production Capacity
300L total volume with 70%-80% effective working capacity, specially designed for medium and large batch toothpaste factory continuous production, stable operation and low failure rate.
Flexible Customization Support
Optional electric/steam heating, explosion-proof configuration, PLC automatic formula storage, CIP cleaning system and multi-country voltage customization to fit different factory environments.
