Machine components details
Capacity | 300L |
Material | Stainless steel sus304/sus316 |
Heating way | Power:18KW Electric heating water in jacket with tap-water cooling system |
Mixing way | Power: 4KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade |
Control way | Button control/PLC+Touch screen |
MOQ | 1 Set |
Origin | Guangzhou/Yangzhou,China |
Sale warranty | 1 year |
After sale service | 24 hour online video technical suppoert |
Pictures for reference

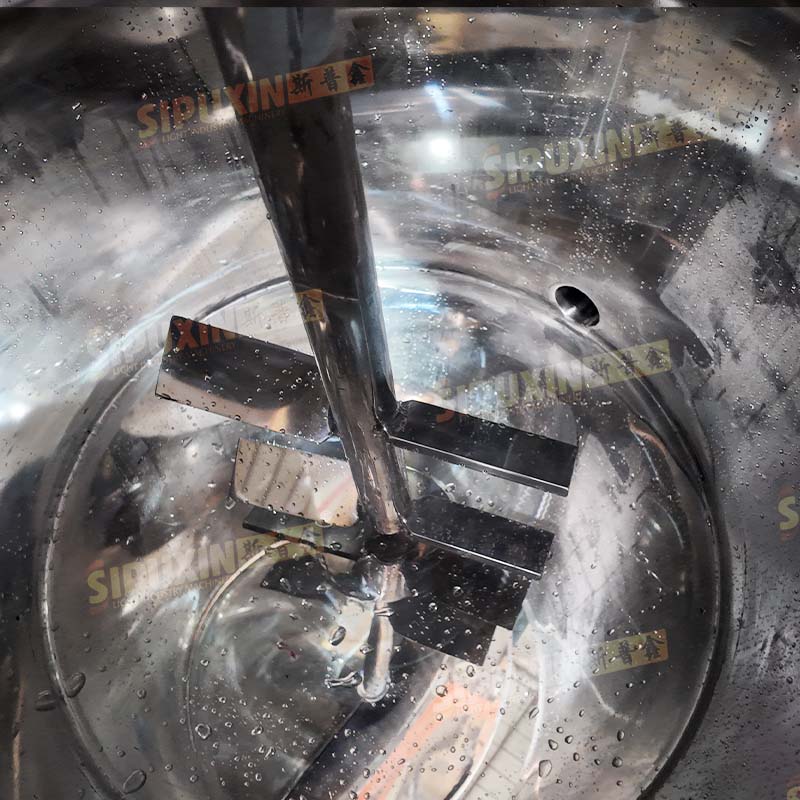

Mixing system

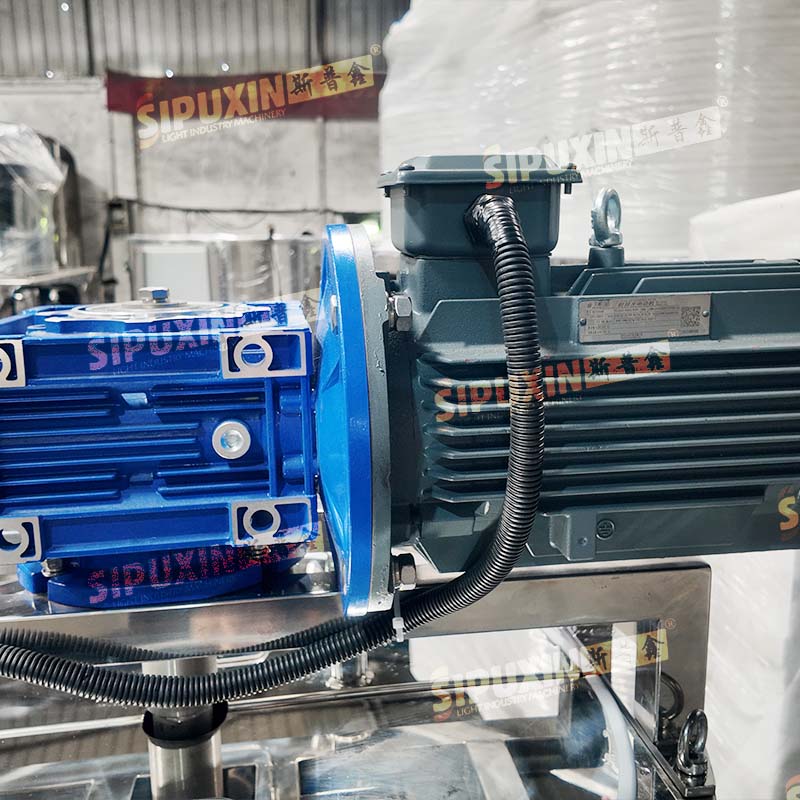

Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the mixer achieves rapid dispersion through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous mixxing
Bottom discharge
The bottom discharge hole with manual valve control.
4 ways of discharging:
1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity
2.Pressure discharge:Add air,give it pressure to discharge the product.
3.Pump discharge:Use pump(like lobe pump) to discharge the product.
4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

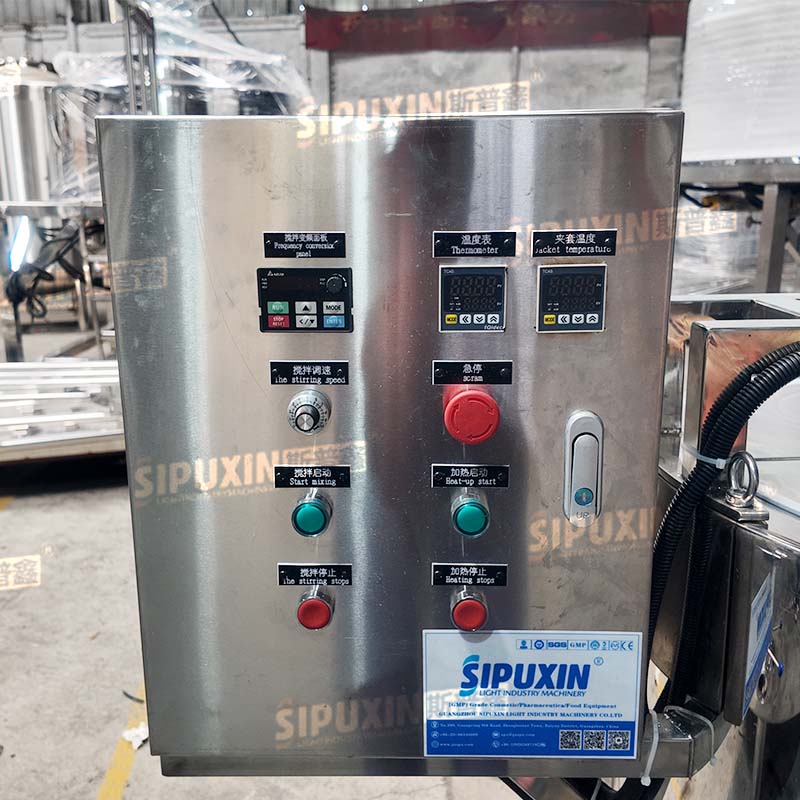

Button control box
Material:SUS.304
Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.
* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

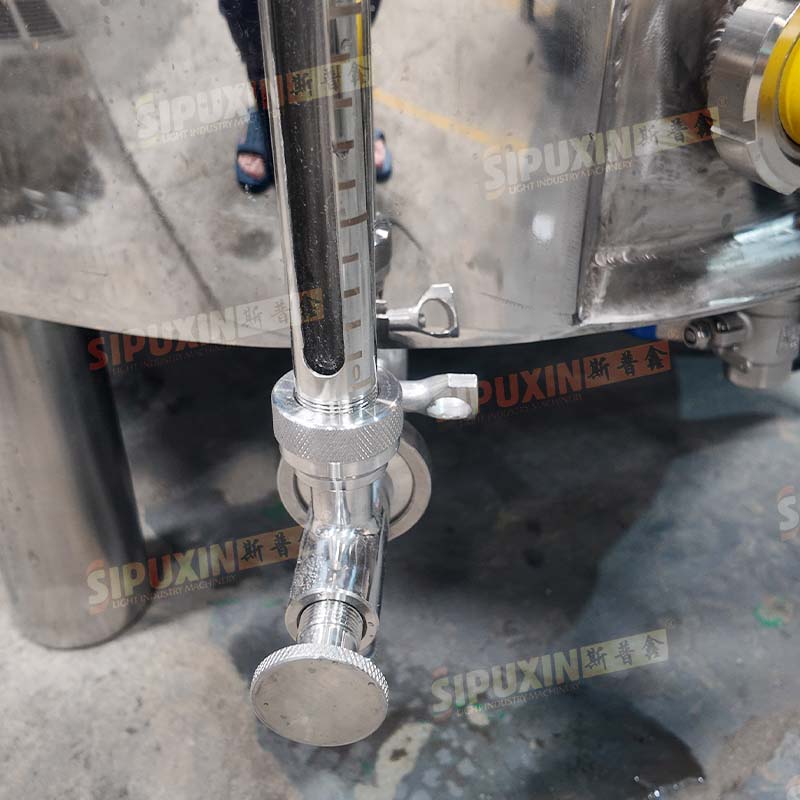

Liquid level gauge
Material:SUS.304
Function：
Detect and display liquid level inside tank, monitor liquid level height in real time.
Company Profile
01:45
03:00
Guangzhou Sipuixin Light Industry Machinery
We,Guangzhou Sipuxin Light Industry Machine Co.Ltd.,locates in No.380 Guangcong 9th Road,Zhongluotan Town ,Baiyun District,Guangzhou,China--the core technology area for machinery design and manufacture.
Based on Jiangsu light industry Research Institute and Germany top homogenizing technology, with solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory, Sipuxin is professional manufacturer for Vacuum homogenizing emulsifier, Mixing tank, RO water treatment, Storage tank, CIP cleaning system,Filling/Capping/Labeling
machine, Ink-jet/laser printing machine and other packing machine.
We have passed CE, BV,TUV, SGS quality certificate, and coincident with GMP standard.
Factory setting
Our showroom
production configuration
Engineering Case
Package
FAQ
1.Are you a factory? Yes, we are a factory with more than 20 years experiences.
2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province.
3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
4.Can your product be customized? Yes, we can customize products according to your needs.
5.What is the warranty period for your product? One year.
