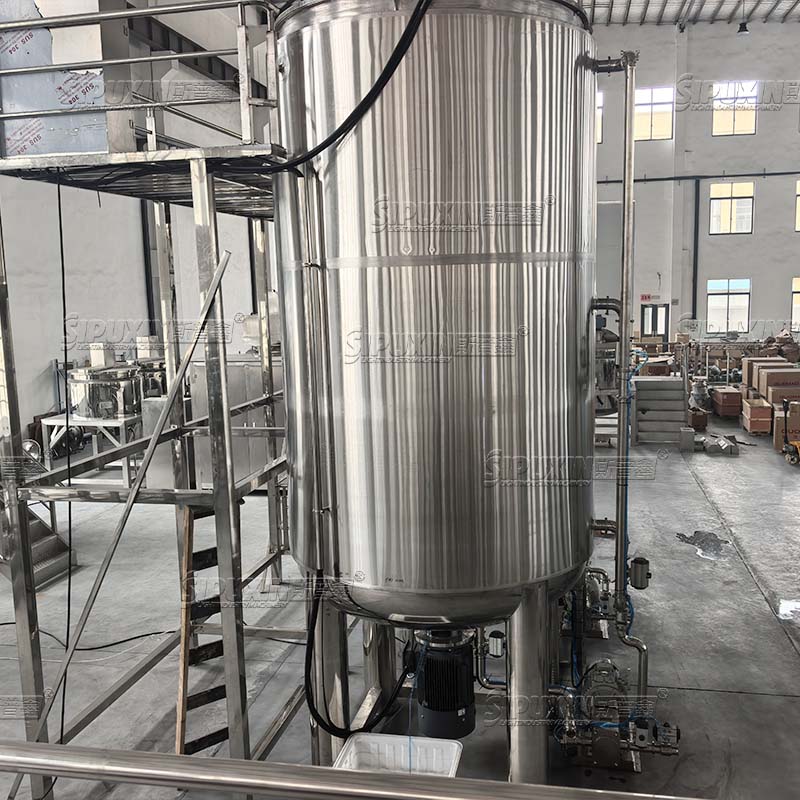

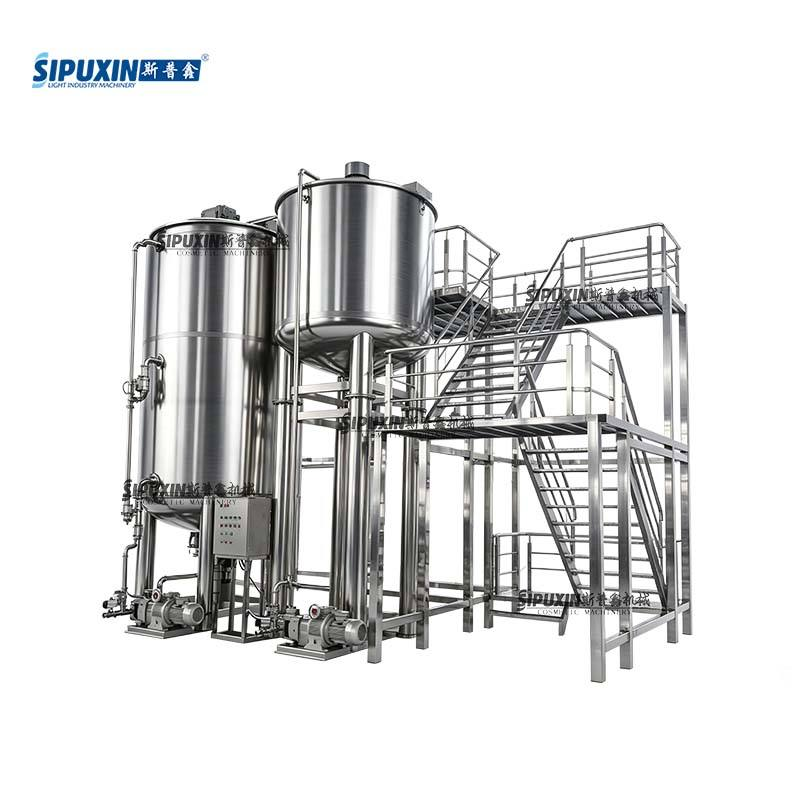

10T Steam‑Heated Homogenizing Mixing Tank 5T Single Layer High‑Speed Dispersion Disc Mixer for Cosmetics, Food, Chemical Paste Liquid Processing
The homogenizing assembly adopts German‑sourced design with imported double‑end mechanical seals. Its maximum emulsification speed reaches 3000 rpm, delivering shear fineness of 0.2‑5 μm. 2. The tank is fabricated with imported triple‑layer stainless steel plates. Both tank shell and pipelines are mirror‑polished to fully comply with GMP standards. 3. Material heating and cooling are available to match process demands; heating options include steam heating and electric heating.
Application
This liquid‑washing mixing tank is widely used for cosmetics and daily‑chemical production of shampoo, shower gel, hand sanitizer and similar products. Internal low‑speed agitator blades provide thorough material blending to satisfy production‑process requirements.
An operating platform is optional, on which the control cabinet can be mounted. Heating, mixing speed, heating time and other parameters are controlled on one panel for simple, efficient operation.
After feeding, materials are homogeneously mixed by variable‑speed agitator blades. The jacket enables electric heating or cooling with customizable temperature setpoints. The heater stops automatically once reaching target temperature and restarts heating when temperature drops below the preset value.
Machine weight
About 2500kg
Product name
Liquid soap /cosmetic paste cream making machine
Capacity
10000L
Material
SUS304/316L
Function
Homogenizing and mixing machine
Driven Type
Steam Heating
Type
Homogenizer and mixing, Heating, Emulsifier
Advantage
Customized
Details Images

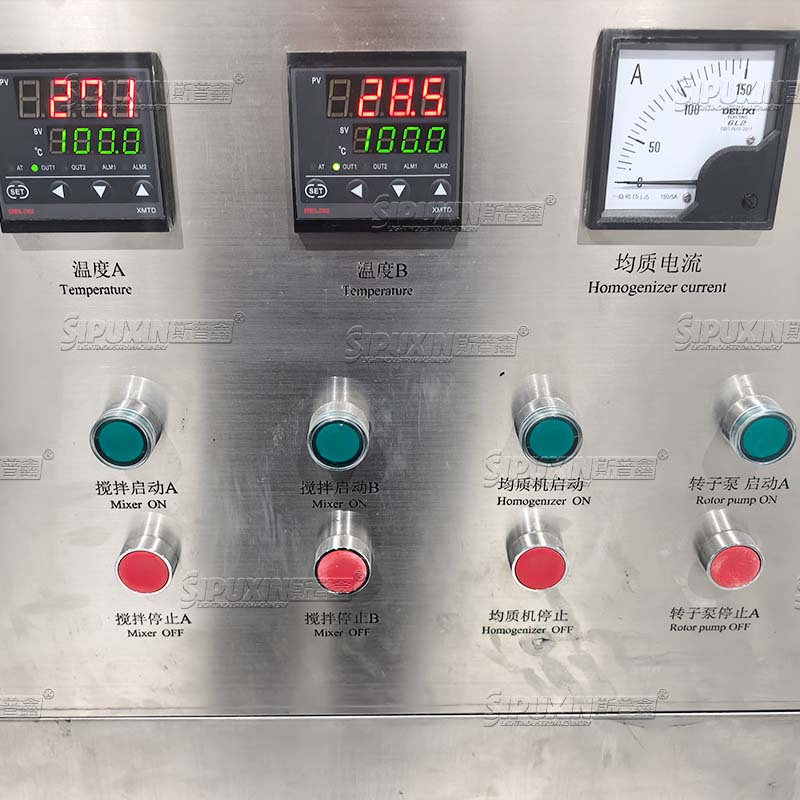

Botton control pannel
The control panel convenient for the operator to operate various functions, adjustable frequency, quick start, and immediate stop, which is very sensitive.

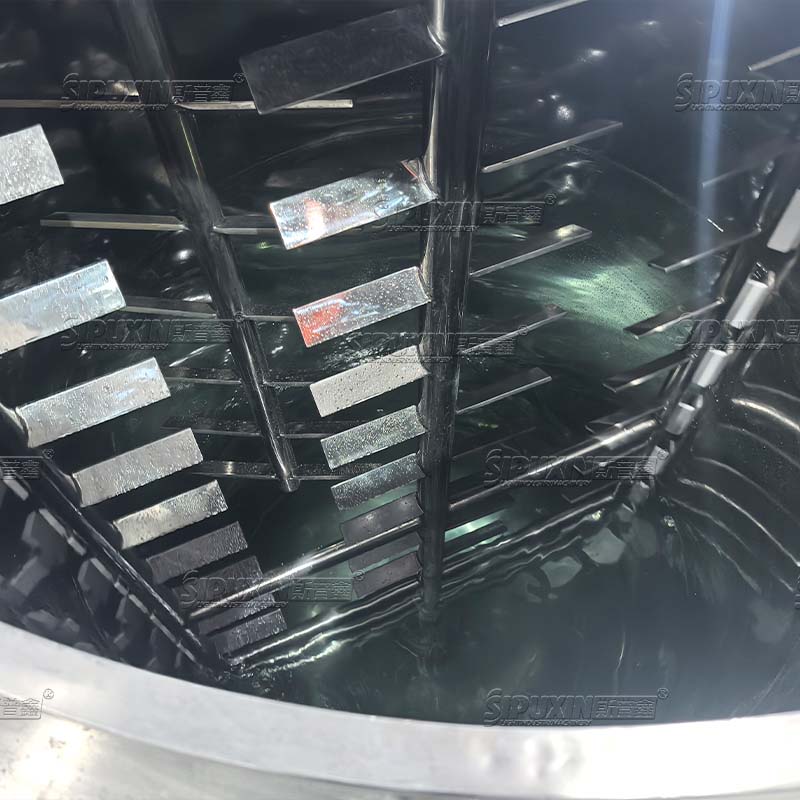

Mixing system
the mixing system consists of inter fix paddle,scrapper mixer and clockwise direction blender,which the retation speed can reach 63 times per minute.and the perfect mixing result increase the mixing efficiency and performance,as well as heating efficiency.

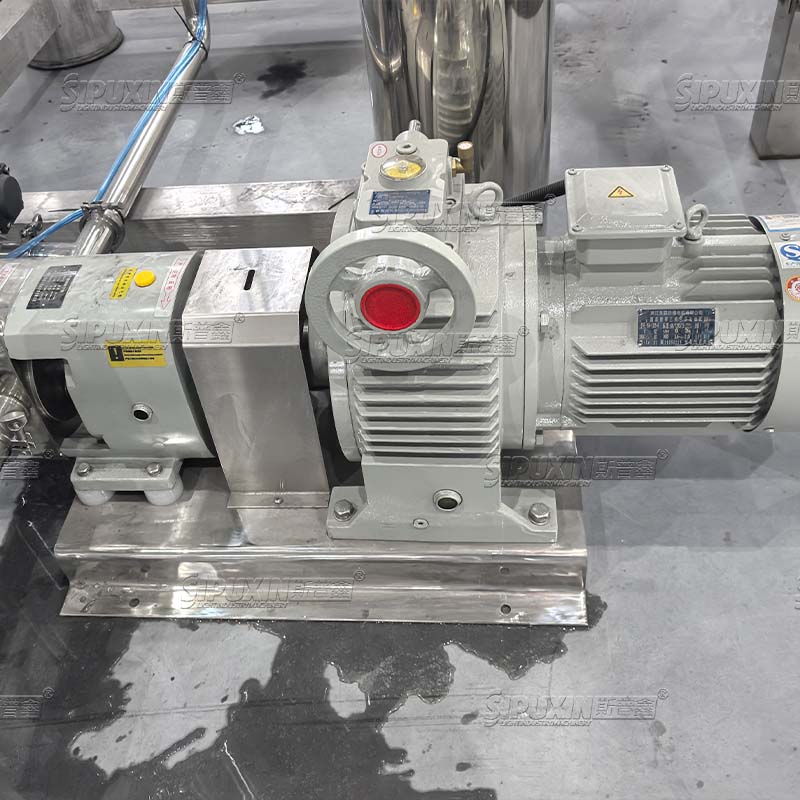

Rotary pump
This rotary pump delivers low‑pulsation, low‑shear transfer for high‑viscosity and particle‑included materials. Quick‑disassembly structure supports fast cleaning & maintenance. Equipped with dependable mechanical seal against leakage. Frequency‑convertible speed for adjustable flow, widely applied in cosmetic, food and chemical production.

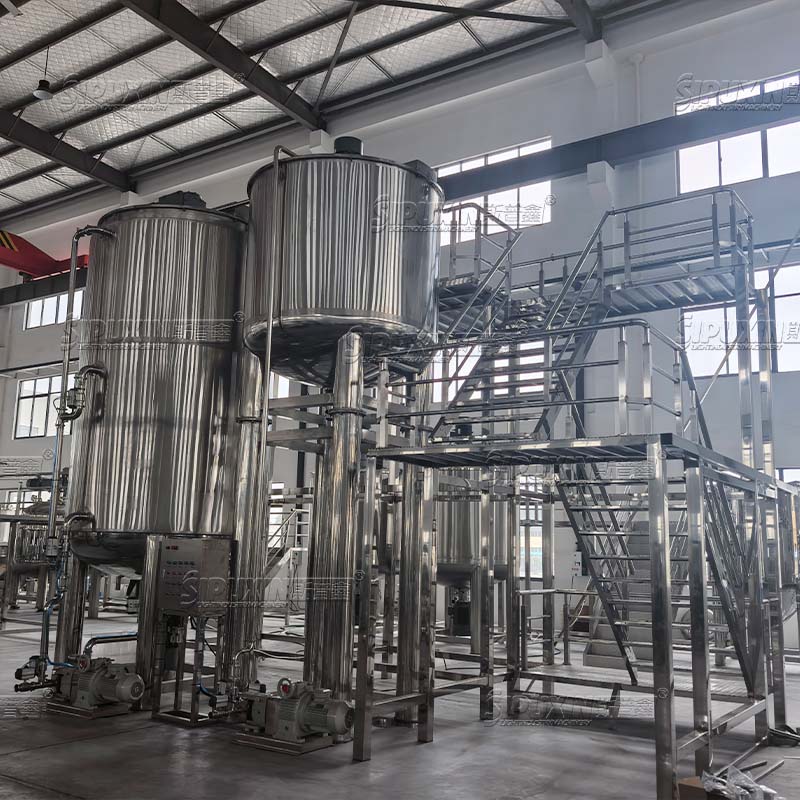

Operating Platform
motor
Use safe,non-slip oilproot and waterproot operating platform to protect the safety of workers. To ensure that workers have access to the tank for easy handling and dumping of materials.
