100L Hydraulic Lifting Vacuum Emulsifier Machine With Oil‑Water Pot

100L hydraulic lifting vacuum homogenizing emulsifier equipped with independent oil‑water pots. SUS316L wetted parts, GMP compliant, PLC control, ideal for medium‑batch production of cosmetic creams, lotions, ointments and mayonnaise.

Core Components:	Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Material:	SUS304, SUS316L
Product Type:	Cosmetic , chemical , food , liquid soap
Heating method:	Electric / Steam
Dimension(LWH):	Custom Made
Package Type::	wooden case wooden case
Place of Origin:	Guangdong, ChinaGuangdong, China
Availability:

Quantity:



Inquire Add to Basket

Model:
SZR
Brand:
SPX

Product Description

Products overview

This 100L hydraulic lifting vacuum homogenizing emulsifier is a medium‑batch production machine designed for cosmetic, pharmaceutical and food industries. Equipped with independent oil‑phase and water‑phase pots, it supports complete raw material pre‑melting, dissolving, vacuum emulsifying, homogenizing and defoaming in one integrated system.

Adopting hydraulic lifting structure, the upper mixing and homogenizing unit can be lifted entirely, making tank cleaning, internal inspection and manual feeding much easier and avoiding cross‑batch contamination. The machine is fitted with a wall scraping agitator and high‑shear bottom homogenizer, ensuring uniform mixing and fine emulsification even for medium and high viscosity materials.

All material contact parts are made of SUS316L stainless steel with mirror polishing to meet GMP hygiene standards. With intelligent PLC touch screen control, users can precisely adjust temperature, stirring speed, homogenizing time and vacuum degree.

Ideal for producing facial cream, body lotion, ointment, paste, serum and mayonnaise. Compact structure, stable operation and easy maintenance make it the best choice for factory medium batch production.

More pics for your reference

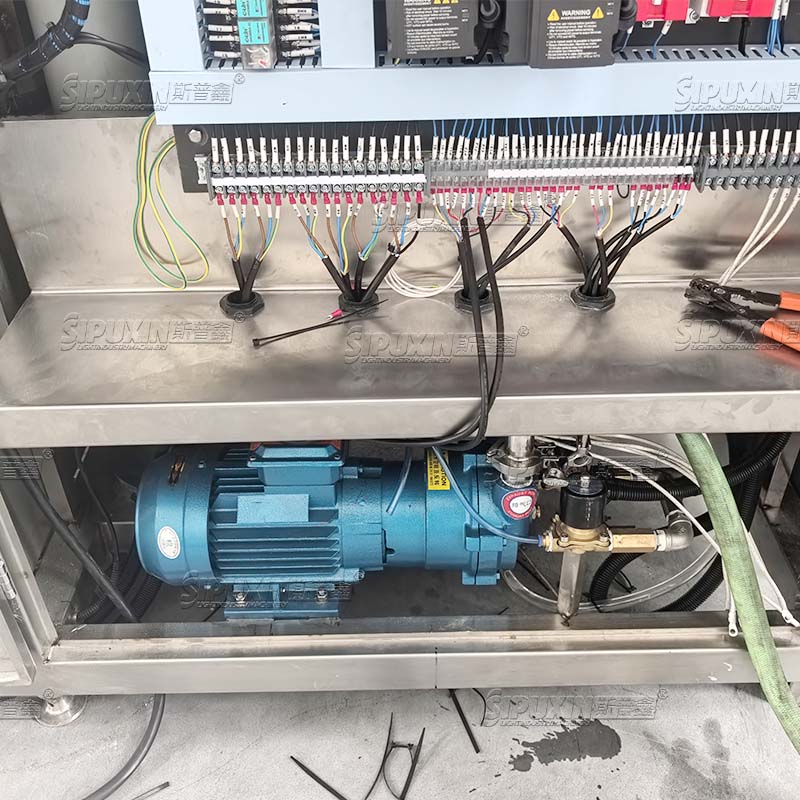

Vacuum pump

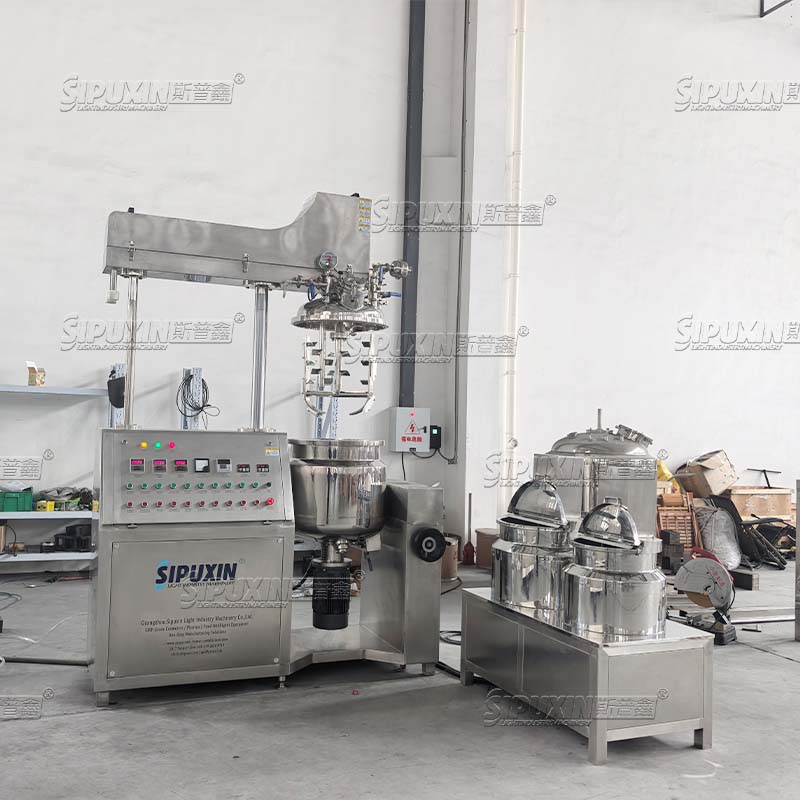

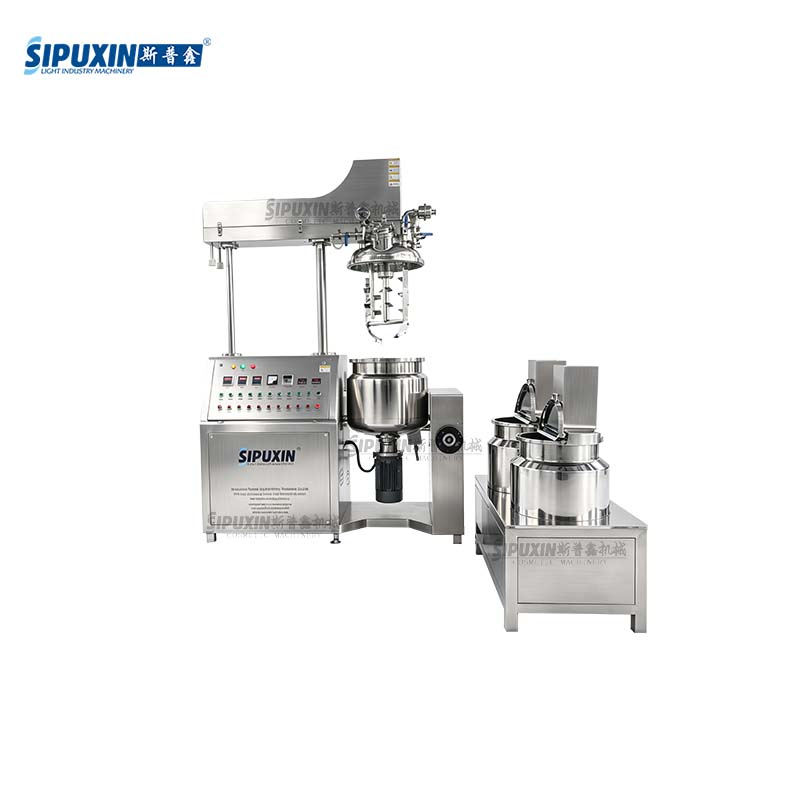

100L vacuum emulsifier mixer whole set

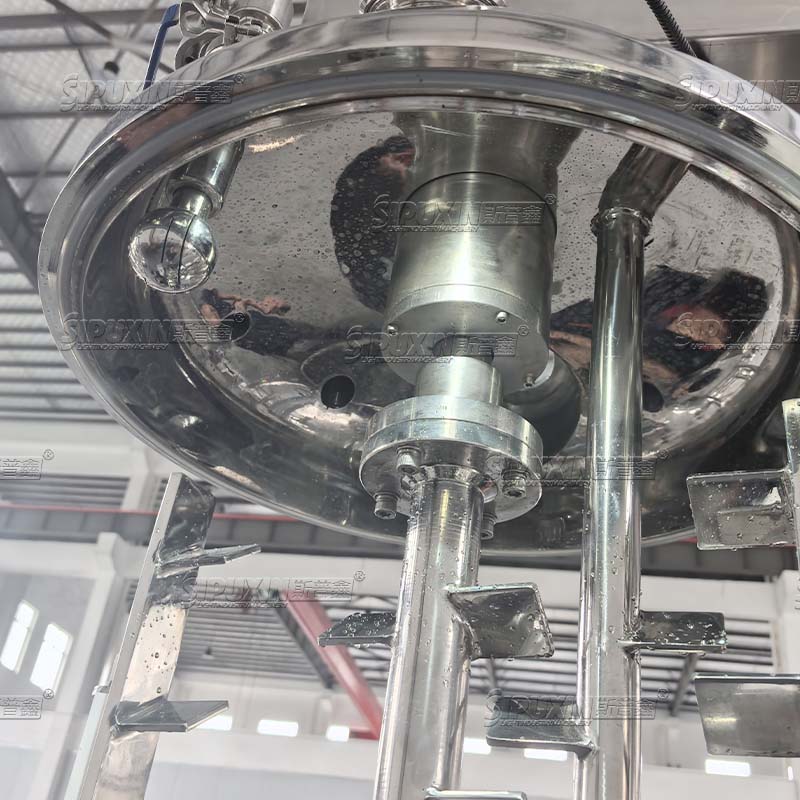

Agitator

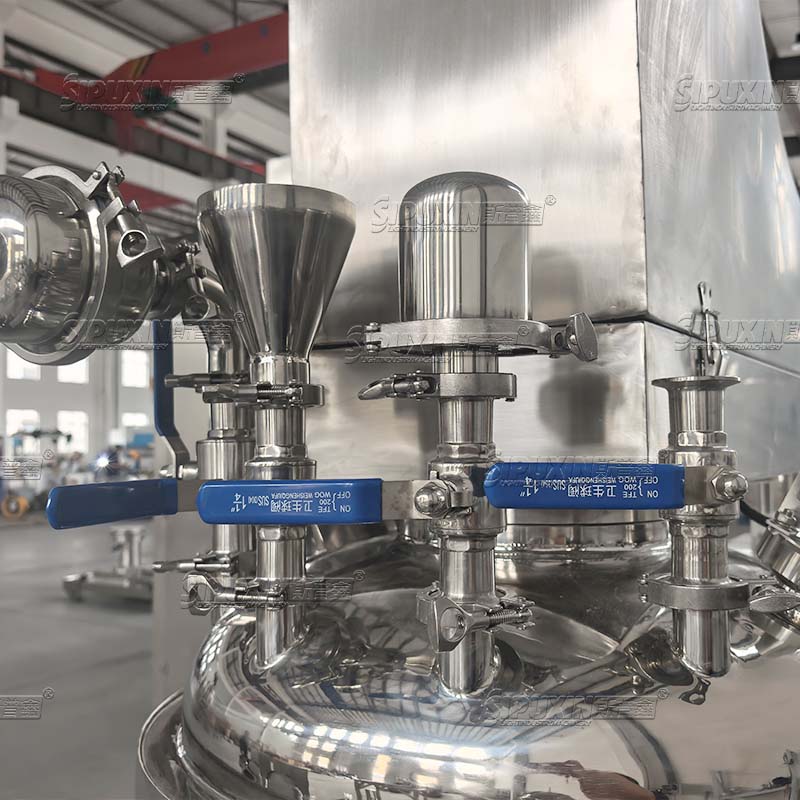

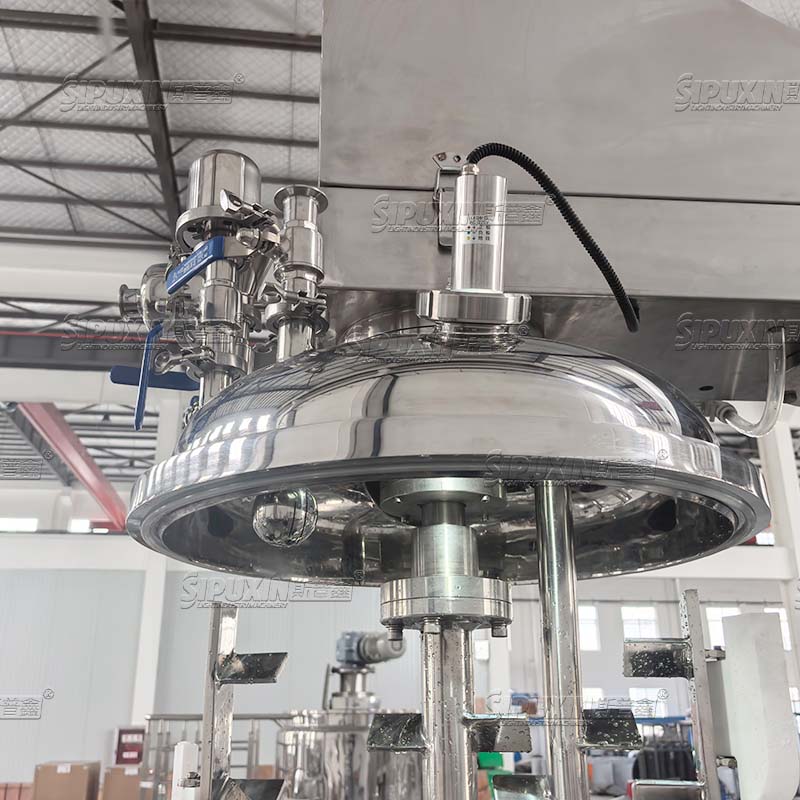

Top lid

— Product Advantages

Hydraulic Lifting Structure：The whole upper mixing assembly can be lifted integrally. Convenient for manual feeding, tank interior inspection and thorough cleaning between batches to prevent cross‑contamination.
Matching Independent Oil‑Water Pots：Separate oil‑phase and water‑phase pots finish raw material melting and dissolving in advance. Automatic material transfer ensures stable emulsification quality and improves production efficiency for medium‑batch runs.
Bottom High‑shear Homogenizer & Wall‑scraping Agitator：Combination of high‑speed homogenization and PTFE wall scraper avoids material sticking on tank wall. Achieves fine particle size and uniform mixing for medium‑high viscosity pastes.
GMP‑grade Sanitary Construction：Wetted components adopt SUS316L stainless steel with mirror polishing, no sanitary dead corners. Food‑grade silicone seals meet cosmetic, pharma and food hygiene requirements.

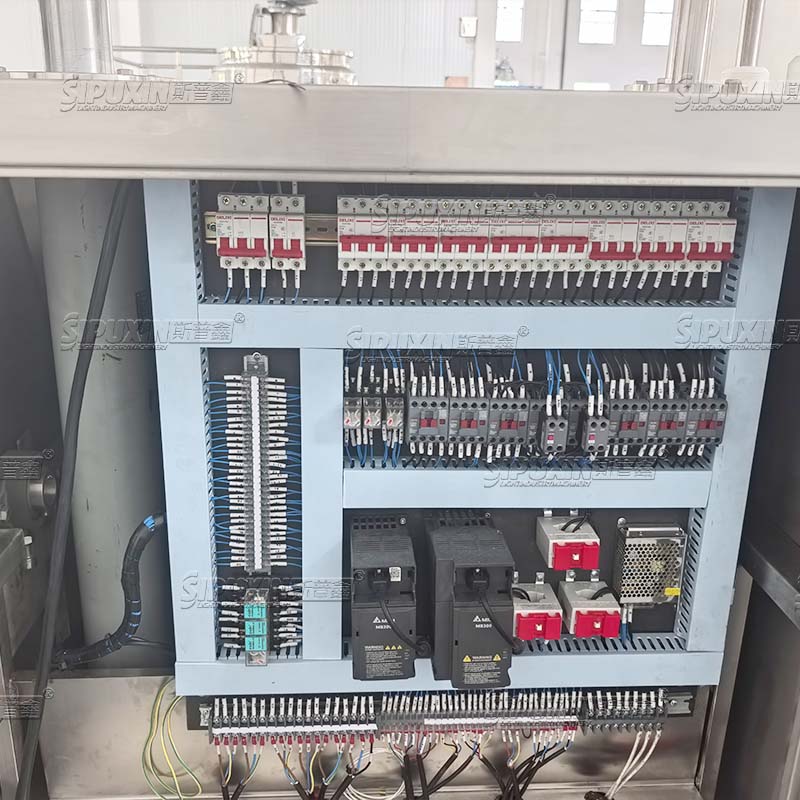

PLC Touch‑screen Automatic Control：Integrated control over heating, cooling, stirring, homogenizing and vacuum defoaming. Easy operation with repeatable production parameters for stable batch‑to‑batch output.
Compact & Practical Medium‑batch Capacity：100L effective volume fits pilot‑to‑medium scale production. Flexible feeding range suits cream, lotion, ointment and mayonnaise manufacturing.
Complete Safety Protection：Equipped with limit switch, over‑temperature and vacuum interlock protection, guaranteeing long‑term stable and safe equipment operation.
About us

Help Customers Success and achieve development with customer.
As a company focused on helping customers succeed and achieve development, we are dedicated to providing high-quality machinery equipment solutions that are tailored to meet your unique needs and specifications. Our range of products includes filling machines, labeling machines, packaging machines, and more.

We pay more attention to every machine's packing and loading, also check carefully before shipping.
All of our machine are packed in ply wooden case, which is safe for shipping.
We take pride in our products and the satisfaction of our customers is our top priority. We are confident that our products will exceed your expectations and we look forward to doing business with you.

FAQ

What is the purpose of the hydraulic lifting structure for the 2000L large tank?

A: The hydraulic lifting system drives the upper stirring and homogenizing assembly to lift integrally. For large-capacity equipment, it completely solves the difficulties of internal tank cleaning, residue inspection, manual feeding and equipment maintenance. After lifting, the operator can fully access the inside of the tank without dead corners, which is convenient for daily maintenance and model replacement cleaning, and effectively avoids cross-contamination of batches.

Is the lifting speed and height adjustable? Is the operation safe?

A: The lifting stroke is professionally customized for the 2000L tank body with stable and fixed lifting and lowering speed. The equipment is equipped with multiple safety protection devices such as limit switches and anti-falling protection. The hydraulic system runs stably with low noise. It is strictly forbidden to lift the upper cover when the tank is in a vacuum state to avoid equipment failure and safety accidents.

What should I do if the hydraulic lifting fails or leaks oil?

A: First cut off the power and stop the operation. Check whether the hydraulic oil level is normal, whether the power circuit of the hydraulic station is faulty, and whether the limit switch is triggered. Oil leakage is mostly caused by aging of the sealing ring, which can be solved by replacing the special hydraulic sealing accessories. It is forbidden to disassemble the hydraulic system privately.
